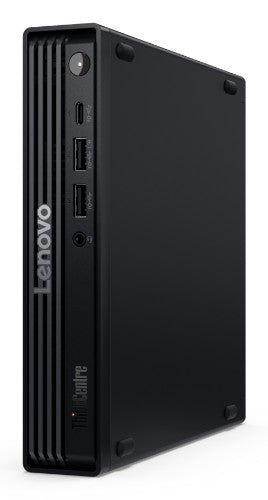

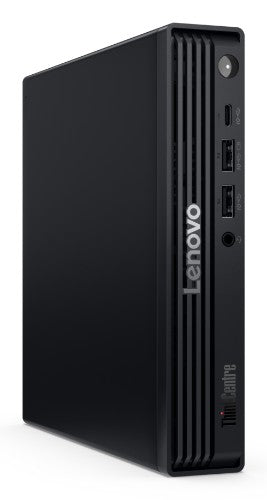

Lenovo ThinkCentre M70q Gen 6 Intel Core Ultra 7 265T 32 GB DDR5-SDRAM 1 TB SSD Windows 11 Pro Mini PC Black
Lenovo ThinkCentre M70q Gen 6 Intel Core Ultra 7 265T 32 GB DDR5-SDRAM 1 TB SSD Windows 11 Pro Mini PC Black
SKU: 13A4000CAU
Availability:
Sold out
10+ in stock
Regular price
$2,854.30
Price:
$2,854.30
Regular price
Taxes included.
IN STOCK AT WAREHOUSE DELIVERY TO STORE 2-4 DAYS.
Couldn't load pickup availability
Intel Core Ultra 7 265T, 20C (8P + 12E)/20T, Max Turbo up to 5.3GHz, 30MB Intel Smart Cache, 2x 16GB SODIMM DDR5-5600, 1TB SSD M.2 2280 PCIe 4.0x4 NVMe Opal, Intel Graphics, Realtek Wi-Fi 7 RTL8922AE 802.11be 2x2+ BT5.4, Windows 11 Pro
PERFORMANCE
Processor Intel® Core Ultra 7 265T, 20C (8P + 12E) / 20T, Max Turbo up to 5.3GHz, 30MB Intel Smart Cache
AI PC Category AI PC
NPU Integrated Intel® AI Boost, up to 13 TOPS
Graphics Integrated Intel® Graphics
Chipset Intel® Q870 Chipset
Memory 2x 16GB SODIMM DDR5-5600
Memory Slots Two DDR5 SODIMM slots, dual-channel capable
Max Memory Up to 64GB (2x 32GB DDR5 SODIMM)
Storage 1TB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal
Max Storage Support Up to two drives, 2x M.2 2280 SSD • M.2 2280 SSD up to 2TB
RAID Preset None
Card Reader No card reader
Optical None
Audio Chip High Definition (HD) Audio, Realtek® ALC233VB or Conexant CX11771 codec
24-bit DAC supports 44.1K/48K/96K sample rate, 2 channel DAC supports 24-bit PCM format
16-bit ADC supports 44.1K/48K/96K sample rate, 2 stereo ADC supports 16-bit PCM format
Speakers 2Wx1
Power Supply 135W 90% Adapter
DESIGN
Keyboard USB Traditional Keyboard, Black, English
Mouse USB Calliope Mouse, Black
Expansion Slots Three M.2 slots (one for WLAN, two for SSD)
Case Color Black
Stand None
Adapter Cage None
Toolless Chassis Screw None
Dust Filter None
Mounting None
IO Box None
Pen Pen Not Supported
Form Factor Tiny (1L)
Dimensions (WxDxH) 179 x 182.9 x 36.5 mm (7.05 x 7.2 x 1.44 inches)
Weight Around 1.18 kg (2.6 lbs)
CONNECTIVITY
WLAN + Bluetooth Realtek® Wi-Fi® 7 RTL8922AE, 802.11be 2x2 + BT5.4
WWAN Non-WWAN
Ethernet Integrated 100/1000M
Front Ports 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), data transfer only
2x USB-A (USB 10Gbps / USB 3.2 Gen 2), one supports Always On and 5V@2.1A charging
1x headphone / microphone combo jack (3.5mm)
Rear Ports 2x USB-A (USB 10Gbps / USB 3.2 Gen 2)
2x USB-A (USB 5Gbps / USB 3.2 Gen 1), one supports Smart Power On
1x HDMI® 2.1 TMDS
1x DisplayPort™ 1.4a (HBR2)
1x Ethernet (GbE RJ-45)
Optional Rear Ports (configured) DP 1.4
SECURITY & PRIVACY
Security Chip Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Fingerprint Reader No fingerprint reader
Physical Locks Kensington® Security Slot™, 3 x 7 mm
Kensington Cable Lock None
Chassis Intrusion Switch Chassis Intrusion Switch
MANAGEABILITY
System Management Non-vPro®
SERVICE
Base Warranty 3-year, Onsite
Included Upgrade None
CERTIFICATIONS
Green Certifications ENERGY STAR® 9.0
RoHS compliant
TCO Certified, generation 10
Mil-Spec Test MIL-STD-810H military test passed (Low Pressure [Altitude], High Temperature, Low Temperature, Temperature Shock, Humidity, Sand and Dust, Vibration, Shock, Solar Radiation, Contamination by Fluids, Salt Fog)
SOFTWARE
Operating System Windows® 11 Pro, English
View full details
Key Features
- Intel Core Ultra 7 265T, 20C (8P + 12E)/20T, Max Turbo up to 5.3GHz, 30MB Intel Smart Cache
- 2x 16GB SODIMM DDR5-5600
- 1TB SSD M.2 2280 PCIe 4.0x4 NVMe Opal
- Intel Graphics
- Windows 11 Pro
Description
LENOVO ThinkCentre M70Q G6 Tiny Intel U7-265T 32GB DDR5 1TB SSD Windows 11 Pro AI NOW 3YR OS Intel UHD GPU Keyboard MousePERFORMANCE
Processor Intel® Core Ultra 7 265T, 20C (8P + 12E) / 20T, Max Turbo up to 5.3GHz, 30MB Intel Smart Cache
AI PC Category AI PC
NPU Integrated Intel® AI Boost, up to 13 TOPS
Graphics Integrated Intel® Graphics
Chipset Intel® Q870 Chipset
Memory 2x 16GB SODIMM DDR5-5600
Memory Slots Two DDR5 SODIMM slots, dual-channel capable
Max Memory Up to 64GB (2x 32GB DDR5 SODIMM)
Storage 1TB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal
Max Storage Support Up to two drives, 2x M.2 2280 SSD • M.2 2280 SSD up to 2TB
RAID Preset None
Card Reader No card reader
Optical None
Audio Chip High Definition (HD) Audio, Realtek® ALC233VB or Conexant CX11771 codec
24-bit DAC supports 44.1K/48K/96K sample rate, 2 channel DAC supports 24-bit PCM format
16-bit ADC supports 44.1K/48K/96K sample rate, 2 stereo ADC supports 16-bit PCM format
Speakers 2Wx1
Power Supply 135W 90% Adapter
DESIGN
Keyboard USB Traditional Keyboard, Black, English
Mouse USB Calliope Mouse, Black
Expansion Slots Three M.2 slots (one for WLAN, two for SSD)
Case Color Black
Stand None
Adapter Cage None
Toolless Chassis Screw None
Dust Filter None
Mounting None
IO Box None
Pen Pen Not Supported
Form Factor Tiny (1L)
Dimensions (WxDxH) 179 x 182.9 x 36.5 mm (7.05 x 7.2 x 1.44 inches)
Weight Around 1.18 kg (2.6 lbs)
CONNECTIVITY
WLAN + Bluetooth Realtek® Wi-Fi® 7 RTL8922AE, 802.11be 2x2 + BT5.4
WWAN Non-WWAN
Ethernet Integrated 100/1000M
Front Ports 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), data transfer only
2x USB-A (USB 10Gbps / USB 3.2 Gen 2), one supports Always On and 5V@2.1A charging
1x headphone / microphone combo jack (3.5mm)
Rear Ports 2x USB-A (USB 10Gbps / USB 3.2 Gen 2)
2x USB-A (USB 5Gbps / USB 3.2 Gen 1), one supports Smart Power On
1x HDMI® 2.1 TMDS
1x DisplayPort™ 1.4a (HBR2)
1x Ethernet (GbE RJ-45)
Optional Rear Ports (configured) DP 1.4
SECURITY & PRIVACY
Security Chip Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Fingerprint Reader No fingerprint reader
Physical Locks Kensington® Security Slot™, 3 x 7 mm
Kensington Cable Lock None
Chassis Intrusion Switch Chassis Intrusion Switch
MANAGEABILITY
System Management Non-vPro®
SERVICE
Base Warranty 3-year, Onsite
Included Upgrade None
CERTIFICATIONS
Green Certifications ENERGY STAR® 9.0
RoHS compliant
TCO Certified, generation 10
Mil-Spec Test MIL-STD-810H military test passed (Low Pressure [Altitude], High Temperature, Low Temperature, Temperature Shock, Humidity, Sand and Dust, Vibration, Shock, Solar Radiation, Contamination by Fluids, Salt Fog)
SOFTWARE
Operating System Windows® 11 Pro, English
Specifications
| Processor | |
|---|---|
| Processor family | Intel Core Ultra 7 |
| Processor manufacturer | Intel |
| Processor model | 265T |
| Processor cores | 20 |
| Processor threads | 20 |
| Memory | |
| Internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| Maximum internal memory | 64 GB |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 5600 MHz |
| Storage | |
| Total storage capacity | 1 TB |
| Optical drive type | No |
| Card reader integrated | No |
| Storage media | SSD |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| Total SSDs capacity | 1 TB |
| NVMe | Yes |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card family | Intel® Graphics |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® Graphics |
| On-board graphics card | Yes |
| On-board GPU manufacturer | Intel |
| Performance | |
| Product type | Mini PC |
| Motherboard chipset | Intel® Q870 |
| Trusted Platform Module (TPM) | Yes |
| Audio chip | Realtek ALC233VB |
| Number of speakers | 1 |
| Audio system | High Definition Audio |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Antenna type | 2x2 |
| Ports & interfaces | |
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Thunderbolt 3 ports quantity | 0 |
| USB 2.0 ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power supply | 135 W |
| Design | |
| Product colour | Black |
| Volume | 1 L |
| Chassis type | Mini PC |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Software | |
| Operating system installed | Windows 11 Pro |
| Bundled software | Lenovo AI Now |
| Operating system language | English |
| Audio | |
| Audio chip | Realtek ALC233VB |
| Number of speakers | 1 |
| Audio system | High Definition Audio |
| Weight & dimensions | |
| Volume | 1 L |
| Width | 179 mm |
| Depth | 182.9 mm |
| Height | 36.5 mm |
| Weight | 1.18 kg |
| Packaging content | |
| Mouse included | Yes |
| Keyboard included | Yes |
| Mouse connectivity | Wired |
| Bundled software | Lenovo AI Now |
| Keyboard connectivity | Wired |
| Certificates | |
| Certification | ENERGY STAR,TCO,RoHS |
| Keyboard | |
| Keyboard connectivity | Wired |
| Other features | |
| Number of speakers | 1 |
| Processor manufacturer | Intel |
| Trusted Platform Module (TPM) | Yes |
| On-board graphics card | Yes |
