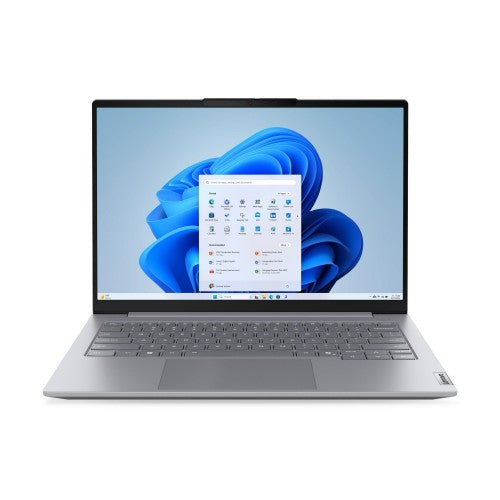

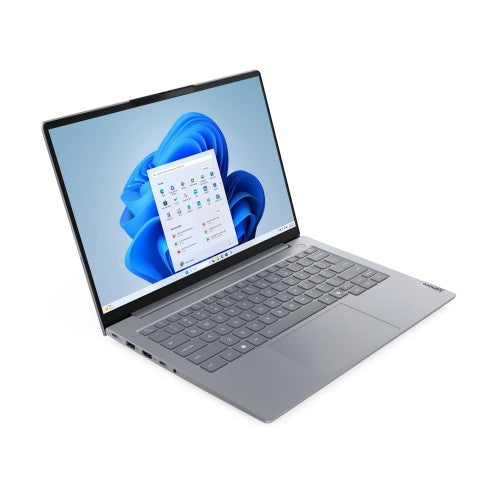

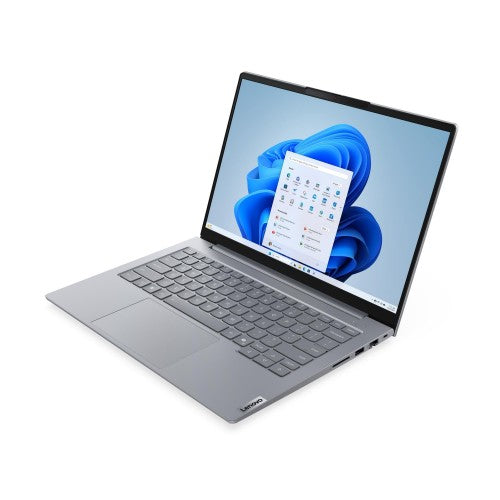

Lenovo ThinkBook 14 G9 IRL Intel Core 5 210H Laptop 35.6 cm (14") WUXGA 16 GB DDR5-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) Windows 11 Pro Grey

Intel Core 5 210H, 8C (4P + 4E)/12T, P-core 2.2/4.8GHz, E-core 1.6/3.6GHz, 12MB Intel Smart Cache, 2x 8GB SODIMM DDR5-5600, 512GB SSD M.2 2242 PCIe 4.0x4 NVMe, 14" WUXGA (1920x1200) IPS 400nits 45% NTSC, Intel Graphics, Intel Wi-Fi 6E AX211 802.11ax 2x2 + BT5.3, Windows 11 Pro

Key Features

• Intel Core 5 210H, 8C (4P + 4E)/12T, P-core 2.2/4.8GHz, E-core 1.6/3.6GHz, 12MB Intel Smart Cache
• 14" WUXGA (1920x1200) IPS 400nits 45% NTSC
• 2x 8GB SODIMM DDR5-5600
• 512GB SSD M.2 2242 PCIe 4.0x4 NVMe
• Intel Graphics
• Windows 11 Pro

Description

LENOVO ThinkBook 14 G9 14' WUXGA Intel Core 5‑210H 16GB DDR5 512GB SSD Windows 11 PRO Intel GPU Thunderbolt Fingerprint 1YROS 1.3kg

PERFORMANCE
Processor Intel Core™ 5 210H, 8C (4P + 4E) / 12T, P-core 2.2 / 4.8GHz, E-core 1.6 / 3.6GHz, 12MB Intel® Smart Cache
AI PC Category Non-AI PC
NPU None
Graphics Integrated Intel® Graphics
Chipset Intel® SoC Platform
Memory 2x 8GB SODIMM DDR5-5600
Memory Slots Two DDR5 SODIMM slots, dual-channel capable
Max Memory Up to 64GB DDR5-5600
Storage 512GB SSD M.2 2242 PCIe® 4.0x4 NVMe®
Storage Slot Two M.2 slots • One M.2 2242 PCIe® 4.0 x4 slot • One M.2 2280 PCIe® 4.0 x4 slot
Max Storage Support Up to two drives, 2x M.2 SSD • M.2 2242 SSD up to 2TB • M.2 2280 SSD up to 2TB
Card Reader SD Card Reader
Audio Chip High Definition (HD) Audio, Realtek® ALC3287 codec
Speakers Stereo speakers, 2W x2, Dolby Audio™
Microphone 2x, Array
Camera FHD 1080p + IR Hybrid with Privacy Shutter
Battery 48Wh
Power Adapter 65W USB-C® (3-pin)
Special Features Modern Standby
DESIGN
Display 14' WUXGA (1920x1200) IPS 400nits Anti-glare, 45% NTSC
Touchscreen None
Screen-to-Body Ratio 90%
Color Calibration No Color Calibration
Pen Pen Not Supported
Keyboard Backlit, English
Touchpad Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches)
Dimensions (WxDxH) 313.5 x 224 x 17.5 mm (12.34 x 8.82 x 0.69 inches)
Weight Starting at 1.36 kg (2.99 lbs)
Case Color Arctic Grey
Case Material Aluminium (Top), PC-ABS (Bottom)
Surface Treatment Anodizing Sandblasting (Top), Texture (Bottom)
SOFTWARE
Operating System Windows® 11 Pro, English (US) / English (UK)
Bundled Software Office Trial
CONNECTIVITY
WLAN + Bluetooth Intel® Wi-Fi® 6E AX211, 802.11ax 2x2 + BT5.3
WWAN WWAN Not Supported
Ethernet 100/1000M (RJ-45)
Standard Ports 1x USB-A (USB 5Gbps), Always On
1x USB-A (USB 5Gbps)
1x USB-C® (USB 10Gbps), with USB PD 45-65W and DisplayPort™ 1.4
1x Thunderbolt™ 4, with USB PD 45-65W and DisplayPort™ 1.4
1x HDMI® 2.1, up to 4K/60Hz
1x Headphone / microphone combo jack (3.5mm)
1x Ethernet (RJ-45)
1x SD card reader
Docking Various docking solutions supported via Thunderbolt™ or USB-C®. For more compatible docking solutions, please visit Docking for ThinkBook® 14 G9 IRL
SECURITY & PRIVACY
Security Chip Discrete TPM 2.0 Enabled
Physical Locks Kensington Nano Security Slot™, 2.5 x 6 mm
Fingerprint Reader Touch Style, Match-on-Chip, Integrated in Power Button
Other Security Camera privacy shutter
IR camera for Windows® Hello (facial recognition)
MANAGEABILITY
System Management Non-vPro®
Included Upgrade 1Y Onsite

Specifications

Design
Colour name	Arctic Grey
Product type	Laptop
Product colour	Grey
Form factor	Clamshell
Housing material	Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)
Display back cover material	Aluminium
Display
HD type	WUXGA
Display diagonal	35.6 cm (14")
Display resolution	1920 x 1200 pixels
Touchscreen	No
LED backlight	Yes
Display brightness	400 cd/m²
Panel type	IPS
Anti-glare screen	Yes
RGB colour space	NTSC
Colour gamut	45%
Native aspect ratio	16:10
Processor
Processor frequency	2.2 GHz
Processor family	Intel Core 5
Processor model	210H
Processor boost frequency	4.8 GHz
Processor cores	8
Processor threads	12
Motherboard chipset	Intel SoC
Processor manufacturer	Intel
Memory
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	5600 MHz
Memory layout (slots x size)	2 x 8 GB
Memory slots	2x SO-DIMM
Maximum internal memory	64 GB
Memory form factor	SO-DIMM
Storage
SSD form factor	M.2
Optical drive type	No
Total storage capacity	512 GB
Storage media	SSD
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
Card reader integrated	Yes
Compatible memory cards	SD
Total SSDs capacity	512 GB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card family	Intel® Graphics
On-board graphics card model	Intel® Graphics
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board GPU manufacturer	Intel
Audio
Audio chip	Realtek ALC3287
Number of microphones	2
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Camera
Front camera	Yes
Front camera resolution	1920 x 1080 pixels
Privacy camera	Yes
Privacy type	Privacy shutter
Front camera HD type	Full HD
Infrared (IR) camera	Yes
Windows Hello	Yes
Optical drive
Optical drive type	No
Network
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211
Bluetooth	Yes
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Bluetooth version	5.3
WWAN	Not installed
Antenna type	2x2
WLAN controller manufacturer	Intel
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 2.0 ports quantity	0
HDMI ports quantity	1
HDMI version	2.1
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
USB Sleep-and-Charge	Yes
USB Power Delivery (USB PD)	Yes
Thunderbolt 4 ports quantity	1
Intel® Thunderbolt 4	Yes
Performance
Motherboard chipset	Intel SoC
Keyboard
Pointing device	Touchpad
Numeric keypad	No
Keyboard backlit	Yes
Software
Operating system installed	Windows 11 Pro
Trial software	Office
Battery
Battery capacity	48 Wh
Power
AC adapter power	65 W
USB Power Delivery (USB PD)	Yes
USB Type-C charging port	Yes
USB Type-C required charging power (min)	45 W
USB Type-C required charging power (max)	65 W
Security
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
Windows Hello	Yes
Trusted Platform Module (TPM) version	2.0
Certificates
Certification	ENERGY STAR,TCO,EPEAT Gold,RoHS
Weight & dimensions
Weight	1.36 kg
Width	313.5 mm
Depth	224 mm
Height	17.5 mm
Packaging data
AC adapter included	Yes
Packaging content
AC adapter included	Yes
Other features
WLAN controller model	Intel Wi-Fi 6E AX211
On-board graphics card	Yes
AC adapter included	Yes
Anti-glare screen	Yes
