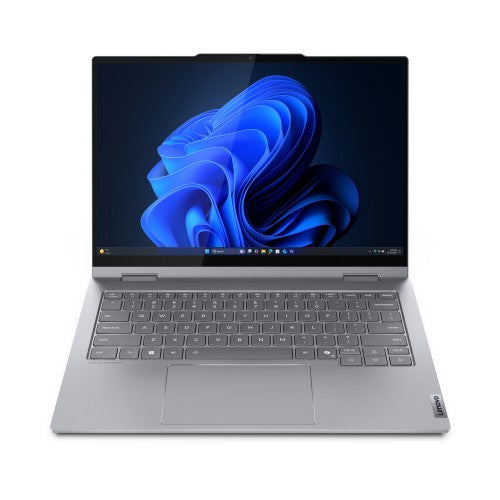

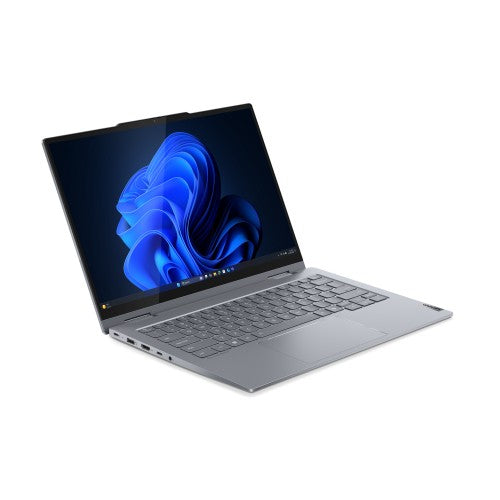

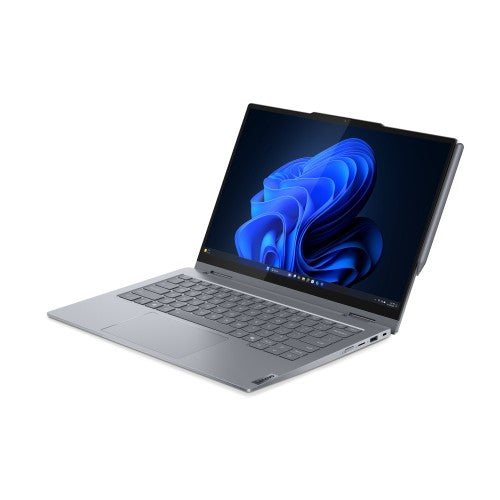

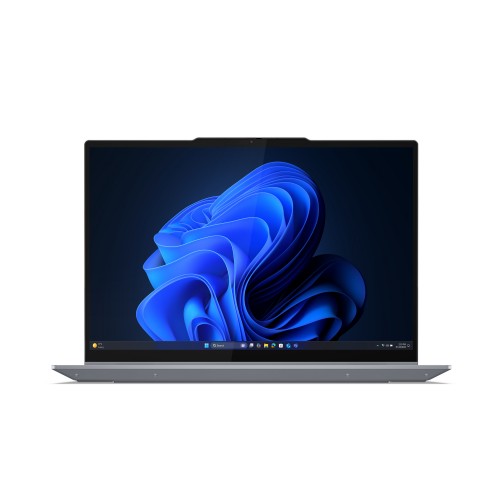

Lenovo ThinkBook 14 2-in-1 G5 IAU Intel Core Ultra 5 225U Hybrid (2-in-1) 35.6 cm (14") Touchscreen WUXGA 32 GB DDR5-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) Windows 11 Pro Grey

Intel Core Ultra 5 225U, 12C (2P + 8E + 2LPE)/14T, Max Turbo up to 4.8GHz, 12MB Intel Smart Cache, 2x 16GB SODIMM DDR5-5600, 512GB SSD M.2 2242 PCIe 4.0x4 NVMe, 14" WUXGA (1920x1200) IPS 300nits Glossy / Anti-fingerprint 100% sRGB Corning Gorilla Glass Touch, Intel Graphics, Wi-Fi 6E 802.11ax 2x2 + BT5.3, Windows 11 Pro

Key Features

• Intel Core Ultra 5 225U, 12C (2P + 8E + 2LPE)/14T, Max Turbo up to 4.8GHz, 12MB Intel Smart Cache
• 14" WUXGA (1920x1200) IPS 300nits Glossy / Anti-fingerprint 100% sRGB Corning Gorilla Glass Touch
• 2x 16GB SODIMM DDR5-5600
• 512GB SSD M.2 2242 PCIe 4.0x4 NVMe
• Intel Graphics
• Windows 11 Pro

Description

LENOVO ThinkBook 14 Yoga G5 14' WUXGA TOUCH Intel U5-225U 32GB DDR5 512GB SSD Windows 11 PRO Intel Graphics Thunderbolt Fingerprint 1YR OS 1.6kg ~i5

PERFORMANCE
Processor Intel® Core™ Ultra 5 225U, 12C (2P + 8E + 2LPE) / 14T, Max Turbo up to 4.8GHz, 12MB
AI PC Category AI PC
NPU Integrated Intel® AI Boost, up to 12 TOPS
Graphics Integrated Intel® Graphics
Chipset Intel® SoC Platform
Memory 2x 16GB SO-DIMM DDR5-5600
Memory Slots Two DDR5 SO-DIMM slots, dual-channel capable
Max Memory Up to 32GB DDR5-5600 offering
Storage 512GB SSD M.2 2242 PCIe® 4.0x4 NVMe®
Storage Support Up to two drives, 2x M.2 SSD • M.2 2280 SSD up to 2TB each
Storage Slot Two M.2 2280 PCIe® 4.0 x4 slots
Card Reader microSD Card Reader
Audio Chip High Definition (HD) Audio, Realtek® ALC3287 codec
Speakers Stereo speakers, 2W x2, Dolby Atmos®, audio by HARMAN
Camera FHD 1080p + IR Hybrid with Privacy Shutter
Microphone 2x, Array
Battery Integrated 60Wh
Power Adapter 65W USB-C® (3-pin)
Special Features Modern Standby
DESIGN
Display 14' WUXGA (1920x1200) IPS 300nits Glossy / Anti-fingerprint, 100% sRGB, Corning® Gorilla® Glass, Touch
Touchscreen OGM, 10-point Multi-touch
Keyboard Backlit, English
Touchpad Buttonless glass-like Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches)
Case Color Luna Grey
Surface Treatment Anodizing Sandblasting
Case Material Aluminium (Top), Aluminium (Bottom)
Pen Lenovo® Yoga® Pen
Dimensions (WxDxH) 313 x 224 x 16.9-18.5 mm (12.32 x 8.82 x 0.67-0.73 inches)
Weight Starting at 1.64 kg (3.62 lbs)
SOFTWARE
Operating System Windows® 11 Pro, English (US) / English (UK)
Bundled Software Office Trial
CONNECTIVITY
Ethernet No Onboard Ethernet
WLAN + Bluetooth Wi-Fi® 6E, 802.11ax 2x2 + BT5.3
WWAN Non-WWAN
Standard Ports 1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On
1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with USB PD 3.0 and DisplayPort™ 1.4
1x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with USB PD 3.0 and DisplayPort™ 1.4
1x HDMI® 2.1, up to 4K/60Hz
1x Headphone / microphone combo jack (3.5mm)
1x microSD card reader
Docking Various docking solutions supported via Thunderbolt™ or USB-C®. For more compatible docking solutions, please visit Docking for ThinkBook® 14 2-in-1 G5 IAU
SECURITY & PRIVACY
Security Chip Discrete TPM 2.0 Enabled
Fingerprint Reader Touch Style, Match-on-Chip, Integrated in Power Button
Physical Locks Kensington® Nano Security Slot™, 2.5 x 6 mm
Other Security Camera privacy shutter
IR camera for Windows® Hello (facial recognition)
SERVICE
Base Warranty 1-year, Courier or Carry-in
Included Upgrade 1Y Onsite upgrade from 1Y Courier/Carry-in
ACCESSORIES
Bundled Accessories None
CERTIFICATIONS
Green Certifications ENERGY STAR® 8.0
EPEAT™ Gold Registered
ErP Lot 6/26
RoHS compliant
TCO Certified 10.0
Other Certifications Eyesafe® Certified 2.0
TÜV Rheinland® Low Blue Light (Hardware Solution)
Mil-Spec Test MIL-STD-810H military test passed

Specifications

Design
Colour name	Luna Grey
Product type	Hybrid (2-in-1)
Product colour	Grey
Form factor	Convertible (Folder)
Housing material	Aluminium
Display back cover material	Aluminium
Display
HD type	WUXGA
Display diagonal	35.6 cm (14")
Display resolution	1920 x 1200 pixels
Touchscreen	Yes
LED backlight	Yes
Display surface	Gloss
Display brightness	300 cd/m²
Panel type	IPS
RGB colour space	sRGB
Colour gamut	100%
Native aspect ratio	16:10
Processor
Processor family	Intel Core Ultra 5
Processor model	225U
Processor cores	12
Processor threads	14
Motherboard chipset	Intel SoC
Processor manufacturer	Intel
Memory
Internal memory	32 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	5600 MHz
Memory layout (slots x size)	2 x 16 GB
Memory slots	2x SO-DIMM
Maximum internal memory	32 GB
Memory form factor	SO-DIMM
Storage
SSD form factor	M.2
Optical drive type	No
Total storage capacity	512 GB
Storage media	SSD
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Total SSDs capacity	512 GB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card family	Intel® Graphics
On-board graphics card model	Intel® Graphics
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board GPU manufacturer	Intel
Audio
Audio chip	Realtek ALC3287
Number of microphones	2
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Camera
Front camera	Yes
Front camera resolution	1920 x 1080 pixels
Privacy camera	Yes
Privacy type	Privacy shutter
Front camera HD type	Full HD
Infrared (IR) camera	Yes
Windows Hello	Yes
Optical drive
Optical drive type	No
Network
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Bluetooth	Yes
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Ethernet LAN	No
Bluetooth version	5.3
WWAN	Not installed
Antenna type	2x2
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 2.0 ports quantity	0
HDMI ports quantity	1
HDMI version	2.1
Combo headphone/mic port	Yes
USB Sleep-and-Charge	Yes
USB Power Delivery (USB PD)	Yes
Thunderbolt 4 ports quantity	1
Intel® Thunderbolt 4	Yes
Performance
Motherboard chipset	Intel SoC
Keyboard
Pointing device	Touchpad
Numeric keypad	No
Keyboard backlit	Yes
Software
Operating system installed	Windows 11 Pro
Trial software	Office
Battery
Battery capacity	60 Wh
Power
AC adapter power	65 W
USB Power Delivery (USB PD)	Yes
USB Type-C charging port	Yes
USB Type-C required charging power (min)	45 W
USB Type-C required charging power (max)	65 W
Security
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
Windows Hello	Yes
Trusted Platform Module (TPM) version	2.0
Certificates
Certification	ENERGY STAR,TCO,EPEAT Gold,RoHS
Weight & dimensions
Weight	1.64 kg
Width	313 mm
Depth	224 mm
Height (front)	1.69 cm
Height (rear)	1.85 cm
Packaging data
AC adapter included	Yes
Packaging content
AC adapter included	Yes
Other features
On-board graphics card	Yes
AC adapter included	Yes
