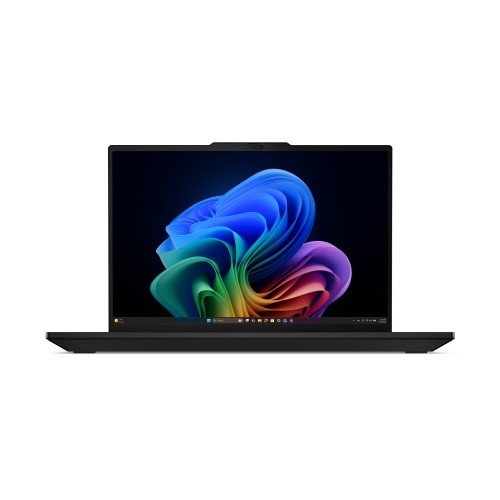

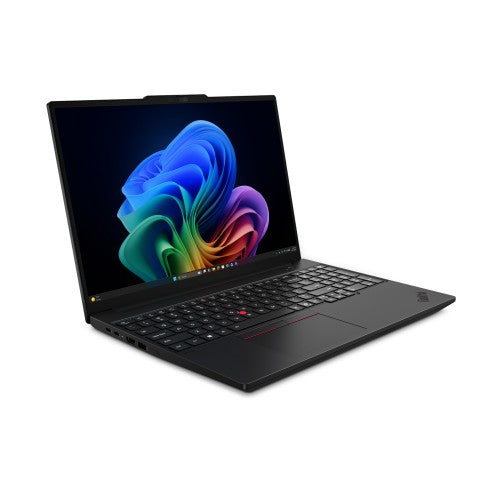

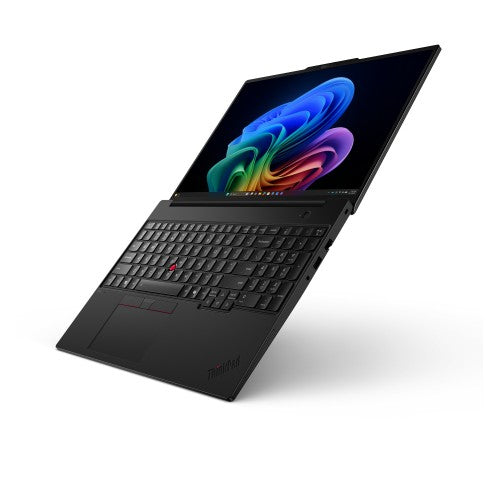

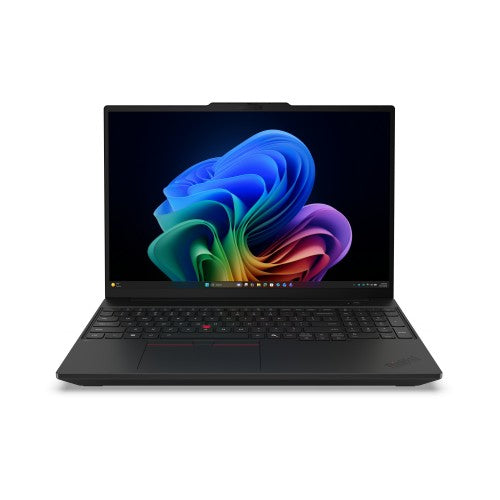

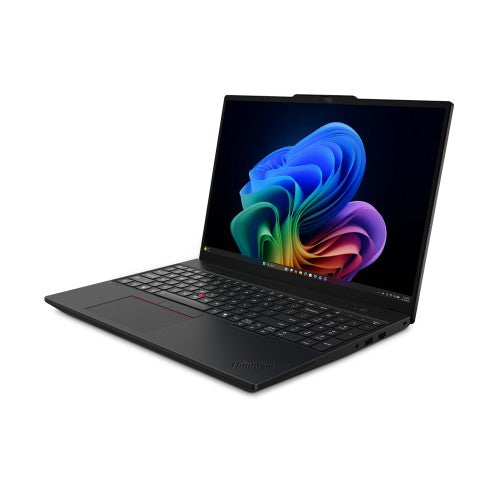

Lenovo ThinkPad T16 Gen 5 (AMD) Copilot+ PC AMD Ryzen AI 5 PRO PRO 440 Laptop 40.6 cm (16") WUXGA 32 GB DDR5-SDRAM 512 GB SSD Wi-Fi 7 (802.11be) Windows 11 Pro English Black

AMD Ryzen AI 5 PRO 440 (2GHz), 32GB DDR5-SDRAM, 512GB SSD, 16" WUXGA 1920 x 1200 IPS, AMD Radeon 840M, LAN, WLAN, Webcam, Windows 11 Pro

Key Features

• Windows 11 Pro
• AMD Ryzen AI 5 PRO 440 (2GHz)
• 16" WUXGA 1920 x 1200 IPS
• 32GB (5600MHz) DDR5-SDRAM (2 x 16) & 512GB SSD

Description

LENOVO ThinkPad T16 G5 16' WUXGA AMD Ryzen PRO 5‑440 32GB DDR5 512GB SSD WIN 11 PRO Radeon 840M GPU Copilot+ PC 50 TOPS 3yr PREM 1.6kg

PERFORMANCE
Processor AMD Ryzen™ AI 5 PRO 440 (6C / 12T, 2.0 / 4.8GHz, 6MB L2 / 16MB L3)
AI PC Category Copilot+ PC
NPU Integrated AMD Ryzen™ AI, up to 50 TOPS
Graphics Integrated AMD Radeon™ 840M Graphics
Chipset AMD SoC Platform
Memory 2x 16GB SODIMM DDR5-5600
Memory Slots Two DDR5 SODIMM slots, dual-channel capable
Max Memory Gorgon Point: up to 96GB DDR5-5600
Storage 512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0
Storage Slot One M.2 2280 PCIe® 4.0 x4 slot
Max Storage Support Gorgon Point: one drive, up to 2TB M.2 2280 SSD
Optical None
Card Reader No Card Reader
Audio Chip High Definition (HD) Audio, Realtek® ALC3287 codec
Speakers Stereo speakers, 2W x2, Dolby Atmos®
Microphone 2x, 360°
Camera 5.0MP + IR Discrete with Privacy Shutter
Battery 60Wh
Power Adapter 65W USB-C® (3-pin)
DESIGN
Display 16' WUXGA (1920x1200) IPS 400nits Anti-glare, 45% NTSC, 60Hz, DBEF5
Touchscreen None
Screen-to-Body Ratio 88.85%
Pen Pen Not Supported
Keyboard Backlit, English
Dimensions (WxDxH) 357.9 x 247.9 x 11.45 / 18.2 (front / rear), 23.8 (maximum) mm 14.09 x 9.76 x 0.45 / 0.72 (front / rear), 0.94 (maximum) inches
Weight Starting at 1.74 kg (3.83 lbs)
Case Color Black
Case Material PC + 20% CF (Top), PC + 20% CF (Bottom)
SOFTWARE
Operating System Windows® 11 Pro, English (US) / English (UK)
Bundled Software Lenovo® AI Now
CONNECTIVITY
WLAN + Bluetooth MediaTek Wi-Fi® 7 MT7925, 802.11be 2x2 + BT5.4
WWAN WWAN Not Supported
SIM Card No physical SIM card inbox
Ethernet 100/1000M (RJ-45)
NFC No NFC
Standard Ports 1x USB-A (USB 5Gbps), Always On
1x USB-A (USB 5Gbps)
2x Thunderbolt™ 4, with USB PD 15-100W and DisplayPort™ 2.1 (Gorgon Point) / DisplayPort™ 1.4a (Hawk Point)
1x HDMI® 2.1, up to 4K/60Hz
1x Headphone / microphone combo jack (3.5mm)
1x Ethernet (RJ-45)
Optional Ports (configured) None
Docking Various docking solutions supported via Thunderbolt™ / USB-C®. For more compatible docking solutions, please visit Docking for ThinkPad® T16 Gen 5 (AMD)
SECURITY & PRIVACY
ThinkShield ThinkShield is a comprehensive security solution that encompasses hardware, software, and supply chain components. For more detials, visit here
Security Chip Discrete TPM 2.0 Enabled
Physical Locks Kensington Nano Security Slot™, 2.5 x 6 mm
Smart Card Reader No Smart Card Reader
Fingerprint Reader Touch Style, Match-on-Chip, Integrated in Power Button
Other Security Camera privacy shutter (camera models)
IR camera for Windows® Hello (facial recognition)
MANAGEABILITY
System Management DASH
SERVICE
Base Warranty 3-year, Courier or Carry-in with 1-year Battery
Included Upgrade CO2 Offset Service 200kg Gen 3 Commercial IDG, 3Y Premier Support for AIPC upgrade from 3Y Courier/Carry-in

Specifications

Design
Product type	Laptop
Product colour	Black
Form factor	Clamshell
Housing material	Polycarbonate (PC), Carbon fibre, Glass fibre
Display
HD type	WUXGA
Display diagonal	40.6 cm (16")
Display resolution	1920 x 1200 pixels
Touchscreen	No
LED backlight	Yes
Display brightness	400 cd/m²
Panel type	IPS
Contrast ratio (typical)	1000:1
Anti-glare screen	Yes
Maximum refresh rate	60 Hz
RGB colour space	NTSC
Colour gamut	45%
Native aspect ratio	16:10
Processor
Processor generation	AMD Ryzen AI PRO 400 Series
Processor cache type	L2 & L3
Processor frequency	2 GHz
Processor family	AMD Ryzen AI 5 PRO
Processor model	PRO 440
Processor boost frequency	4.8 GHz
Processor cores	6
Processor threads	12
L3 cache	16 MB
L2 cache	6 MB
Motherboard chipset	AMD SoC
Processor manufacturer	AMD
Neural processor unit (NPU)
Neural processor unit (NPU)	AMD Ryzen AI
Total processor performance up to	59 TOPs
NPU performance up to	50 TOPs
Copilot+ PC	Yes
Memory
Internal memory	32 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	5600 MHz
Memory layout (slots x size)	2 x 16 GB
Memory slots	2x SO-DIMM
Maximum internal memory	96 GB
Memory form factor	SO-DIMM
Memory channels	Dual-channel
Storage
SSD form factor	M.2
Optical drive type	No
Total storage capacity	512 GB
Storage media	SSD
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
Card reader integrated	No
Total SSDs capacity	512 GB
NVMe	Yes
M.2 SSD size	2280 (22 x 80 mm)
Graphics
Discrete graphics card	No
On-board graphics card family	AMD Radeon
On-board graphics card model	AMD Radeon 840M
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board GPU manufacturer	AMD
Audio
Audio chip	Realtek ALC3287
Number of microphones	2
Audio system	Dolby Atmos
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Camera
Front camera	Yes
Front camera resolution (numeric)	5 MP
Privacy camera	Yes
Privacy type	Privacy shutter
Infrared (IR) camera	Yes
Windows Hello	Yes
Optical drive
Optical drive type	No
Network
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
WLAN controller model	MediaTek MT7925
Bluetooth	Yes
Wi-Fi standards	Wi-Fi 7 (802.11be)
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Bluetooth version	5.4
WWAN	Not installed
Near Field Communication (NFC)	No
Antenna type	2x2
WLAN controller manufacturer	MediaTek
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB Type-C DisplayPort Alternate Mode	Yes
USB 2.0 ports quantity	0
HDMI ports quantity	1
HDMI version	2.1
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
USB Sleep-and-Charge ports	1
USB Sleep-and-Charge	Yes
USB Power Delivery (USB PD)	Yes
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Performance
Motherboard chipset	AMD SoC
Keyboard
Pointing device	ThinkPad UltraNav
Numeric keypad	Yes
Spill-resistant keyboard	Yes
Keyboard backlit	Yes
Keyboard language	English
Copilot key	Yes
Software
Operating system installed	Windows 11 Pro
Operating system language	ENG-UK, US English
Bundled software	Lenovo AI Now
Microsoft Copilot	Yes
Copilot+ PC	Yes
Battery
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity	60 Wh
Fast charging	Yes
Power
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
USB Power Delivery (USB PD)	Yes
USB Type-C charging port	Yes
USB Type-C required charging power (min)	15 W
USB Type-C required charging power (max)	100 W
Security
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
Password protection	Yes
Password protection type	BIOS, Power on, SSD, Supervisor
Windows Hello	Yes
Smart card reader	No
Trusted Platform Module (TPM) version	2.0
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95%
Storage relative humidity (H-H)	5 - 95%
Maximum shipping altitude	3048 m
Certificates
Certification	ENERGY STAR 9.0 EPEAT Gold Registered ErP Lot 6/26 RoHS compliant TCO Certified, generation 10 MIL-STD-810H military test passed
Weight & dimensions
Weight	1.78 kg
Width	357.9 mm
Depth	247.9 mm
Height (front)	1.15 cm
Height (rear)	1.82 cm
Packaging data
AC adapter included	Yes
Packaging content
AC adapter included	Yes
Other features
WLAN controller model	MediaTek MT7925
Audio system	Dolby Atmos
On-board graphics card	Yes
Maximum shipping altitude	3048 m
AC adapter included	Yes
Anti-glare screen	Yes
