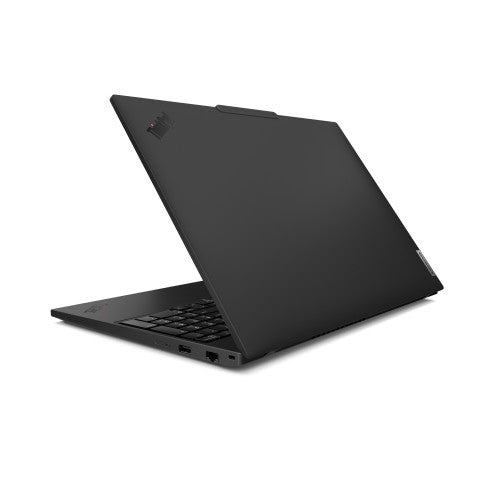

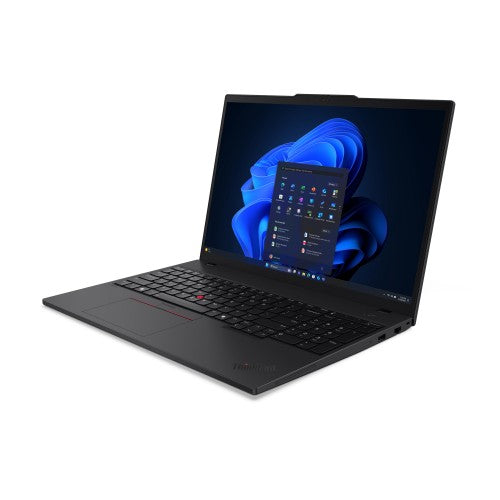

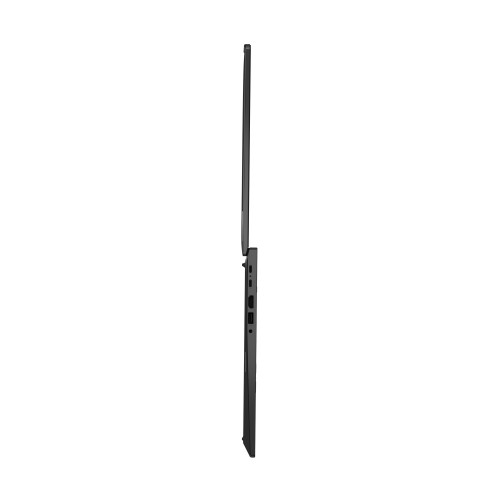

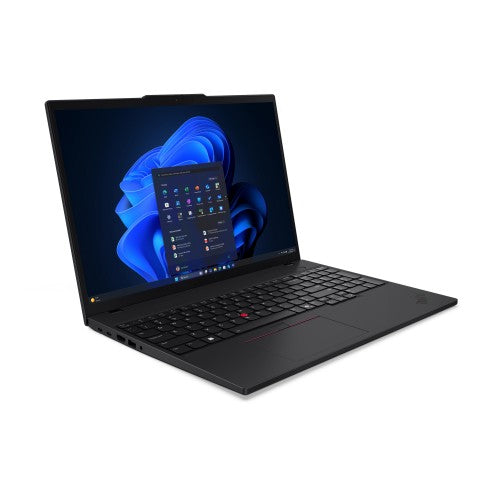

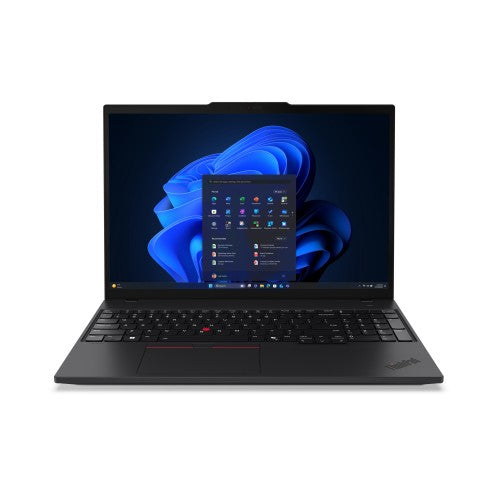

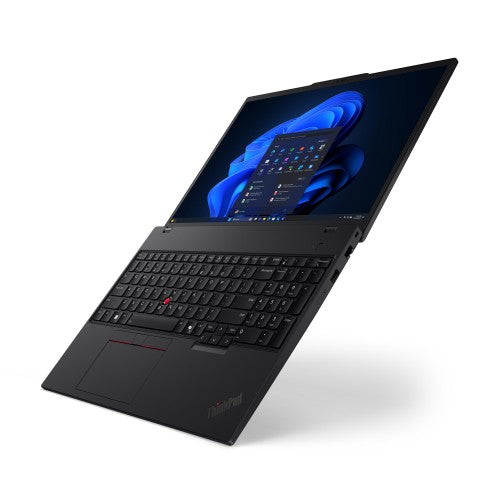

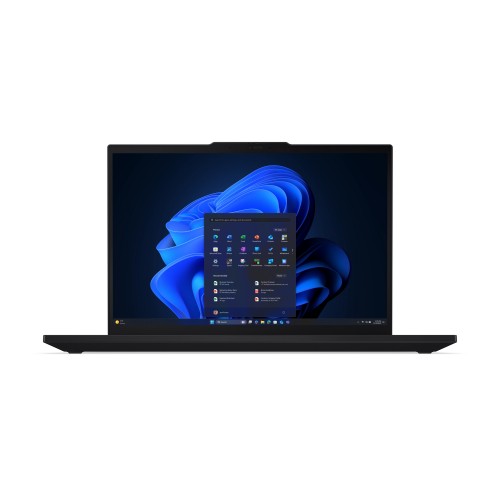

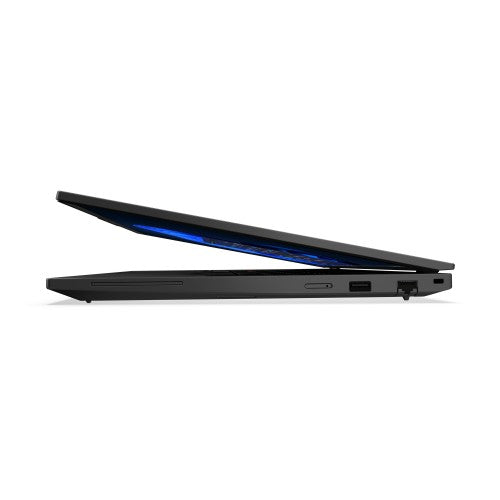

Lenovo ThinkPad T16 Gen 4 (Intel) Intel Core Ultra 5 225H Laptop 40.6 cm (16") WUXGA 32 GB DDR5-SDRAM 512 GB SSD Wi-Fi 7 (802.11be) Windows 11 Pro Black
Lenovo ThinkPad T16 Gen 4 (Intel) Intel Core Ultra 5 225H Laptop 40.6 cm (16") WUXGA 32 GB DDR5-SDRAM 512 GB SSD Wi-Fi 7 (802.11be) Windows 11 Pro Black
SKU: 21QE0022AU
Availability:
Sold out
10+ in stock
Regular price
$3,265.52
Price:
$3,265.52
Regular price
Taxes included.
In Stock At Warehouse
Couldn't load pickup availability
Intel Core Ultra 5 225H, 14C (4P + 8E + 2LPE)/14T, Max Turbo up to 4.9GHz, 18MB, 2x 16GB SODIMM DDR5-5600, 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0, 16" WUXGA (1920x1200) IPS 400nits 45% NTSC, Intel Arc 130T GPU, Intel Wi-Fi 7 BE201 802.11be 2x2 + BT5.4, 5.0MP + IR Discrete with Privacy Shutter, Windows 11 Pro
PERFORMANCE
Processor Intel® Core Ultra 5 225H, 14C (4P + 8E + 2LPE) / 14T, Max Turbo up to 4.9GHz, 18MB
AI PC Category AI PC
NPU Integrated Intel® AI Boost, up to 13 TOPS
Graphics Integrated Intel® Arc™ 130T GPU
Chipset Intel® SoC Platform
Memory 2x 16GB SODIMM DDR5-5600
Memory Slots Two DDR5 SODIMM / CSODIMM slots, dual-channel capable
Max Memory Up to 64GB DDR5-5600
Storage 512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0
Storage Slot Models with H series processor: one M.2 2280 PCIe® 5.0 x4 slot
Max Storage Support One drive, up to 2TB M.2 2280 SSD
Optical None
Card Reader None
Audio Chip High Definition (HD) Audio, Realtek® ALC3287 codec
Speakers Stereo speakers, 2W x2, Dolby Audio™
Microphone 2x, 360°
Camera 5.0MP + IR Discrete with Privacy Shutter
Battery 52.5Wh
Power Adapter 65W USB-C® (3-pin)
DESIGN
Display 16' WUXGA (1920x1200) IPS 400nits Anti-glare, 45% NTSC
Touchscreen None
Screen-to-Body Ratio 87.22%
Pen Pen Not Supported
Keyboard Backlit, English
Dimensions (WxDxH) 359.7 x 250.8 x 11.8/18.14 (front/rear), 23.5 (maximum) mm; 14.16 x 9.87 x 0.46/0.71 (front/rear), 0.93 (maximum) inches
Weight Starting at 1.76 kg (3.89 lbs)
Case Color Black
Case Material PC + 20% CF (Top), PC + 20% CF (Bottom)
SOFTWARE
Operating System Windows® 11 Pro, English (US) / English (UK)
Bundled Software Lenovo® AI Now
CONNECTIVITY
WLAN + Bluetooth Intel® Wi-Fi® 7 BE201, 802.11be 2x2 + BT5.4
WWAN Non-WWAN
SIM Card None
Ethernet 100/1000M (RJ-45)
NFC None
Standard Ports 1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On
2x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with USB PD 3.0 and DisplayPort™ 2.1
1x HDMI® 2.1, up to 4K/60Hz
1x Headphone / microphone combo jack (3.5mm)
1x Ethernet (RJ-45)
Optional Ports (configured) None
Docking Various docking solutions supported via Thunderbolt™ / USB-C®. For more compatible docking solutions, please visit Docking for ThinkPad T16 Gen 4 (Intel)
SECURITY & PRIVACY
Security Chip Discrete TPM 2.0 Enabled
Physical Locks Kensington® Nano Security Slot, 2.5 x 6 mm
Smart Card Reader None
Fingerprint Reader Touch Style, Match-on-Chip, Integrated in Power Button
Other Security Camera privacy shutter (camera models)
Ultrasonic Human Presence Detection
IR camera for Windows® Hello (facial recognition)
ThinkShield
MANAGEABILITY
System Management Non-vPro®
SERVICE
Base Warranty 1-year, Courier or Carry-in
Included Upgrade 3Y Premier Support Upgrade from 1Y Courier/Carry-in, CO2 Offset 0.5 ton (2nd Generation Carbon Offset Projects)
ACCESSORIES
Bundled Accessories None
CERTIFICATIONS
Green Certifications ENERGY STAR® 9.0
EPEAT™ Gold Registered
ErP Lot 6/26
RoHS compliant
TCO Certified, generation 10
Mil-Spec Test MIL-STD-810H military test passed
View full details
Key Features
- Intel Core Ultra 5 225H, 14C (4P + 8E + 2LPE)/14T, Max Turbo up to 4.9GHz, 18MB
- 16" WUXGA (1920x1200) IPS 400nits 45% NTSC
- 2x 16GB SODIMM DDR5-5600
- 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
- Intel Arc 130T GPU
- Windows 11 Pro
Description
LENOVO ThinkPad T16 G4 16' WUXGA Intel U5-225H 32GB DDR5 512GB SSD WIN 11 PRO Intel Arc 130T GPU AI PC NPU 12 TOPS Thunderbolt 3yr PREM 1.7kgPERFORMANCE
Processor Intel® Core Ultra 5 225H, 14C (4P + 8E + 2LPE) / 14T, Max Turbo up to 4.9GHz, 18MB
AI PC Category AI PC
NPU Integrated Intel® AI Boost, up to 13 TOPS
Graphics Integrated Intel® Arc™ 130T GPU
Chipset Intel® SoC Platform
Memory 2x 16GB SODIMM DDR5-5600
Memory Slots Two DDR5 SODIMM / CSODIMM slots, dual-channel capable
Max Memory Up to 64GB DDR5-5600
Storage 512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0
Storage Slot Models with H series processor: one M.2 2280 PCIe® 5.0 x4 slot
Max Storage Support One drive, up to 2TB M.2 2280 SSD
Optical None
Card Reader None
Audio Chip High Definition (HD) Audio, Realtek® ALC3287 codec
Speakers Stereo speakers, 2W x2, Dolby Audio™
Microphone 2x, 360°
Camera 5.0MP + IR Discrete with Privacy Shutter
Battery 52.5Wh
Power Adapter 65W USB-C® (3-pin)
DESIGN
Display 16' WUXGA (1920x1200) IPS 400nits Anti-glare, 45% NTSC
Touchscreen None
Screen-to-Body Ratio 87.22%
Pen Pen Not Supported
Keyboard Backlit, English
Dimensions (WxDxH) 359.7 x 250.8 x 11.8/18.14 (front/rear), 23.5 (maximum) mm; 14.16 x 9.87 x 0.46/0.71 (front/rear), 0.93 (maximum) inches
Weight Starting at 1.76 kg (3.89 lbs)
Case Color Black
Case Material PC + 20% CF (Top), PC + 20% CF (Bottom)
SOFTWARE
Operating System Windows® 11 Pro, English (US) / English (UK)
Bundled Software Lenovo® AI Now
CONNECTIVITY
WLAN + Bluetooth Intel® Wi-Fi® 7 BE201, 802.11be 2x2 + BT5.4
WWAN Non-WWAN
SIM Card None
Ethernet 100/1000M (RJ-45)
NFC None
Standard Ports 1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On
2x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with USB PD 3.0 and DisplayPort™ 2.1
1x HDMI® 2.1, up to 4K/60Hz
1x Headphone / microphone combo jack (3.5mm)
1x Ethernet (RJ-45)
Optional Ports (configured) None
Docking Various docking solutions supported via Thunderbolt™ / USB-C®. For more compatible docking solutions, please visit Docking for ThinkPad T16 Gen 4 (Intel)
SECURITY & PRIVACY
Security Chip Discrete TPM 2.0 Enabled
Physical Locks Kensington® Nano Security Slot, 2.5 x 6 mm
Smart Card Reader None
Fingerprint Reader Touch Style, Match-on-Chip, Integrated in Power Button
Other Security Camera privacy shutter (camera models)
Ultrasonic Human Presence Detection
IR camera for Windows® Hello (facial recognition)
ThinkShield
MANAGEABILITY
System Management Non-vPro®
SERVICE
Base Warranty 1-year, Courier or Carry-in
Included Upgrade 3Y Premier Support Upgrade from 1Y Courier/Carry-in, CO2 Offset 0.5 ton (2nd Generation Carbon Offset Projects)
ACCESSORIES
Bundled Accessories None
CERTIFICATIONS
Green Certifications ENERGY STAR® 9.0
EPEAT™ Gold Registered
ErP Lot 6/26
RoHS compliant
TCO Certified, generation 10
Mil-Spec Test MIL-STD-810H military test passed
Specifications
| Design | |
|---|---|
| Product type | Laptop |
| Product colour | Black |
| Form factor | Clamshell |
| Display | |
| HD type | WUXGA |
| Display diagonal | 40.6 cm (16") |
| Display resolution | 1920 x 1200 pixels |
| Touchscreen | No |
| LED backlight | Yes |
| Display brightness | 400 cd/m² |
| Panel type | IPS |
| Anti-glare screen | Yes |
| RGB colour space | NTSC |
| Colour gamut | 45% |
| Native aspect ratio | 16:10 |
| Processor | |
| Processor family | Intel Core Ultra 5 |
| Processor model | 225H |
| Processor cores | 14 |
| Motherboard chipset | Intel SoC |
| Processor manufacturer | Intel |
| Memory | |
| Internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 5600 MHz |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 64 GB |
| Memory form factor | SO-DIMM |
| Storage | |
| SSD form factor | M.2 |
| Optical drive type | No |
| Total storage capacity | 512 GB |
| Storage media | SSD |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express 4.0 |
| Card reader integrated | No |
| Total SSDs capacity | 512 GB |
| NVMe | Yes |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card model | Intel Arc 130T |
| Discrete graphics card model | Not available |
| On-board graphics card | Yes |
| On-board GPU manufacturer | Intel |
| Audio | |
| Audio chip | Realtek ALC3287 |
| Number of microphones | 2 |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
| Camera | |
| Front camera resolution (numeric) | 5 MP |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
| Infrared (IR) camera | Yes |
| Windows Hello | Yes |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Mobile network connection | No |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Bluetooth | Yes |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Bluetooth version | 5.4 |
| WWAN | Not installed |
| Near Field Communication (NFC) | No |
| Antenna type | 2x2 |
| WLAN controller manufacturer | Intel |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 2.0 ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| USB Sleep-and-Charge | Yes |
| USB Power Delivery (USB PD) | Yes |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| Performance | |
| Motherboard chipset | Intel SoC |
| Keyboard | |
| Pointing device | ThinkPad UltraNav |
| Numeric keypad | Yes |
| Keyboard backlit | Yes |
| Software | |
| Operating system installed | Windows 11 Pro |
| Bundled software | Lenovo AI Now |
| Battery | |
| Battery capacity | 52.5 Wh |
| Power | |
| AC adapter power | 65 W |
| USB Power Delivery (USB PD) | Yes |
| USB Type-C charging port | Yes |
| Security | |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Fingerprint reader | Yes |
| Trusted Platform Module (TPM) | Yes |
| Windows Hello | Yes |
| Smart card reader | No |
| Trusted Platform Module (TPM) version | 2.0 |
| Certificates | |
| Certification | ENERGY STAR,TCO,EPEAT Gold,RoHS |
| Weight & dimensions | |
| Weight | 1.76 kg |
| Width | 359.7 mm |
| Depth | 250.8 mm |
| Height (front) | 1.18 cm |
| Height (rear) | 1.81 cm |
| Packaging data | |
| AC adapter included | Yes |
| Packaging content | |
| AC adapter included | Yes |
| Other features | |
| On-board graphics card | Yes |
| AC adapter included | Yes |
| Anti-glare screen | Yes |
