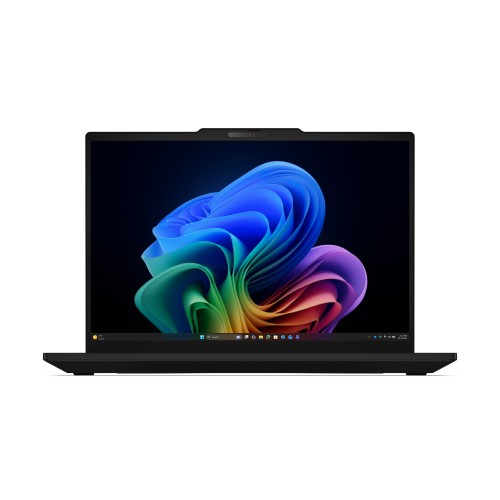

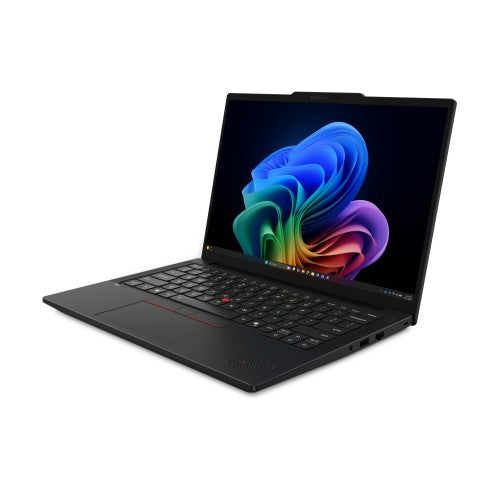

Lenovo ThinkPad T14 Gen 7 (AMD) AMD Ryzen™ 5 PRO PRO 230 Laptop 35.6 cm (14") WUXGA 32 GB DDR5-SDRAM 512 GB SSD Wi-Fi 7 (802.11be) Windows 11 Pro English Black

AMD Ryzen 5 PRO 230 (3.5GHz), 32GB DDR5-SDRAM, 512GB SSD, 14" WUXGA 1920 x 1200 IPS, AMD Radeon 760M, LAN, WLAN, Webcam, Windows 11 Pro

Key Features

• Windows 11 Pro
• AMD Ryzen 5 PRO 230 (3.5GHz)
• 14" WUXGA 1920 x 1200 IPS
• 32GB (5600MHz) DDR5-SDRAM (2 x 16) & 512GB SSD

Description

LENOVO T14 G7 AMD R5-230, 14" WUXGA, 512GB, 32GB, W11P, 3YR PREM

Specifications

Design
Product type	Laptop
Product colour	Black
Form factor	Clamshell
Housing material	Polycarbonate (PC), Carbon fibre, Glass fibre
Display
HD type	WUXGA
Display diagonal	35.6 cm (14")
Display resolution	1920 x 1200 pixels
Touchscreen	No
Display brightness	400 cd/m²
Panel type	IPS
Contrast ratio (typical)	1000:1
Anti-glare screen	Yes
Maximum refresh rate	60 Hz
RGB colour space	NTSC
Colour gamut	45%
Native aspect ratio	16:10
Processor
Processor generation	AMD Ryzen PRO 200 Series
Processor cache type	L2 & L3
Processor frequency	3.5 GHz
Processor family	AMD Ryzen™ 5 PRO
Processor model	PRO 230
Processor boost frequency	4.9 GHz
Processor cores	6
Processor threads	12
L3 cache	16 MB
L2 cache	6 MB
Motherboard chipset	AMD SoC
Processor manufacturer	AMD
Neural processor unit (NPU)
Neural processor unit (NPU)	AMD Ryzen AI
Total processor performance up to	31 TOPs
NPU performance up to	16 TOPs
Memory
Internal memory	32 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	5600 MHz
Memory layout (slots x size)	2 x 16 GB
Memory slots	2x SO-DIMM
Maximum internal memory	64 GB
Memory form factor	SO-DIMM
Memory channels	Dual-channel
Storage
SSD form factor	M.2
Optical drive type	No
Total storage capacity	512 GB
Storage media	SSD
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
Card reader integrated	No
Total SSDs capacity	512 GB
NVMe	Yes
M.2 SSD size	2280 (22 x 80 mm)
Graphics
Discrete graphics card	No
On-board graphics card family	AMD Radeon
On-board graphics card model	AMD Radeon 760M
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board GPU manufacturer	AMD
Audio
Audio chip	Realtek ALC3287
Number of microphones	2
Audio system	Dolby Atmos
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Camera
Front camera	Yes
Front camera resolution (numeric)	5 MP
Privacy camera	Yes
Privacy type	Privacy shutter
Infrared (IR) camera	Yes
Windows Hello	Yes
Optical drive
Optical drive type	No
Network
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
WLAN controller model	MediaTek MT7925
Bluetooth	Yes
Wi-Fi standards	Wi-Fi 7 (802.11be)
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Bluetooth version	5.4
WWAN	Not installed
Near Field Communication (NFC)	No
Antenna type	2x2
WLAN controller manufacturer	MediaTek
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB Type-C DisplayPort Alternate Mode	Yes
USB 2.0 ports quantity	0
HDMI ports quantity	1
HDMI version	2.1
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
USB Sleep-and-Charge ports	1
USB Sleep-and-Charge	Yes
USB Power Delivery (USB PD)	Yes
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Performance
Motherboard chipset	AMD SoC
Keyboard
Pointing device	ThinkPad UltraNav
Numeric keypad	No
Spill-resistant keyboard	Yes
Keyboard backlit	Yes
Keyboard language	English
Copilot key	Yes
Software
Operating system installed	Windows 11 Pro
Operating system language	US English, ENG-UK
Bundled software	Lenovo AI Now
Battery
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity	60 Wh
Fast charging	Yes
Power
AC adapter power	65 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
USB Power Delivery (USB PD)	Yes
USB Type-C charging port	Yes
USB Type-C required charging power (min)	15 W
USB Type-C required charging power (max)	100 W
Security
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
Password protection	Yes
Password protection type	BIOS, Power on, Supervisor
Windows Hello	Yes
Smart card reader	No
Trusted Platform Module (TPM) version	2.0
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95%
Storage relative humidity (H-H)	5 - 95%
Maximum shipping altitude	3048 m
Certificates
Certification	ErP Lot 6/26 TCO Certified, generation 10 MIL-STD-810H
Compliance certificates	RoHS
Sustainability
Sustainability certificates	ENERGY STAR, EPEAT Gold
Weight & dimensions
Weight	1.28 kg
Width	313.6 mm
Depth	221.7 mm
Height (front)	1.13 cm
Height (rear)	1.59 cm
Packaging data
AC adapter included	Yes
Packaging content
AC adapter included	Yes
Technical details
Sustainability certificates	ENERGY STAR, EPEAT Gold
Compliance certificates	RoHS
Other features
WLAN controller model	MediaTek MT7925
Audio system	Dolby Atmos
On-board graphics card	Yes
Maximum shipping altitude	3048 m
AC adapter included	Yes
Anti-glare screen	Yes
