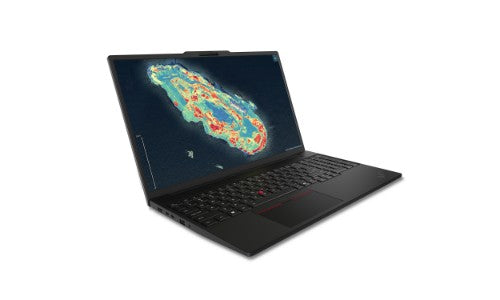

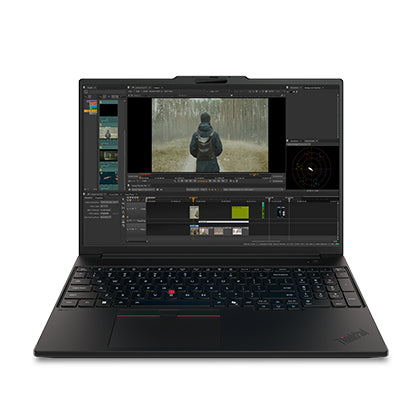

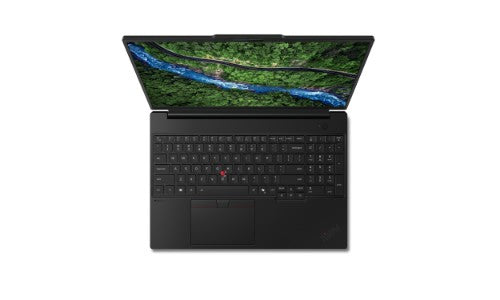

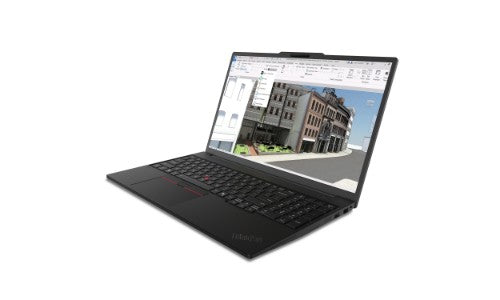

Lenovo ThinkPad P16s Gen 5 (Intel) Copilot + PC Copilot+ PC Intel Core Ultra 9 386H Mobile workstation 40.6 cm (16") Touchscreen WUXGA 32 GB LPDDR5x-SDRAM 1 TB SSD NVIDIA RTX PRO 2000 Blackwell Wi-Fi 7 (802.11be) Windows 11 Pro English Black

Intel Core Ultra 9 386H (18MB Cache), 32GB LPDDR5x-SDRAM, 1000GB SSD, 16" WUXGA 1920 x 1200 IPS Touch, Intel Graphics, NVIDIA RTX PRO 2000 Blackwell (8GB GDDR7), LAN, WLAN, Webcam, Windows 11 Pro 64-bit

Key Features

• Windows 11 Pro 64-bit
• Intel Core Ultra 9 386H (18MB Cache)
• 16" WUXGA 1920 x 1200 IPS Touch, NVIDIA RTX PRO 2000 Blackwell (8GB GDDR7)
• 32GB (7467MHz) LPDDR5x-SDRAM & 1000GB SSD

Description

RELIABILITY. SCALABILITY. POWER.
Mobility for Mission‑Critical Workloads

Designed for professionals, the 16" Lenovo ThinkPad P16s i Gen 5 mobile workstation offers reliability and scalability on the go. It features Intel® Core™ Ultra Series 3 processors and is accelerated by the NVIDIA RTX PRO™ platform, assuring exceptional performance for CAD, BIM, and content creation workflows in a lightweight, sustainable design.

ON-DEVICE AI WITH COPILOT+ SUPPORT
Ready for AI‑Accelerated Productivity

Featuring an onboard neural processing unit (NPU) and full Copilot+ support, the ThinkPad P16s i Gen 5 transforms the way you work. Automate repetitive tasks, speed up your workflows, and accomplish more — all without cloud dependency. Work smarter, faster, and more independently with this innovative workstation.

Your Work, Your Data — Protected at Every Level
Enterprise‑Level Security for Peace of Mind

This workstation is strengthened with ThinkShield security, Intel vPro®, privacy-oriented infrared (IR) camera, Smart Card Reader options, physical locks, discrete Trusted Platform Module (dTPM) 2.0, advanced presence detection, WiFi 7, and optional 5G for secured connectivity. Stay protected against cyber threats, data breaches, and tampering.

SIMPLIFIED MAINTENANCE & ADAPTABILITY
More Serviceable Than Ever

Designed for longevity, the ThinkPad P16s i Gen 5 mobile workstation features customer-replaceable memory, battery, storage, keyboard, WWAN, and USB-C® ports. Simplify maintenance, reduce expenses, and extend the life of each device or your entire fleet, without sacrificing performance.

CREDIBILITY & COLLABORATION
Sustainability

Our goal is to provide smarter technology that builds a brighter, more sustainable future for our customers, communities, and the planet. That's why we pursue industry-leading labels and certifications that demonstrate our commitment to sustainability in product design. Together, we can build a smarter future for all.

Specifications

Design
Product type	Mobile workstation
Product colour	Black
Form factor	Clamshell
Housing material	Polycarbonate (PC), Acrylonitrile styrene acrylate (ASA)
Display back cover material	Aluminium
Display
HD type	WUXGA
Display diagonal	40.6 cm (16")
Display resolution	1920 x 1200 pixels
Touchscreen	Yes
LED backlight	Yes
Display brightness	500 cd/m²
Panel type	IPS
Contrast ratio (typical)	1200:1
Anti-glare screen	Yes
Maximum refresh rate	60 Hz
RGB colour space	sRGB
Colour gamut	100%
Native aspect ratio	16:10
Processor
Processor generation	Intel® Core™ Ultra (Series 3)
Processor cache type	Smart Cache
Processor family	Intel Core Ultra 9
Processor model	386H
Processor boost frequency	4.9 GHz
Processor cores	16
Processor threads	16
Processor cache	18 MB
Processor socket	FCBGA2540
Motherboard chipset	Intel SoC
Processor manufacturer	Intel
Processor base power	25 W
Maximum turbo power	80 W
Efficient-core base frequency	1.6 GHz
Performance-core base frequency	2.1 GHz
Efficient-core Max Turbo Frequency	3.7 GHz
Performance-core Max Turbo Frequency	4.9 GHz
Performance cores	4
Efficient cores	8
Low Power Efficient-core Base Frequency	1600 MHz
Low Power Efficient-core Max Turbo Frequency	3.5 GHz
Low Power Efficient-cores	4
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	OpenVINO, Windows ML, ONNX RT, WebNN
NPU performance up to	50 TOPs
GPU performance up to	40 TOPs
Copilot+ PC	Yes
Memory
Internal memory	32 GB
Internal memory type	LPDDR5x-SDRAM
Memory clock speed	7467 MHz
Maximum internal memory	96 GB
Memory form factor	LPCAMM2
Memory channels	Dual-channel
Storage
SSD form factor	M.2
Optical drive type	No
Total storage capacity	1 TB
Storage media	SSD
Number of SSDs installed	1
SSD capacity	1 TB
SSD interface	PCI Express 5.0
Card reader integrated	Yes
Compatible memory cards	SD
Total SSDs capacity	1 TB
NVMe	Yes
M.2 SSD size	2280 (22 x 80 mm)
Graphics
Discrete graphics card	Yes
Discrete graphics card memory	8 GB
On-board graphics card family	Intel® Graphics
On-board graphics card model	Intel® Graphics
Discrete graphics card model	NVIDIA RTX PRO 2000 Blackwell
Discrete graphics memory type	GDDR7
On-board graphics card	Yes
Discrete GPU manufacturer	NVIDIA
On-board GPU manufacturer	Intel
Ray tracing acceleration	Yes
Audio
Audio chip	Realtek ALC722-CG
Number of microphones	2
Audio system	Dolby Atmos
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Camera
Front camera	Yes
Front camera resolution (numeric)	5 MP
Privacy camera	Yes
Privacy type	Privacy shutter
Infrared (IR) camera	Yes
Windows Hello	Yes
Optical drive
Optical drive type	No
Network
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
WLAN controller model	Intel Wi-Fi 7 BE211
Bluetooth	Yes
Wi-Fi standards	Wi-Fi 7 (802.11be)
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Bluetooth version	5.4
WWAN	Not installed
Near Field Communication (NFC)	No
Antenna type	2x2
WLAN controller manufacturer	Intel
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB Type-C DisplayPort Alternate Mode	Yes
USB 2.0 ports quantity	0
HDMI ports quantity	1
HDMI version	2.1
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
USB Sleep-and-Charge ports	1
USB Sleep-and-Charge	Yes
USB Power Delivery (USB PD)	Yes
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Performance
Motherboard chipset	Intel SoC
Keyboard
Pointing device	ThinkPad UltraNav
Numeric keypad	Yes
Spill-resistant keyboard	Yes
Keyboard backlit	Yes
Keyboard language	English
Copilot key	Yes
Software
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Operating system language	ENG-UK, US English
Bundled software	Intel Connectivity Performance Suite + Lenovo AI Now
Copilot+ PC	Yes
Battery
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity	90 Wh
Fast charging	Yes
Power
AC adapter power	140 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
USB Power Delivery (USB PD)	Yes
USB Type-C charging port	Yes
Security
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
Password protection	Yes
Password protection type	Power on, SSD, Supervisor
Windows Hello	Yes
Smart card reader	Yes
Trusted Platform Module (TPM) version	2.0
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95%
Storage relative humidity (H-H)	5 - 95%
Maximum shipping altitude	3048 m
Certificates
Certification	ENERGY STAR® 9.0 EPEAT™ Gold Registered RoHS compliant TCO Certified, generation 10
Weight & dimensions
Weight	1.79 kg
Width	357.9 mm
Depth	247.9 mm
Height (front)	1.15 cm
Height (rear)	1.81 cm
Packaging data
AC adapter included	Yes
Packaging content
AC adapter included	Yes
Technical details
Discrete graphics card memory	8 GB
Other features
WLAN controller model	Intel Wi-Fi 7 BE211
Audio system	Dolby Atmos
On-board graphics card	Yes
Maximum shipping altitude	3048 m
AC adapter included	Yes
Anti-glare screen	Yes
