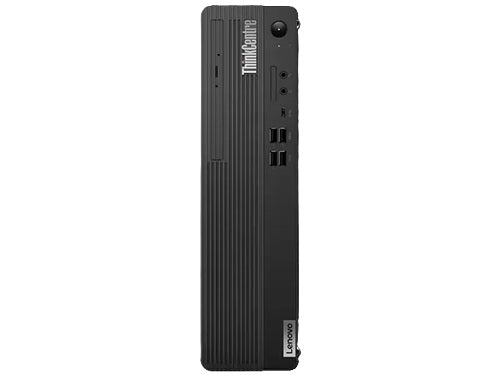

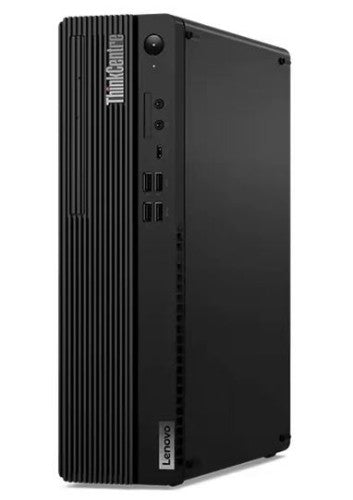

Lenovo ThinkCentre M90s Gen 4 Intel® Core™ i5 i5-13500 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro SFF PC Black

Intel Core i5-13500 (24MB Cache), 16GB DDR5-SDRAM, 512GB SSD, Intel UHD Graphics 770, LAN, Windows 11 Pro 64-bit

Key Features

• Windows 11 Pro 64-bit
• Intel Core i5-13500 (24MB Cache)
• 16GB (4400MHz) DDR5-SDRAM & 512GB SSD

Description

LENOVO ThinkCentre M90S G4 SFF Intel i5-13500 16GB DDR4 512GB SSD Windows 11 Pro 1YR OS Intel UHD GPU vPro Keyboard Mouse

Input Devices Physical Characteristics 0
Keyboard Localization English (US) Weight (Approximate) 5.30 kg
Warranty Form Factor Small Form Factor
Additional Warranty Information 1 Year On-site Height 339.5 mm
Chipset Width 92.5 mm
Chipset Manufacturer Intel Depth 297.7 mm
Chipset Model Q670 Product Color Black
Memory Color Family Black
Maximum Memory Supported 128 GB Miscellaneous
Standard Memory 16 GB Package Contents ThinkCentre M90s Gen 4
Memory Technology DDR5 SDRAM Keyboard
Network & Communication Mouse
Ethernet Technology Gigabit Ethernet
LAN Manufacturer Intel Features Security Slot
LAN Model I219-LM Toolless Cover
Display & Graphics Environmentally Friendly Yes
Graphics Controller Manufacturer Intel Environmental Certification TCO Certified 9.0
Graphics Controller Model UHD Graphics 770 TCO Certified Yes
Graphics Memory Technology DDR5 SDRAM Energy Efficiency Compliance Energy-related Products Directive Lot 3 (ErP Lot 3)
Graphics Memory Accessibility Shared Environmental Compliance Restriction of Hazardous Substances (RoHS)
Operating System General Information
Operating System Windows 11 Pro Product Type Desktop Computer
Operating System Architecture 64-bit Manufacturer Part Number 12HRS10J00
Operating System Platform Windows Manufacturer Website Address http://www3.lenovo.com/au/en
Operating System Language English Manufacturer Lenovo Group Limited
Power Description Product Model 12HRS10J00
Input Voltage 120 V AC Product Name ThinkCentre M90s Gen 4
230 V AC Product Line ThinkCentre
Frequency 50 Hz Product Series M90s Gen 4
60 Hz Brand Name Lenovo
Maximum Power Supply Wattage 260 W Interfaces/Ports
Storage Total Number of USB Ports 9
Drive Type SSD Number Of Ethernet Ports 1
Solid State Drive Interface PCI Express NVMe 4.0 x4 USB Type-C Detail 1x USB-C® 3.2 Gen 2 (support data transfer and 15W charging)
Solid State Drive Configuration 1 x 512GB HDMI (Rear) Yes
Total Solid State Drive Capacity 512 GB USB Type-C (Front) Yes
SSD Form Factor M.2 Number of DisplayPort Outputs (Rear) 2
DisplayPort (Rear) Yes
Number of USB 3.2 Gen 1 Ports 6
Number of USB 3.2 Gen 2 Ports 2
Optional Ports Details regarding optional ports aggregated from the information available for this product's family/series. | Optional Rear Ports

1x USB-C® 3.2 Gen 1 with DisplayPort™ function and 5V@3A charging (Flex IO)
1x HDMI® 2.1 TMDS (Flex IO)
1x DP 1.2 (Flex IO)
1x VGA (Flex IO)
1x USB-C® 3.2 Gen 2x2 (support data transfer, via USB-C® expansion card, PCIe® x4)
2x USB-C® 3.2 Gen 2 (support data transfer, via 2-port USB-C® expansion card, PCIe® x4)
2x USB 3.2 Gen 1 (via 2-port USB expansion card, PCIe® x1)
2x USB 2.0 (via 2-port adapter)
1x parallel
1x serial
1x 2nd serial

Optional Front Ports

1x card reader
Processor
Processor Speed 2.50 GHz
Processor Type Core i5
L2 Cache 11.50 MB
Processor Model i5-13500
Processor Core Tetradeca-core (14 Core)
Processor Manufacturer Intel
vPro Technology Yes
Maximum Turbo Speed 4.80 GHz
Processor Generation 13th Gen
Processor Threads 20

Specifications

Processor
Processor generation	13th gen Intel® Core™ i5
Processor cache type	Smart Cache
Processor family	Intel® Core™ i5
Processor manufacturer	Intel
Processor model	i5-13500
Processor cores	14
Processor boost frequency	4.8 GHz
Processor cache	24 MB
Processor threads	20
Performance cores	6
Efficient cores	8
Performance-core base frequency	2.5 GHz
Efficient-core base frequency	1.8 GHz
Processor base power	65 W
Maximum turbo power	154 W
Efficient-core Max Turbo Frequency	3.5 GHz
Performance-core Max Turbo Frequency	4.8 GHz
Memory
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Maximum internal memory	128 GB
Memory slots	4x DIMM
Memory clock speed	4400 MHz
Memory channels	Dual-channel
Storage
Total storage capacity	512 GB
Storage media	SSD
Number of storage drives installed	1
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
SSD form factor	M.2
Total SSDs capacity	512 GB
NVMe	Yes
M.2 SSD size	2280 (22 x 80 mm)
Graphics
Discrete graphics card	No
On-board graphics card family	Intel® UHD Graphics
Discrete graphics card model	Not available
On-board graphics card model	Intel UHD Graphics 770
On-board graphics card	Yes
On-board GPU manufacturer	Intel
Network
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Thunderbolt 3 ports quantity	0
USB 2.0 ports quantity	0
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	2
Ethernet LAN (RJ-45) ports	1
Line-out	Yes
Microphone in	Yes
Design
Product colour	Black
Volume	8.2 L
Chassis type	SFF
Cable lock slot	Yes
Cable lock slot type	Kensington
Performance
Audio chip	Realtek ALC897Q-CG
Number of speakers	1
Product type	PC
Motherboard chipset	Intel Q670
Audio system	High Definition Audio
Trusted Platform Module (TPM)	Yes
Built-in speaker(s)	Yes
Software
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Operating system language	English
Power
Power supply	260 W
Power supply input frequency	50/60 Hz
Power supply input voltage	100 - 240 V
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80%
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12192 m
Storage temperature (T-T)	-40 - 60 °C
Storage relative humidity (H-H)	10 - 90%
Certificates
Certification	ErP Lot 3 RoHS compliant TCO Certified 9.0
Weight & dimensions
Volume	8.2 L
Width	92.5 mm
Depth	297.7 mm
Height	339.5 mm
Weight	5.3 kg
Packaging content
Display included	No
Mouse included	Yes
Keyboard included	Yes
Mouse connectivity	Wired
Keyboard connectivity	Wired
Display
Display included	No
Other features
Number of speakers	1
Processor manufacturer	Intel
Trusted Platform Module (TPM)	Yes
On-board graphics card	Yes
Built-in speaker(s)	Yes
