Lenovo ThinkCentre M70q Gen 5 Intel® Core™ i7 i7-14700T 32 GB DDR5-SDRAM 1 TB SSD Windows 11 Pro Mini PC Black

Intel Core i7-14700T, 20C (8P + 12E)/28T, Max Turbo up to 5.2GHz, P-core 1.3/5.0GHz, E-core 0.9/3.7GHz, 33MB, 2x 16GB SO-DIMM DDR5-5600, 1TB SSD M.2 2280 PCIe 4.0x4 NVMe Opal, Intel UHD Graphics 770, Intel Wi-Fi 6 AX201 802.11ax 2x2 + BT5.2, Windows 11 Pro

Key Features

• Intel Core i7-14700T, 20C (8P + 12E)/28T, Max Turbo up to 5.2GHz, P-core 1.3/5.0GHz, E-core 0.9/3.7GHz, 33MB
• 2x 16GB SO-DIMM DDR5-5600
• 1TB SSD M.2 2280 PCIe 4.0x4 NVMe Opal
• Intel UHD Graphics 770
• Windows 11 Pro

Description

ThinkCentre M70q Gen 5

Equipped with up to 14th Gen Intel® Core™ i7 processors and 64GB DDR5 memory, this desktop offers lightning-fast speeds for demanding industry tasks. Up to 4TB SSD storage ensures ample room for large files and datasets. Ideal for data analysis, software development, or system implementation, its advanced hardware enables professionals to work efficiently on the go. The robust performance and vast storage allow users to concentrate on innovation without delays from their tools.

Intel® UHD graphics and its support for up to four independent displays enhances multitasking capabilities for professionals engaged in data analysis, drafting, content development, and project management, thereby boosting productivity through seamless, versatile workflows.

Stay connected anywhere with Wi-Fi 6E, ensuring fast, reliable wireless connectivity. Versatile ports including DisplayPort, USB-C, USB-A, and HDMI enhance productivity for stationary professionals using this desktop.

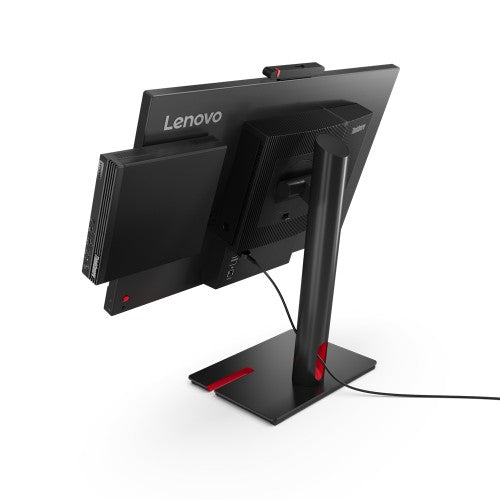

Its compact 1L form factor maximizes space efficiency, fitting seamlessly into any workspace while delivering robust performance, making it an ideal choice for those seeking functionality without sacrificing valuable desk space.

Specifications

Processor
Processor generation	Intel® Core™ i7 (14th gen)
Processor cache type	Smart Cache
Processor family	Intel® Core™ i7
Processor manufacturer	Intel
Processor model	i7-14700T
Processor cores	20
Processor boost frequency	5.2 GHz
Processor cache	33 MB
Processor threads	28
Number of processors installed	1
Performance cores	8
Efficient cores	12
Performance-core base frequency	1.3 GHz
Efficient-core base frequency	0.9 GHz
Processor base power	35 W
Maximum turbo power	106 W
Efficient-core Max Turbo Frequency	3.7 GHz
Performance-core Max Turbo Frequency	5 GHz
Memory
Internal memory	32 GB
Internal memory type	DDR5-SDRAM
Maximum internal memory	64 GB
Memory layout (slots x size)	2 x 16 GB
Memory slots	2x DIMM
Memory clock speed	5600 MHz
Non-ECC	Yes
ECC	No
Memory channels	Dual-channel
Storage
Total storage capacity	1 TB
Optical drive type	No
Card reader integrated	No
Storage media	SSD
Number of storage drives installed	1
Number of SSDs installed	1
SSD capacity	1 TB
SSD interface	PCI Express 4.0
SSD form factor	M.2
Total SSDs capacity	1 TB
NVMe	Yes
M.2 SSD size	2280 (22 x 80 mm)
Graphics
Discrete graphics card	No
On-board graphics card family	Intel® UHD Graphics
Discrete graphics card model	Not available
On-board graphics card model	Intel UHD Graphics 770
On-board graphics card	Yes
On-board GPU manufacturer	Intel
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth	Yes
Bluetooth version	5.2
WLAN controller model	Intel Wi-Fi 6 AX201
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Intel
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
USB 2.0 ports quantity	1
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	2
Ethernet LAN (RJ-45) ports	1
M.2 card slot (wireless)	1
M.2 card slot (storage)	2
DisplayPort version	1.4a
Number of rear USB ports	4
Number of front USB ports	3
Number of front audio ports	1
Design
VESA mounting	Yes
Product colour	Black
Volume	1 L
Chassis type	Mini PC
Cable lock slot	Yes
Cable lock slot type	Kensington
Colour name	Black
Performance
Audio chip	Realtek ALC233VB
Number of speakers	1
Product type	Mini PC
Motherboard chipset	Intel Q670
Audio system	High Definition Audio
Password protection	Yes
Password protection type	BIOS, HDD, Power on, Supervisor
Trusted Platform Module (TPM)	Yes
Built-in speaker(s)	Yes
Trusted Platform Module (TPM) version	2.0
Software
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Operating system language	English
Power
Power supply	135 W
Power supply input frequency	50/60 Hz
Power supply input voltage	100 - 240 V
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80%
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12192 m
Storage temperature (T-T)	-40 - 60 °C
Storage relative humidity (H-H)	10 - 90%
Certificates
Certification	ENERGY STAR,TCO,EPEAT Silver,RoHS
Compliance certificates	RoHS
Sustainability
Sustainability certificates	ENERGY STAR, EPEAT Silver, ErP, GREENGUARD, TCO
Ergonomics
VESA mounting	Yes
Weight & dimensions
Volume	1 L
Width	179 mm
Depth	182.9 mm
Height	36.5 mm
Weight	1.25 kg
Package width	490 mm
Package depth	128 mm
Package height	250 mm
Package weight	3.2 kg
Packaging data
Package width	490 mm
Package depth	128 mm
Package height	250 mm
Package weight	3.2 kg
Packaging content
Display included	No
Mouse included	Yes
Keyboard included	Yes
Mouse connectivity	Wired
Keyboard connectivity	Wired
Display
Display included	No
Technical details
Sustainability certificates	ENERGY STAR, EPEAT Silver, ErP, GREENGUARD, TCO
Compliance certificates	RoHS
Other features
VESA mounting	Yes
Number of speakers	1
Processor manufacturer	Intel
Trusted Platform Module (TPM)	Yes
On-board graphics card	Yes
Built-in speaker(s)	Yes
