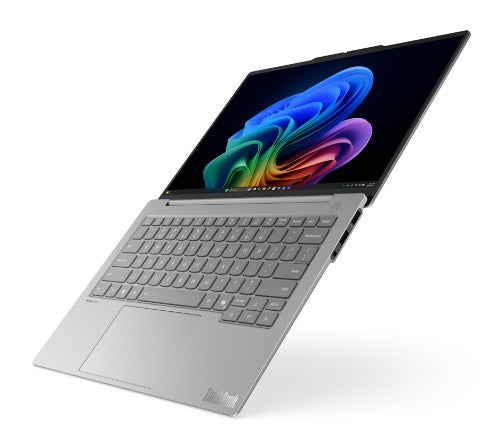

Lenovo ThinkBook 14x ILL Copilot+ PC Intel Core Ultra 5 226V Laptop 35.6 cm (14") WUXGA 16 GB LPDDR5x-SDRAM 512 GB SSD Wi-Fi 7 (802.11be) Windows 11 Pro English Grey

Intel Core Ultra 5 226V (8MB Cache), 16GB LPDDR5x-SDRAM, 512GB SSD, 14" WUXGA 1920 x 1200 IPS, Intel Arc Graphics 130V, WLAN, Webcam, Windows 11 Pro

Key Features

• Windows 11 Pro
• Intel Core Ultra 5 226V (8MB Cache)
• 14" WUXGA 1920 x 1200 IPS
• 16GB (8533MHz) LPDDR5x-SDRAM & 512GB SSD

Description

THINKBOOK 14X G1, 16" WUXGA, U5-226V, 16GB, 512GB, WI-FI 7, W11P, 1YO, COPILOT+

Specifications

Design
Colour name	Luna Grey
Product type	Laptop
Product colour	Grey
Form factor	Clamshell
Housing material	Aluminium
Display back cover material	Aluminium
Display
HD type	WUXGA
Display diagonal	35.6 cm (14")
Display resolution	1920 x 1200 pixels
Touchscreen	No
LED backlight	Yes
Display brightness	400 cd/m²
Panel type	IPS
Contrast ratio (typical)	1000:1
Anti-glare screen	Yes
Maximum refresh rate	120 Hz
RGB colour space	sRGB
Colour gamut	100%
Native aspect ratio	16:10
Processor
Processor generation	Intel Core Ultra (Series 2)
Processor cache type	Smart Cache
Processor family	Intel Core Ultra 5
Processor model	226V
Processor boost frequency	4.5 GHz
Processor cores	8
Processor threads	8
Processor cache	8 MB
Processor socket	BGA 2833
Motherboard chipset	Intel SoC
Processor manufacturer	Intel
Processor base power	17 W
Maximum turbo power	37 W
Performance-core base frequency	2.1 GHz
Performance-core Max Turbo Frequency	4.5 GHz
Performance cores	4
Low Power Efficient-core Base Frequency	2100 MHz
Low Power Efficient-core Max Turbo Frequency	3.5 GHz
Low Power Efficient-cores	4
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to	97 TOPs
NPU performance up to	40 TOPs
GPU performance up to	53 TOPs
Copilot+ PC	Yes
Memory
Internal memory	16 GB
Internal memory type	LPDDR5x-SDRAM
Memory clock speed	8533 MHz
Maximum internal memory	16 GB
Memory form factor	On-board
Memory channels	Dual-channel
Storage
SSD form factor	M.2
Optical drive type	No
Total storage capacity	512 GB
Storage media	SSD
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
Card reader integrated	No
Total SSDs capacity	512 GB
NVMe	Yes
M.2 SSD size	2242 (22 x 42 mm)
Graphics
Discrete graphics card	No
On-board graphics card family	Intel Arc Graphics
On-board graphics card model	Intel Arc Graphics 130V
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board GPU manufacturer	Intel
Audio
Audio chip	Senary SN6147
Number of microphones	2
Audio system	Dolby Atmos
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Camera
Front camera	Yes
Front camera resolution	1920 x 1080 pixels
Privacy camera	Yes
Privacy type	Privacy shutter
Front camera HD type	Full HD
Infrared (IR) camera	Yes
Windows Hello	Yes
Optical drive
Optical drive type	No
Network
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
WLAN controller model	Intel Wi-Fi 7 BE201
Bluetooth	Yes
Wi-Fi standards	Wi-Fi 7 (802.11be)
Ethernet LAN	No
Bluetooth version	5.4
WWAN	Not installed
Antenna type	2x2
WLAN controller manufacturer	Intel
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB Type-C DisplayPort Alternate Mode	Yes
USB 2.0 ports quantity	0
HDMI ports quantity	1
HDMI version	2.1
Combo headphone/mic port	Yes
USB Sleep-and-Charge ports	1
USB Sleep-and-Charge	Yes
USB Power Delivery (USB PD)	Yes
Performance
Motherboard chipset	Intel SoC
Keyboard
Pointing device	Touchpad
Numeric keypad	No
Spill-resistant keyboard	Yes
Keyboard backlit	Yes
Keyboard language	English
Copilot key	Yes
Software
Operating system installed	Windows 11 Pro
Operating system language	ENG-UK, US English
Bundled software	Office Trial
Copilot+ PC	Yes
Battery
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity	54.7 Wh
Fast charging	Yes
Fast charging time (50%)	30 min
Power
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
USB Power Delivery (USB PD)	Yes
USB Type-C charging port	Yes
USB Type-C required charging power (min)	45 W
USB Type-C required charging power (max)	65 W
Security
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
Password protection	Yes
Password protection type	HDD, Power on, Supervisor, User
Windows Hello	Yes
Trusted Platform Module (TPM) version	2.0
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95%
Storage relative humidity (H-H)	5 - 95%
Maximum shipping altitude	3048 m
Certificates
Certification	ENERGY STAR 9.0 EPEAT Gold Registered ErP Lot 6/26 RoHS compliant TCO Certified, generation 10 MIL-STD-810H military test passed TÜV Rheinland Low Blue Light (Hardware Solution)
Weight & dimensions
Weight	990 g
Width	312 mm
Depth	217 mm
Height (front)	1.29 cm
Height (rear)	1.56 cm
Packaging data
AC adapter included	Yes
Packaging content
AC adapter included	Yes
Other features
WLAN controller model	Intel Wi-Fi 7 BE201
Audio system	Dolby Atmos
On-board graphics card	Yes
Maximum shipping altitude	3048 m
AC adapter included	Yes
Anti-glare screen	Yes
