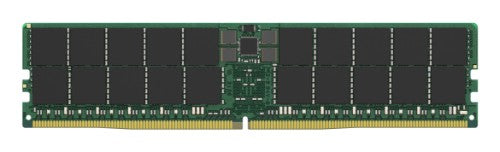

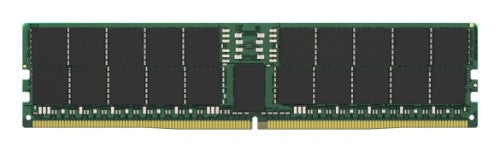

Kingston Technology 96GB, DDR5, 5600MT/s, ECC, Registered, DIMM, CL46, x80, 2RX4, 1.1V, 288-pin, 24Gbit

96GB, DDR5, 5600MT/s, ECC, Registered, DIMM, CL46, x80, 2RX4, 1.1V, 288-pin, 24Gbit

Description

KINGSTON DRAM, DDR5, ECC Reg, 5600MHz, 96GB Kit (12Gb x 8), CL 46-45-45, 1.1V, Limited Lifetime Warranty

Specifications

Design
Cooling type	Heatsink
JEDEC standard	Yes
Memory
Buffered memory type	Registered (buffered)
Internal memory	96 GB
Internal memory type	DDR5
Component for	PC/Server
ECC	Yes
Row Precharge Time (TRP)	16
Memory layout (modules x size)	1 x 96 GB
Memory form factor	288-pin DIMM
CAS latency	46
Memory voltage	1.1 V
Lead plating	Gold
Module configuration	12288M x 80
Row cycle time	48 ns
Refresh row cycle time	295 ns
Row active time	32 ns
SPD profile	Yes
Memory ranking	2
Programming power voltage (VPP)	1.8 V
Features
On-Die ECC	Yes
Buffered memory type	Registered (buffered)
Internal memory	96 GB
Internal memory type	DDR5
Component for	PC/Server
ECC	Yes
Row Precharge Time (TRP)	16
Memory layout (modules x size)	1 x 96 GB
Memory form factor	288-pin DIMM
CAS latency	46
Memory voltage	1.1 V
Lead plating	Gold
Module configuration	12288M x 80
Row cycle time	48 ns
Refresh row cycle time	295 ns
Row active time	32 ns
SPD profile	Yes
Cooling type	Heatsink
Memory ranking	2
Programming power voltage (VPP)	1.8 V
JEDEC standard	Yes
Memory data transfer rate	5600 MT/s
Operational conditions
Operating temperature (T-T)	0 - 95 °C
Storage temperature (T-T)	-55 - 100 °C
Technical details
Sustainability compliance	Yes
Doesn't contain	Halogen
Compliance certificates	RoHS
Sustainability
Sustainability compliance	Yes
Doesn't contain	Halogen
Compliance certificates	RoHS
Weight & dimensions
Width	133.3 mm
Height	31.2 mm
Other features
Doesn't contain	Halogen
