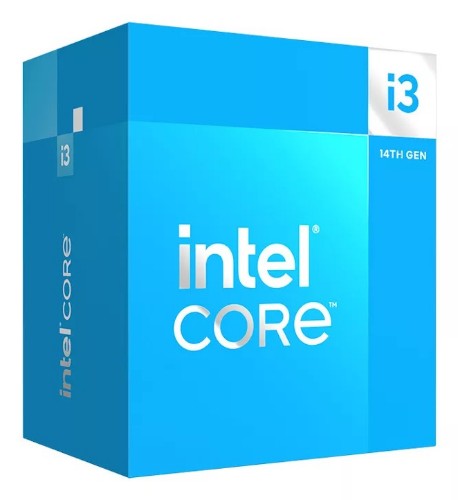

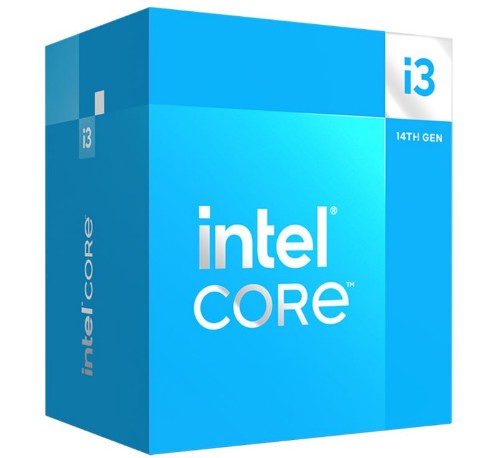

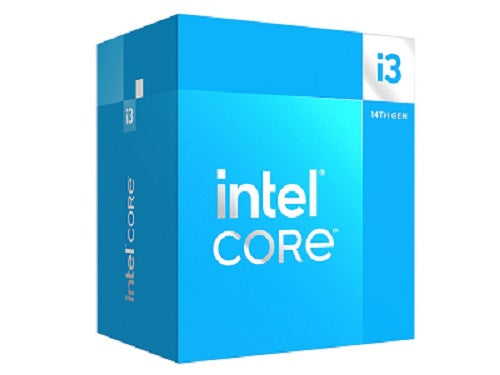

Intel Core i3-14100 processor 12 MB Smart Cache Box

Boxed Intel Core i3 processor 14100 (12M Cache, up to 4.70 GHz) FC-LGA16A

Description

Intel i3 14100 CPU 3.5GHz (4.7GHz Turbo) 14th Gen LGA1700 4-Cores 8-Threads 17MB 60W UHD Graphics 730 Retail Raptor Lake with Fan

CPU Specifications
Total Cores 4
# of Performance-cores 4
# of Efficient-cores 0
Total Threads 8
Max Turbo Frequency 4.7 GHz
Performance-core Max Turbo Frequency 4.7 GHz
Performance-core Base Frequency 3.5 GHz
Cache 12 MB Intel® Smart Cache
Total L2 Cache 5 MB
Processor Base Power 60 W
Maximum Turbo Power 110 W

Memory Specifications
Max Memory Size (dependent on memory type) 192 GB
Memory Types Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels 2
Max Memory Bandwidth 76.8 GB/s

GPU Specifications
GPU Name‡ Intel® UHD Graphics 730
Graphics Max Dynamic Frequency 1.5 GHz
Graphics Output eDP 1.4b | DP 1.4a | HDMI 2.1
Execution Units 24
Max Resolution (HDMI)‡ 4096 x 2160 @ 60Hz
Max Resolution (DP)‡ 7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel)‡ 5120 x 3200 @ 120Hz
DirectX* Support 12
OpenGL* Support 4.5
OpenCL* Support 3
Multi-Format Codec Engines 1
Intel® Quick Sync Video Yes
Intel® Clear Video HD Technology Yes
# of Displays Supported ‡ 4
Device ID 0x4692

Expansion Options
Direct Media Interface (DMI) Revision 4
Max # of DMI Lanes 8
Scalability 1S Only
PCI Express Revision 5.0 and 4.0
PCI Express Configurations ‡ Up to 1x16+4 | 2x8+4
Max # of PCI Express Lanes 20

Package Specifications
Sockets Supported FCLGA1700
Max CPU Configuration 1
Thermal Solution Specification PCG 2020C
TJUNCTION 100°C
Package Size 45.0 mm x 37.5 mm

Specifications

Processor
Processor generation	Intel® Core™ i3 (14th gen)
Processor manufacturer	Intel
Cooler included	Yes
Processor codename	Raptor Lake
Memory bandwidth supported by processor (max)	76.8 GB/s
Processor cache	12 MB
Processor ARK ID	236774
Processor family	Intel® Core™ i3
Processor cores	4
Processor socket	LGA 1700
Processor model	i3-14100
Processor threads	8
Processor operating modes	64-bit
Processor boost frequency	4.7 GHz
Stepping	H0
Processor cache type	Smart Cache
Performance cores	4
Efficient cores	0
Performance-core boost frequency	4.7 GHz
Performance-core base frequency	3.5 GHz
Processor base power	60 W
Maximum turbo power	110 W
Maximum number of DMI lanes	8
Memory
Maximum internal memory supported by processor	192 GB
Memory types supported by processor	DDR4-SDRAM, DDR5-SDRAM
Memory bandwidth supported by processor (max)	76.8 GB/s
Memory channels	Dual-channel
Memory bandwidth (max)	76.8 GB/s
Graphics
Discrete graphics card	No
On-board graphics card outputs supported	Embedded DisplayPort (eDP) 1.4b, DisplayPort 1.4a, HDMI 2.1
Number of execution units	24
On-board graphics card maximum resolution (DisplayPort)	7680 x 4320 pixels
On-board graphics card ID	0x4692
On-board graphics card maximum resolution (eDP - Integrated Flat Panel)	5120 x 3200 pixels
On-board graphics card refresh rate at maximum resolution (HDMI)	60 Hz
On-board graphics card refresh rate at maximum resolution (DisplayPort)	60 Hz
On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel)	120 Hz
Number of displays supported (on-board graphics)	4
On-board graphics card maximum resolution (HDMI)	4096 x 2160 pixels
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.5
On-board graphics card model	Intel UHD Graphics 730
On-board graphics card	Yes
On-board graphics card dynamic frequency (max)	1500 MHz
Discrete graphics card model	Not available
Multi-Format Codec Engines	1
Features
On-board graphics card ID	0x4692
Maximum number of PCI Express lanes	20
Processor package size	45 x 37.5 mm
Processor ARK ID	236774
Thermal Monitoring Technologies	Yes
Idle States	Yes
Execute Disable Bit	Yes
PCI Express slots version	4.0, 5.0
PCI Express configurations	1x16+1x4, 2x8+1x4
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Scalability	1S
Embedded options available	Yes
CPU configuration (max)	1
Market segment	Desktop
Harmonized System (HS) code	8542310001
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	740.17B1
Use conditions	PC/Client/Tablet
Direct Media Interface (DMI) Revision	4.0
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Intel® Speed Shift Technology	Yes
Intel® Turbo Boost Technology	2.0
Intel® Quick Sync Video Technology	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel® Secure Key	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel® Boot Guard	Yes
Intel® Volume Management Device (VMD)	Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU	Yes
Mode-based Execute Control (MBE)	Yes
Intel® Control-flow Enforcement Technology (CET)	Yes
Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0	Yes
Intel® Standard Manageability (ISM)	Yes
Operational conditions
Tjunction	100 °C
Technical details
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Status	Launched
Market segment	Desktop
Launch date	Q1'24
Intel Virtualization Technology (VT-x)	Yes
Processor cache type	Smart Cache
Harmonized System (HS) code	8542310001
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	740.17B1
OpenCL version	3.0
Packaging data
Package type	Box
Logistics data
Harmonized System (HS) code	8542310001
Weight & dimensions
Processor package size	45 x 37.5 mm
Other features
Maximum internal memory	192 GB
L2 cache	5120 KB
CPU configuration (max)	1
Graphics output	eDP 1.4b, DP 1.4a, HDMI 2.1
