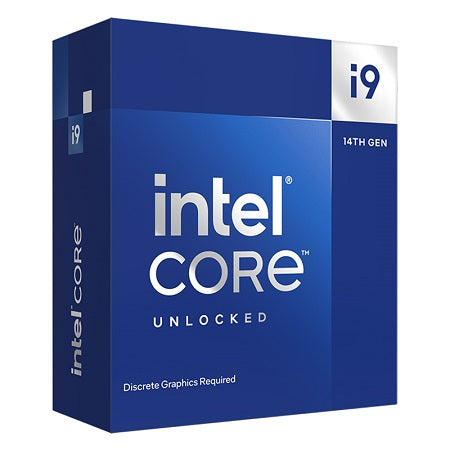

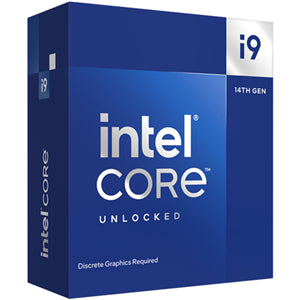

Intel Core i9-14900KF processor 36 MB Smart Cache Box

Boxed Intel Core i9 processor 14900KF (36M Cache, up to 6.00 GHz) FC-LGA16A

Description

*Limits Apply, contact your AM* Intel BX8071514900KF, Core i9-14900KF, LGA 1700 Socket, 24 Cores, 32 Threads, Base: 4.4GHz, Turbo: 6GHz, Cache: 68MB, TDP: 125W, 3 Year Warranty

Specifications

Processor
Processor generation	Intel® Core™ i9 (14th gen)
Processor manufacturer	Intel
Cooler included	No
Processor codename	Raptor Lake
Memory bandwidth supported by processor (max)	89.6 GB/s
Processor cache	36 MB
Processor ARK ID	236787
Processor family	Intel® Core™ i9
Processor cores	24
Processor socket	LGA 1700
Processor model	i9-14900KF
Processor threads	32
Processor operating modes	64-bit
Processor boost frequency	6 GHz
Stepping	B0
Processor cache type	Smart Cache
Performance cores	8
Efficient cores	16
Performance-core boost frequency	5.6 GHz
Performance-core base frequency	3.2 GHz
Efficient-core boost frequency	4.4 GHz
Efficient-core base frequency	2.4 GHz
Processor base power	125 W
Maximum turbo power	253 W
Maximum number of DMI lanes	8
Memory
Maximum internal memory supported by processor	192 GB
Memory types supported by processor	DDR4-SDRAM, DDR5-SDRAM
Memory bandwidth supported by processor (max)	89.6 GB/s
Memory channels	Dual-channel
Memory bandwidth (max)	89.6 GB/s
Non-ECC	Yes
Graphics
Discrete graphics card	No
On-board graphics card model	Not available
On-board graphics card	No
Discrete graphics card model	Not available
Features
Maximum number of PCI Express lanes	20
Processor package size	45 x 37.5 mm
Processor ARK ID	236787
Thermal Monitoring Technologies	Yes
Idle States	Yes
Execute Disable Bit	Yes
PCI Express slots version	4.0, 5.0
PCI Express configurations	1x16+1x4, 2x8+1x4
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal solution specification	PCG 2020A
Scalability	1S
Embedded options available	No
CPU configuration (max)	1
Market segment	Desktop
Harmonized System (HS) code	8542310001
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	740.17B1
Use conditions	PC/Client/Tablet
Direct Media Interface (DMI) Revision	4.0
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Intel Turbo Boost Max Technology 3.0	Yes
Intel® Speed Shift Technology	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel® Secure Key	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel® Boot Guard	Yes
Intel® Thermal Velocity Boost	Yes
Intel® Volume Management Device (VMD)	Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU	Yes
Mode-based Execute Control (MBE)	Yes
Intel® Turbo Boost Max Technology 3.0 frequency	5.8 GHz
Intel® Control-flow Enforcement Technology (CET)	Yes
Intel® Thermal Velocity Boost Frequency	6 GHz
Intel® Thread Director	Yes
Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0	Yes
Intel® Standard Manageability (ISM)	Yes
Intel® Adaptive Boost Technology	Yes
Operational conditions
Tjunction	100 °C
Technical details
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Status	Launched
Market segment	Desktop
Launch date	Q4'23
Intel Virtualization Technology (VT-x)	Yes
Processor cache type	Smart Cache
Harmonized System (HS) code	8542310001
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	740.17B1
Packaging data
Package type	Box
Logistics data
Harmonized System (HS) code	8542310001
Weight & dimensions
Processor package size	45 x 37.5 mm
Other features
Maximum internal memory	192 GB
L2 cache	32768 KB
CPU configuration (max)	1
