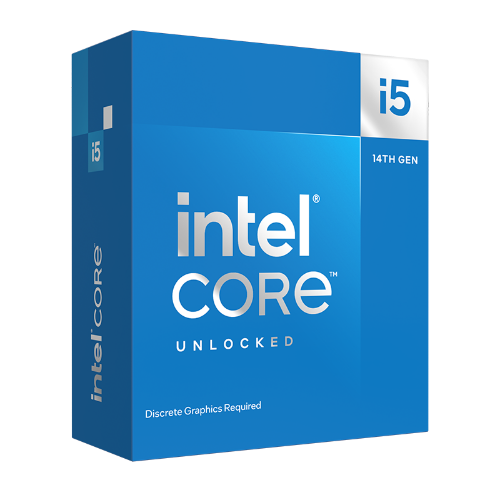

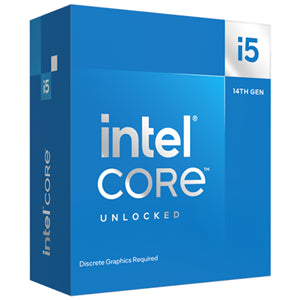

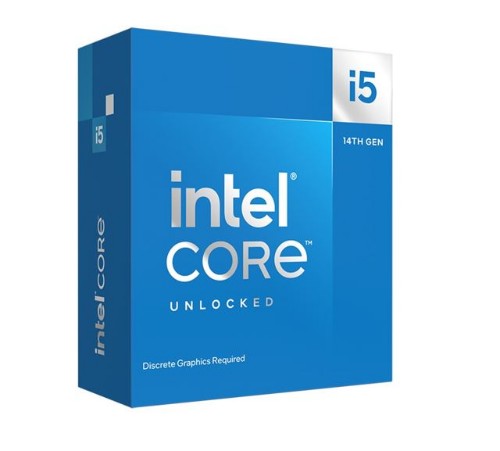

Intel Core i5-14600KF processor 24 MB Smart Cache Box

Boxed Intel Core i5 processor 14600KF (24M Cache, up to 5.30 GHz) FC-LGA16A

Description

Intel i5 14600KF CPU 4.0GHz (5.3GHz Turbo) 14th Gen LGA1700 14-Cores 20-Threads 44MB 125W Graphic Card Required Unlocked Retail Raptor Lake no Fan

Product Collection Intel® Core™ i5 Processors (14th gen)
Processor Number i5-14600KF
Lithography Intel 7
Use Conditions PC/Client/Tablet

Total Cores 14
# of Performance-cores 6
# of Efficient-cores 8
Total Threads 20
Max Turbo Frequency 5.3 GHz
Performance-core Max Turbo Frequency 5.3 GHz
Efficient-core Max Turbo Frequency 4 GHz
Performance-core Base Frequency 3.5 GHz
Efficient-core Base Frequency 2.6 GHz
Cache 24 MB Intel® Smart Cache
Total L2 Cache 20 MB
Processor Base Power 125 W
Maximum Turbo Power 181 W

Max Memory Size (dependent on memory type) 192 GB
Memory Types Up to DDR5 5600 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels 2
Max Memory Bandwidth 89.6 GB/s

Direct Media Interface (DMI) Revision 4
Max # of DMI Lanes 8
Scalability 1S Only
PCI Express Revision 5.0 and 4.0
PCI Express Configurations ‡ Up to 1x16+4 | 2x8+4
Max # of PCI Express Lanes 20

Intel® Gaussian & Neural Accelerator 3
Intel® Thread Director Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU Yes
Intel® Speed Shift Technology Yes
Intel® Turbo Boost Technology ‡ 2
Intel® Hyper-Threading Technology ‡ Yes
Intel® 64 ‡ Yes
Instruction Set 64-bit
Instruction Set Extensions Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Thermal Monitoring Technologies Yes
Intel® Volume Management Device (VMD) Yes

Specifications

Processor
Processor generation	Intel® Core™ i5 (14th gen)
Processor manufacturer	Intel
Cooler included	No
Processor codename	Raptor Lake
Memory bandwidth supported by processor (max)	89.6 GB/s
Processor cache	24 MB
Processor ARK ID	236778
Processor family	Intel® Core™ i5
Processor cores	14
Processor socket	LGA 1700
Processor model	i5-14600KF
Processor threads	20
Processor operating modes	64-bit
Processor boost frequency	5.3 GHz
Stepping	B0
Processor cache type	Smart Cache
Performance cores	6
Efficient cores	8
Performance-core boost frequency	5.3 GHz
Performance-core base frequency	3.5 GHz
Efficient-core boost frequency	4 GHz
Efficient-core base frequency	2.6 GHz
Processor base power	125 W
Maximum turbo power	181 W
Maximum number of DMI lanes	8
Memory
Maximum internal memory supported by processor	192 GB
Memory types supported by processor	DDR4-SDRAM, DDR5-SDRAM
Memory bandwidth supported by processor (max)	89.6 GB/s
Memory channels	Dual-channel
Memory bandwidth (max)	89.6 GB/s
Non-ECC	Yes
Graphics
Discrete graphics card	No
On-board graphics card model	Not available
On-board graphics card	No
Discrete graphics card model	Not available
Features
Maximum number of PCI Express lanes	20
Processor package size	45 x 37.5 mm
Processor ARK ID	236778
Thermal Monitoring Technologies	Yes
Idle States	Yes
Execute Disable Bit	Yes
PCI Express slots version	4.0, 5.0
PCI Express configurations	1x16+1x4, 2x8+1x4
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal solution specification	PCG 2020A
Scalability	1S
Embedded options available	No
CPU configuration (max)	1
Market segment	Desktop
Harmonized System (HS) code	8542310001
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	740.17B1
Use conditions	PC/Client/Tablet
Direct Media Interface (DMI) Revision	4.0
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Intel® Speed Shift Technology	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel® Secure Key	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel® Boot Guard	Yes
Intel® Volume Management Device (VMD)	Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU	Yes
Mode-based Execute Control (MBE)	Yes
Intel® Control-flow Enforcement Technology (CET)	Yes
Intel® Thread Director	Yes
Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0	Yes
Intel® Standard Manageability (ISM)	Yes
Operational conditions
Tjunction	100 °C
Technical details
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Status	Launched
Market segment	Desktop
Launch date	Q4'23
Intel Virtualization Technology (VT-x)	Yes
Processor cache type	Smart Cache
Harmonized System (HS) code	8542310001
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	740.17B1
Packaging data
Package type	Box
Logistics data
Harmonized System (HS) code	8542310001
Weight & dimensions
Processor package size	45 x 37.5 mm
Other features
Maximum internal memory	192 GB
L2 cache	20480 KB
CPU configuration (max)	1
