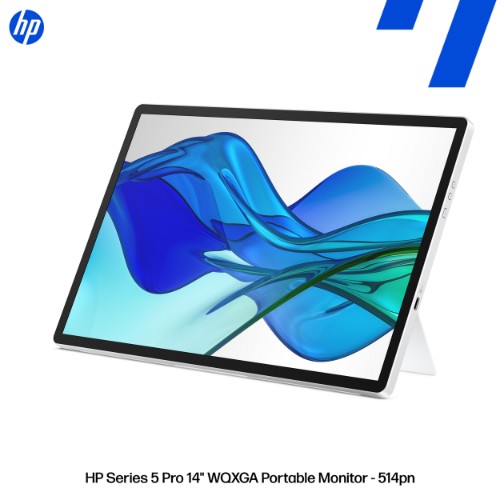

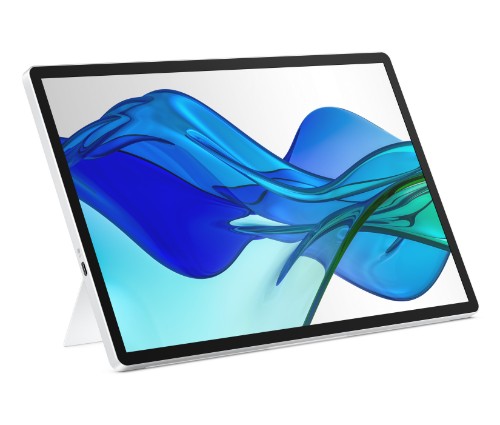

HP Series 5 Pro 14 inch WQXGA Portable Monitor - 514pn

Series 5 Pro 14 inch WQXGA Portable Monitor - 514pn

Key Features

• Carry true portable dual-screen productivity anywhere with this portable 14” display delivering WQXGA resolution and a 16:10 aspect ratio to match your notebook.
• Bring content to life wherever you are with IPS Black with Neo:LED panel technology, delivering striking color, brightness, and clarity.^[2]

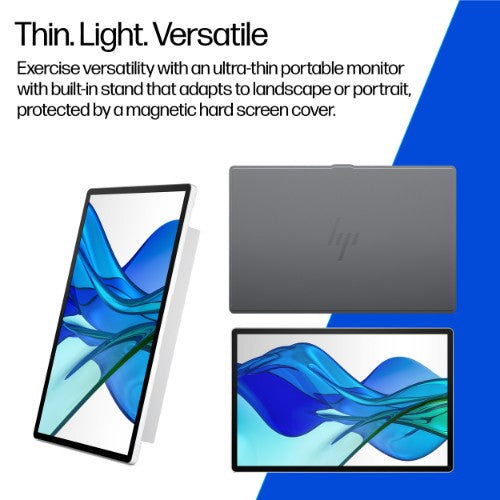

• Exercise versatility with an ultra-thin portable monitor with built-in stand that adapts to landscape or portrait, protected by a magnetic hard screen cover.
• Thoughtfully designed with at least 90% recycled plastic content in the monitor's enclosure, 20% recycled glass in the monitor panel, and 55% recycled aluminum.^[3]

Reasons To Buy

Increased Energy Efficiency

To help protect our shared future, this monitor is held to the highest energy saving standard with an ENERGY STAR rating and EPEAT Gold Registration.^[8]

Seamless Color Consistency Without Compromise

IPS Black with Neo:LED panel technology offers wide color coverage with 100% Adobe RGB, and 100% Display P3.^[2]

Deeper Blacks, Vibrant Whites

With a wide contrast ratio, enjoy true blacks that add depth to shadows and dimly lit scenes for clear detail in every photo, movie, or video game.^[2]

WQXGA Resolution

Crisp, clear visuals for smoother images with 2560 x 1600 WXQGA resolution and perfect 16:10 aspect ratio to match your notebook on this 14” portable display.^[2]

See Your Work in Any Light

With 400 nits of brightness, view beautiful details, enhanced image quality, and distinct shades of color in any environment.^[2]

75 Hz Refresh Rate

Smoothly transition across projects from anywhere with this 14” portable display using a 75 Hz refresh rate capable of clearer, high-resolution details.^[2]

Progressive White Balance

Work better with content that looks the same on both screens. Progressive White Balance is an HP technology that provides consistent white-point matching from screen-to-screen.^[10]

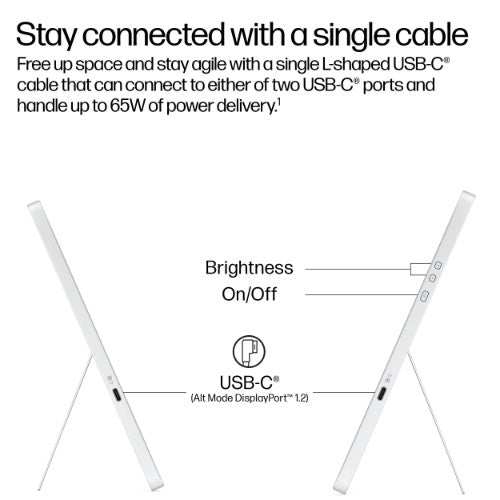

Stay Connected with a Single Cable

Free up space and stay agile with a single L-shaped USB-C cable that can connect to either of two USB-C ports and handle up to 65W of power delivery.^[1]

Thin, Light Design with Hard Cover Protection

Easily bring your work setup anywhere with a thin, lightweight portable monitor protected with a durable magnetic hard screen cover that doubles as a mousepad.

A Versatile Stand that Supports Flexibility

Choose the angle that best supports your workflow with a versatile mode and adjustable kickstand. Easily pivot or use in landscape.

Improved Visual Comfort

Protect your eyes with a monitor that meets the TUV Rheinland Eye Comfort 3.0 - 3 star criteria with HP Eye Ease low blue light filter, 75 Hz refresh rate, wide color coverage and flicker free.^[2,5]

HP Display Center

Customize your monitor with the intuitive HP Display Center that lets you tailor your settings, partition screens, and more—all through the host PC.^[6]

Remote Management Reimagined

The powerful HP Client Management Script Library (CMSL) works seamlessly with Intune/SCCM to make managing your fleet remotely easy using PowerShell.^[7]

Made with Materials that Matter

Designed with at least 90% recycled plastic content in the enclosure, 20% recycled glass in the monitor panel, and 55% recycled aluminum.^[3]

Thoughtful Product Packaging

100% of the paper-based packaging is sustainably sourced or recycled.^[4]

Works on Mac® or PC

Verified with devices running across OS, this monitor works with Mac® or PC devices.^[9]

Portable dual-screen productivity powered by one cable

Carry your office space everywhere. See more and do more on the go with a 14” WQXGA 16:10 display that connects to your notebook via a single USB-C cable delivering up to 65W^[1] of power for dual-screen productivity anywhere.

Thin, light, and versatile enough to take wherever work takes you

Exercise versatility in any space with an ultra-thin, lightweight portable monitor you can easily add to your bag with a durable magnetic hard screen cover that doubles as a mousepad. The built-in kick-stand adapts to landscape or portrait to fit your workflow.

Description

Transform every space into a dual display workspace
Take your dual screen setup anywhere and stay productive on the go without sacrificing picture quality with the HP Series 5 Pro 14” Portable Monitor. Breakthrough Neo:LED delivers stunning visuals in a feather-light frame to fit any space, making it the perfect sidekick for your notebook.

Specifications

Display
HDCP	Yes
Display brightness (typical)	400 cd/m²
Screen shape	Flat
Display number of colours	16.7 million colours
Native aspect ratio	16:10
Maximum refresh rate	75 Hz
sRGB coverage (typical)	100%
Display diagonal	35.6 cm (14")
Response time	7 ms
Display resolution	2560 x 1600 pixels
Display technology	LCD
Contrast ratio (typical)	2000:1
Contrast ratio (dynamic)	10000000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.1178 x 0.1178 mm
Horizontal scan range	31 - 124 kHz
Vertical scan range	50 - 75 Hz
Aspect ratio	16:10
Viewable size, horizontal	30.1 cm
Viewable size, vertical	18.8 cm
HD type	WQXGA
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA)
Pixel density	216 ppi
Display surface	Matt
Colour gamut	100%
Backlight type	Edge LED
Surface hardness	3H
Touchscreen	No
Display bezel technology	Narrow Border
Panel type	IPS Black
Colour depth	8 bit
Display diagonal (metric)	35.6 cm
Haze rate	25%
LED backlight	Yes
Display brightness	400 cd/m²
Colour gamut standard	sRGB
Response time measurement type	GTG (Gray to Gray)
Anti-glare screen	Yes
Performance
AMD FreeSync	No
NVIDIA G-SYNC	No
HP segment	Business
Low Blue Light technology	Yes
Flicker-free technology	Yes
Fast charging	Yes
Multimedia
Built-in speaker(s)	No
Built-in camera	No
Design
Market positioning	Business
Country of origin	China, Vietnam
Product colour	Silver
Feet colour	Silver
Certification	BIS; BSMI; CB; CCC; CE; cTUVus; EAC; FCC; ISO 9241-307; KC; KCC; NOM; TUV/GS; VCCI; Vietnam MEPS; WEEE; ISC; ICE; UAE; NRCS
Colour name	Silver
Ports & interfaces
USB Type-C downstream ports quantity	2
HDCP	Yes
Headphone out	No
HDMI	No
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	65 W
USB Type-C DisplayPort Alternate Mode	Yes
Ergonomics
VESA mounting	No
Cable lock slot	No
Tilt angle range	18.8 - 46.2°
Height adjustment	No
On Screen Display (OSD)	Yes
Tilt adjustment	Yes
Power
Power supply type	External
Power consumption (max)	13 W
Power consumption (standby)	0.5 W
Power consumption (typical)	7 W
Power consumption (off)	0.3 W
Energy efficiency scale	A to G
Energy efficiency class (SDR)	B
Energy efficiency class (HDR)	B
Energy consumption (SDR) per 1000 hours	5.6 kWh
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	20 - 80%
Operating altitude	0 - 5000 m
Non-operating altitude	0 - 12192 m

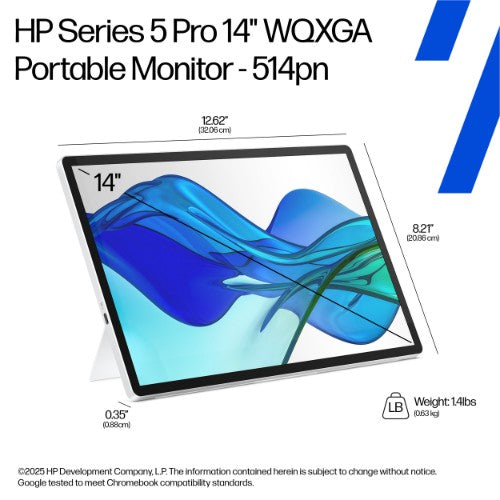

Weight & dimensions
Width (with stand)	320.6 mm
Depth (with stand)	8.8 mm
Height (with stand)	208.6 mm
Weight (with stand)	630 g
Package width	398 mm
Package depth	60 mm
Package height	278 mm
Package weight	1.27 kg
Weight	630 g
Packaging data
Package type	Box
Package width	398 mm
Package depth	60 mm
Package height	278 mm
Package weight	1.27 kg
Warranty card	Yes
Stand included	Yes
Quick start guide	Yes
Cables included	USB Type-C to USB Type-C
Bundled software	HP Display Center; HP Client Management Script Library
Packaging content
Stand included	Yes
Quick start guide	Yes
Cables included	USB Type-C to USB Type-C
Bundled software	HP Display Center; HP Client Management Script Library
Sustainability
Total carbon footprint (kg of CO2e)	200
Sustainable technologies and materials	At least 55% recycled aluminum; Contains ocean-bound plastic; Contains 20% recycled glass in the monitor panel; Molded paper pulp cushion inside box is made of 100% recycled or certified sources; Outside box and corrugated cushions are 100% from certified or recycled sources and recyclable; At least 90% post-consumer recycled plastic; Low halogen
Sustainability compliance	Yes
Sustainability certificates	ENERGY STAR, EPEAT, EPEAT Climate +
Carbon footprint
Total carbon footprint (kg of CO2e)	200
Total carbon emissions, w/o use phase (kg of CO2e)	36
Carbon emissions, manufacturing (kg of CO2e)	156
Carbon emissions, logistics (kg of CO2e)	3
Carbon emissions, end-of-life (kg of CO2e)	2
Technical details
Sustainable technologies and materials	At least 55% recycled aluminum; Contains ocean-bound plastic; Contains 20% recycled glass in the monitor panel; Molded paper pulp cushion inside box is made of 100% recycled or certified sources; Outside box and corrugated cushions are 100% from certified or recycled sources and recyclable; At least 90% post-consumer recycled plastic; Low halogen
Sustainability compliance	Yes
Sustainability certificates	ENERGY STAR, EPEAT, EPEAT Climate +
Compliance certificates	CCC, CB, EAC, BIS, Federal Communications Commission (FCC), CE, BSMI
General Product Safety Regulation (GPSR) URL	https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true
Power supply type	External
Country of origin	China, Vietnam
Weight (with stand)	630 g
Surface hardness	3H
Touchscreen	No
Features
Country of origin	China, Vietnam
Other features
Country of origin	China, Vietnam
Certification	BIS; BSMI; CB; CCC; CE; cTUVus; EAC; FCC; ISO 9241-307; KC; KCC; NOM; TUV/GS; VCCI; Vietnam MEPS; WEEE; ISC; ICE; UAE; NRCS
UNSPSC-code	43211902
Weight	630 g
Compliance certificates	CCC, CB, EAC, BIS, Federal Communications Commission (FCC), CE, BSMI
Manufacturer warranty	HP three-year limited warranty
Power consumption (max)	13 W
Quick start guide	Yes
HDMI	No
Surface hardness	3H
USB Power Delivery up to	65 W
Energy efficiency scale	A to G
USB Type-C DisplayPort Alternate Mode	Yes
Power supply type	External
Touchscreen	No
USB Power Delivery (USB PD)	Yes
Package type	Box
Logistics data
Total carbon footprint (kg of CO2e)	200
Certificates
Certification	BIS; BSMI; CB; CCC; CE; cTUVus; EAC; FCC; ISO 9241-307; KC; KCC; NOM; TUV/GS; VCCI; Vietnam MEPS; WEEE; ISC; ICE; UAE; NRCS
