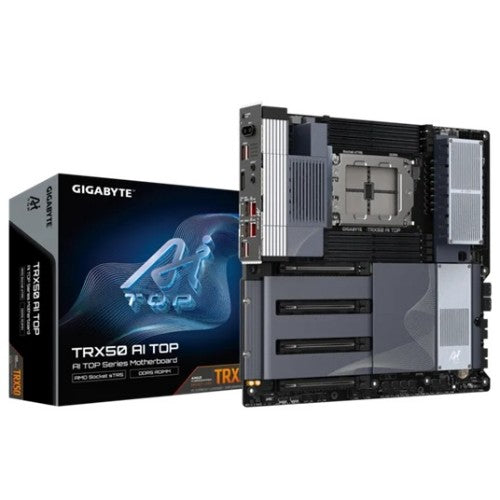

GIGABYTE TRX50 AI TOP Motherboard - Supports AMD Ryzen PRO 7000 CPUs, 16+8+4 Phases Digital VRM, up to 5200MHz DDR5 (OC), 4xPCIe 5.0 + 4xPCIe 4.0 M.2, Wi-Fi 7, 10GbE LAN, USB 3.2 Gen 2x2

TRX50 AI TOP Motherboard - Supports AMD Ryzen PRO 7000 CPUs, 16+8+4 Phases Digital VRM, up to 5200MHz DDR5 (OC), 4xPCIe 5.0 + 4xPCIe 4.0 M.2, Wi-Fi 7, 10GbE LAN, USB 3.2 Gen 2x2

Key Features

• Training your own AI on your desk
• Socket sTR5: Supports AMD Ryzen Threadripper PRO 7000 series/ Ryzen Threadripper 7000 series Processors
• Breakthrough Performance：16+8+4 Phases Digital VRM Solution
• 8 Channel DDR5：8*SMD ECC R-DIMMs with Maxmium 2TB capacity
• Reinforced Overall Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard
• Ultimate Scalibility: 4*PCIe 5.0 x16 slots for Multi-GPU and 4*PCIe 5.0 x4 M.2 slots
• Next-gen Connectivity: Dual USB4 Type-C ports
• Blazing Fast Networks: Dual 10GbE LAN, Wi-Fi 7 with Ultra-high gain directional antenna & WIFI EZ-Plug
• PCIe UD Slot X：PCIe 5.0 x16 slot with 10X strength for graphics card
• EZ-Latch Click：M.2 heatsinks with screwless design
• EZ-Latch Plus：M.2 slots with quick release design
• Hi-Fi Audio with DTS:X® Ultra：ALC4080+ALC897 CODEC
• UC BIOS：User-Centred intuitive UX with Quick Access function

Description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Specifications

Internal I/O
Number of M.2 (M) slots	4
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Total number of SATA connectors	4
Front panel connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
TPM connector	Yes
Serial port headers	1
Power fan connector	Yes
Number of SATA III connectors	4
Number of SATA II connectors	0
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
Performance
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD TRX50
Motherboard form factor	Extended ATX
Audio output channels	2.0 channels
Supported processor sockets	sTRX5
RAID levels	0, 1, 10
PC health monitoring	Fan, Temperature, Voltage
Linux operating systems supported	Ubuntu 24.04 LTS
Windows operating systems supported	Windows 11
Processor
Processor manufacturer	AMD
Maximum internal memory supported by processor	2 TB
Compatible processor series	AMD Ryzen Threadripper 7000 Series, AMD Ryzen Threadripper PRO 7000 WX-Series
Processor socket	Socket sTR5
Supported processor sockets	sTRX5
Memory
Number of memory slots	8
Supported memory types	DDR5-SDRAM
Memory slots type	DIMM
Memory channels	Quad-channel
Maximum internal memory	2 TB
Unbuffered memory	Yes
ECC сompatibility	ECC
Storage controllers
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
RAID levels	0, 1, 10
Number of storage drives supported	8
RAID support	Yes
Graphics
Maximum resolution	4096 x 2160 pixels
HDCP	Yes
DirectX version	12.0

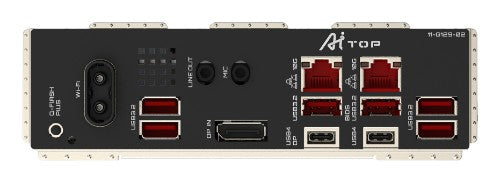

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	6
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
VGA (D-Sub) ports quantity	0
HDMI ports quantity	0
DVI-D ports quantity	0
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be)
Ethernet interface type	10 Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.3
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Features
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD TRX50
Motherboard form factor	Extended ATX
Audio output channels	2.0 channels
Supported processor sockets	sTRX5
PC health monitoring	Fan, Temperature, Voltage
Linux operating systems supported	Ubuntu 24.04 LTS
Windows operating systems supported	Windows 11
Audio chip	Realtek ALC4080
Expansion slots
Number of M.2 (M) slots	4
PCI Express x16 slots	3
BIOS
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
BIOS memory size	256 Mbit
ACPI version	5.0
System Management BIOS (SMBIOS) version	2.7
Desktop Management Interface (DMI) version	2.7
Packaging data
Package width	379 mm
Package depth	397 mm
Package height	105 mm
Package weight	6.47 kg
Battery
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery weight	3 g
Number of battery cells	1
Lithium weight per battery	0.07 g
Battery type	CR2032
Logistics data
Products per shipping (inner) case	1 pc(s)
Country of origin	Taiwan
Weight & dimensions
Width	305 mm
Depth	330 mm
Height	35 mm
Package width	379 mm
Package depth	397 mm
Package height	105 mm
Package weight	6.47 kg
Packaging content
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Batteries included	Yes
Technical details
Total number of SATA connectors	4
Maximum internal memory supported by processor	2 TB
Warranty period	3 year(s)
Other features
Height	35 mm
Package width	379 mm
Package depth	397 mm
Package height	105 mm
Package weight	6.47 kg
