GIGABYTE GeForce RTX 5060 WINDFORCE OC 8G Graphics Card - 8GB GDDR7, 128bit, PCI-E 5.0, 2512 MHz Core Clock, 3 x DisplayPort, 1 x HDMI, GV-N5060WF2OC-8GD

GeForce RTX 5060 WINDFORCE OC 8G Graphics Card - 8GB GDDR7, 128bit, PCI-E 5.0, 2512 MHz Core Clock, 3 x DisplayPort, 1 x HDMI, GV-N5060WF2OC-8GD

Key Features

• Powered by the NVIDIA Blackwell architecture and DLSS 4
• Powered by GeForce RTX 5060
• Integrated with 8GB GDDR7 128bit memory interface
• WINDFORCE cooling system
• Reinforced structure

Description

Unlock unparalleled gaming prowess with GIGABYTE's NVIDIA graphics cards. Engineered for peak performance and visual excellence, our GPUs redefine gaming standards. With advanced cooling solutions and cutting-edge technologies, GIGABYTE NVIDIA graphics cards deliver stunning visuals and seamless gameplay experiences, empowering gamers to dominate every virtual battlefield with confidence and precision.

Specifications

Processor
Graphics processor	GeForce RTX 5060
Maximum resolution	7680 x 4320 pixels
Graphics processor family	NVIDIA
CUDA	Yes
Processor frequency	2512 MHz
Parallel processing technology support	Not supported
Maximum displays per videocard	4
CUDA cores	3840
Memory
Discrete graphics card memory	8 GB
Graphics card memory type	GDDR7
Memory bus	128 bit
Memory clock speed	28000 MHz
Data transfer rate	28 Gbit/s

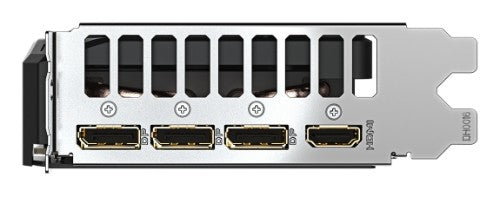

Ports & interfaces
Interface type	PCI Express 5.0
HDMI ports quantity	1
DVI-I ports quantity	0
DVI-D ports quantity	0
DisplayPorts quantity	3
Mini HDMI ports quantity	0
HDMI version	2.1b
Mini DisplayPorts quantity	0
DisplayPort version	2.1b
Thunderbolt 3 ports quantity	0
Performance
NVIDIA G-SYNC	Yes
TV tuner integrated	No
DirectX version	12.0
OpenGL version	4.6
Dual Link DVI	No
Warranty period	3 year(s)
Overclocked (OC) edition	Yes
Design
Number of fans	2 fan(s)
Cooling type	Active
Form factor	Full-Height/Half-Length (FH/HL)
Number of slots	2
Product colour	Black
Cooling technology	GIGABYTE WINDFORCE 2X
Power
Minimum system power supply	450 W
Supplementary power connectors	1x 8-pin
Thermal Design Power (TDP)	109 W
Weight & dimensions
Weight	490 g
Height	116 mm
Depth	40 mm
Length	199 mm
Packaging data
Package type	Box
Package width	210.5 mm
Package depth	295 mm
Package height	50 mm
Package weight	810 g
Technical details
Warranty period	3 year(s)
Logistics data
Products per shipping (inner) case	1 pc(s)
