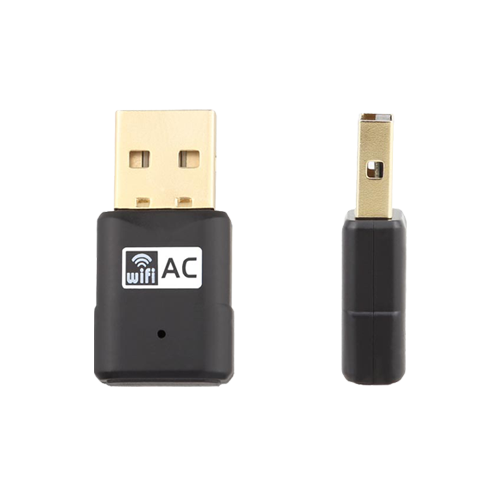

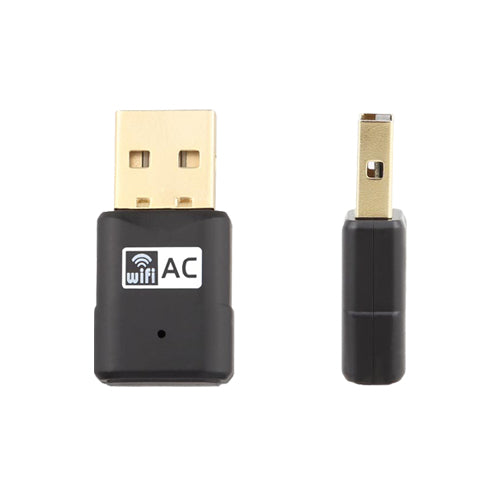

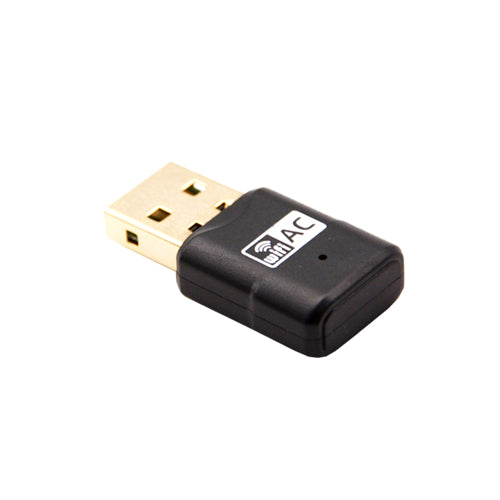

Fanvil WF20 network card WLAN 150 Mbit/s

Wi-Fi Dongle, 2.4GHz/150Mbps

Key Features

• Compatible with all Fanvil IP phones which support WiFi connectivity via WiFi dongle (Only support 2.4GHz/150Mbps)
• WF20 is compliant with the IEEE802.11n, IEEE802.11b/g, and 802.11ac standards, maximizing reliability and throughput
• Ease-of-use
• High Transmission Rate
• Plug and Play
• Lower Power Consumption

Description

WF20 USB Wi-Fi Dongle is a low-power, small form factor device that can be implemented within offices for connecting their IP phones to available wireless networks. Supported by a powerful transmission rate of 150 Mbps, this dynamic plug-and-play style USB device is able to quickly and reliably establish Wi-Fi connectivity so that users can optimally communicate, collaborate, access pertinent documents and resources and more.

Specifications

Ports & interfaces
Internal	No
USB version	2.0
Connectivity technology	Wireless
Host interface	USB
Interface	WLAN
Bandwidth
Maximum data transfer rate	150 Mbit/s
Wireless LAN features
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Wi-Fi	Yes
Antenna
Frequency range	2.4 - 5.8 GHz
Network
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Maximum data transfer rate	150 Mbit/s
Wi-Fi	Yes
Networking standards	IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Frequency range	2.4 - 5.8 GHz
Design
Internal	No
Product colour	Black
Plug and Play	Yes
Compatible products	Compatible with Fanvil X5S/X6/X7/X7C/X210/X210i (Only support 2.4GHz/150Mbps) - For X5S/X6/X210/X210i, upgrade to the version of V1.10.10 or higher - For X7/X7C, upgrade to the version of V1.0.10 or higher
Component for	PC
Power
USB powered	Yes
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	20 - 85%
Weight & dimensions
Width	16 mm
Depth	33 mm
Height	7 mm
Performance
Plug and Play	Yes
Compatible products	Compatible with Fanvil X5S/X6/X7/X7C/X210/X210i (Only support 2.4GHz/150Mbps) - For X5S/X6/X210/X210i, upgrade to the version of V1.10.10 or higher - For X7/X7C, upgrade to the version of V1.0.10 or higher
