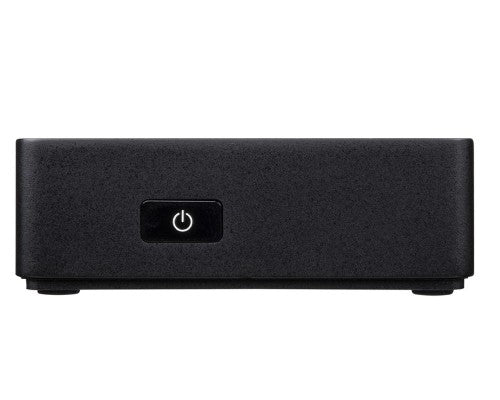

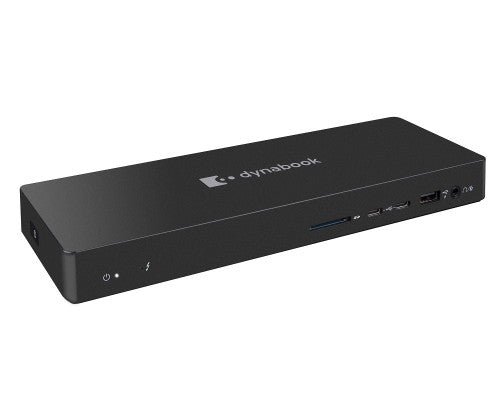

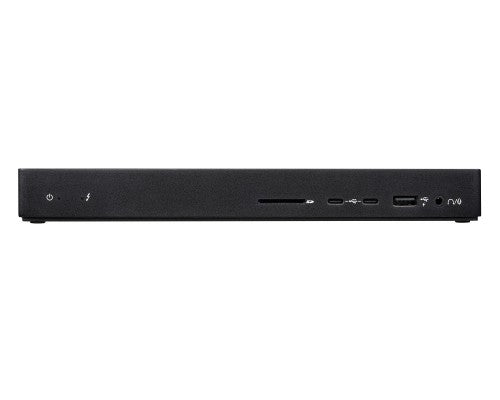

Dynabook Thunderbolt™ 4 Dock Wired Thunderbolt 4 Black

Thunderbolt 4/USB Type-C, HDMI, DisplayPort, LAN, 20V DC, 6.75A, 135W, 84 x 245 x 27 mm, 440 g

Key Features

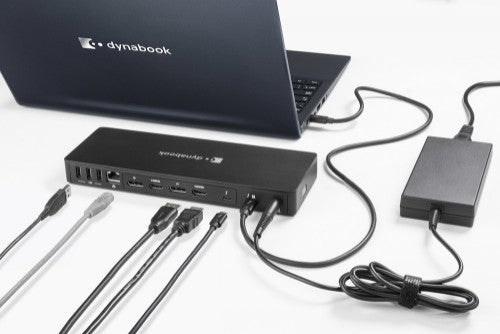

• One cable connection
• Connect up to 4 displays simultaneously
• Up to 8K single video resolution
• Dual HDMI™ and DisplayPort™ video output
• Charges your laptop up to 90W
• Additional Thunderbolt™ 4 USB-C DFP port
• Supports PXE Boot and MAPT for compatible Dynabook laptops

Description

One cable. A world of possibilities.

Unleash extensive possibilities with Thunderbolt™ 4 dock - for comprehensive, flexible connectivity for the devices you need most.

Benefit from the combination of a full set of ports and Thunderbolt™ 4 connectivity, output from up to four 4K displays via 2x HDMI® and 2x DisplayPort™ outputs, transfer at high speeds of up to 40 Gbps (eight times faster than USB 3.0), and turn your desk into the ultimate, clutter-free workstation.

Specifications

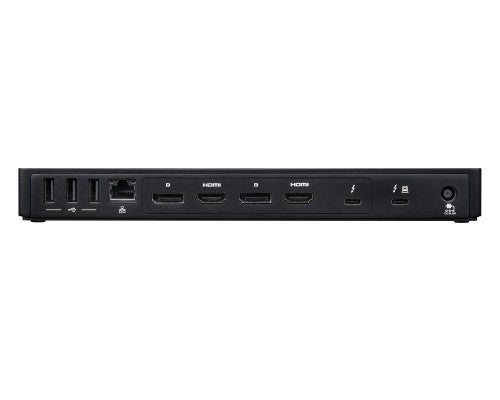

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
Connectivity technology	Wired
USB 2.0 ports quantity	0
Host interface	Thunderbolt 4
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	2
DisplayPorts quantity	2
DC-in jack	Yes
USB Sleep-and-Charge	Yes
Thunderbolt 4 ports quantity	1
Network
Ethernet LAN	Yes
Ethernet LAN data rates	1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
Maximum digital resolution	7680 x 4320 pixels
Number of displays supported	4
Product colour	Black
Card reader integrated	Yes
Compatible memory cards	SD
Cable lock slot	Yes
LED indicators	Yes
Maximum refresh rate	60 Hz
Storage
Card reader integrated	Yes
Compatible memory cards	SD
Power
Power source type	DC
Power consumption (max)	135 W
Output voltage	20 V
Output current	6.75 A
Thunderbolt 4 cable length	0.8 m
Software
Windows operating systems supported	Windows 10, Windows 11
Weight & dimensions
Width	84 mm
Depth	245 mm
Height	27 mm
Weight	440 g
Design
Windows operating systems supported	Windows 10, Windows 11
Product colour	Black
Cable lock slot	Yes
LED indicators	Yes
Packaging data
Quantity per pack	1 pc(s)

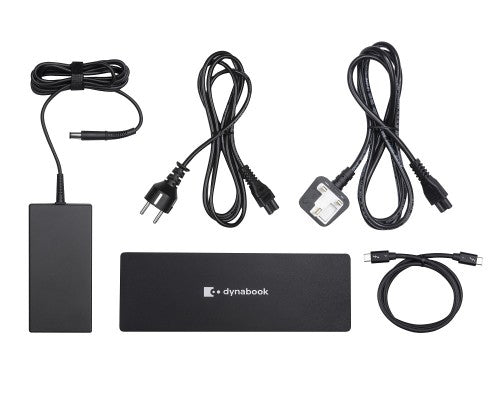

Packaging content
Quick start guide	Yes
Cables included	Thunderbolt
AC adapter included	Yes
Warranty card	Yes
Quantity per pack	1 pc(s)
