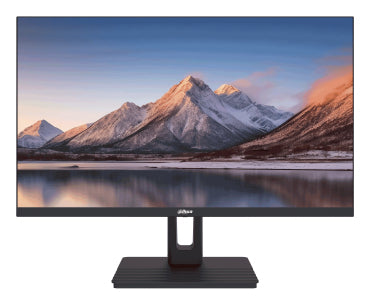

Dahua Technology LM24-C301B computer monitor 60.5 cm (23.8") 2560 x 1440 pixels Quad HD LED Black

23.8", 2560 x 1440 QHD, 100 Hz, IPS, ELED, 300 cd/m², 1200: 1, 5 ms, 85% NTSC, 8 bit, DP, HDMI, 3.5mm, Black

Key Features

• The 2560 × 1440 resolution produces clearer and more vivid images
• IPS panel for wide viewing angles with 3-sided frameless design
• 178° (H) / 178° (V) extra-wide viewing angle for overall viewing performance
• 5 ms fast response time with no image blurring or ghosting
• Low blue light technology can support a comfortable viewing experience

Description

Displays

Specifications

Display
Display brightness (typical)	300 cd/m²
Screen shape	Flat
Native aspect ratio	16:9
Maximum refresh rate	100 Hz
Display diagonal	60.5 cm (23.8")
Response time	5 ms
Display resolution	2560 x 1440 pixels
Display technology	LED
Contrast ratio (typical)	1200:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
HD type	Quad HD
Supported graphics resolutions	2560 x 1440
Supported video modes	1440p
Backlight type	Edge LED
NTSC coverage (typical)	85%
Touchscreen	No
Panel type	IPS
Colour depth	8 bit
Display diagonal (metric)	61 cm
Haze rate	25%
LED backlight	Yes
Colour gamut standard	NTSC
Performance
AMD FreeSync	No
NVIDIA G-SYNC	No
Low Blue Light technology	Yes
Multimedia
Built-in speaker(s)	No
Built-in camera	No
Design
Market positioning	Office
Product colour	Black
Feet colour	Black
Front bezel colour	Black
Frameless design	Yes
Detachable stand	Yes
Illuminated stand	No
Ports & interfaces
Built-in USB hub	No
HDMI ports quantity	1
DisplayPorts quantity	1
Headphone connectivity	3.5 mm
Headphone out	Yes
HDMI	Yes
HDMI version	1.4
DisplayPort version	1.2
Bluetooth	No
Wi-Fi	No
Network
Bluetooth	No
Wi-Fi	No
Ergonomics
Wall mountable	Yes
VESA mounting	Yes
Panel mounting interface	75 x 75 mm
Tilt angle range	-5 - 15°
Plug and Play	Yes
Tilt adjustment	Yes
Power
Power supply type	External
Power consumption (max)	24 W
Power consumption (standby)	0.5 W
Power consumption (typical)	24 W
Power consumption (off)	0.3 W
Energy efficiency scale	A to G
AC adapter output voltage	12 V
Energy efficiency class (SDR)	F
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	21 kWh
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width (with stand)	539.2 mm
Depth (with stand)	190 mm
Height (with stand)	418.6 mm
Bezel width (side)	3.1 mm
Bezel width (top)	3.1 mm
Bezel width (bottom)	1.59 cm
Width (without stand)	539.2 mm
Height (without stand)	320.4 mm
Depth (without stand)	41.3 mm
Weight (without stand)	3.1 kg
Package width	612 mm
Package depth	111 mm
Package height	405 mm
Package weight	4 kg
Packaging data
Package width	612 mm
Package depth	111 mm
Package height	405 mm
Package weight	4 kg
Stand included	Yes
Quick start guide	Yes
Manual	Yes
Cables included	HDMI
Power adapter included	Yes
Packaging content
Stand included	Yes
Quick start guide	Yes
Manual	Yes
Cables included	HDMI
Power adapter included	Yes
Other features
Automatic brightness control	No
Compliance certificates	Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)
Power consumption (max)	24 W
Bluetooth	No
Width (without stand)	539.2 mm
Quick start guide	Yes
Height (without stand)	320.4 mm
HDMI	Yes
Depth (without stand)	41.3 mm
Energy efficiency scale	A to G
Power supply type	External
Manual	Yes
Touchscreen	No
Front bezel colour	Black
Technical details
Compliance certificates	Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)
Power supply type	External
Touchscreen	No
