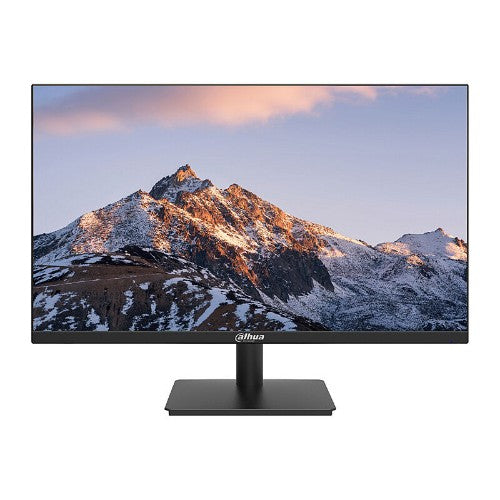

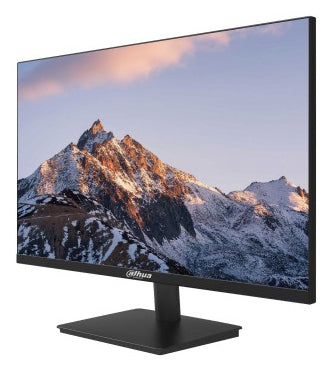

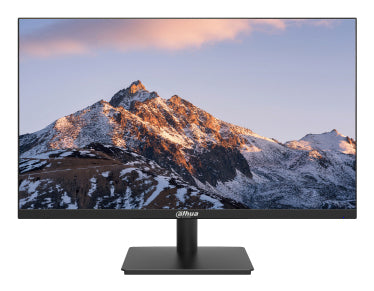

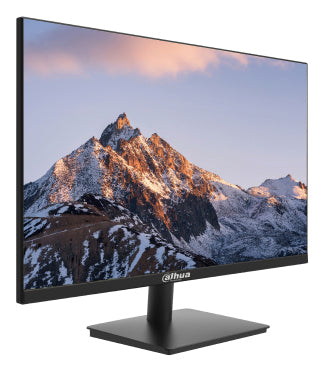

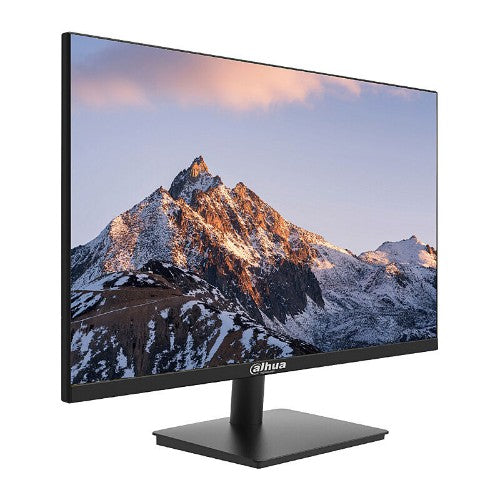

Dahua Technology LM24-A221Y computer monitor 60.5 cm (23.8") 1920 x 1080 pixels Full HD LED Black

23.8", 1920 x 1080 FHD, IPS, ELED, 144 Hz, 16:9, 1ms MPRT, 250 cd/m², 1200:1, 6 bit + FRC, 72% NTSC, VGA, HDMI 1.4, VESA 100 x 100, Black

Key Features

• Light and cost-effective plastic housing
• Ultra-narrow bezel , elegant appearance, plastic base
• Support multiple signal inputs such as HDMI, VGA
• 144Hz high refresh rate
• 1ms rapid response time

Description

Monitors

Specifications

Display
Display brightness (typical)	250 cd/m²
Screen shape	Flat
Native aspect ratio	16:9
Maximum refresh rate	144 Hz
Display diagonal	60.5 cm (23.8")
Display resolution	1920 x 1080 pixels
Display technology	LED
Contrast ratio (typical)	1200:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.2745 x 0.2745 mm
Viewable size, horizontal	52.7 cm
Viewable size, vertical	29.6 cm
HD type	Full HD
Supported graphics resolutions	1920 x 1080 (HD 1080)
Supported video modes	1080p
Pixel density	92.56 ppi
Backlight type	Edge LED
Surface hardness	3H
NTSC coverage (typical)	72%
Touchscreen	No
Panel type	IPS
Colour depth	6 bit
Display diagonal (metric)	61 cm
Haze rate	25%
LED backlight	Yes
Colour gamut standard	NTSC
Response time (MPRT)	1 ms
Performance
AMD FreeSync	No
NVIDIA G-SYNC	No
Flicker-free technology	Yes
Multimedia
Built-in speaker(s)	No
Built-in camera	No
Design
Market positioning	Office
Product colour	Black
Feet colour	Black
Front bezel colour	Black
Illuminated stand	No
Ports & interfaces
Built-in USB hub	No
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1
HDMI	Yes
HDMI version	1.4
Bluetooth	No
Wi-Fi	No
Network
Bluetooth	No
Wi-Fi	No
Ergonomics
Wall mountable	Yes
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
LED indicators	Status
Tilt angle range	-5 - 20°
Plug and Play	Yes
Tilt adjustment	Yes
Power
Power supply type	External
Power consumption (max)	22 W
Power consumption (standby)	0.5 W
Power consumption (typical)	21.2 W
Power consumption (off)	0.3 W
Energy efficiency scale	A to G
AC adapter output voltage	12 V
Energy efficiency class (SDR)	D
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	13 kWh
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 85%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width (with stand)	542.1 mm
Depth (with stand)	189 mm
Height (with stand)	418.3 mm
Bezel width (side)	3.6 mm
Bezel width (top)	2.3 mm
Bezel width (bottom)	1.68 cm
Width (without stand)	542.1 mm
Height (without stand)	322.4 mm
Depth (without stand)	47.6 mm
Weight (without stand)	2.8 kg
Package width	602 mm
Package depth	120 mm
Package height	412 mm
Package weight	3.9 kg
Packaging data
Package width	602 mm
Package depth	120 mm
Package height	412 mm
Package weight	3.9 kg
Stand included	Yes
Quick start guide	Yes
Manual	Yes
Cables included	HDMI
Power adapter included	Yes
Packaging content
Stand included	Yes
Quick start guide	Yes
Manual	Yes
Cables included	HDMI
Power adapter included	Yes
Other features
Automatic brightness control	No
Compliance certificates	CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)
Power consumption (max)	22 W
Bluetooth	No
Width (without stand)	542.1 mm
Quick start guide	Yes
Height (without stand)	322.4 mm
HDMI	Yes
Depth (without stand)	47.6 mm
Surface hardness	3H
Energy efficiency scale	A to G
Power supply type	External
Manual	Yes
Touchscreen	No
Front bezel colour	Black
Technical details
Compliance certificates	CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)
Power supply type	External
Surface hardness	3H
Touchscreen	No
