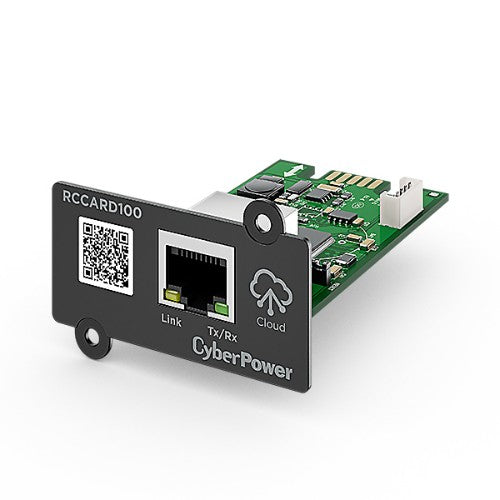

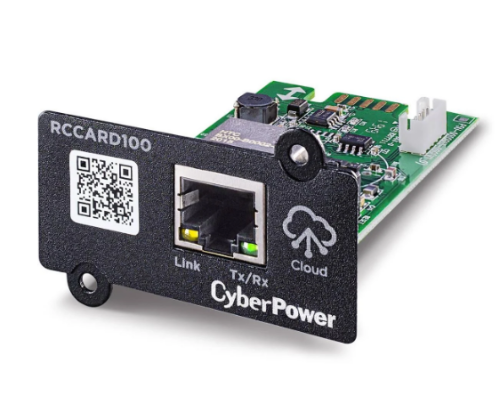

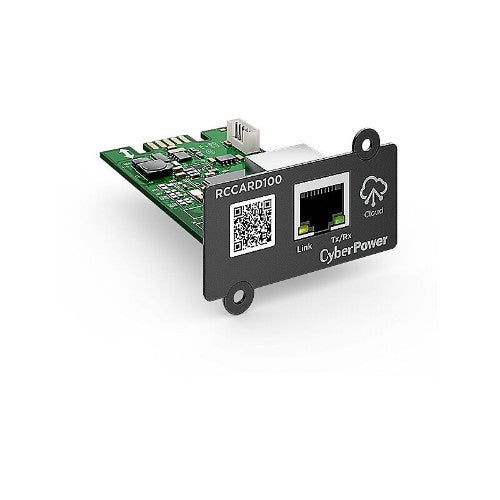

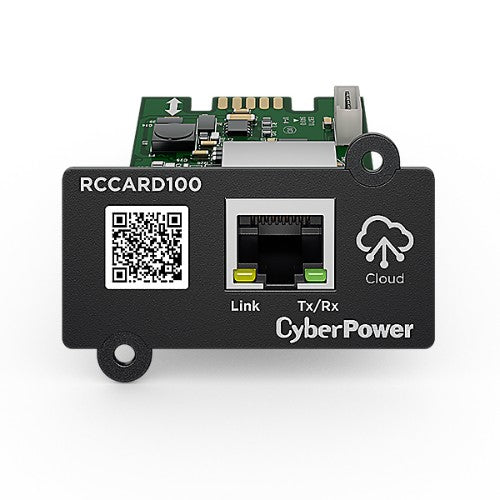

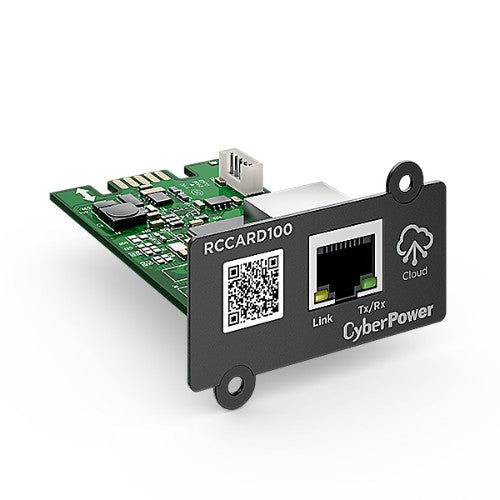

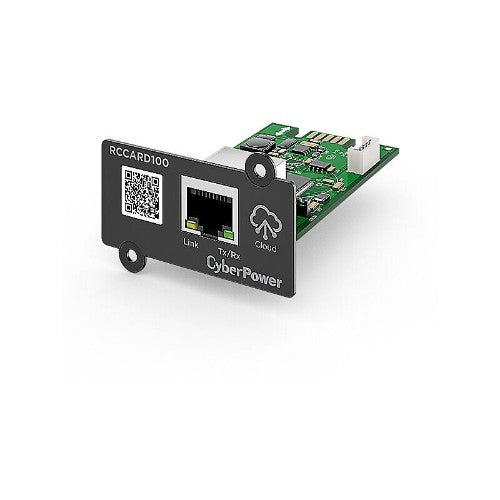

CyberPower RCCARD100 network card Internal Ethernet 100 Mbit/s

Remote Cloud Card, Fast Ethernet, 1 x RJ45

Key Features

• UPS Management through Cloud
• Plug-and-play Installation
• RoHS Compliant
• QR Code for Quick Setup
• User-upgradeable Firmware

Description

CyberPower RCCARD100 is an optional management add-on to specific CyberPower UPS series. By inserting the card into the expansion slot on the UPS, users can add the UPS to the PowerPanel® Cloud system, thus enabling remote monitoring and management of the UPS, through a secure web portal or mobile app.

The card is plug-and-play design and features hot-swappable capability, allowing quick and easy installation without interrupting the operation of the UPS. In addition, the card supports user-upgradeable firmware, so users are able to keep the functionality up-to-date with ease.

Specifications

Ports & interfaces
Internal	Yes
Connectivity technology	Wired
Interface	Ethernet
Ethernet LAN (RJ-45) ports	1
Bandwidth
Maximum data transfer rate	100 Mbit/s
Network
Ethernet interface type	Fast Ethernet
Maximum data transfer rate	100 Mbit/s
Ethernet LAN	Yes
Ethernet LAN data rates	10,100 Mbit/s
Cabling technology	10/100BaseT(X)
Networking standards	IEEE 802.3, IEEE 802.3u
Design
Internal	Yes
Product colour	Black, Green, Metallic
Certification	CE, FCC Class B, RoHS
Plug and Play	Yes
LED indicators	TX / RX, Link
Country of origin	China
Component for	PC
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 95%
Sustainability
Sustainability compliance	Yes
Weight & dimensions
Width	54 mm
Depth	76.5 mm
Height	36.1 mm
Weight	31 g
Package width	170 mm
Package depth	60 mm
Package height	165 mm
Package weight	300 g
Packaging data
Package width	170 mm
Package depth	60 mm
Package height	165 mm
Package weight	300 g
Performance
Plug and Play	Yes
Technical details
Harmonized System (HS) code	8473302000
Sustainability compliance	Yes
Compliance certificates	RoHS
Certificates
Certification	CE, FCC Class B, RoHS
Logistics data
Harmonized System (HS) code	8473302000
Other features
Harmonized System (HS) code	8473302000
Country of origin	China
