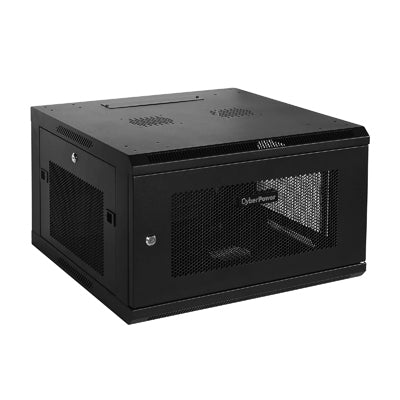

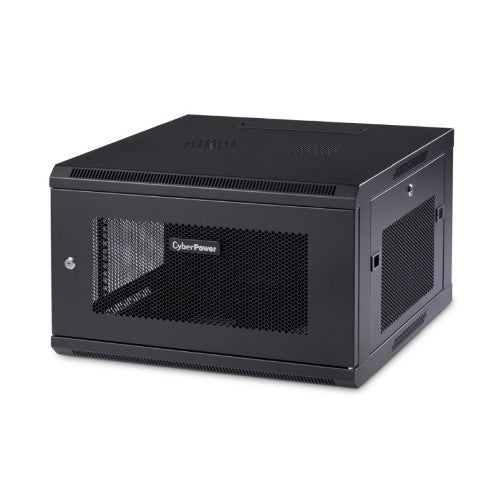

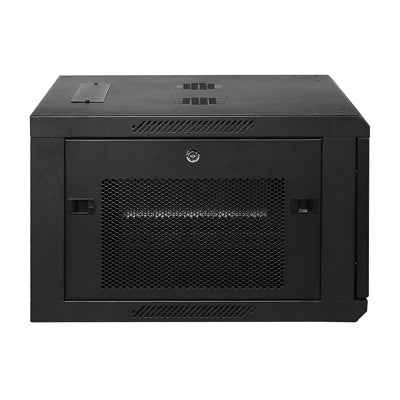

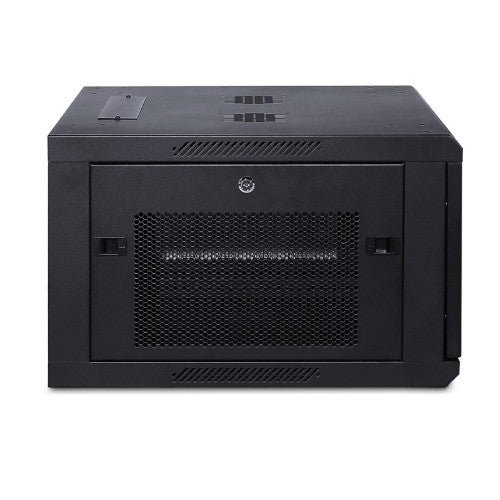

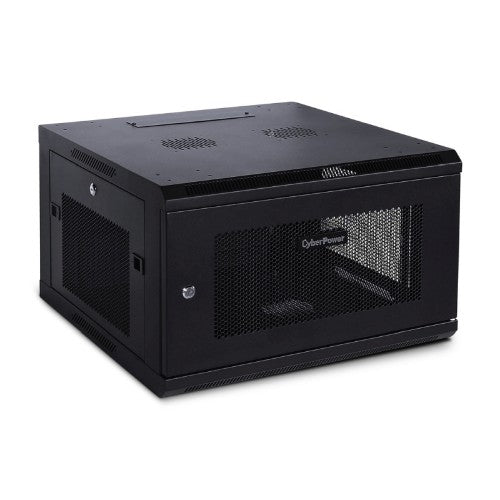

The CR6U61001 is designed for use in network closets, classrooms and other locations. This wall mount rack houses network switches and patch panels up to 22" deep. It includes convenient top panel cable access openings, perforated front door and side panels for efficient airflow, adjustable rack angles, and square and threaded mounting holes. The CR6U61001 ships fully assembled for quick deployment, and can be customized with compatible accessories. It is covered by a 5-year limited warranty.
Perforated Front Door and Side Panels Provides ventilation for small servers and networking equipment.

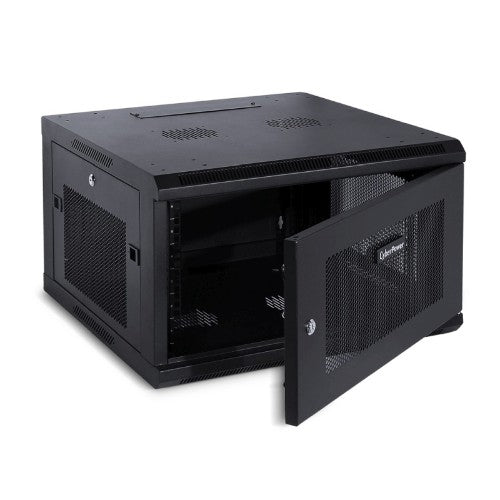

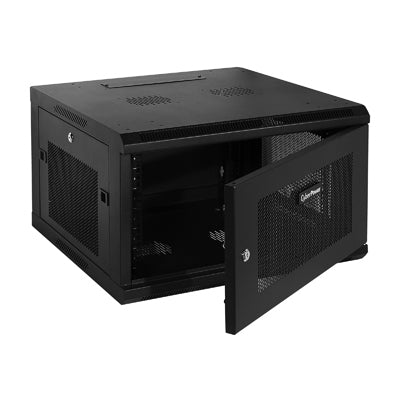

Reversible Door Front door has spring loaded hinges and can be easily moved to the opposite side.
Quick Release Side Panels Lockable side panels can be removed easily for quick access to equipment and cabling.
Cable Access Openings Slots in the bottom and top provide convenient cable routing to and from the enclosure.
Rack Mounting Compatibility The CR6U61001 is compatible with all EIA-310 compliant 19" equipment.
Adjustable Rack Angles Vertical rack angles can be adjusted in 3/4" increments for mounting depth requirements up to 22". Depth index numbering ensures quick and consistent rail placement. U rack units are numbered front and back for easy equipment installation.
Square and Threaded Mounting Holes Vertical rack angles have both square and threaded mounting holes, and can be turned easily to change mounting type.
Designed for Stability A high-precision frame design and heavy gauge mounting rails provide a load rating of 132 lbs.
Integrated Electrical Grounding Grounding connections are located on the frame for facility ground.
