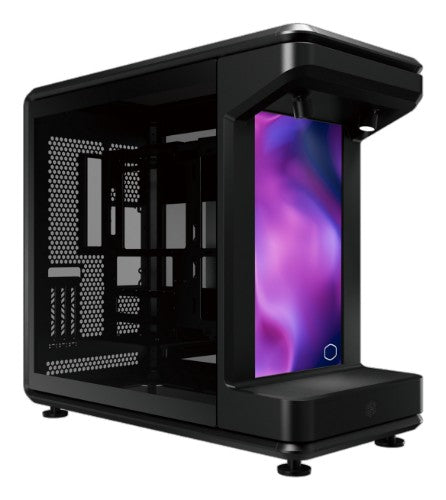

Cooler Master MasterFrame 360 STAGE LCD Full Tower Black, Transparent
Cooler Master MasterFrame 360 STAGE LCD Full Tower Black, Transparent
SKU: MF360-KHNN-S02
Availability:
Sale
Sold out
In Stock
10+ in stock
Regular price
$395.89
Price:
$395.89
Regular price
$383.90
Taxes included.
IN STOCK AT WAREHOUSE DELIVERY TO STORE 2-4 DAYS.
Couldn't load pickup availability
Mini-ITX/Micro-ATX/ATX/BTF (ATX), 2.5"/3.5", 2x USB 3.2 Gen 1 Type-A, 1x USB 4.0 Gen 2x2 Type-C, 3.5mm, 549 x 291 x 581 mm, 16.5 kg
MasterFrame 360 STAGE LCD is designed for creators and enthusiasts who demand both performance and aesthetics.
The integrated front-facing LCD screen transforms the chassis into a visual showcase—ideal for displaying your favorite content or media that complements the stage-inspired theme.
Taking cues from concert stages, the LCD acts as a visual centerpiece, perfectly aligned with the chassis design.
Whether you're building for performance or presentation, the STAGE LCD offers the space and flexibility to bring your vision to life.
Front Display Panel for Personal Expression
An integrated front-facing LCD screen transforms the build from a static showcase into a visual
platform for personal expression.
Designed to complement collectible displays such as figures and themed setups, the screen allows you to curate content that enhances your aesthetic story.
With its open-frame design, the chassis offers complete freedom to position and showcase your items without restriction—turning your build into a stage that’s uniquely yours.
Massive Cooling Compatibility
To ensure exceptional thermal performance, the case supports fan sizes ranging from 120 mm to 200
mm, with space for up to twelve 120 mm fans—six on the top and six on the bottom. It also supports
radiators up to 360 mm, meeting the cooling demands of high-end custom liquid cooling setups.
At the front, the integrated STAGE LCD offers two distinct modes:
- Extended Display Mode – Functions as a true secondary monitor to extend your desktop or
showcase any live system content.
- Custom Playback Mode – Includes 2 preloaded animation effects designed to complement figure
and collectible displays. Users can also upload personalized content via MicroSD card (JPG and
MP4 formats) to create a uniquely immersive visual experience.
Compatible with Standard and BTF Motherboards
Compatible with Mini-ITX, Micro-ATX, and ATX motherboards, including BTF (back-connect) layouts
within the ATX form factor.
Features 110 mm of cable routing clearance for a clean and clutter-free showcase.
PCIe 5.0 Riser Cable Included
Includes a premium PCIe 5.0 riser cable that enables vertical GPU mounting providing both next-gen
performance and an elevated presentation right out of the box.
Wide Component Compatibility
Accommodates up to 430 mm GPUs and 210 mm PSUs built to handle flagship components without compromise.
Next-Gen Connectivity at Your Fingertips
Features USB 4.0 Gen 2x2 Type-C (up to 20G) and 2x USB 3.2 Gen 1 Type-A ports (up to 5G), providing ultra-fast data transfer and future-ready accessibility.
View full details
Description
MASTERFRAME 360 STAGE LCDMasterFrame 360 STAGE LCD is designed for creators and enthusiasts who demand both performance and aesthetics.
The integrated front-facing LCD screen transforms the chassis into a visual showcase—ideal for displaying your favorite content or media that complements the stage-inspired theme.
Taking cues from concert stages, the LCD acts as a visual centerpiece, perfectly aligned with the chassis design.
Whether you're building for performance or presentation, the STAGE LCD offers the space and flexibility to bring your vision to life.
Front Display Panel for Personal Expression
An integrated front-facing LCD screen transforms the build from a static showcase into a visual
platform for personal expression.
Designed to complement collectible displays such as figures and themed setups, the screen allows you to curate content that enhances your aesthetic story.
With its open-frame design, the chassis offers complete freedom to position and showcase your items without restriction—turning your build into a stage that’s uniquely yours.
Massive Cooling Compatibility
To ensure exceptional thermal performance, the case supports fan sizes ranging from 120 mm to 200
mm, with space for up to twelve 120 mm fans—six on the top and six on the bottom. It also supports
radiators up to 360 mm, meeting the cooling demands of high-end custom liquid cooling setups.
At the front, the integrated STAGE LCD offers two distinct modes:
- Extended Display Mode – Functions as a true secondary monitor to extend your desktop or
showcase any live system content.
- Custom Playback Mode – Includes 2 preloaded animation effects designed to complement figure
and collectible displays. Users can also upload personalized content via MicroSD card (JPG and
MP4 formats) to create a uniquely immersive visual experience.
Compatible with Standard and BTF Motherboards
Compatible with Mini-ITX, Micro-ATX, and ATX motherboards, including BTF (back-connect) layouts
within the ATX form factor.
Features 110 mm of cable routing clearance for a clean and clutter-free showcase.
PCIe 5.0 Riser Cable Included
Includes a premium PCIe 5.0 riser cable that enables vertical GPU mounting providing both next-gen
performance and an elevated presentation right out of the box.
Wide Component Compatibility
Accommodates up to 430 mm GPUs and 210 mm PSUs built to handle flagship components without compromise.
Next-Gen Connectivity at Your Fingertips
Features USB 4.0 Gen 2x2 Type-C (up to 20G) and 2x USB 3.2 Gen 1 Type-A ports (up to 5G), providing ultra-fast data transfer and future-ready accessibility.
Specifications
| Design | |
|---|---|
| Volume | 93 L |
| Anti-dust filter | Yes |
| Form factor | Full Tower |
| Type | PC |
| Material | SGCC, Tempered glass |
| Number of 5.25" bays | 0 |
| Number of 3.5" bays | 1 |
| Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
| Product colour | Black, Transparent |
| Number of 2.5" bays | 2 |
| Suitable for | Gaming |
| Side window | Yes |
| Illumination | Yes |
| Cable management | Yes |
| Maximum CPU cooler height | 14.5 cm |
| Maximum graphics card length | 43 cm |
| Maximum PSU length | 21 cm |
| Ergonomics | |
| Cable management | Yes |
| Power supply | |
| Supported power supply form factors | ATX |
| Power supply included | No |
| Display | |
| Built-in display | Yes |
| Display type | LCD |
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1920 x 1080 pixels |
| Ports & interfaces | |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 0 |
| Audio input | Yes |
| Audio output | Yes |
| Cooling | |
| Top radiator sizes supported | 120,140,240,280,360 mm |
| Number of top fans supported (max) | 6 |
| Top fans diameters supported | 120,140,180,200 mm |
| Number of bottom fans supported (max) | 6 |
| Bottom fans diameters supported | 140,200,120,180 mm |
| Liquid cooling capability | Yes |
| Bottom radiator sizes supported | 120,240,360,140,280 mm |
| Storage | |
| HDD/SSD combo cage | Yes |
| Supported HDD sizes | 2.5,3.5" |
| Weight & dimensions | |
| Volume | 93 L |
| Width | 549 mm |
| Depth | 291 mm |
| Height | 581 mm |
| Weight | 16.5 kg |
| Packaging data | |
| Cables included | PCIe |
| Package width | 427 mm |
| Package depth | 720 mm |
| Package height | 680 mm |
| Package weight | 21.1 kg |
| Other features | |
| Volume | 93 L |
