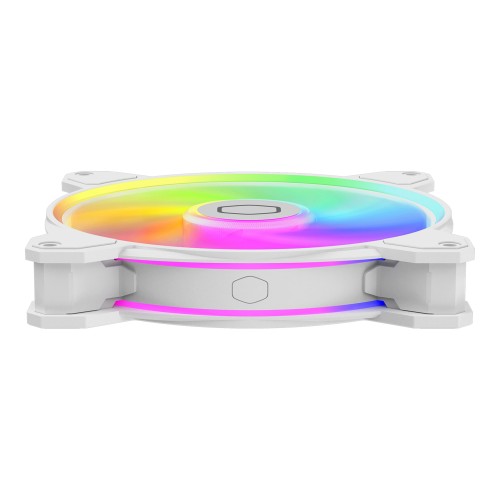

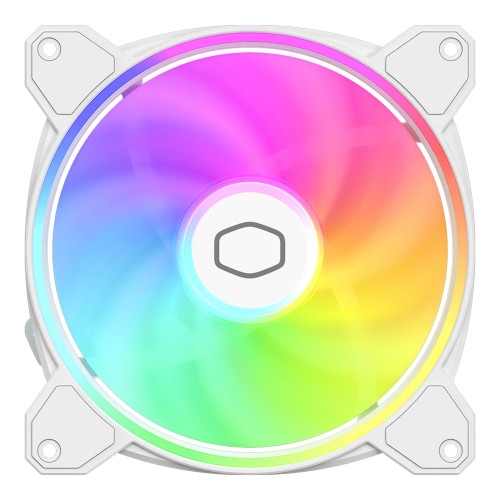

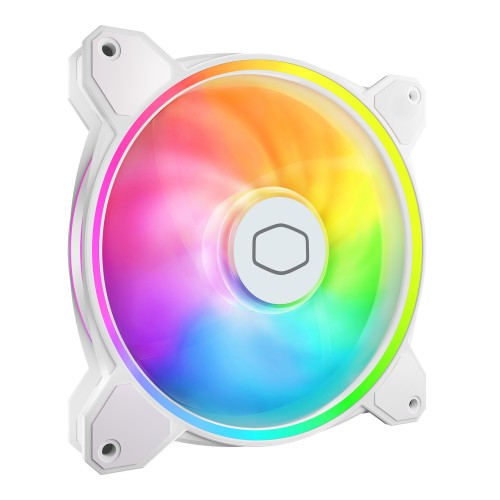

Cooler Master MasterFan MF140 HALO² White Edition Computer case Fan 14 cm

0-1600 RPM, 59.51 CFM, 27 dBA, 2.53 mmH₂O, 4-Pin, PWM, 140 mm, ARGB, 210 g

Key Features

• Larger Fan Blades
• Hybrid Frame Design
• Dual Loop ARGB LED Rings
• Improved Fan Controller IC

Description

Bring On The Light

Vibrant Addressable Gen 2 RGB
Larger LED rings increase lighting by 50% for even more vibrant lighting.

Hybrid Frame Design
Redesigned frame structure and corner dampers maintain stability without sacrificing fan blade area for better performance.

Larger Fan Blades
Air Balance fan blades increased by 10% in size deliver stronger air flow and cooling performance.

Improved Cooling Performance
Fine tuned P-Q Curve increase air flow and pressure while being even more quiet than its predecessor.

MULTIPLE SIZE AND COLOR OPTIONS
Available in both 120mm and 140mm sizes, as well as in black and white color options.

Specifications

Performance
Suitable location	Computer case
Fan connector	4-pin
Pulse-width modulation (PWM) support	Yes
Type	Fan
Rotational speed (max)	1600 RPM
Bearing type	Rifle bearing
Fan diameter	14 cm
Noise level (high speed)	27 dB
Maximum airflow	59.51 cfm
Maximum air pressure	2.53 mmH2O
Airflow	101 m³/h
Fan's mean time to failure (MTTF)	160000 h
Design
Fan connector	4-pin
Illumination colour	Multi
Product colour	White
Illumination LED	Yes
LED connector type	3-pin
Ports & interfaces
Fan connector	4-pin
Power
Safety current	0.4 Ah
Rated voltage	12 V
Rated current	0.13 A
Power consumption (typical)	1.56 W
LED voltage	5 V
Weight & dimensions
Fan dimensions (W x D x H)	140 x 140 x 25 mm
Fan weight	210 g
Package width	28 mm
Package depth	150 mm
Package height	198 mm
Package weight	320 g
Technical details
Fan connector	4-pin
Illumination LED	Yes
Other features
Safety current	0.4 Ah
LED voltage	5 V
Logistics data
Products per master (outer) case	20 pc(s)
Master (outer) case width	335 mm
Master (outer) case length	415 mm
Master (outer) case height	185 mm
