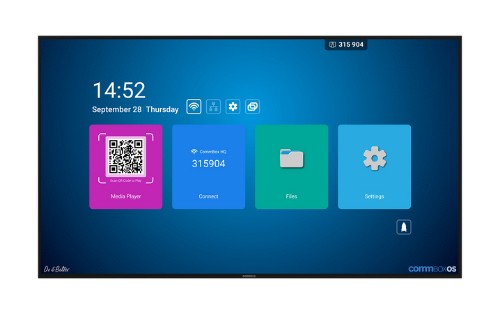

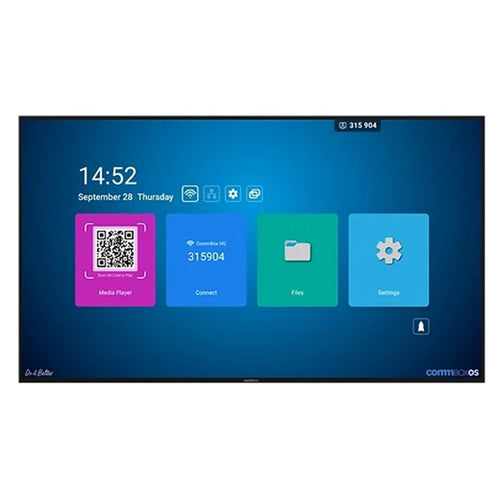

COMMBOX CBDI0286 Signage Display Digital signage flat panel 2.18 m (86") LCD Wi-Fi 500 cd/m² 4K Ultra HD Black CommBox OS 24/7
COMMBOX CBDI0286 Signage Display Digital signage flat panel 2.18 m (86") LCD Wi-Fi 500 cd/m² 4K Ultra HD Black CommBox OS 24/7
SKU: CBDI0286
Availability:
Sale
Sold out
In Stock
10+ in stock
Regular price
$4,378.15
Price:
$4,378.15
Regular price
$4,654.34
Taxes included.
IN STOCK AT WAREHOUSE DELIVERY TO STORE 2-4 DAYS.
Couldn't load pickup availability
Intelligent Display Gen 2, 86" 4K UHD, 500 cd/m2, 1200:1, 60 Hz
With built-in LAN control, simple signage included and consistent brightness across all sizes, Gen 2 makes it easier to deploy, manage and standardise displays across your environment.
View full details
Description
CommBox Intelligent Display Gen 2 is a premium 4K commercial display built for organisations that need visibility, simple control and reliable performance at scale.With built-in LAN control, simple signage included and consistent brightness across all sizes, Gen 2 makes it easier to deploy, manage and standardise displays across your environment.
Specifications
| Display | |
|---|---|
| LED backlight | Yes |
| Display number of colours | 1.07 billion colours |
| Display diagonal | 2.18 m (86") |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/m² |
| HD type | 4K Ultra HD |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Active display area (W x H) | 1895.04 x 1065.96 mm |
| Panel life | 50000 h |
| Native aspect ratio | 16:9 |
| LED backlighting type | Direct-LED |
| Display technology | LCD |
| Anti-glare screen | Yes |
| Native refresh rate | 60 Hz |
| Ports & interfaces | |
| Ethernet LAN | Yes |
| HDMI ports quantity | 4 |
| USB port | Yes |
| DVI port | No |
| Ethernet LAN (RJ-45) ports | 2 |
| RS-232 interface | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Wi-Fi | Yes |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity | 1 |
| Number of speaker outputs | 1 |
| Microphone in | Yes |
| DisplayPorts quantity | 0 |
| OPS module slot | Yes |
| HDMI input ports quantity | 3 |
| HDMI output ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 65 W |
| Audio | |
| Number of built-in speakers | 2 |
| RMS rated power | 32 W |
| Built-in speaker(s) | Yes |
| Design | |
| Product design | Digital signage flat panel |
| Product colour | Black |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Panel mounting interface | 600 x 400 mm |
| Bezel width (top) | 1.59 cm |
| Bezel width (side) | 1.59 cm |
| Bezel width (bottom) | 1.59 cm |
| VESA mounting | Yes |
| Anti-glare screen | Yes |
| Bezel colour | Black |
| Performance | |
| Purpose | Universal |
| Operating hours (hours/days) | 24/7 |
| Panel life | 50000 h |
| Wi-Fi | Yes |
| Power | |
| Power consumption (typical) | 147 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 376 W |
| Input voltage | 240 V |
| Computer system | |
| Operating system installed | CommBox OS |
| Built-in processor | No |
| Weight & dimensions | |
| Display width | 1930.8 mm |
| Display depth | 68 mm |
| Display height | 1101.7 mm |
| Display weight | 40.8 kg |
| Packaging data | |
| Package width | 2110 mm |
| Package depth | 225 mm |
| Package height | 1247 mm |
| Package weight | 57 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Technical details | |
| VESA mounting | Yes |
| LED backlighting type | Direct-LED |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Wi-Fi | Yes |
| Thin Client | |
| Operating system installed | CommBox OS |
| Other features | |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Wi-Fi | Yes |
| Power consumption (max) | 376 W |
| Microphone in | Yes |
| Display technology | LCD |
| Bezel width (top) | 1.59 cm |
| Bezel width (side) | 1.59 cm |
| Bezel width (bottom) | 1.59 cm |
| OPS module slot | Yes |
| Input voltage | 240 V |
