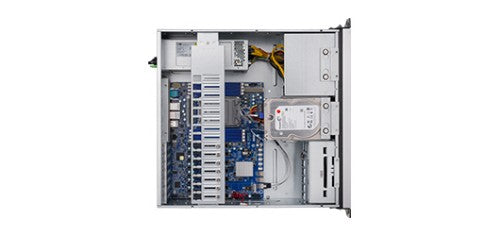

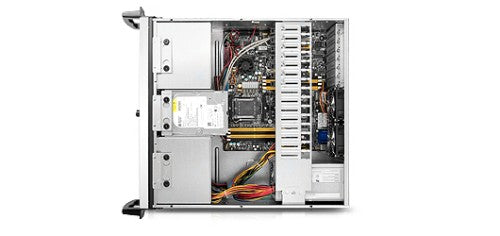

Chenbro RM42300H02 network equipment chassis 4U Black, Grey

4U 17.5" Compact Industrial Server Chassis

Key Features

• Supports M/B up to 12” x 9.6”
• Available for rackmount and stand-alone installation
• Dedicated 80 mm fan for HDD cooling
• Truly isolated anti-vibration design on internal HDD and drive cages
• Card retainer to hold low profile and full height add-on cards
• Front 120mm fan with filter for add-on card cooling
• Optional second 3 x 5.25” drive cage for maximum configuration flexibility
• Supports 1-door or 2-door front bezel configuration
• Supports 1200W (1+1) 2U CRPS module (w/ housing and PDB)

Description

With entire isolated anti-vibration cage, dust-proof filter, and compact size make it perfect for space-sensitive industrial applications.

Specifications

Technical details
Rack mounting	Yes
Rack capacity	4U
Number of 5.25" bays	3
Number of 3.5" bays	5
Material	Metal
LED indicators	Yes
Housing thickness	1.2 mm
Product colour	Black, Grey
Weight & dimensions
Width	430 mm
Weight	9.5 kg
Height	176 mm
Depth	445 mm
