24”, tilt range -10° to +5°, max 50kg, Steel, Black
Key Features
Stud walls with 24” spacing
Tilted display capability
Space behind display
Robust functionality & long service life
Easy, safe & tidy installation
Superseding Atdec's TH-3060-UT
Description

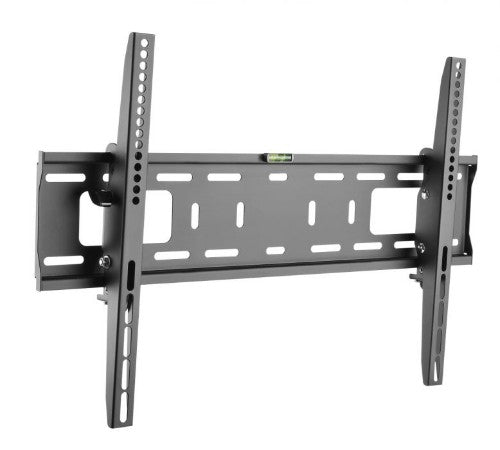

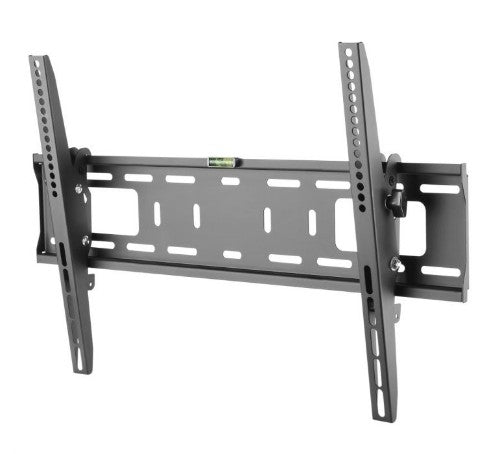

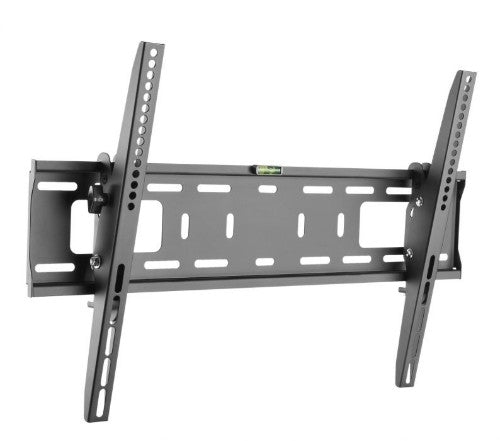

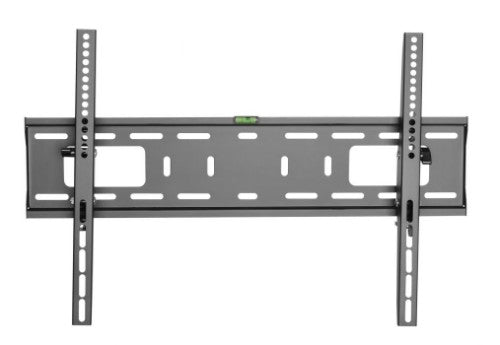

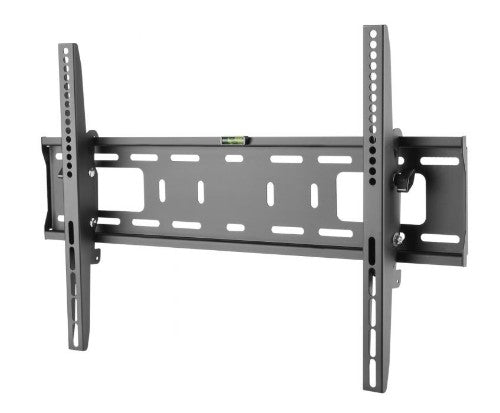

Mount for tilted displays with space for devices at rear. Brackets for 24” stud spacing. Displays to 110lbs (50kg), VESA to 600x400. AD-WT-5060 suits applications that require a tilted display, space behind the display for device/s, and fixture to stud walls with 24” stud spacing.
This wall mount is designed for displays to 50kg (110lbs) and universal VESA patterns to 600x400.

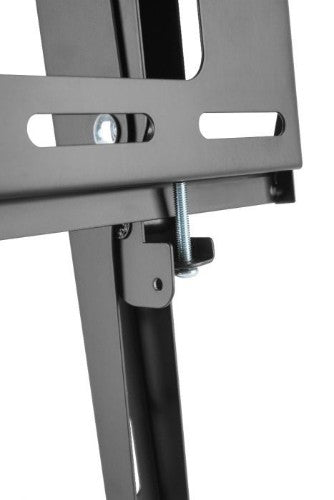

The AD-WT-5060 mounts displays tilted -10° to +5° to the wall, with 56mm (2.2”) space at rear in which devices may be concealed. Its versatility and construction makes AD-WF-5060 suitable for commercial, domestic, and most light industrial environments.
AD-WT-5060 suits most types of walls (with appropriate hardware*) and demonstrates Adtec’s easy installation ethos, with an integrated spirit level and slotted mounting holes. The brackets allow minor lateral adjustment to position the display precisely as desired.
Consider AD-WT-5040 for narrower stud spacing.
Specifications
Mounting
Maximum weight capacity (per display)
50 kg
Maximum weight capacity
50 kg
Panel mounting interface
100 x 100,100 x 200,200 x 100,200 x 200,200 x 300,200 x 400,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300,600 x 200,600 x 400
