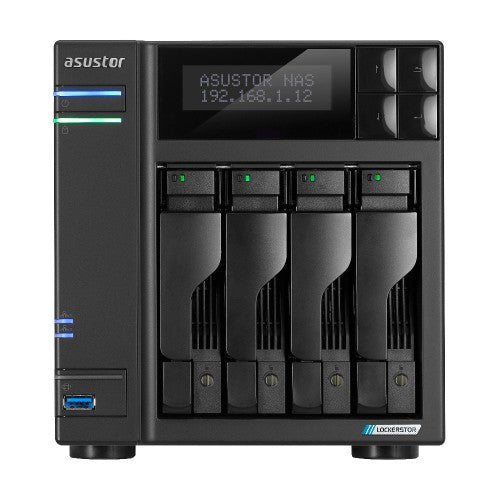

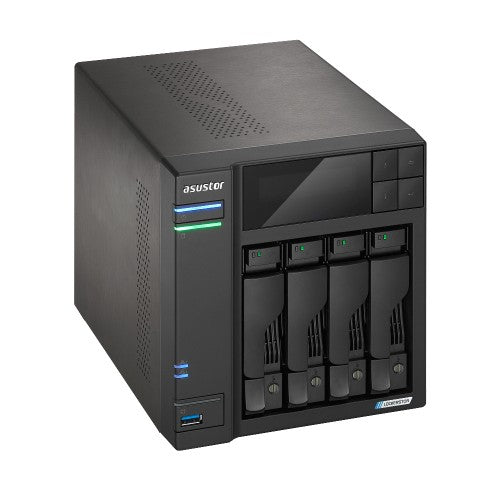

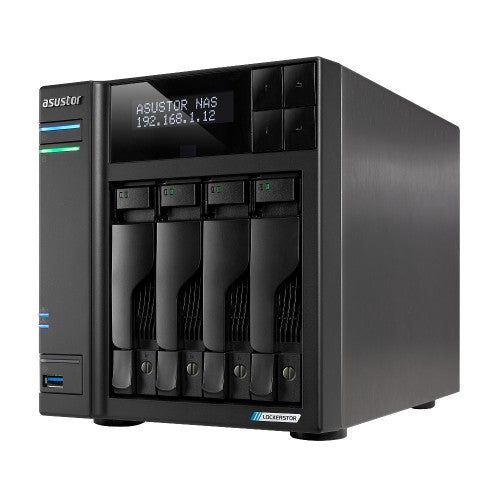

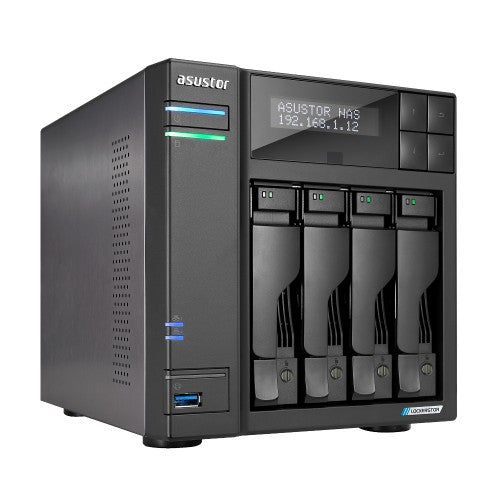

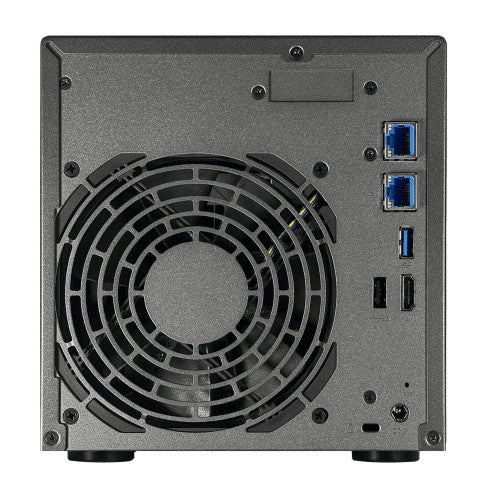

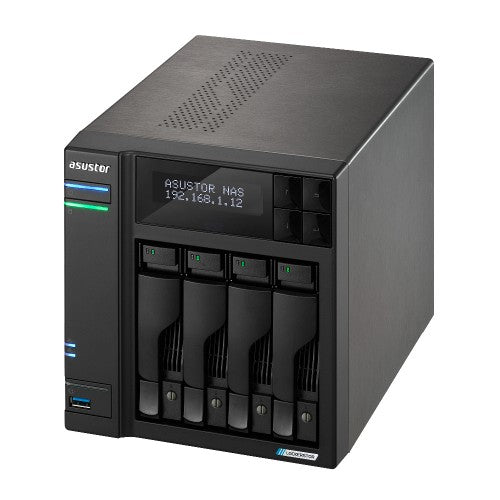

Asustor LOCKERSTOR 4 Gen2+ NAS Desktop Intel® Celeron® N5105 4 GB DDR4 ADM Black
Asustor LOCKERSTOR 4 Gen2+ NAS Desktop Intel® Celeron® N5105 4 GB DDR4 ADM Black
SKU: AS6704T V2
Availability:
Sale
Sold out
In Stock
10+ in stock
Regular price
$1,307.09
Price:
$1,307.09
Regular price
Taxes included.
IN STOCK AT WAREHOUSE DELIVERY TO STORE 2-4 DAYS.
Couldn't load pickup availability
Dual 5-Gigabit Ethernet, Quad-Core 10 nm Intel Celeron N5105 CPU
The Lockerstor Gen2/Gen2+ comes with Intel’s newest Quad-Core Celeron CPUs. The N5105 comes with Intel 10 nm technology and is up to 31% faster than Gemini Lake SoCs. The Celeron N5105 is clocked at 2.0 GHz with 2.9 GHz, enabling efficient content creation with the added flexibility of 10-Gigabit Ethernet upgrades.
* Lockerstor 2 Gen2/Gen2+ (AS6702T/AS6702T v2) 10GbE not supported.
Four M.2 Slots - Have Your Cake and Eat it Too
The Lockerstor Gen2+ series of NAS devices come with four M.2 slots for caching or storage or both. Either use all slots for one purpose or mix and match depending on your needs.
Four M.2 SSD slots bring a number of custom scenarios to your NAS when it comes to accelerating your storage.
View full details
Key Features
- Quad-Core 10 nm Intel Celeron N5105 CPU
- Dual 5-Gigabit Ethernet ports
- 4x M.2 slots for NVMe SSDs
- 4 GB of DDR4-2933 RAM
- 2x USB 10Gbps
- Supports Wake on LAN and Wake on WAN
Description
Powered by the Latest 10 nm Intel Jasper Lake Celeron Quad-Core ProcessorsThe Lockerstor Gen2/Gen2+ comes with Intel’s newest Quad-Core Celeron CPUs. The N5105 comes with Intel 10 nm technology and is up to 31% faster than Gemini Lake SoCs. The Celeron N5105 is clocked at 2.0 GHz with 2.9 GHz, enabling efficient content creation with the added flexibility of 10-Gigabit Ethernet upgrades.
* Lockerstor 2 Gen2/Gen2+ (AS6702T/AS6702T v2) 10GbE not supported.
Four M.2 Slots - Have Your Cake and Eat it Too
The Lockerstor Gen2+ series of NAS devices come with four M.2 slots for caching or storage or both. Either use all slots for one purpose or mix and match depending on your needs.
Four M.2 SSD slots bring a number of custom scenarios to your NAS when it comes to accelerating your storage.
Specifications
| Storage | |
|---|---|
| Storage drives installed | No |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 4 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, JBOD |
| Supported file systems | BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4 |
| Supported storage drive interfaces | M.2, Serial ATA |
| Storage drive sizes supported | 2.5,3.5,M.2 |
| Number of M.2 (M & B) slots | 4 |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel® Celeron® |
| Processor threads | 4 |
| Processor boost frequency | 2.9 GHz |
| On-board graphics card model | Intel® UHD Graphics |
| Processor model | N5105 |
| Processor frequency | 2 GHz |
| Processor cores | 4 |
| Memory | |
| Internal memory type | DDR4 |
| Internal memory | 4 GB |
| Memory clock speed | 2933 MHz |
| Maximum RAM supported | 16 GB |
| Memory slots | 2 |
| Flash memory | 8000 MB |
| Memory form factor | SO-DIMM |
| Network | |
| Ethernet LAN | Yes |
| Dynamic DNS (DDNS) | Yes |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Jumbo frames support | Yes |
| iSCSI support | Yes |
| Wake-on-LAN ready | Yes |
| Supported network protocols | CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog |
| Ports & interfaces | |
| USB port | Yes |
| HDMI version | 2.0b |
| Ethernet LAN (RJ-45) ports | 2 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Concurrent connections | 512 |
| Graphics | |
| On-board graphics card model | Intel® UHD Graphics |
| Design | |
| Chassis type | Desktop |
| Product colour | Black |
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| LED indicators | Yes |
| Built-in display | Yes |
| Display type | LCD |
| Performance | |
| System log | Yes |
| S.M.A.R.T. support | Yes |
| Browser supported | Firefox, Chrome, Safari, Microsoft Edge |
| Type | NAS |
| Universal Plug and Play (UPnP) | Yes |
| Device class | Home & Home Office |
| Backup function | Yes |
| Backup features | Cloud |
| Number of users | 4096 user(s) |
| Noise level | 17.6 dB |
| Operating system installed | ADM |
| Operating system version | 4.1 Onwards |
| Web-based management | Yes |
| Access Control List (ACL) | Yes |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey |
| Server operating systems supported | Windows Server 2003, Windows Server 2008, Windows Server 2012 Core, Windows Server 2016, Windows Server 2019, Windows Server 2022 |
| Software | |
| Operating system installed | ADM |
| Operating system version | 4.1 Onwards |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey |
| Server operating systems supported | Windows Server 2003, Windows Server 2008, Windows Server 2012 Core, Windows Server 2016, Windows Server 2019, Windows Server 2022 |
| Power | |
| Power supply location | External |
| Power supply unit (PSU) capacity | 90 W |
| Power consumption (typical) | 35 W |
| Power consumption (sleep) | 0.88 W |
| AC input voltage | 100 - 240 V |
| Weight & dimensions | |
| Width | 170 mm |
| Depth | 230 mm |
| Height | 185.5 mm |
| Weight | 2.94 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
