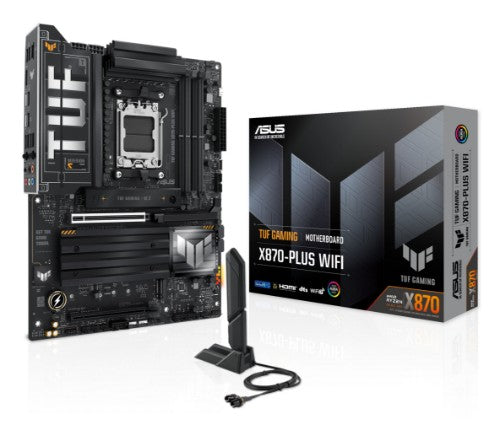

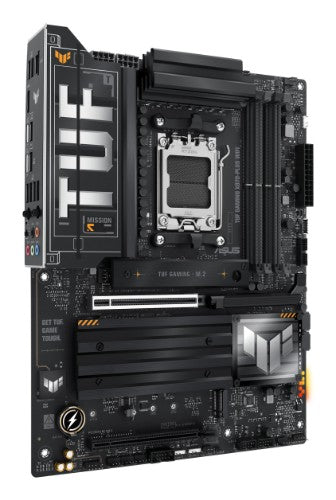

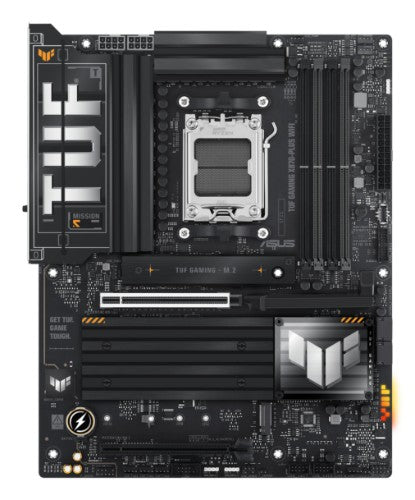

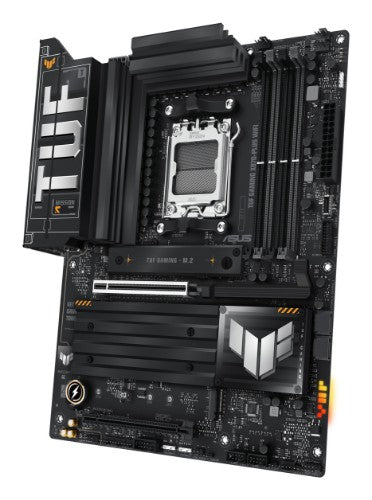

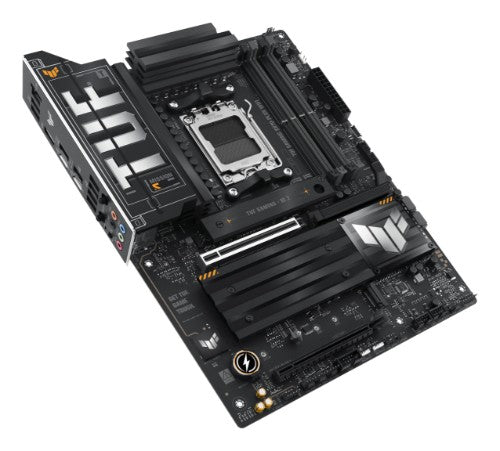

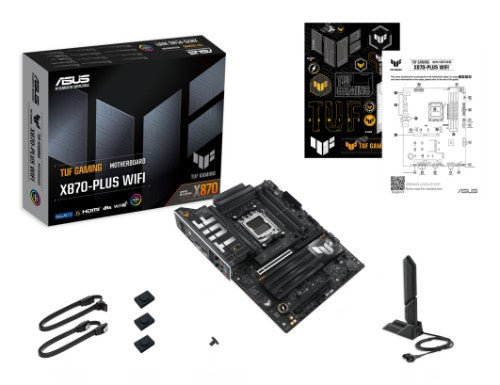

ASUS TUF GAMING X870-PLUS WIFI AMD X870 Socket AM5 ATX

ASUS TUF GAMING X870-PLUS WIFI, AMD, Socket AM5, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, DDR5-SDRAM, 192 GB, DIMM

Description

ASUS TUF GAMING X870-PLUS WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. USB connector type: USB Type-A, USB Type-C. Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be)

Specifications

Internal I/O
Number of M.2 (M) slots	4
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
12V power connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of SATA III connectors	2
Number of SATA II connectors	0
Number of SATA connectors	0
Number of COM connectors	1
Number of chassis fan connectors	4
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
USB 3.2 Gen 2x2 connectors	1
Performance
Number of HDDs supported	2
Supported storage drive types	HDD & SSD
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD X870
Motherboard form factor	ATX
Audio output channels	7.1 channels
RAID levels	0, 1, 5, 10
Windows operating systems supported	Windows 11
Processor
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor socket	Socket AM5
Memory
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Memory slots type	DIMM
Memory channels	Dual-channel
Maximum internal memory	192 GB
Unbuffered memory	Yes
Supported memory clock speed (max)	8000 MHz
ECC сompatibility	ECC & Non-ECC
Storage controllers
Number of HDDs supported	2
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
RAID levels	0, 1, 5, 10
Number of storage drives supported	6
RAID support	Yes
Graphics
Parallel processing technology support	Not supported
On-board graphics card	No

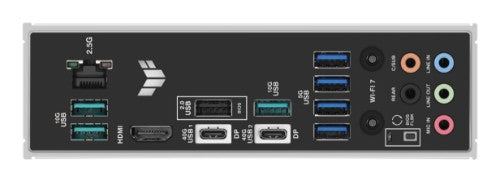

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB connector type	USB Type-A, USB Type-C
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	1
VGA (D-Sub) ports quantity	0
Microphone in	Yes
HDMI ports quantity	1
DVI-D ports quantity	0
USB4 Gen 3x2 ports quantity	2

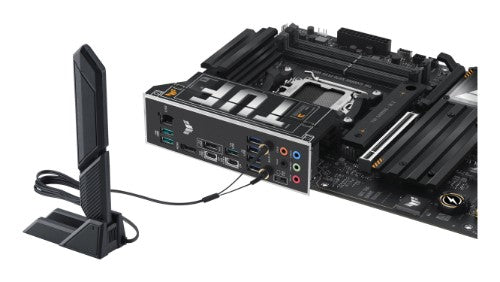

Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 7 (802.11be)
Ethernet interface type	2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.4
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Features
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD X870
Motherboard form factor	ATX
Audio output channels	7.1 channels
Windows operating systems supported	Windows 11
Audio chip	Realtek ALC1220P
Product colour	Black
Expansion slots
Number of M.2 (M) slots	4
PCI Express x16 (Gen 4.x) slots	1
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
BIOS flashback button	Yes
Weight & dimensions
Width	305 mm
Depth	244 mm
