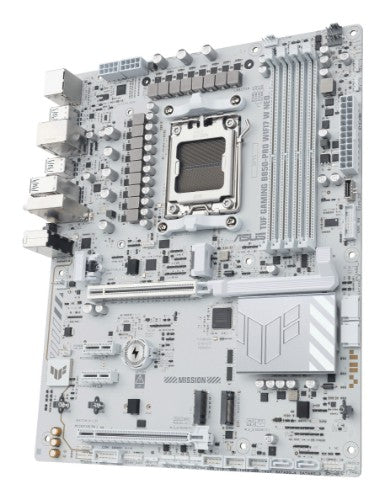

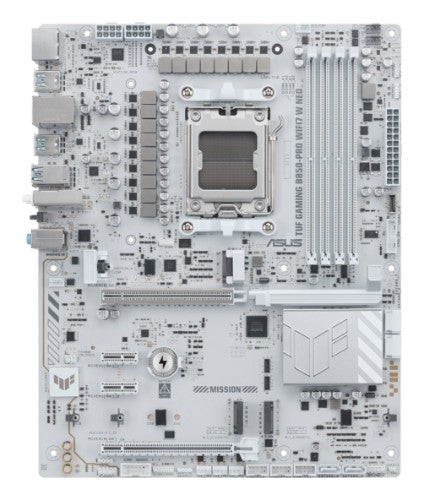

ASUS TUF GAMING B850-PRO WIFI7 W NEO AMD B850 Socket AM5 ATX

AMD Socket AM5, AMD B850, 4 x DIMM slots, max. 256GB, DDR5, Realtek 2.5Gb Ethernet, ATX, 64MB (512Mb) Flash ROM, UEFI AMI BIOS

Description

TUF GAMING
B850-PRO WIFI7 W NEO
ASUS TUF GAMING B850-PRO WIFI7 W NEO takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. Engineered with an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.

Specifications

Internal I/O
Number of M.2 (M) slots	3
Thunderbolt headers	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
12V power connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	3
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
mSATA ports quantity	0
S/PDIF out connector	Yes
Number of SATA III connectors	4
Number of SATA II connectors	0
Number of SATA connectors	0
Number of COM connectors	1
Number of chassis fan connectors	4
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
Chassis intrusion connector	Yes
ATX Power connector (24-pin)	Yes
USB 3.2 Gen 2x2 connectors	1
Number of CPU fan connectors	1
Number of water pump connectors	1
Performance
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD B850
Motherboard form factor	ATX
Audio output channels	7.1 channels
RAID levels	0, 1, 5, 10
Windows operating systems supported	Windows 11
Processor
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series
Processor socket	Socket AM5
Memory
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Memory slots type	DIMM
Memory channels	Dual-channel
Maximum internal memory	256 GB
Supported memory clock speed (max)	9000 MHz
ECC сompatibility	ECC & Non-ECC
Storage controllers
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
RAID levels	0, 1, 5, 10
Number of storage drives supported	7
RAID support	Yes
Graphics
Parallel processing technology support	Not supported
On-board graphics card	No

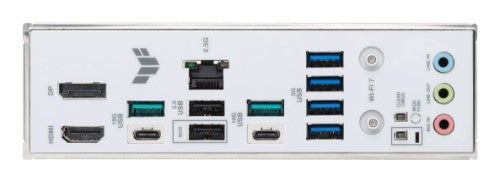

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
VGA (D-Sub) ports quantity	0
HDMI ports quantity	1
DVI-D ports quantity	0
DisplayPorts quantity	1
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 7 (802.11be)
Ethernet interface type	2.5 Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.4
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
WLAN controller model	Realtek RTL8922AE
Features
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD B850
Motherboard form factor	ATX
Audio output channels	7.1 channels
Windows operating systems supported	Windows 11
Audio chip	Realtek ALC1220P
Product colour	White
Expansion slots
Number of M.2 (M) slots	3
PCI Express x1 (Gen 4.x) slots	2
PCI Express x16 (Gen 4.x) slots	1
1st M.2 largest key size	2280
BIOS
BIOS type	UEFI AMI
BIOS memory size	512 Mbit
Clear CMOS button	Yes
Packaging data
Package width	353 mm
Package depth	273 mm
Package height	68 mm
Package weight	1.94 kg
Weight & dimensions
Width	305 mm
Depth	244 mm
Height	50 mm
Weight	1.35 kg
Package width	353 mm
Package depth	273 mm
Package height	68 mm
Package weight	1.94 kg
Other features
Height	50 mm
mSATA ports quantity	0
Weight	1.35 kg
Package width	353 mm
Package depth	273 mm
Package height	68 mm
Package weight	1.94 kg
PCI Express x1 (Gen 4.x) slots	2
