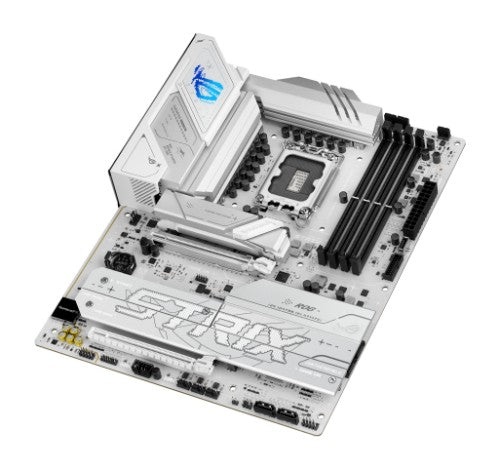

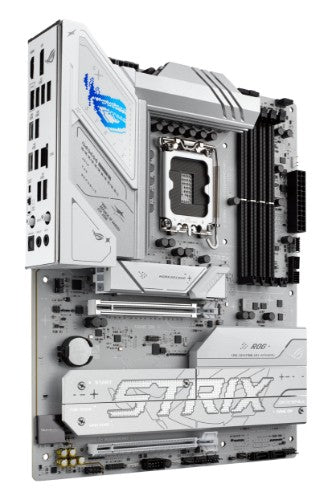

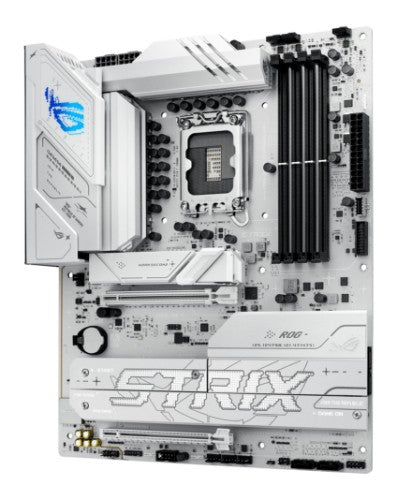

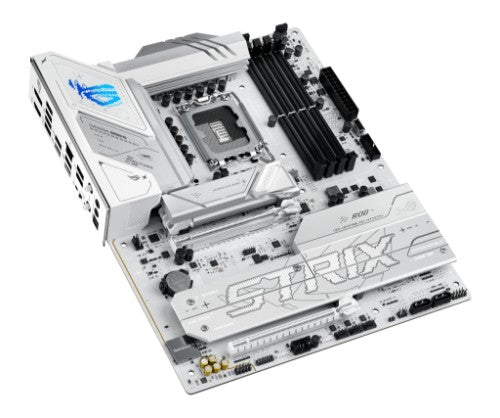

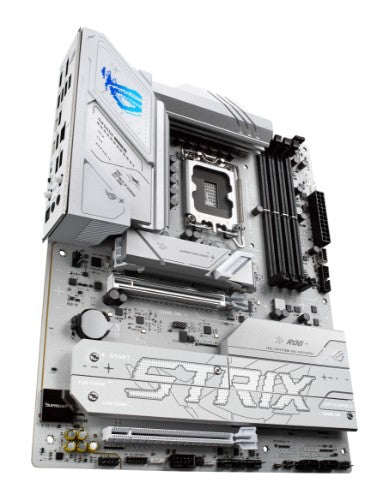

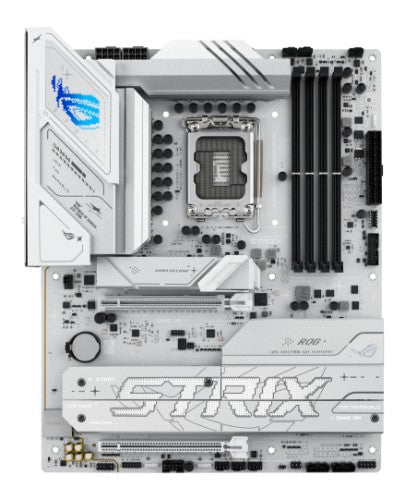

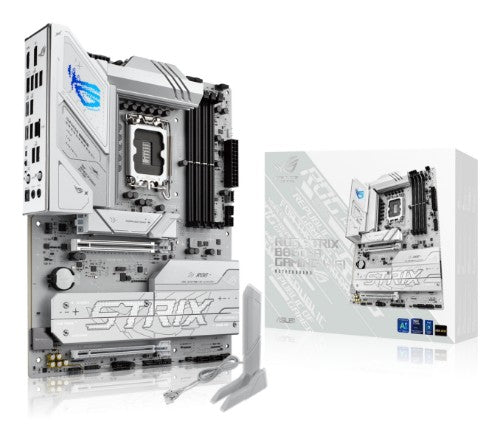

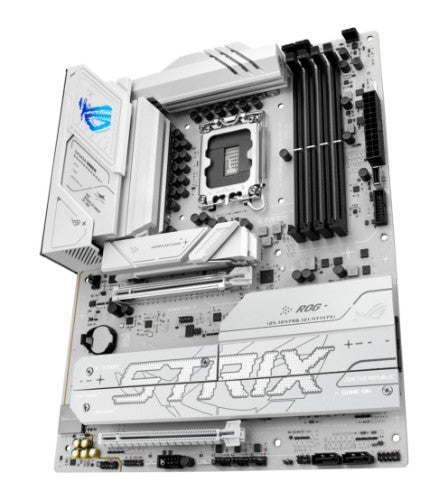

ASUS ROG STRIX B860-A GAMING WIFI Intel B860 LGA 1851 (Socket V1) ATX

Intel B860, 4 x DIMM slots, max. 256GB, DDR5, M.2/SATA III, 2.5Gb Ethernet, 2x2 Wi-Fi 7 (802.11be), Bluetooth 5.4, 256 Mb Flash ROM, UEFI AMI BIOS, ATX

Description

ROG STRIX B860-A gaming wifi
With NPU support and AI-enhanced solutions, the ROG STRIX B860-A Gaming WiFi is ready for advanced AI PC applications. Featuring a USB4® (20Gbps) port, PCIe® 5.0, and Aura Sync RGB lighting, it offers fast data transfers, versatile connectivity, and a customizable aesthetic to match your style.

Specifications

Performance
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Component for	PC
Motherboard chipset family	Intel
Motherboard chipset	Intel B860
Motherboard form factor	ATX
Audio output channels	7.1 channels
RAID levels	0, 1, 5, 10
Windows operating systems supported	Windows 11
Processor
Processor manufacturer	Intel
Compatible processor series	Intel Core Ultra (Series 2)
Processor socket	LGA 1851 (Socket V1)
Memory
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Memory slots type	DIMM
Maximum internal memory	256 GB
Unbuffered memory	Yes
Supported memory clock speed (max)	8600 MHz
ECC сompatibility	Non-ECC
Storage controllers
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
RAID levels	0, 1, 5, 10
Number of storage drives supported	8
RAID support	Yes
Graphics
Parallel processing technology support	Not supported
Internal I/O
Thunderbolt headers	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
12V power connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of SATA III connectors	4
Number of chassis fan connectors	4
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
Number of CPU fan connectors	1
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	1
VGA (D-Sub) ports quantity	0
S/PDIF out port	Yes
Microphone in	Yes
HDMI ports quantity	1
DVI-D ports quantity	0
DisplayPorts quantity	1
USB4 Gen 2x2 ports quantity	1
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.4
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Features
Component for	PC
Motherboard chipset family	Intel
Motherboard chipset	Intel B860
Motherboard form factor	ATX
Audio output channels	7.1 channels
Windows operating systems supported	Windows 11
Audio chip	Realtek ALC1220P
Product colour	White
Expansion slots
PCI Express x16 (Gen 4.x) slots	1
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS button	Yes
Packaging data
Package width	355 mm
Package depth	273 mm
Package height	70 mm
Package weight	1.68 kg
Weight & dimensions
Width	305 mm
Depth	244 mm
Height	50 mm
Weight	1.4 kg
Package width	355 mm
Package depth	273 mm
Package height	70 mm
Package weight	1.68 kg
Other features
Height	50 mm
Weight	1.4 kg
Package width	355 mm
Package depth	273 mm
Package height	70 mm
Package weight	1.68 kg
