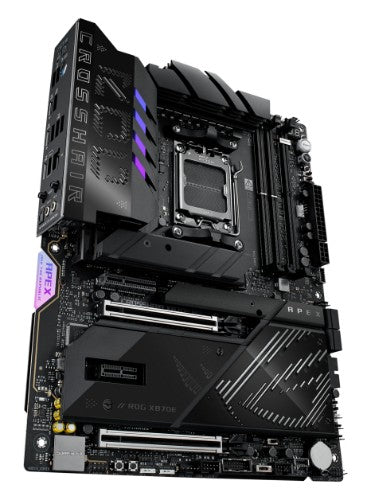

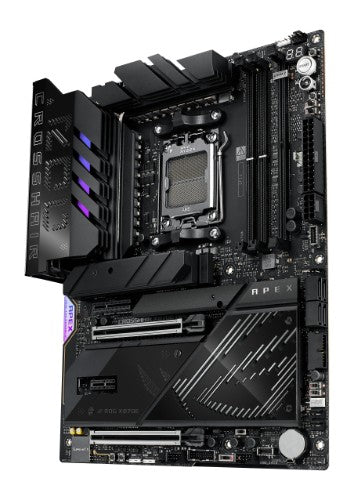

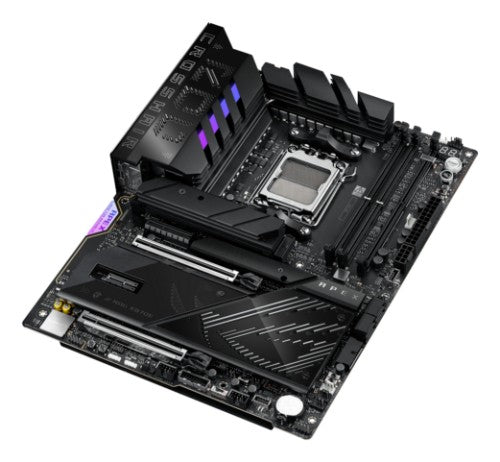

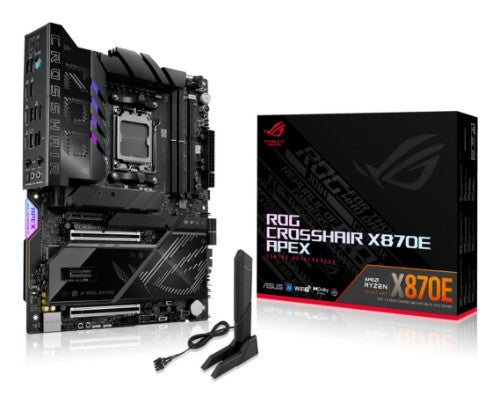

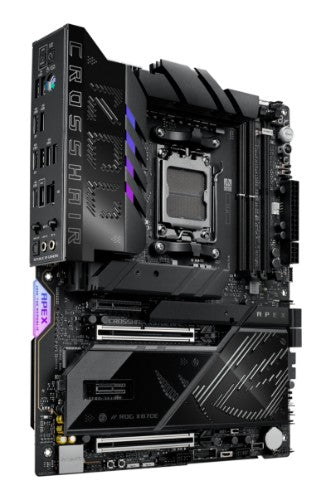

ASUS ROG CROSSHAIR X870E APEX AMD X870E Socket AM5 ATX

ROG CROSSHAIR X870E APEX

Description

AMD X870E (AM5 Socket) ATX motherboard, Advanced AI PC-ready, 18+2+2 power stages, Dynamic OC Switcher, Core Flex, DDR5 slots with AEMP, ROG Memory Fan Kit for DDR5 overclocking, Wi-Fi 7 with ASUS WiFi Q-Antenna, three PCIe® 5.0 M.2 slots onboard, two PCIe 4.0 slots on an ROG DIMM.2 card, PCIe® 5.0 x16 SafeSlots with PCIe® Slot Q-Release Slim and full support for next-gen graphics cards, two USB4® ports, two USB 20Gbps Type-C® front-panel connectors (one with Quick Charge 4+ up to 60W and USB Wattage Watcher), AI Overclocking, AI Cooling II, and AI Networking II

Specifications

Internal I/O
Number of M.2 (M) slots	5
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Front panel connector	Yes
12V power connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
mSATA ports quantity	0
Number of SATA III connectors	4
Number of SATA II connectors	0
Number of SATA connectors	0
Number of chassis fan connectors	2
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
USB 3.2 Gen 2x2 connectors	2
Number of RGB LED pin headers	3
Performance
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD X870E
Motherboard form factor	ATX
Audio output channels	7.1 channels
Supported processor sockets	Socket AM5
RAID levels	0, 1, 5, 10
Windows operating systems supported	Windows 11
Processor
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
Memory
Number of memory slots	2
Supported memory types	DDR5-SDRAM
Memory slots type	DIMM
Memory channels	Dual-channel
Maximum internal memory	128 GB
Unbuffered memory	Yes
ECC сompatibility	ECC & Non-ECC
Storage controllers
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
RAID levels	0, 1, 5, 10
Number of storage drives supported	9
RAID support	Yes
Graphics
Parallel processing technology support	Not supported
On-board graphics card	No
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
WiFi-AP antenna jack	1
VGA (D-Sub) ports quantity	0
S/PDIF out port	Yes
PS/2 ports quantity	1
HDMI ports quantity	0
DVI-D ports quantity	0
USB4 Gen 3x2 ports quantity	2
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 7 (802.11be)
Ethernet interface type	5 Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.4
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Features
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD X870E
Motherboard form factor	ATX
Audio output channels	7.1 channels
Supported processor sockets	Socket AM5
Windows operating systems supported	Windows 11
Product colour	Black
Expansion slots
Number of M.2 (M) slots	5
PCI Express x1 (Gen 3.x) slots	1
PCI Express x16 (Gen 4.x) slots	2
PCI Express x16 (Gen 5.x) slots	2
PCI Express x4 (Gen 4.x) slots	1
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	2280
2nd M.2 highest PCI Express generation	5.0
3rd M.2 largest key size	2280
3rd M.2 highest PCI Express generation	5.0
4th M.2 largest key size	22110
4th M.2 highest PCI Express generation	4.0
5th M.2 largest key size	22110
5th M.2 highest PCI Express generation	4.0
BIOS
BIOS type	UEFI AMI
BIOS memory size	512 Mbit
Packaging data
Package width	370 mm
Package depth	312 mm
Package height	108 mm
Package weight	4.16 kg
Weight & dimensions
Width	305 mm
Depth	244 mm
Package width	370 mm
Package depth	312 mm
Package height	108 mm
Package weight	4.16 kg
Packaging content
Drivers included	Yes
Cables included	SATA
Screws included	Yes
Antenna included	Yes
Other features
mSATA ports quantity	0
Package width	370 mm
Package depth	312 mm
Package height	108 mm
Package weight	4.16 kg
