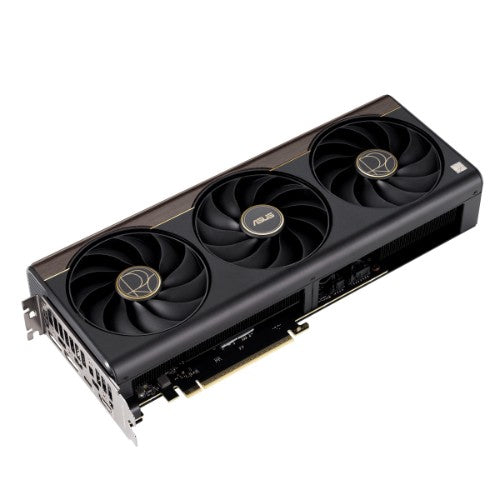

ASUS ProArt -RTX5070TI-O16G NVIDIA GeForce RTX 5070 Ti 16 GB GDDR7

NVIDIA GeForce RTX 5070 Ti 16GB GDDR7, PCI Express 5.0, 28 Gbps, 256-bit, 850W, 2.5 Slot

Description

Visionary. Versatile. Timeless.
The ProArt GeForce RTX™ 5070 Ti combines a compact 2.5-slot design with potent cooling – three Axial-tech fans, a vapor chamber, and a phase-change GPU thermal pad – to deliver GeForce RTX 50 Series performance to both full-scale towers and space-saving SFF builds. A USB Type-C® port enhances versatility for content creation workflows, while a wood-patterned laminate trim and low-key Aura-lit logo help deliver a refined aesthetic.

Specifications

Processor
Graphics processor	GeForce RTX 5070 Ti
Maximum resolution	7680 x 4320 pixels
Graphics processor family	NVIDIA
CUDA	Yes
Processor boost clock speed	2588 MHz
Parallel processing technology support	Not supported
Maximum displays per videocard	4
CUDA cores	8960
Processor frequency (OC mode)	2610 MHz
Memory
Discrete graphics card memory	16 GB
Graphics card memory type	GDDR7
Memory bus	256 bit
Data transfer rate	28 Gbit/s
Ports & interfaces
Interface type	PCI Express 5.0
HDMI ports quantity	1
VGA (D-Sub) ports quantity	0
DVI-I ports quantity	0
DVI-D ports quantity	0
DisplayPorts quantity	2
Mini HDMI ports quantity	0
HDMI version	2.1b
Mini DisplayPorts quantity	0
DisplayPort version	2.1b
USB Type-C ports quantity	1
Thunderbolt 3 ports quantity	0
Performance
NVIDIA G-SYNC	Yes
OpenGL version	4.6
HDCP	Yes
Dual Link DVI	No
HDCP version	2.3
Overclocked (OC) edition	Yes
Design
Number of fans	3 fan(s)
Illumination	Yes
Cooling type	Active
Form factor	Full-Height/Full-Length (FH/FL)
Number of slots	2.5
Product colour	Multicolour
Bracket height	Full-Height (FH)
Cooling technology	ASUS Axial-tech
SFF ready	Yes
Power
Minimum system power supply	850 W
Supplementary power connectors	1x 16-pin
System requirements
Windows operating systems supported	Yes
Weight & dimensions
Weight	1.39 kg
Height	126 mm
Depth	50 mm
Length	304 mm
Packaging data
Package type	Box
Package width	405 mm
Package depth	233 mm
Package height	88.5 mm
Package weight	2.04 kg
