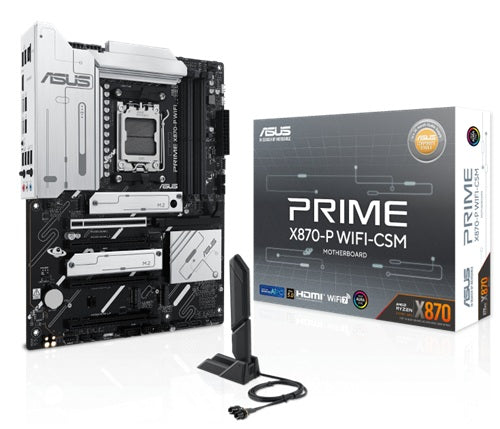

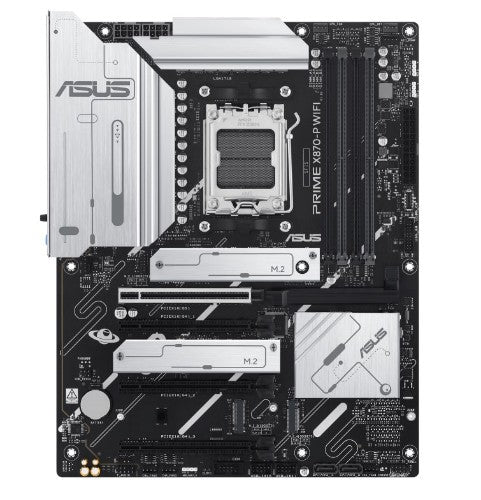

ASUS PRIME X870-P WIFI-CSM motherboard AMD X870 Socket AM5 ATX
ASUS PRIME X870-P WIFI-CSM motherboard AMD X870 Socket AM5 ATX
SKU: PRIME X870-P-WIFI-CSM
Availability:
Sale
Sold out
In Stock
10+ in stock
Regular price
$366.00
Price:
$366.00
Regular price
$504.00
Taxes included.
IN STOCK AT WAREHOUSE DELIVERY TO STORE 2-4 DAYS.
Couldn't load pickup availability
ASUS PRIME X870-P WIFI-CSM, AMD, Socket AM5, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, Socket AM5, DDR5-SDRAM, 256 GB
View full details
Description
ASUS PRIME X870-P WIFI-CSM. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 3840 x 2160 pixels. DisplayPort version: 1.4aSpecifications
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Front panel connector | Yes |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| TPM connector | Yes |
| S/PDIF out connector | Yes |
| Number of SATA III connectors | 2 |
| Number of COM connectors | 1 |
| Number of chassis fan connectors | 4 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Number of CPU fan connectors | 1 |
| Number of EPS power connectors (8-pin) | 2 |
| Number of RGB LED pin headers | 3 |
| Performance | |
| Number of HDDs supported | 2 |
| Supported storage drive types | HDD & SSD |
| Component for | PC |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870 |
| Motherboard form factor | ATX |
| Audio output channels | 7.1 channels |
| Supported processor sockets | Socket AM5 |
| RAID levels | 0, 1, 5, 10 |
| Cooling type | Passive |
| Windows operating systems supported | Windows 11 |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor socket | Socket AM5 |
| Supported processor sockets | Socket AM5 |
| Memory | |
| Number of memory slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 8000 MHz |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory per slot | 64 GB |
| Storage controllers | |
| Number of HDDs supported | 2 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 5, 10 |
| Number of storage drives supported | 6 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | Not supported |
| Maximum resolution | 3840 x 2160 pixels |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| DisplayPort version | 1.4a |
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| USB4 Gen 3x2 ports quantity | 2 |
| Line-in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Features | |
| Power source type | ATX |
| Component for | PC |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870 |
| Motherboard form factor | ATX |
| Audio output channels | 7.1 channels |
| Supported processor sockets | Socket AM5 |
| Cooling type | Passive |
| Windows operating systems supported | Windows 11 |
| Product colour | Black |
| Expansion slots | |
| Number of M.2 (M) slots | 4 |
| PCI Express x16 (Gen 4.x) slots | 3 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 4th M.2 largest key size | 2280 |
| 4th M.2 highest PCI Express generation | 3.0 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| BIOS flashback button | Yes |
| Power | |
| Power source type | ATX |
| Weight & dimensions | |
| Width | 305 mm |
| Depth | 244 mm |
| Packaging content | |
| Cables included | SATA |
| Screws included | Yes |
| Antenna included | Yes |
