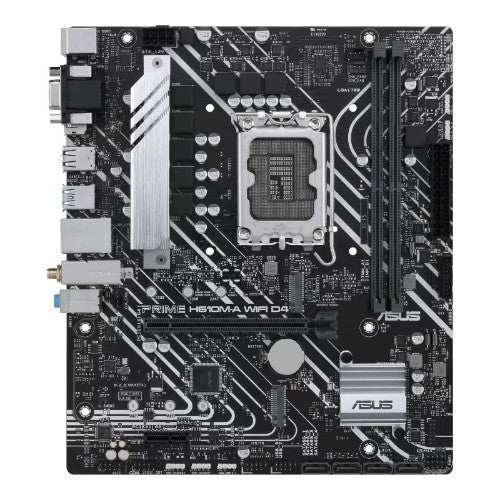

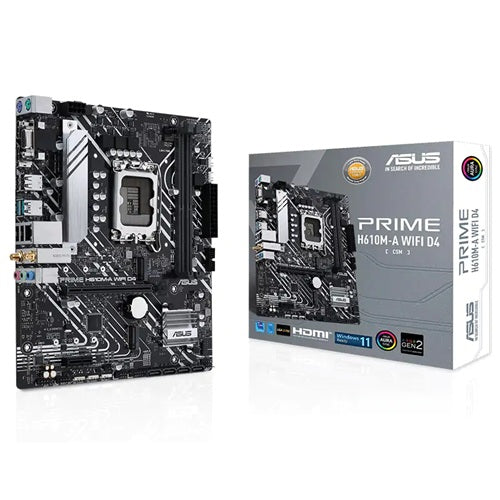

ASUS PRIME H610M-A WIFI D4-CSM motherboard Intel H610 LGA 1700 micro ATX

Intel H610 (LGA 1700) micro ATX motherboard with DDR4, PCIe 4.0, dual M.2 slots, Intel 1 Gb Ethernet, WIFI 5, DisplayPort/HDMI/D-Sub, USB 3.2 Gen 2 ports, SATA 6 Gbps, Addressable Gen 2 headers, and Arua Sync

Key Features

• Intel® LGA 1700 socket: Ready for 14th, 13th & 12th Gen Intel® processors
• Comprehensive cooling: VRM heatsink, PCH heatsink and Fan Xpert 2+
• Ultrafast connectivity: 32Gbps M.2 slot, Intel® 1 Gb Ethernet, WIFI 5 and USB 3.2 Gen 2 ports
• Aura Sync RGB: Onboard addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware
• ASUS Control Center Express (ACCE) for easier IT endpoint management

Description

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 14th, 13th & 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.

ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.

ASUS Control Center Express
ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.

Optimize IT endpoint management
Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely

Automate IT maintenance
Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility

Securely manage all of endpoints
Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices

Specifications

Internal I/O
Number of M.2 (M) slots	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Front panel connector	Yes
Audio connector	Yes
12V power connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
TPM connector	Yes
S/PDIF out connector	Yes
Number of SATA III connectors	4
Number of COM connectors	1
Number of chassis fan connectors	2
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
USB 3.2 Gen 2x2 connectors	1
Number of CPU fan connectors	1
Performance
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Component for	PC
Motherboard chipset family	Intel
Motherboard chipset	Intel H610
Motherboard form factor	micro ATX
Audio output channels	7.1 channels
Supported processor sockets	LGA 1700
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Processor
Processor manufacturer	Intel
Compatible processor series	Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium® Gold
Processor socket	LGA 1700
Supported processor sockets	LGA 1700
Memory
Number of memory slots	2
Supported memory types	DDR5-SDRAM
Memory slots type	DIMM
Memory channels	Dual-channel
Supported memory clock speeds	2133,2400,2666,2800,2933,3000,3200 MHz
Maximum internal memory	64 GB
Unbuffered memory	Yes
ECC сompatibility	Non-ECC
Storage controllers
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of storage drives supported	6
Graphics
Parallel processing technology support	Not supported
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	1
WiFi-AP antenna jack	1
VGA (D-Sub) ports quantity	1
PS/2 ports quantity	2
Microphone in	Yes
HDMI ports quantity	1
DVI-D ports quantity	0
DisplayPorts quantity	1
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Ethernet interface type	Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.0
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Features
Component for	PC
Motherboard chipset family	Intel
Motherboard chipset	Intel H610
Motherboard form factor	micro ATX
Audio output channels	7.1 channels
Supported processor sockets	LGA 1700
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Expansion slots
Number of M.2 (M) slots	2
PCI Express x16 (Gen 3.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	3.0
2nd M.2 largest key size	2280
2nd M.2 highest PCI Express generation	3.0
BIOS
BIOS type	UEFI AMI
BIOS memory size	128 Mbit
Weight & dimensions
Width	244 mm
Depth	211 mm
Packaging content
Cables included	SATA
Screws included	Yes
Antenna included	Yes
