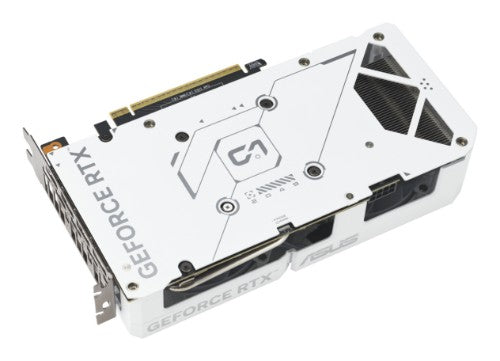

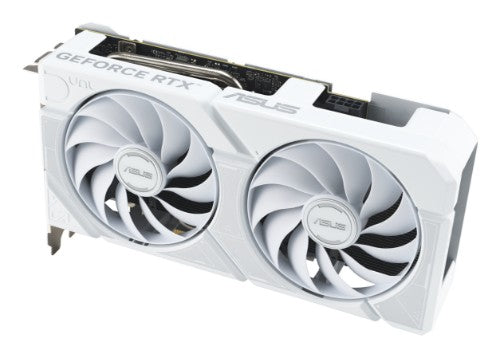

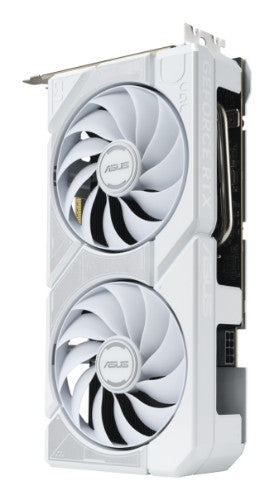

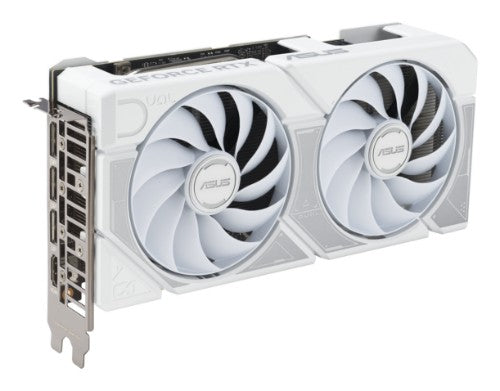

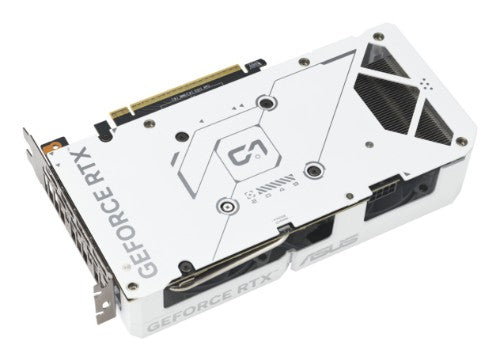

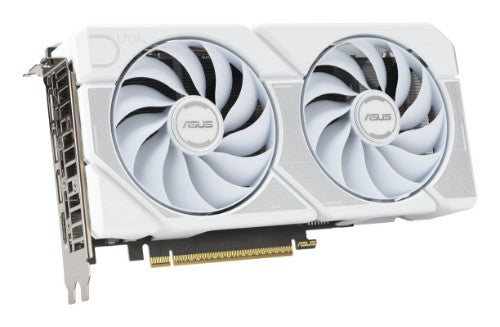

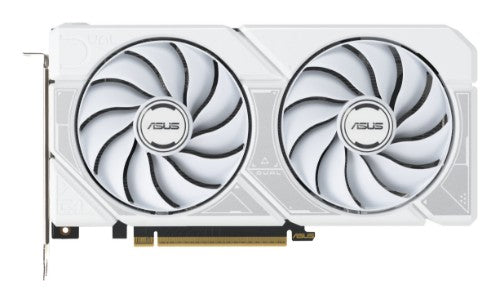

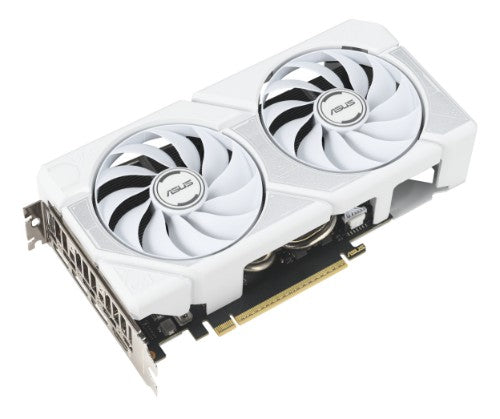

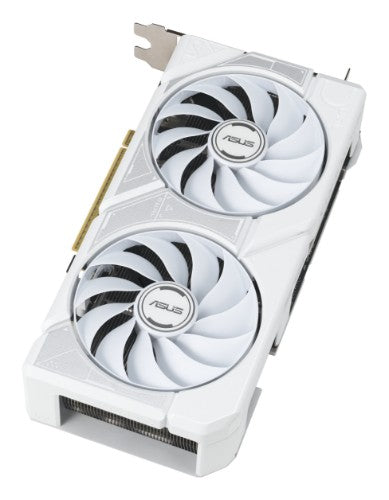

ASUS Dual -RTX5060TI-O16G-WHITE NVIDIA GeForce RTX 5060 Ti 16 GB GDDR7

Dual GeForce RTX 5060 Ti 16GB GDDR7 White OC Edition

Description

DUAL GEFORCE RTX™ 5060 Ti White Edition
Dual Fans, Perfect Fit
ASUS Dual GeForce RTX™ 5060 Ti White Edition combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for optimizing airflow to the heatsink. Designed in a compact 2.5-slot form factor, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.

Cooling
2.5-slot Design
A carefully designed shroud, heatsink, and heatpipe layout enables the two Axial-tech fans to leverage chassis side-panel ventilation, delivering thermal performance that beyond the compact size.

Axial-tech Upgrades
Two tried-and-true Axial-tech fans feature a smaller hub facilitates longer blades and a barrier ring to increase downward air pressure.

Specifications

Processor
Graphics processor	GeForce RTX 5060 Ti
Maximum resolution	7680 x 4320 pixels
Graphics processor family	NVIDIA
CUDA	Yes
Processor boost clock speed	2602 MHz
Parallel processing technology support	Not supported
Maximum displays per videocard	4
CUDA cores	4608
Processor frequency (OC mode)	2632 MHz
Memory
Discrete graphics card memory	16 GB
Graphics card memory type	GDDR7
Memory bus	128 bit
Data transfer rate	28 Gbit/s
Ports & interfaces
Interface type	PCI Express 5.0
HDMI ports quantity	1
DVI-I ports quantity	0
DVI-D ports quantity	0
DisplayPorts quantity	3
HDMI version	2.1b
DisplayPort version	2.1b
Performance
TV tuner integrated	No
OpenGL version	4.6
HDCP	Yes
HDCP version	2.3
NPU performance up to	759 TOPs
Overclocked (OC) edition	Yes
Design
Number of fans	2 fan(s)
Cooling type	Active
Number of slots	2.5
Product colour	White
Cooling technology	ASUS Axial-tech
Power
Minimum system power supply	550 W
Supplementary power connectors	1x 8-pin
Weight & dimensions
Weight	656 g
Height	120 mm
Depth	50 mm
Length	229 mm
Packaging data
Package type	Box
Package width	364 mm
Package depth	217 mm
Package height	66 mm
Package weight	1.12 kg
Manual	Yes
Packaging content
Manual	Yes
