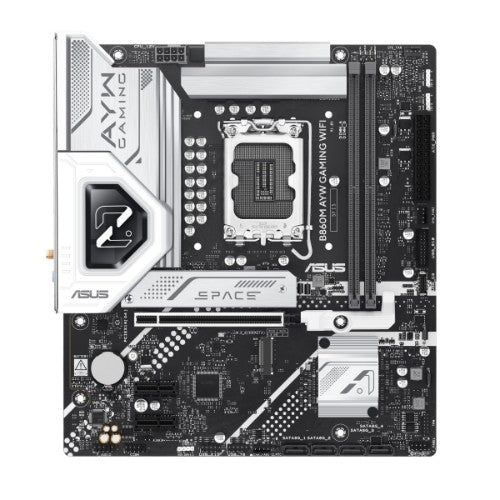

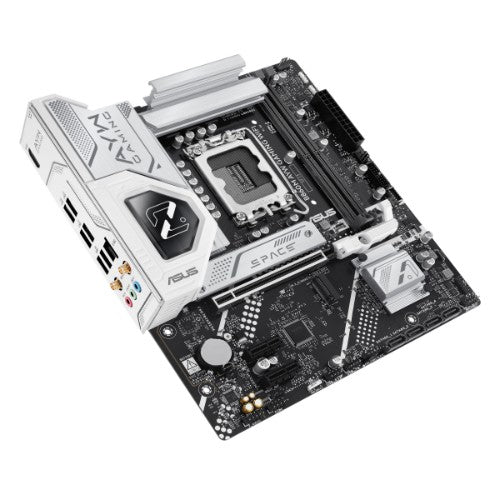

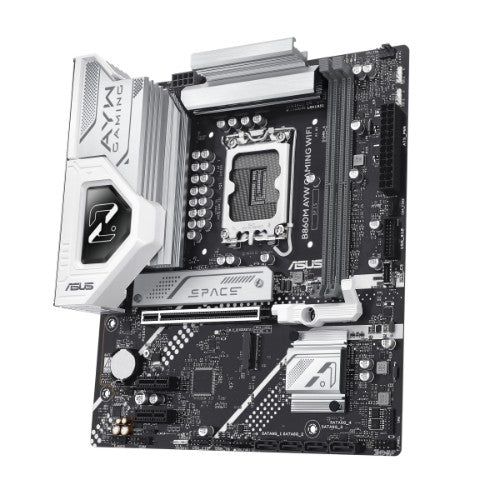

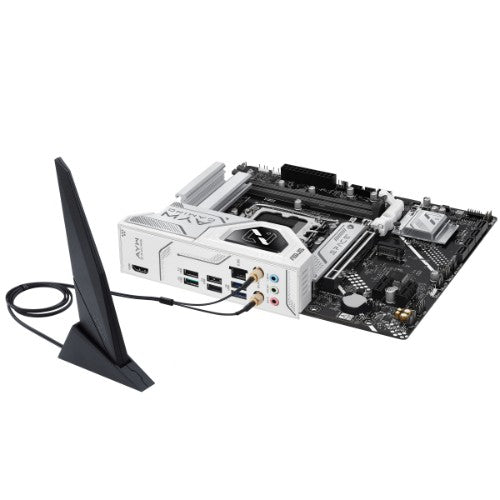

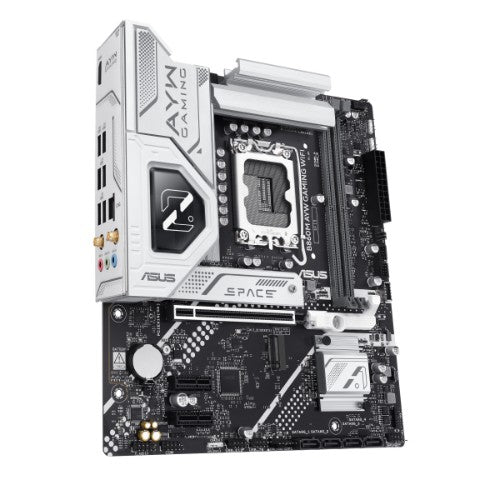

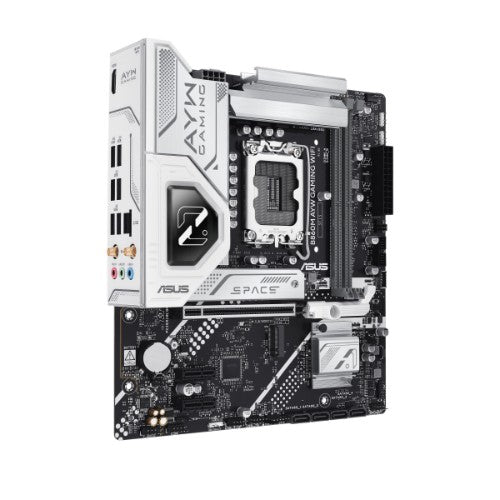

ASUS B860M AYW GAMING WIFI Intel B860 LGA 1851 (Socket V1) micro ATX

B860M AYW GAMING WIFI MB B860M, 4x DDR5, 1x PCI-E 4.0 x16, 2x M.2, 4x SATA3, WiFi

Description

B860M
AYW GAMING WIFI
ASUS B860 series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). The B860M AYW GAMING WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Specifications

Internal I/O
Number of M.2 (M) slots	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Front panel connector	Yes
12V power connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
TPM connector	Yes
S/PDIF out connector	Yes
Number of SATA III connectors	4
Number of COM connectors	1
Number of chassis fan connectors	2
Front panel audio connector	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
Number of CPU fan connectors	1
Performance
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Component for	PC
Motherboard chipset family	Intel
Motherboard chipset	Intel B860
Motherboard form factor	micro ATX
Audio output channels	7.1 channels
Supported processor sockets	LGA 1851
RAID levels	0, 1, 5, 10
Windows operating systems supported	Windows 10 x64, Windows 11
Processor
Processor manufacturer	Intel
Compatible processor series	Intel Core Ultra (Series 2)
Processor socket	LGA 1851 (Socket V1)
Supported processor sockets	LGA 1851
Memory
Number of memory slots	2
Supported memory types	DDR5-SDRAM
Memory slots type	DIMM
Memory channels	Dual-channel
Maximum internal memory	128 GB
Unbuffered memory	Yes
ECC сompatibility	Non-ECC
Storage controllers
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
RAID levels	0, 1, 5, 10
Number of storage drives supported	6
RAID support	Yes
Graphics
Parallel processing technology support	Not supported

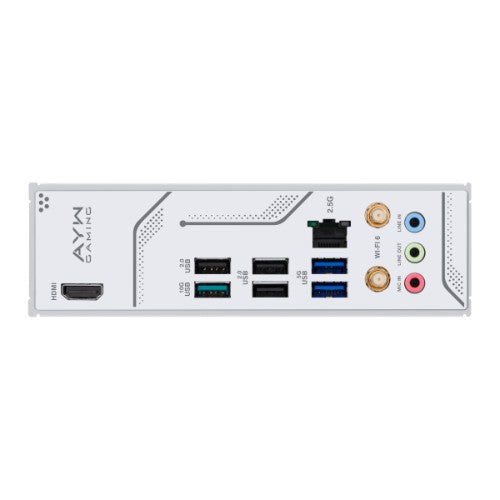

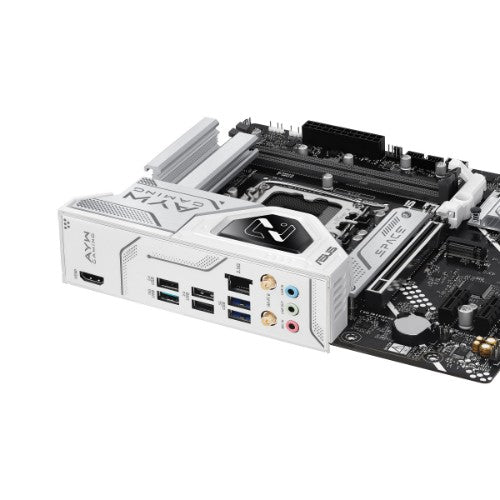

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	1
WiFi-AP antenna jack	1
VGA (D-Sub) ports quantity	0
HDMI ports quantity	1
DVI-D ports quantity	0
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Ethernet interface type	2.5 Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.3
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Features
Component for	PC
Motherboard chipset family	Intel
Motherboard chipset	Intel B860
Motherboard form factor	micro ATX
Audio output channels	7.1 channels
Supported processor sockets	LGA 1851
Windows operating systems supported	Windows 10 x64, Windows 11
Product colour	White, Black
Expansion slots
Number of M.2 (M) slots	2
PCI Express x1 (Gen 4.x) slots	2
PCI Express x16 (Gen 4.x) slots	1
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	2280
2nd M.2 highest PCI Express generation	4.0
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Weight & dimensions
Width	244 mm
Depth	222 mm
Packaging content
Cables included	SATA
Screws included	Yes
Other features
PCI Express x1 (Gen 4.x) slots	2
