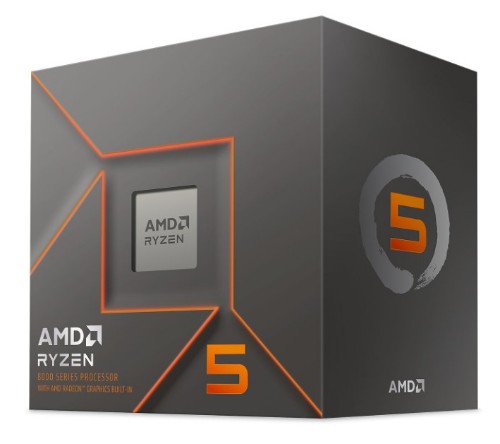

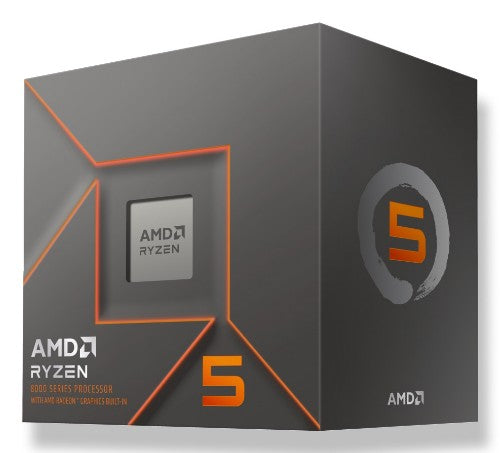

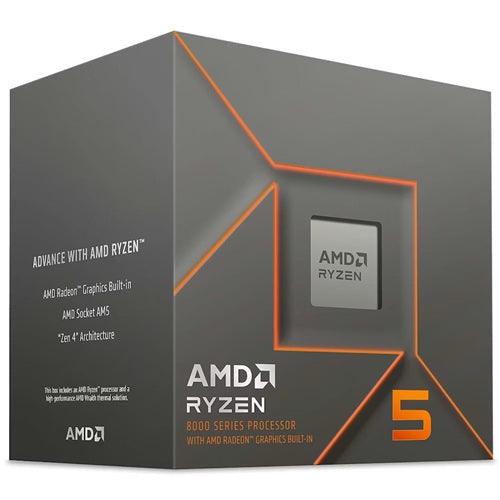

AMD Ryzen 5 8500G processor 3.5 GHz 16 MB L3 Box

Socket AM5, 6 cores, 12 threads, 3.5 GHz base clock, 5 GHz boost clock, 16 MB cache, 65 W

Description

AMD Ryzen™ 5 8500G

General Specifications

Platform: Desktop
# of CPU Cores: 6
Product Family: AMD Ryzen™ Processors
# of Threads: 12
Product Line: AMD Ryzen™ 5 8000 G-Series Desktop Processors with Radeon™ Graphics
Max. Boost Clock: Up to 5.0GHz
Base Clock: 3.5GHz
L2 Cache: 6MB
L3 Cache: 16MB
Default TDP: 65W
AMD Configurable TDP (cTDP): 45-65W
Processor Technology for CPU Cores: TSMC 4nm FinFET
CPU Socket: AM5
Max. Operating Temperature (Tjmax): 95°C
*OS Support
Windows 11 - 64-Bit Edition
Windows 10 - 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit
*Operating System (OS) support will vary by manufacturer.

Connectivity
PCI Express® Version: PCIe® 4.0
System Memory Type: DDR5
Memory Channels: 2
Max Memory Speed:
2x1R DDR5-5200
2x2R DDR5-5200
4X1R DDR5-3600
4x2R DDR5-3600

Graphics Capabilities
Graphics Model: AMD Radeon™ 740M
Graphics Core Count: 4
Graphics Frequency: 2800 MHz

Product ID Boxed
100-100000931BOX

Specifications

Processor
Processor generation	AMD Ryzen 8000 Series
Processor base frequency	3.5 GHz
Processor manufacturer	AMD
Cooler included	Yes
Configurable TDP-down	45 W
Thermal Design Power (TDP)	65 W
Processor cache	16 MB
Processor family	AMD Ryzen™ 5
Processor cores	6
Processor socket	Socket AM5
Processor lithography	4 nm
Processor model	8500G
Processor threads	12
Processor operating modes	64-bit
Processor boost frequency	5 GHz
Configurable TDP-up	65 W
Processor cache type	L3
Package type	Box
Memory
Memory types supported by processor	DDR5-SDRAM
Memory clock speeds supported by processor	3600,5200 MHz
Memory channels	Dual-channel
Graphics
Discrete graphics card	No
On-board graphics card model	AMD Radeon 740M
On-board graphics card	Yes
On-board graphics card base frequency	2800 MHz
Discrete graphics card model	Not available
Power
Configurable TDP-down	45 W
Thermal Design Power (TDP)	65 W
Features
Thermal Design Power (TDP)	65 W
PCI Express slots version	4.0
Compatible operating systems	Windows 11/10 x64, RHEL x86 64-bit, Ubuntu x86 64-bit
Market segment	Desktop
Processor special features
Configurable TDP-up	65 W
Technical details
Thermal Design Power (TDP)	65 W
Market segment	Desktop
Configurable TDP-up	65 W
Processor cache type	L3
Packaging data
Package type	Box
