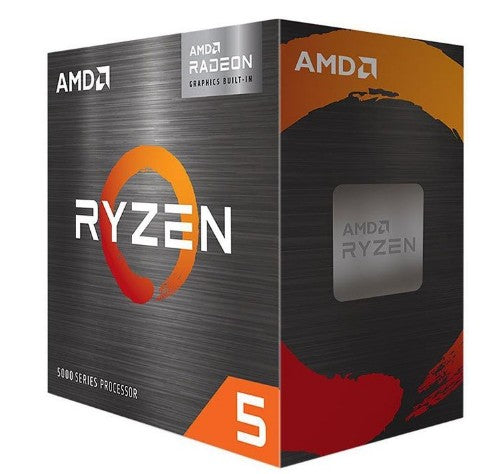

AMD Ryzen 5 5600GT processor 3.6 GHz 16 MB L3 Box

Socket AM4, 6 cores, 12 threads, 3.6 GHz base clock, 4.6 GHz boost clock, 16 MB cache, 65 W

Description

AMD Ryzen™ 5 5600GT

General Specifications

Platform: Boxed Processor
# of CPU Cores: 6
Product Family: AMD Ryzen™ Processors
# of Threads: 12
Product Line: AMD Ryzen™ 5 5000 G-Series Desktop Processors with Radeon™ Graphics
Max. Boost Clock: Up to 4.6GHz
Base Clock: 3.6GHz
L1 Cache: 384KB
L2 Cache: 3MB
L3 Cache: 16MB
Default TDP: 65W
AMD Configurable TDP (cTDP): 45-65W
Processor Technology for CPU Cores: TSMC 7nm FinFET
Unlocked for Overclocking: Yes
CPU Socket: AM4

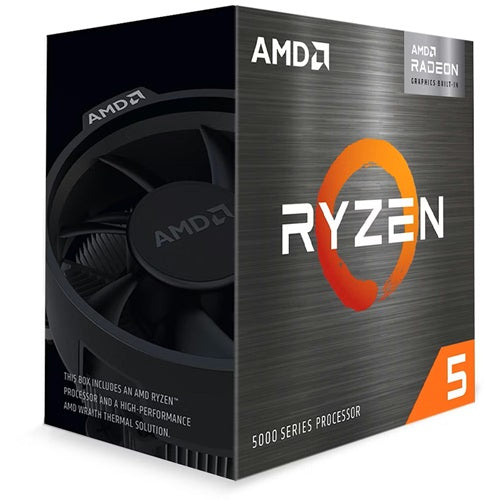

Thermal Solution (PIB): AMD Wraith Stealth
Thermal Solution (MPK): AMD Wraith Stealth
Max. Operating Temperature (Tjmax): 95°C
*OS Support
Windows 11 - 64-Bit Edition
Windows 10 - 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit
*Operating System (OS) support will vary by manufacturer.

Connectivity
PCI Express® Version: PCIe® 3.0
System Memory Type: DDR4
Memory Channels: 2
Max Memory Speed:
2x1R DDR4-3200
2x2R DDR4-3200
4X1R DDR4-2933
4x2R DDR4-2667

Graphics Capabilities
Graphics Model: Radeon™ Graphics
Graphics Core Count: 7
Graphics Frequency: 1900 MHz

Product ID Boxed
100-100001488BOX

Specifications

Processor
Processor generation	AMD Ryzen 5000 Series
Processor base frequency	3.6 GHz
Processor manufacturer	AMD
Cooler included	Yes
Configurable TDP-down	45 W
Thermal Design Power (TDP)	65 W
Processor cache	16 MB
Processor family	AMD Ryzen™ 5
Processor cores	6
Processor socket	Socket AM4
Processor lithography	7 nm
Processor model	5600GT
Processor threads	12
Processor operating modes	64-bit
Processor boost frequency	4.6 GHz
Configurable TDP-up	65 W
Processor cache type	L3
Memory
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	2667,2933,3200 MHz
Memory channels	Dual-channel
Graphics
Discrete graphics card	No
On-board graphics card model	AMD Radeon Graphics
On-board graphics card	Yes
On-board graphics card base frequency	1900 MHz
Discrete graphics card model	Not available
Power
Configurable TDP-down	45 W
Thermal Design Power (TDP)	65 W
Features
Thermal Design Power (TDP)	65 W
PCI Express slots version	3.0
Compatible operating systems	Windows 11/10 x64, RHEL x86 64-bit, Ubuntu x86 64-bit
Market segment	Desktop
Processor special features
Configurable TDP-up	65 W
Technical details
Thermal Design Power (TDP)	65 W
Market segment	Desktop
Configurable TDP-up	65 W
Processor cache type	L3
Packaging data
Package type	Box
