Collection: Trusted Platform Modules (TPMs)

TPM 2.0, SLB9672 FW7.63

Description

Compute Securely with GIGABYTE's TPM 2.0 Solution
These days security is on the forefront of everyone's mind. With cyber criminals around the world actively trying to steal your financial and personal information, you need to do everything you can to protect yourself.
While many users protect themselves with anti-virus programs and other software measures, the reality is if you want complete peace of mind you’ll need to take things a step further and use a hardware based security solution. This is especially critical for employees such as accountants or insurance agent where they handle personal information of many individuals.
Thankfully there is a solution to help keep your precious data secure: a Trusted Platform Module (TPM).

Adding another layer of security
The TPM is a discrete cryptographic processor attached to a daughter board which plugs into the motherboard. The TPM securely stores your cryptographic key which can be created with encryption software such as Windows BitLocker. Without this key, the contents of the user's PC will remain encrypted and safe from unauthorized access.

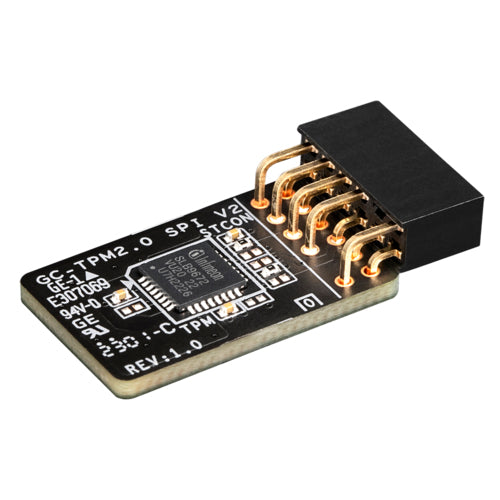

This means that when using a TPM, the data on our PC will be safe not only from external software threats, but also physical theft. The GIGABYTE TPM GC-TPM2.0 SPI V2 features the SLB9672, an advanced 2048-bit cryptographic processor by Infineon®. The SLB9672 by Infineon processor meets all the latest industry standards including TPM 2.0 as well as Common Criteria (EAL4+).

This processor creates a military-grade encryption key that allows the use to encrypt your hard drive with Windows BitLocker, and also verify your identity online for tasks like online banking.
The GC-TPM2.0 SPI V2 is compatible with GIGABYTE motherboards of that include a TPM header on below:
Intel platform:
Intel 700 / 600 / 500 / 400 series / Z390 M GAMING
AMD platform:
AMD X670 / B650 / GA-AB350M-DASH

Specifications

Features
Host interface	SPI
Trusted Platform Module (TPM) version	2.0
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8.1

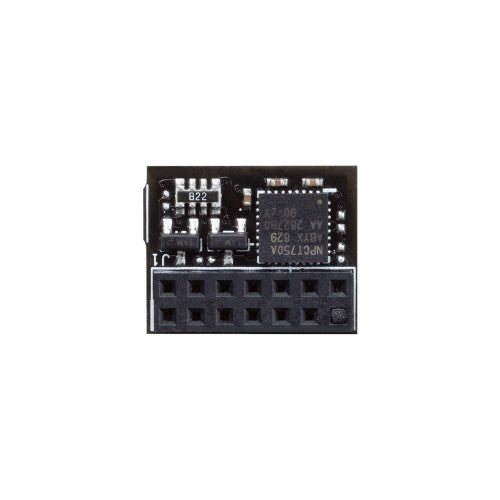

TPM-SPI, Nuvoton NPCT750, TPM 2.0, 16x13 mm

Key Features

• Designed with 14-1 pin and SPI interface
• Chip: Nuvoton NPCT750, compliant with TCG specification Family “2.0” Rev1.38
• Common Criteria EAL4+ Certified
• FIPS 140-2 Certified
• CE and RoHS Compliance

Description

The TPM-SPI card securely store keys, digital certificates, passwords, and data. It helps enhance the network security, protects digital identities, and ensures platform integrity.

Specifications

Features
Host interface	SPI
Trusted Platform Module (TPM) version	2.0
Windows operating systems supported	Windows 10
Weight & dimensions
Width	16 mm
Depth	13 mm
