Collection: Signage Displays

98" QMC Professional Display

Key Features

• Supersized Screen
• Slim Design
• SMARTVIEW+

Description

Slim design. Stunning performance.
Introducing QMC, the slimmest display in Samsung’s Professional Display range. It brings elegance to business while maximising space. With built-in solutions and intuitive home screen UX, the QMC is easy to use and helps enable businesses in various verticals to achieve growth with its efficiency and design innovation.

Maximum impact in minimum space
Ultra Slim Depth
The QMC's ultra-slim thickness of 28.5mm makes it the thinnest option in Samsung’s UHD 4K series. Its sleek design and Slim Fit Wall Mount1, helps you optimise space and install it neatly in a wide range of business environments.

Clean visuals in landscape or portrait mode
Even Bezel
The QMC’s bezels are consistent and even on all four sides of the display, with the same thickness and dimensions. The new even bezel design helps prevent visual issues from arising when the display is adjusted to portrait mode.

Secure and even mounting
Centred VESA Holes
The central positioning of the VESA holes on the back of the display helps evenly distribute its weight for secure mounting. With the VESA holes positioned in the centre, this helps prevent the display from tilting unintentionally when adjusted into portrait mode.

Lifelike colour expression
Dynamic Crystal Colour
The QMC series features Dynamic Crystal Display, using 10 bit processing for vivid colour expression, allowing viewers to enjoy a wide spectrum of colours.

View lifelike shades of colour in powerful 4K
Quantum Processor Lite 4K
Intelligent UHD upscaling technology, made possible by Samsung’s Crystal Processor 4K, enables content developed at a lower resolution to be elevated to UHD-level quality. It also performs edge restoration and noise reduction to help optimise on-screen text and imagery.

Clear visibility
Non-Glare
The QMC features non-glare panels that help provide visibility across a variety of environments. This helps allow businesses to deliver accurate information in various ambient lighting conditions.

Connect with convenience
Home User Interface (UI)
The QMC series’ home screen UI displays popular categories like Favourites, Sources and Settings on the same screen for convenience. The Favourites folder grants users quick, easy access to frequently used features.

Collaborate between screens with wire-free speed
Smartview+
SmartView+ enables wireless screen sharing without cable connections to assist with easy collaboration. Users can now enable the screen sharing functionality at the start of a meeting, allowing the meeting admin to quickly switch between screens with one click.

Streamlined calibration between screens with mobile app
Smart Calibration
Maintain brand consistency across every display in every location. Using the Samsung mobile app, Smart Calibration helps ensure every display is calibrated correctly, showcasing brand logos and other collateral in the exact colours required.

Enhance professional environments with expert tools
Professional Modes
Built-in professional modes enable more possibilities in specific verticals. Director Mode minimises post-processing enhancements, helping to align content to the director’s original intention. Medical teams can simulate medical images such as X-rays with DICOM Simulation Mode7, meeting DICOM's full greyscale standards.

Smooth and virtually seamless content playback
MagicINFO S10 Player
The embedded MagicINFO™ S10 player, backed by the powerful Tizen operating system, helps boost the overall performance of the display and offers painless management. This helps ensure seamless transitions and playback to deliver a better experience for both customers and store managers.

Everyday Sustainability
Energy Star, EPEAT and TÜV Rheinland Carbon Footprint Certification
Samsung is making diverse efforts to reduce our environmental impact in smart display, and encouraging users to pursue a more sustainable life. The QMC series has earned a series of certifications for environmentally preferable products from highly recognised institutes in Germany and the U.S9.

Specifications

Display
Dynamic contrast ratio marketing name	Mega Contrast
Display diagonal	2.49 m (98")
Display resolution	3840 x 2160 pixels
Display brightness	500 cd/m²
HD type	4K Ultra HD
Response time	8 ms
Contrast ratio (typical)	5500:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.562 x 0.562 mm
Vertical scan range	48 - 75 Hz
Touchscreen	No
Panel type	VA
Horizontal scan range	30 - 81 kHz
Display technology	LCD
Haze rate	25%
Pixel frequency (max)	594 MHz
Ports & interfaces
Remote (IR) input	1
Ethernet LAN	Yes
HDMI ports quantity	3
USB port	Yes
HDMI version	2.0
DVI port	No
Ethernet LAN (RJ-45) ports	1
RS-232 interface	Yes
Wi-Fi	Yes
USB ports quantity	2
DisplayPorts quantity	1
DisplayPort version	1.2
Audio
Built-in speaker(s)	No
Design
Product design	Digital signage flat panel
Product colour	Black
Placement supported	Indoor
Panel mounting interface	600 x 400 mm
VESA mounting	Yes
Performance
Purpose	Universal
HDCP	Yes
HDCP version	2.2
Wi-Fi	Yes
Power
Power consumption (typical)	363 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (sleep)	0.5 W
Computer system
Computer system	Yes
Operating system installed	Tizen 7.0
Internal storage capacity	16 GB
Weight & dimensions
Display width	2193.2 mm
Display depth	48.1 mm
Display height	1248.8 mm
Display weight	56.3 kg
Packaging data
Package width	1395 mm
Package depth	230 mm
Package height	2370 mm
Package weight	77.2 kg
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80%
Technical details
VESA mounting	Yes
Panel type	VA
DisplayPort version	1.2
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Thin Client
Operating system installed	Tizen 7.0
Internal storage capacity	16 GB
Other features
Wi-Fi	Yes
Panel type	VA
DisplayPort version	1.2
Display technology	LCD

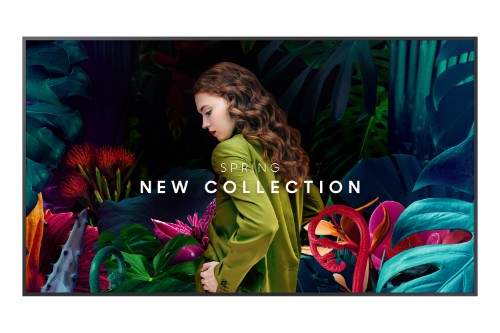

75", 3840 x 2160, VA, 0.429x0.429mm, 16/7, 214.5 W, 1682.3 x 960.4 x 28.5 mm, 33.4 kg

Key Features

• QB75C
• Ultra slim depth
• Even bezel for clean visuals
• Centred VESA mount holes

Description

Slim design. Stunning performance.
Introducing QBC, the slimmest display in the Samsung UHD Signage. It brings elegance to business while maximizing space. Its enhanced internal solutions and intuitive home screen UX make it easy to use. Businesses in various verticals can achieve growth with QBC’s efficiency and design innovation.

Maximum impact in minimum space
The QBC's unparalleled ultra-slim thickness of 28.5mm makes it the thinnest option in Samsung’s UHD series. It comes with the Slim Fit Wall Mount, which allows you to install it neatly and easily in any environment. QBC optimizes space with its sleek design that blends seamlessly into your business.

Clean visuals in landscape or portrait mode
Even bezel
The bezels are consistent and even on all four sides of the display, with the same thickness and dimensions. The new even bezel design prevents any visual issues from arising when the display is adjusted to portrait mode.

Secure and even mounting
Centered VESA Holes
The central positioning of the VESA holes on the back of the display evenly distribute its weight for secure mounting. With the VESA holes now shifted to the center, users can adjust the display to portrait mode without the display tilting unintentionally.

Lifelike color, born in a pure state with fine crystal
Dynamic Crystal Color
Every picture is more immersive with one billion shades of color. Dynamic Crystal Color delivers true-to-life variations, allowing customers to see every subtlety.

View lifelike shades of color in powerful 4K
Crystal Processor 4K
Samsung’s industry-leading video processing technology enhances every piece of content for clarity and consistency. Intelligent UHD upscaling technology, powered by Samsung’s Quantum Processor Lite 4K, elevates lower-resolution video to UHD, providing a professional picture quality.

Connect with convenience
Home UI
QBC boasts greater usability with an upgraded home screen UI. Popular categories like Favorites, Sources and Settings are displayed on the same screen for convenient availability. The Favorites folder grants users quick, easy access to frequently used features in a single click.

Simplified calibration between screens with mobile app
Smart Calibration
Guarantee complete brand consistency across every display in every location. Using the Samsung mobile app, Smart Calibration ensures every display is calibrated correctly, showcasing brand logos and other collateral in the exact colors required.

Enhance professional environments with expert tools
Professional Modes
Built-in professional modes enable more possibilities in specific verticals. Director Mode minimizes post-processing, aligning content to the director’s original intention. Medical teams can simulate medical images such as X-rays with DICOM Simulation Mode, meeting DICOM's full grayscale standards

Change the way to manage your display
Samsung VXT
Samsung VXT CMS is a cloud-based solution that brings together content management and remote device management capabilities, allowing users to remotely manage hardware settings and troubleshoot issues while effortlessly creating and deploying content with no previous training needed.

Everyday Sustainability
Energy Star / EPEAT*
Samsung is making diverse efforts to reduce our environmental impact in smart signage, and encouraging users to pursue a more sustainable life.

Specifications

Display
Dynamic contrast ratio marketing name	Mega Contrast
Display diagonal	190.5 cm (75")
Display resolution	3840 x 2160 pixels
Display brightness	350 cd/m²
HD type	4K Ultra HD
Response time	8 ms
Contrast ratio (typical)	4000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.372 x 0.372 mm
Vertical scan range	48 - 75 Hz
Panel type	VA
Horizontal scan range	30 - 81 kHz
Display technology	LED
Colour saturation	72%
Haze rate	2%
RGB colour space	NTSC
Ports & interfaces
Ethernet LAN	Yes
HDMI ports quantity	3
USB port	Yes
HDMI version	2.0
DVI port	No
Ethernet LAN (RJ-45) ports	1
RS-232 interface	Yes
Wi-Fi	Yes
USB ports quantity	2
DisplayPorts quantity	0
HDMI input ports quantity	3
Design
Product design	Digital signage flat panel
Product colour	Black
Panel mounting interface	400 x 400 mm
VESA mounting	Yes
Performance
Purpose	Universal
Operating hours (hours/days)	16/7
HDCP	Yes
HDCP version	2.2
Wi-Fi	Yes
Power
Power consumption (typical)	214.5 W
Power consumption (standby)	0.5 W
AC input voltage	100-240 V
AC input frequency	50-60 Hz
Computer system
Operating system installed	Tizen
Internal memory	8 GB
Operating system version	Tizen 7.0
Weight & dimensions
Display width	1682.3 mm
Display depth	28.5 mm
Display height	960.4 mm
Display weight	33.4 kg
Packaging data
Package width	1839 mm
Package depth	180 mm
Package height	1113 mm
Package weight	43.5 kg
Packaging content
Stand included	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80%
Technical details
VESA mounting	Yes
Stand included	Yes
Panel type	VA
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Thin Client
Operating system installed	Tizen
Internal memory	8 GB
Other features
Wi-Fi	Yes
Stand included	Yes
Panel type	VA
Display technology	LED

85", 4K UHD 3840 x 2160, VA, 350 nit, 4000:1, 8 ms, 178/178, 3x HDMI 2.0, 2x USB, Tizen 7.0

Description

SAMSUNG (QBC-N) PRO DISPLAY, 85" UHD, 350NITS, HDMI(2), LAN, SPK, PORT/LAND, 16H/7D, 3Y

Specifications

Display
Dynamic contrast ratio marketing name	Mega Contrast
Display diagonal	2.16 m (85")
Display resolution	3840 x 2160 pixels
Display brightness	350 cd/m²
HD type	4K Ultra HD
Response time	10 ms
Contrast ratio (typical)	4000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.487 x 0.487 mm
Active display area (W x H)	1872 x 1053 mm
Display diagonal (metric)	214.7 cm
Vertical scan range	48 - 75 Hz
Touchscreen	No
Panel type	VA
Horizontal scan range	30 - 81 kHz
Display technology	LED
Colour saturation	72%
Native refresh rate	60 Hz
Haze rate	2%
RGB colour space	NTSC
Ports & interfaces
Remote (IR) input	1
Ethernet LAN	Yes
HDMI ports quantity	3
USB port	Yes
HDMI version	2.0
DVI port	No
Ethernet LAN (RJ-45) ports	1
RS-232 interface	Yes
Wi-Fi	No
USB ports quantity	2
PC Audio out	Yes
DisplayPorts quantity	0
HDMI input ports quantity	3
Audio
Sound modes	Dolby Audio
Built-in speaker(s)	No
Design
Product design	Digital signage flat panel
Product colour	Black
Placement supported	Indoor
Panel mounting interface	600 x 400 mm
Bezel width (top)	1.39 cm
Bezel width (side)	1.39 cm
Bezel width (bottom)	1.39 cm
VESA mounting	Yes
Mounting type	Wall
Performance
Purpose	Commercial
Operating hours (hours/days)	16/7
HDCP	Yes
HDCP version	2.2
Wi-Fi	No
Power
Power consumption (typical)	231 W
Power consumption (standby)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Computer system
Operating system installed	Tizen 7.0
Internal memory	8 GB
Video formats supported	HEVC/H.265
Built-in processor	Yes
Weight & dimensions
Display width	1904.3 mm
Display depth	28.5 mm
Display height	1085.3 mm
Display weight	41.9 kg
Packaging data
Package width	2077 mm
Package depth	210 mm
Package height	1222 mm
Package weight	53.9 kg
Remote control included	Yes
Mounting kit	Yes
Cables included	AC, RS-232, USB
Batteries included	Yes
Packaging content
Remote control included	Yes
Mounting kit	Yes
Cables included	AC, RS-232, USB
Batteries included	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80%
Storage temperature (T-T)	-20 - 45 °C
Storage relative humidity (H-H)	5 - 95%
Technical details
VESA mounting	Yes
Panel type	VA
Processor	Quantum Lite 4K Processor
Sustainability compliance	Yes
Sustainability certificates	ENERGY STAR, EPEAT
Compliance certificates	TÜV mark
Network
Ethernet LAN	Yes
Wi-Fi	No
Thin Client
Operating system installed	Tizen 7.0
Internal memory	8 GB
Video formats supported	HEVC/H.265
Other features
Wi-Fi	No
Sound modes	Dolby Audio
PC Audio out	Yes
Panel type	VA
On/off switch	Yes
Display technology	LED
Bezel width (top)	1.39 cm
Bezel width (side)	1.39 cm
Bezel width (bottom)	1.39 cm

55", 4K UHD 3840 x 2160, VA, 350 nit, 4000:1, 8 ms, 178/178, 3x HDMI 2.0, 2x USB, Tizen 7.0

Description

SAMSUNG (QBC-N) PRO DISPLAY, 55" UHD, 350NITS, HDMI(3), LAN, SPK, PORT/LAND, 16H/7D, 3Y

Specifications

Display
Dynamic contrast ratio marketing name	Mega Contrast
Display diagonal	139.7 cm (55")
Display resolution	3840 x 2160 pixels
Display brightness	350 cd/m²
HD type	4K Ultra HD
Response time	8 ms
Contrast ratio (typical)	4000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.315 x 0.315 mm
Active display area (W x H)	1209.6 x 680.4 mm
Display diagonal (metric)	138.7 cm
Vertical scan range	48 - 75 Hz
Touchscreen	No
Panel type	VA
Horizontal scan range	30 - 81 kHz
Display technology	LED
Colour saturation	72%
Native refresh rate	60 Hz
Haze rate	2%
RGB colour space	NTSC
Ports & interfaces
Remote (IR) input	1
Ethernet LAN	Yes
HDMI ports quantity	3
USB port	Yes
HDMI version	2.0
DVI port	No
Ethernet LAN (RJ-45) ports	1
RS-232 interface	Yes
Wi-Fi	No
USB ports quantity	2
PC Audio out	Yes
DisplayPorts quantity	0
HDMI input ports quantity	3
Audio
Sound modes	Dolby Audio
Built-in speaker(s)	No
Design
Product design	Digital signage flat panel
Product colour	Black
Placement supported	Indoor
Panel mounting interface	200 x 200 mm
Bezel width (top)	1.15 cm
Bezel width (side)	1.15 cm
Bezel width (bottom)	1.15 cm
VESA mounting	Yes
Mounting type	Wall
Screen shape	Flat
Performance
Purpose	Commercial
Operating hours (hours/days)	16/7
HDCP	Yes
HDCP version	2.2
Wi-Fi	No
Power
Power consumption (typical)	154 W
Power consumption (standby)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Energy efficiency scale	A to G
Energy efficiency class (SDR)	G
Energy consumption (SDR) per 1000 hours	85 kWh
Computer system
Operating system installed	Tizen 7.0
Internal memory	8 GB
Video formats supported	HEVC/H.265
Built-in processor	Yes
Weight & dimensions
Display width	1237.9 mm
Display depth	28.5 mm
Display height	708.8 mm
Display weight	15.7 kg
Packaging data
Package width	1403 mm
Package depth	148 mm
Package height	835 mm
Package weight	19.9 kg
Remote control included	Yes
Mounting kit	Yes
Cables included	AC, RS-232, USB
Batteries included	Yes
Packaging content
Remote control included	Yes
Mounting kit	Yes
Cables included	AC, RS-232, USB
Batteries included	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80%
Storage temperature (T-T)	-20 - 45 °C
Storage relative humidity (H-H)	5 - 95%
Technical details
VESA mounting	Yes
Panel type	VA
Processor	Quantum Lite 4K Processor
Sustainability compliance	Yes
Sustainability certificates	ENERGY STAR, EPEAT
Compliance certificates	TÜV mark
Network
Ethernet LAN	Yes
Wi-Fi	No
Thin Client
Operating system installed	Tizen 7.0
Internal memory	8 GB
Video formats supported	HEVC/H.265
Other features
Wi-Fi	No
Sound modes	Dolby Audio
PC Audio out	Yes
Panel type	VA
On/off switch	Yes
Display technology	LED
Bezel width (top)	1.15 cm
Bezel width (side)	1.15 cm
Bezel width (bottom)	1.15 cm
Energy efficiency scale	A to G

50", 4K UHD 3840 x 2160, VA, 350 nit, 4000:1, 8 ms, 178/178, 3x HDMI 2.0, 2x USB, Tizen 7.0

Description

SAMSUNG (QBC-N) PRO DISPLAY, 50" UHD, 350NITS, HDMI(3), LAN,SPK, PORT/LAND, 16H/7D, 3Y

Specifications

Display
Dynamic contrast ratio marketing name	Mega Contrast
Display diagonal	127 cm (50")
Display resolution	3840 x 2160 pixels
Display brightness	350 cd/m²
HD type	4K Ultra HD
Response time	8 ms
Contrast ratio (typical)	4000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.285 x 0.285 mm
Display diagonal (metric)	125 cm
Vertical scan range	48 - 75 Hz
Touchscreen	No
Panel type	VA
Horizontal scan range	30 - 81 kHz
Display technology	LED
Colour saturation	72%
Native refresh rate	60 Hz
Haze rate	2%
RGB colour space	NTSC
Ports & interfaces
Remote (IR) input	1
Ethernet LAN	Yes
HDMI ports quantity	3
USB port	Yes
HDMI version	2.0
DVI port	No
Ethernet LAN (RJ-45) ports	1
RS-232 interface	Yes
Wi-Fi	No
USB ports quantity	2
PC Audio out	Yes
DisplayPorts quantity	0
HDMI input ports quantity	3
Audio
Sound modes	Dolby Audio
Built-in speaker(s)	No
Design
Product design	Digital signage flat panel
Product colour	Black
Placement supported	Indoor
Panel mounting interface	200 x 200 mm
Bezel width (top)	1.15 cm
Bezel width (side)	1.15 cm
Bezel width (bottom)	1.15 cm
VESA mounting	Yes
Mounting type	Wall
Screen shape	Flat
Performance
Purpose	Commercial
Operating hours (hours/days)	16/7
HDCP	Yes
HDCP version	2.2
Wi-Fi	No
Power
Power consumption (typical)	132 W
Power consumption (standby)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Energy efficiency scale	A to G
Energy efficiency class (SDR)	G
Energy consumption (SDR) per 1000 hours	82 kWh
Computer system
Operating system installed	Tizen 7.0
Internal memory	8 GB
Video formats supported	HEVC/H.265
Built-in processor	Yes
Weight & dimensions
Display width	1124.1 mm
Display depth	28.5 mm
Display height	644.8 mm
Display weight	11.8 kg
Packaging data
Package width	1246 mm
Package depth	131 mm
Package height	761 mm
Package weight	14.9 kg
Remote control included	Yes
Mounting kit	Yes
Cables included	AC, RS-232, USB
Batteries included	Yes
Packaging content
Remote control included	Yes
Mounting kit	Yes
Cables included	AC, RS-232, USB
Batteries included	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80%
Storage temperature (T-T)	-20 - 45 °C
Storage relative humidity (H-H)	5 - 95%
Technical details
VESA mounting	Yes
Panel type	VA
Processor	Quantum Lite 4K Processor
Sustainability compliance	Yes
Sustainability certificates	ENERGY STAR, EPEAT
Compliance certificates	TÜV mark
Network
Ethernet LAN	Yes
Wi-Fi	No
Thin Client
Operating system installed	Tizen 7.0
Internal memory	8 GB
Video formats supported	HEVC/H.265
Other features
Wi-Fi	No
Sound modes	Dolby Audio
PC Audio out	Yes
Panel type	VA
On/off switch	Yes
Display technology	LED
Bezel width (top)	1.15 cm
Bezel width (side)	1.15 cm
Bezel width (bottom)	1.15 cm
Energy efficiency scale	A to G

43", 4K UHD 3840 x 2160, VA, 350 nit, 4000:1, 8 ms, 178/178, 3x HDMI 2.0, 2x USB, Tizen 7.0

Description

SAMSUNG (QBC-N) PRO DISPLAY, 43" UHD, 350NITS, HDMI(3),LAN , SPK, PORT/LAND, 16H/7D, 3Y

Specifications

Display
Dynamic contrast ratio marketing name	Mega Contrast
Display diagonal	109.2 cm (43")
Display resolution	3840 x 2160 pixels
Display brightness	350 cd/m²
HD type	4K Ultra HD
Response time	8 ms
Contrast ratio (typical)	4000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.245 x 0.245 mm
Display diagonal (metric)	108 cm
Vertical scan range	48 - 75 Hz
Touchscreen	No
Panel type	VA
Horizontal scan range	30 - 81 kHz
Display technology	LED
Colour saturation	72%
Native refresh rate	60 Hz
Haze rate	2%
RGB colour space	NTSC
Ports & interfaces
Remote (IR) input	1
Ethernet LAN	Yes
HDMI ports quantity	3
USB port	Yes
HDMI version	2.0
DVI port	No
Ethernet LAN (RJ-45) ports	1
RS-232 interface	Yes
Wi-Fi	No
USB ports quantity	2
PC Audio out	Yes
DisplayPorts quantity	0
HDMI input ports quantity	3
Audio
Sound modes	Dolby Audio
Built-in speaker(s)	No
Design
Product design	Digital signage flat panel
Product colour	Black
Placement supported	Indoor
Panel mounting interface	200 x 200 mm
Bezel width (top)	1.15 cm
Bezel width (side)	1.15 cm
Bezel width (bottom)	1.15 cm
VESA mounting	Yes
Mounting type	Wall
Screen shape	Flat
Performance
Purpose	Commercial
Operating hours (hours/days)	16/7
HDCP	Yes
HDCP version	2.2
Wi-Fi	No
Power
Power consumption (typical)	121 W
Power consumption (standby)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Energy efficiency scale	A to G
Energy efficiency class (SDR)	G
Energy consumption (SDR) per 1000 hours	74 kWh
Computer system
Operating system installed	Tizen 7.0
Internal memory	8 GB
Video formats supported	HEVC/H.265
Built-in processor	Yes
Weight & dimensions
Display width	969.5 mm
Display depth	28.5 mm
Display height	557.8 mm
Display weight	8.8 kg
Packaging data
Package width	1093 mm
Package depth	126 mm
Package height	667 mm
Package weight	11.3 kg
Remote control included	Yes
Mounting kit	Yes
Cables included	AC, RS-232, USB
Batteries included	Yes
Packaging content
Remote control included	Yes
Mounting kit	Yes
Cables included	AC, RS-232, USB
Batteries included	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80%
Storage temperature (T-T)	-20 - 45 °C
Storage relative humidity (H-H)	5 - 95%
Technical details
VESA mounting	Yes
Panel type	VA
Processor	Quantum Lite 4K Processor
Sustainability compliance	Yes
Sustainability certificates	ENERGY STAR, EPEAT
Compliance certificates	TÜV mark
Network
Ethernet LAN	Yes
Wi-Fi	No
Thin Client
Operating system installed	Tizen 7.0
Internal memory	8 GB
Video formats supported	HEVC/H.265
Other features
Wi-Fi	No
Sound modes	Dolby Audio
PC Audio out	Yes
Panel type	VA
On/off switch	Yes
Display technology	LED
Bezel width (top)	1.15 cm
Bezel width (side)	1.15 cm
Bezel width (bottom)	1.15 cm
Energy efficiency scale	A to G

65" 4K UHD 3840 x 2160 VA, 350 nit, 4000:1, 8 ms, 178/178, 3x HDMI 2.0, 2x USB, Tizen 7.0

Description

SAMSUNG (QBC-N) PRO DISPLAY, 65" UHD, 350NITS, HDMI(3), LAN, SPK, PORT/LAND, 16H/7D, 3Y

Specifications

Display
Dynamic contrast ratio marketing name	Mega Contrast
Display diagonal	165.1 cm (65")
Display resolution	3840 x 2160 pixels
Display brightness	350 cd/m²
HD type	4K Ultra HD
Response time	8 ms
Contrast ratio (typical)	4000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.429 x 0.429 mm
Active display area (W x H)	1650.24 x 928.26 mm
Display diagonal (metric)	163 cm
Vertical scan range	48 - 75 Hz
Touchscreen	No
Panel type	VA
Horizontal scan range	30 - 81 kHz
Display technology	LED
High Dynamic Range (HDR) technology	Dynamic Crystal
Colour saturation	72%
Native refresh rate	60 Hz
Haze rate	2%
RGB colour space	NTSC
Ports & interfaces
Remote (IR) input	1
Ethernet LAN	Yes
HDMI ports quantity	3
USB port	Yes
HDMI version	2.0
DVI port	No
Ethernet LAN (RJ-45) ports	1
RS-232 interface	Yes
Wi-Fi	No
USB ports quantity	2
PC Audio out	Yes
DisplayPorts quantity	0
HDMI input ports quantity	3
Audio
Sound modes	Dolby Audio
Design
Product design	Digital signage flat panel
Product colour	Black
Placement supported	Indoor
Panel mounting interface	400 x 300 mm
Bezel width (top)	1.15 cm
Bezel width (side)	1.15 cm
Bezel width (bottom)	1.15 cm
VESA mounting	Yes
Mounting type	Wall
Screen shape	Flat
Performance
Purpose	Commercial
Operating hours (hours/days)	16/7
HDCP	Yes
HDCP version	2.2
Wi-Fi	No
Power
Power consumption (typical)	187 W
Power consumption (standby)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Energy efficiency class (SDR)	G
Energy consumption (SDR) per 1000 hours	104 kWh
Computer system
Operating system installed	Tizen 7.0
Internal memory	8 GB
Video formats supported	HEVC/H.265
Built-in processor	Yes
Weight & dimensions
Display width	1456.8 mm
Display depth	28.5 mm
Display height	831.9 mm
Display weight	21.5 kg
Packaging data
Package width	1616 mm
Package depth	164 mm
Package height	945 mm
Package weight	28 kg
Remote control included	Yes
Mounting kit	Yes
Cables included	AC, RS-232, USB
Batteries included	Yes
Packaging content
Remote control included	Yes
Mounting kit	Yes
Cables included	AC, RS-232, USB
Batteries included	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80%
Storage temperature (T-T)	-20 - 45 °C
Storage relative humidity (H-H)	5 - 95%
Technical details
VESA mounting	Yes
Panel type	VA
Processor	Quantum Lite 4K Processor
Sustainability compliance	Yes
Sustainability certificates	ENERGY STAR, EPEAT
Compliance certificates	TÜV mark
Network
Ethernet LAN	Yes
Wi-Fi	No
Thin Client
Operating system installed	Tizen 7.0
Internal memory	8 GB
Video formats supported	HEVC/H.265
Other features
Wi-Fi	No
Sound modes	Dolby Audio
PC Audio out	Yes
Panel type	VA
On/off switch	Yes
Display technology	LED
Bezel width (top)	1.15 cm
Bezel width (side)	1.15 cm
Bezel width (bottom)	1.15 cm

75", 4K UHD 3840 x 2160, VA, 350 nit, 4000:1, 8 ms, 178/178, 3x HDMI 2.0, 2x USB, Tizen 7.0

Description

SAMSUNG (QBC-N) PRO DISPLAY, 75" UHD, 350NITS, HDMI(3), LAN, SPK, PORT/LAND, 16H/7D, 3Y

Specifications

Display
Dynamic contrast ratio marketing name	Mega Contrast
Display diagonal	190.5 cm (75")
Display resolution	3840 x 2160 pixels
Display brightness	350 cd/m²
HD type	4K Ultra HD
Response time	8 ms
Contrast ratio (typical)	4000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.429 x 0.429 mm
Active display area (W x H)	1650.24 x 928.26 mm
Display diagonal (metric)	189.3 cm
Vertical scan range	48 - 75 Hz
Touchscreen	No
Panel type	VA
Horizontal scan range	30 - 81 kHz
Display technology	LED
Colour saturation	72%
Native refresh rate	60 Hz
Haze rate	2%
RGB colour space	NTSC
Ports & interfaces
Remote (IR) input	1
Ethernet LAN	Yes
HDMI ports quantity	3
USB port	Yes
HDMI version	2.0
DVI port	No
Ethernet LAN (RJ-45) ports	1
RS-232 interface	Yes
Wi-Fi	No
USB ports quantity	2
PC Audio out	Yes
DisplayPorts quantity	0
HDMI input ports quantity	3
Audio
Sound modes	Dolby Audio
Built-in speaker(s)	No
Design
Product design	Digital signage flat panel
Product colour	Black
Placement supported	Indoor
Panel mounting interface	400 x 400 mm
Bezel width (top)	1.34 cm
Bezel width (side)	1.34 cm
Bezel width (bottom)	1.34 cm
VESA mounting	Yes
Mounting type	Wall
Screen shape	Flat
Performance
Purpose	Commercial
Operating hours (hours/days)	16/7
HDCP	Yes
HDCP version	2.2
Wi-Fi	No
Power
Power consumption (typical)	214.5 W
Power consumption (standby)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Computer system
Operating system installed	Tizen 7.0
Internal memory	8 GB
Video formats supported	HEVC/H.265
Built-in processor	Yes
Weight & dimensions
Display width	1682.3 mm
Display depth	28.5 mm
Display height	960.4 mm
Display weight	33.4 kg
Packaging data
Package width	1839 mm
Package depth	180 mm
Package height	1113 mm
Package weight	43.5 kg
Remote control included	Yes
Mounting kit	Yes
Cables included	AC, RS-232, USB
Batteries included	Yes
Packaging content
Remote control included	Yes
Mounting kit	Yes
Cables included	AC, RS-232, USB
Batteries included	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80%
Storage temperature (T-T)	-20 - 45 °C
Storage relative humidity (H-H)	5 - 95%
Technical details
VESA mounting	Yes
Panel type	VA
Processor	Quantum Lite 4K Processor
Sustainability compliance	Yes
Sustainability certificates	ENERGY STAR, EPEAT
Compliance certificates	TÜV mark
Network
Ethernet LAN	Yes
Wi-Fi	No
Thin Client
Operating system installed	Tizen 7.0
Internal memory	8 GB
Video formats supported	HEVC/H.265
Other features
Wi-Fi	No
Sound modes	Dolby Audio
PC Audio out	Yes
Panel type	VA
On/off switch	Yes
Display technology	LED
Bezel width (top)	1.34 cm
Bezel width (side)	1.34 cm
Bezel width (bottom)	1.34 cm
