Collection: Seagate

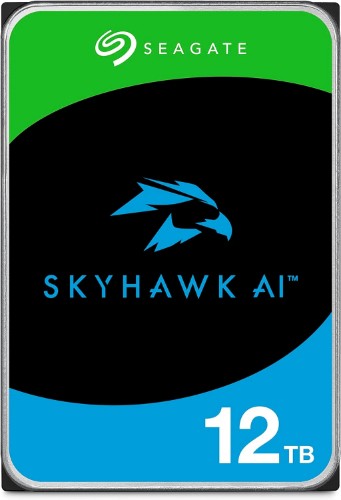

12 TB, 3.5", SATA III, 32 AI Channels

Description

A video-optimised drive, SkyHawk AI is designed for NVRs with artificial intelligence for edge applications.

SkyHawk AI
Designed for AI video analytics, SkyHawk AI supports up to 64 HD cameras and 32 additional AI streams while offering capacities up to 20 TB. It delivers zero dropped frames with ImagePerfect AI and has enterprise-class workload rates at 550 TB/yr for high reliability.

SkyHawk
24×7 workloads can leverage up to 8 TB with drives designed for DVR and NVR systems. SkyHawk video drives are equipped with enhanced ImagePerfect™ and SkyHawk Health Management to help you sail through your toughest challenges.

Drive Health and Data Recovery
When integrated into compatible NVR systems, these drives provide overall system reliability increases due to SkyHawk Health Management (SHM).1

In addition, the SkyHawk drives include a robust three-year Rescue Data Recovery Services plan.

Specifications

Hard drive
Component for	Surveillance system
HDD size	3.5"
HDD capacity	12 TB
HDD speed	7200 RPM
Interface	Serial ATA III
Start/stop cycles	600000
HDD sustained transfer rate	260 MiB/s
HDD interface transfer rate	6 Gbit/s
Mean time between failures (MTBF)	2000000 h
Storage drive buffer size	512 MB
Features
Type	HDD
Component for	Surveillance system
HDD size	3.5"
HDD capacity	12 TB
HDD speed	7200 RPM
Interface	Serial ATA III
Start/stop cycles	600000
HDD sustained transfer rate	260 MiB/s
HDD interface transfer rate	6 Gbit/s
Mean time between failures (MTBF)	2000000 h
Storage drive buffer size	512 MB
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^15 bits read
Rotational Vibration (RV) sensors	Yes
Number of AI channels	32
Maximum number of cameras supported	64
Power
Power consumption (typical)	7.72 W
Power consumption (standby)	1 W
Power consumption (idle)	3.5 W
Start-up current	2 A
Operating voltage NEW	5 / 12 V
Operational conditions
Operating temperature (T-T)	0 - 65 °C
Technical details
Products per pallet layer	8 pc(s)
Harmonized System (HS) code	84717050
Weight & dimensions
Width	101.8 mm
Height	26.1 mm
Depth	147 mm
Weight	680 g
Logistics data
Master (outer) cases per pallet	40 pc(s)
Products per master (outer) case	20 pc(s)
Products per pallet layer	8 pc(s)
Harmonized System (HS) code	84717050
Other features
Interface	Serial ATA III
Master (outer) cases per pallet	40 pc(s)
Maximum number of cameras supported	64

4TB, 3.5", SATA 6Gb/s, Cache 256MB

Description

SkyHawk™ leverages Seagate's extensive experience in designing drives purpose-built for video applications.

SkyHawk AI

Designed for AI video analytics, SkyHawk AI supports up to 64 HD cameras and 32 additional AI streams while offering capacities up to 20 TB. It delivers zero dropped frames with ImagePerfect AI and has enterprise-class workload rates at 550 TB/yr for high reliability.

SkyHawk

24×7 workloads can leverage up to 8 TB with drives designed for DVR and NVR systems. SkyHawk video drives are equipped with enhanced ImagePerfect™ and SkyHawk Health Management to help you sail through your toughest challenges.

Drive Health and Data Recovery

When integrated into compatible NVR systems, these drives provide overall system reliability increases due to SkyHawk Health Management (SHM).

Specifications

Hard drive
Component for	PC
HDD size	3.5"
HDD capacity	4 TB
Interface	Serial ATA III
Start/stop cycles	600000
HDD sustained transfer rate	180 MiB/s
HDD interface transfer rate	6 Gbit/s
Mean time between failures (MTBF)	1000000 h
Storage drive buffer size	256 MB
Features
Type	HDD
Component for	PC
HDD size	3.5"
HDD capacity	4 TB
Interface	Serial ATA III
Start/stop cycles	600000
HDD sustained transfer rate	180 MiB/s
HDD interface transfer rate	6 Gbit/s
Mean time between failures (MTBF)	1000000 h
Storage drive buffer size	256 MB
24/7 operation	Yes
RV sensor(s)	Yes
Maximum number of cameras supported	64
Power
Power consumption (standby)	0.25 W
Power consumption (write)	3.7 W
Power consumption (read)	3.7 W
Power consumption (idle)	2.5 W
Start-up current	1.8 A
Operating voltage	5 / 12 V
Operational conditions
Operating temperature (T-T)	0 - 65 °C
Technical details
Quantity per pack	1 pc(s)
Harmonized System (HS) code	84717050
Weight & dimensions
Width	101.8 mm
Height	20.2 mm
Depth	147 mm
Weight	490 g
Packaging data
Quantity per pack	1 pc(s)
Logistics data
Harmonized System (HS) code	84717050
Other features
Interface	Serial ATA III
Maximum number of cameras supported	64

12TB, 3.5", 7200RPM, SATA 6Gb/s, Standard Model

Description

Delivering maximum storage capacity with the highest rack-space efficiency.

Scalable. Responsive. Innovative

Powerful performance with proven technology—Seagate’s ® Exos® X24 drives are built off the platform that’s shipped millions globally and deployed in leading cloud service provider solutions—making them the most sought-after drives in our datasphere. Designed with the highest rack-space efficiency and protected with Seagate Secure™, Exos X24 offers extreme market-leading capacity, earning customer confidence by delivering trusted peace of mind.

Superior Reliability

Enterprise-class drives with a 550 TB/year workload rating and 2.5M-hr MTBF to meet the most demanding storage requirements.

Customisation Power Options

PowerChoice™ and PowerBalance™ for optimised power consumption when in use and idle — customisable to fit your needs.

Amazing Performance

Advanced write caching coupled with up to 285 MB/s data transfer rates provides a boost in performance without compromising on capacity.

Advanced Data Security

Seagate Instant Secure Erase for safe, affordable, fast and easy drive retirement.

Specifications

Hard drive
Component for	PC
HDD size	3.5"
HDD capacity	12 TB
HDD average transfer rate	285 MB/s
HDD speed	7200 RPM
Interface	Serial ATA III
Average latency	4.16 ms
HDD sustained transfer rate	272 MiB/s
HDD interface transfer rate	6 Gbit/s
Mean time between failures (MTBF)	2500000 h
Storage drive buffer size	512 MB
Features
Type	HDD
Component for	PC
HDD size	3.5"
HDD capacity	12 TB
HDD average transfer rate	285 MB/s
HDD speed	7200 RPM
Interface	Serial ATA III
Average latency	4.16 ms
HDD sustained transfer rate	272 MiB/s
HDD interface transfer rate	6 Gbit/s
Mean time between failures (MTBF)	2500000 h
Storage drive buffer size	512 MB
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^15 bits read
Rotational Vibration (RV) sensors	Yes
Power
Power consumption (write)	7.1 W
Power consumption (read)	8.9 W
Power consumption (idle)	6.3 W
Operating voltage NEW	5 / 12 V
Operational conditions
Operating temperature (T-T)	10 - 60 °C
Operating vibration	2.27 G
Operating shock	40 G
Non-operating shock	200 G
Technical details
Quantity per pack	1 pc(s)
Weight & dimensions
Width	101.8 mm
Height	26.1 mm
Depth	147 mm
Weight	685 g
Packaging data
Quantity per pack	1 pc(s)
Other features
Interface	Serial ATA III

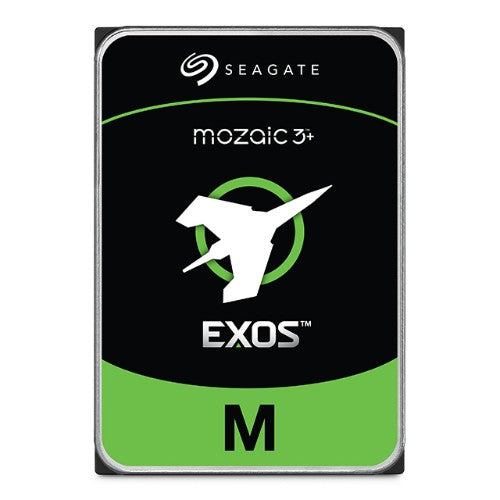

28TB, SATA 6Gb/s, 7200RPM

Key Features

• Breakthrough Areal Density: The Exos M hard drive is the first to feature 3TB per platter, enabling massive storage capacity in the same footprint for maximized AI-driven data center efficiency.
• Unmatched Capacity: 30TB+ of storage in an industry-standard 3.5-inch form factor delivers capacity at scale while optimizing space utilization in data centers.
• Time-Tested Excellence Meets Next-Gen Innovation: Blends 90% of trusted, proven components from previous generations with cutting-edge Mozaic technology.
• Superior Power Efficiency: Offers 3× the power efficiency per terabyte compared to typical drives, reducing operational costs and energy consumption and supporting your sustainability goals.
• Enterprise-Class Reliability: Designed for the stringent demands of hyperscale cloud service providers, providing durable, always-on performance essential for critical enterprise applications.
• Sustainability: Built with more renewable energy and recycled materials than any previous Seagate product, Exos M 28TB enables businesses to align with their own sustainability initiatives while reducing environmental impact.
• Compatibility and Interoperability: Maintains the same form factor, interface, and cooling as previous generations, simplifying integration into existing infrastructure and reducing upgrade complexities.
• Efficient Cooling: Engineered for optimal heat dissipation, ensuring reliable performance without increasing cooling requirements in your data center.
• Scalable for AI and Big Data: Ideal for AI, big data analytics, and high-capacity storage, Exos M 28TB supports evolving business demands and data-hungry applications, ensuring future-ready infrastructure.
• Seagate Secure: Built-in reliable data protection enhances security, safeguarding your data against threats in enterprise environments.

Description

Seagate’s Exos M hard drive, boasting breakthrough 3TB per platter density, delivers extraordinary storage capacity and power efficiency. Engineered on proven technology, it’s crafted to power AI and data-intensive applications in cutting-edge cloud and enterprise environments.

Specifications

Hard drive
Component for	Server/workstation
HDD size	3.5"
HDD capacity	28 TB
HDD average transfer rate	270 MB/s
HDD speed	7200 RPM
Interface	Serial ATA
Average latency	4.16 ms
Hot-swap	Yes
HDD sustained transfer rate	257 MiB/s
HDD interface transfer rate	12 Gbit/s
Mean time between failures (MTBF)	2500000 h
Storage drive buffer size	512 MB
Features
Type	HDD
Component for	Server/workstation
HDD size	3.5"
HDD capacity	28 TB
HDD average transfer rate	270 MB/s
HDD speed	7200 RPM
Interface	Serial ATA
Average latency	4.16 ms
Hot-swap	Yes
HDD sustained transfer rate	257 MiB/s
HDD interface transfer rate	12 Gbit/s
Mean time between failures (MTBF)	2500000 h
Storage drive buffer size	512 MB
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^15 bits read
Power
Power consumption (idle)	6.9 W
Operating voltage	5 / 12 V
Operational conditions
Operating temperature (T-T)	10 - 60 °C
Operating shock	30 G
Non-operating vibration	2.27 G
Non-operating shock	200 G
Technical details
Warranty period	5 year(s)
Weight & dimensions
Width	101.8 mm
Height	26.1 mm
Depth	147 mm
Weight	695 g
Other features
Interface	Serial ATA
Warranty period	5 year(s)

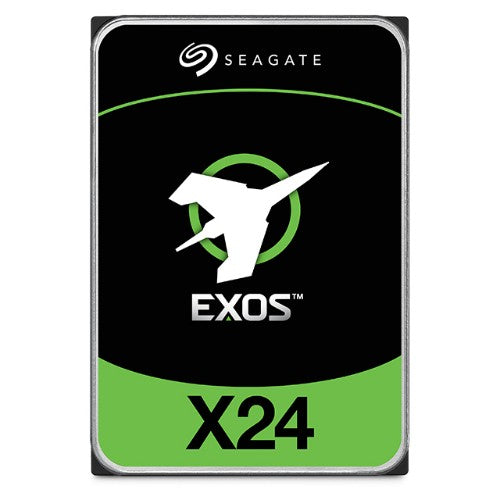

24TB SATA 6 Gb/s Standard 26.1 mm/1.028 in × 101.85 mm/4.010 in × 147mm/5.787in

Description

Enterprise Hard Drives
Exos X24 Hard Drive
Delivering maximum storage capacity with the highest rack-space efficiency.

Scalable. Responsive. Innovative.
Powerful performance with proven technology—Seagate’s® Exos® X24 drives are built off the platform that’s shipped millions globally and deployed in leading cloud service provider solutions—making them the most sought after drives in our datasphere. Designed with the highest rack-space efficiency and protected with Seagate Secure™, Exos X24 offers extreme market-leading capacity, earning customer confidence by delivering trusted peace of mind.

Specifications

Hard drive
Component for	PC
HDD size	3.5"
HDD capacity	24 TB
HDD average transfer rate	285 MB/s
HDD speed	7200 RPM
Interface	Serial ATA
HDD sustained transfer rate	272 MiB/s
HDD interface transfer rate	6 Gbit/s
Mean time between failures (MTBF)	2500000 h
Storage drive buffer size	512 MB
Features
Type	HDD
Component for	PC
HDD size	3.5"
HDD capacity	24 TB
HDD average transfer rate	285 MB/s
HDD speed	7200 RPM
Interface	Serial ATA
HDD sustained transfer rate	272 MiB/s
HDD interface transfer rate	6 Gbit/s
Mean time between failures (MTBF)	2500000 h
Storage drive buffer size	512 MB
Power
Power consumption (write)	7.1 W
Power consumption (read)	8.9 W
Power consumption (idle)	6.3 W
Operating voltage	5 / 12 V
Operational conditions
Operating temperature (T-T)	10 - 60 °C
Operating shock	40 G
Non-operating vibration	2.27 G
Non-operating shock	200 G
Weight & dimensions
Width	101.8 mm
Height	26.1 mm
Depth	147 mm
Weight	685 g
Other features
Interface	Serial ATA

2TB, 256MB, 3.5", SATA 6 Gb/s, CMR, Health Management Included

Description

SkyHawk™ leverages Seagate's extensive experience in designing drives purpose-built for surveillance applications.

ImagePerfect™ firmware is designed to ensure seamless video footage capture in 24×7 surveillance workloads1 that record video from 64 HD cameras.

SkyHawk Health Management actively helps protect your surveillance storage by focusing on prevention, intervention, and recovery options.2 Included is RAID RapidRebuild™, which provides 3× faster volume rebuilds over traditional RAID rebuilds.

Unparalleled data protection with included 3-year Rescue Data Recovery Services plan, helping protect important video data with Seagate's in-house data recovery services.

RV sensors built in allow drives to maintain performance in multi-bay systems, giving customers the flexibility to scale their systems when more storage is needed.

ATA streaming support enables recordings from up to 64 HD cameras for smooth, uninterrupted footage.

1 M hours MTBF, 3-year limited warranty represents an improved total cost of ownership (TCO) with reduced maintenance costs.

Lower power consumption means a reduction in heat emissions, which improves reliability in surveillance solutions. Tarnish-resistant components help protect drive from environmental elements, increasing field reliability

Specifications

Hard drive
Component for	PC
HDD size	3.5"
HDD capacity	2 TB
Workload rate limit	180 TB/year
Interface	Serial ATA III
Start/stop cycles	600000
HDD sustained transfer rate	180 MiB/s
HDD interface transfer rate	6 Gbit/s
Mean time between failures (MTBF)	1000000 h
Storage drive buffer size	256 MB
Features
Type	HDD
Component for	PC
HDD size	3.5"
HDD capacity	2 TB
Workload rate limit	180 TB/year
Interface	Serial ATA III
Start/stop cycles	600000
HDD sustained transfer rate	180 MiB/s
HDD interface transfer rate	6 Gbit/s
Mean time between failures (MTBF)	1000000 h
Storage drive buffer size	256 MB
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^14 bits read
Rotational Vibration (RV) sensors	Yes
24/7 operation	Yes
RV sensor(s)	Yes
Maximum number of cameras supported	64
Power
Power consumption (typical)	3.7 W
Power consumption (off)	0.25 W
Power consumption (idle)	2.5 W
Start-up current	1.8 A
Operational conditions
Operating temperature (T-T)	0 - 60 °C
Weight & dimensions
Width	101.6 mm
Height	20.2 mm
Depth	147 mm
Weight	415 g
Other features
Interface	Serial ATA III
Maximum number of cameras supported	64

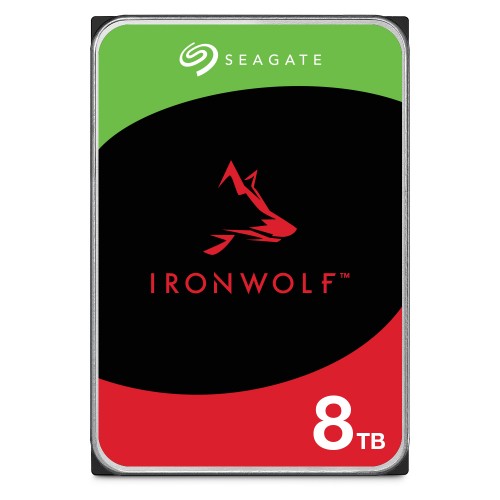

IronWolf 8 TB - 8TB, 3.5", SATA 6Gb/s

Key Features

• Optimised for NAS with AgileArray™ enables Dual-Plane Balancing and Time-Limited Error Recovery to deliver best-in-class RAID performance in multi-bay systems
• Always On, Always Accessible IronWolf drives are designed for 24x7 usage, allowing users to access their data any time, anywhere
• All-CMR Portfolio All IronWolf drives utilize Conventional Magnetic Recording (CMR) technology for consistent, best-in-class NAS performance
• Built Tough IronWolf drives are rated for 180 TB/year workload, allowing consumer and commercial NAS users to seamlessly store and work with large amounts of networked data

Description

IronWolf is designed for everything NAS. Get used to tough, ready and scalable 24×7 performance that can handle multi-bay NAS environments across a wide range of capacities.

Specifications

Hard drive
Component for	NAS
HDD size	3.5"
HDD capacity	8 TB
HDD speed	5400 RPM
Interface	Serial ATA III
Start/stop cycles	600000
HDD interface transfer rate	6 Gbit/s
Mean time between failures (MTBF)	1000000 h
Storage drive buffer size	256 MB
Features
Type	HDD
Component for	NAS
HDD size	3.5"
HDD capacity	8 TB
HDD speed	5400 RPM
Interface	Serial ATA III
Start/stop cycles	600000
HDD interface transfer rate	6 Gbit/s
Mean time between failures (MTBF)	1000000 h
Storage drive buffer size	256 MB
Error Recovery Control (ERC)	Yes
Rotational Vibration (RV) sensors	Yes
Noise level (idle)	25 dB
Power
Power consumption (standby)	0.25 W
Power consumption (idle)	4 W
Operating voltage	5 / 12 V
Operational conditions
Operating temperature (T-T)	0 - 65 °C
Storage temperature (T-T)	-40 - 70 °C
Operating shock	80 G
Non-operating shock	300 G
Technical details
Quantity per pack	1 pc(s)
Warranty period	3 year(s)
Weight & dimensions
Width	101.8 mm
Height	26.1 mm
Depth	147 mm
Weight	630 g
Packaging data
Quantity per pack	1 pc(s)
Other features
Interface	Serial ATA III
Warranty period	3 year(s)

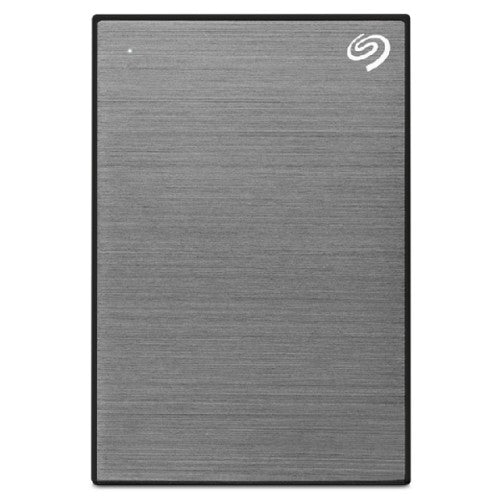

2TB, USB 3.0, Space Grey

Description

Big Things Come in Small Packages

We can all use some extra space. To store our digital content, that is. That’s why we designed the One Touch family — premium, high-capacity HDDs, SSDs, and hubs to help you manage your digital world with ease and confidence. Durable and dependable, keep your content with you so it’s ready to access — whenever you need it — with our ultra-small, portable HDDs and SSDs. Or backup files AND charge multiple devices simultaneously with the password-protected hub in abundant capacities.

Measurably Small. Amazingly Fast

Accelerate your performance and score some downtime with One Touch SSD. With speeds up to 1,030 MB/s4 to transfer large files without delay, an Android app to backup photos and videos — freeing up device space — plus up to 2 TB capacity and simple plug-n-play USB-C Windows and Mac compatibility to keep files handy. Travel-sized and styled right, work seamlessly from the drive — wherever you are.

High Capacity. Stellar Style

Refined and understated. Cosy and textured. One Touch comes in an array of styles and capacities made to compliment your signature look. And whether you’re storing yearly tax documents or ever-growing collections of high-res photos, capacity won’t be an issue.

Make Your To-Do List Easier

Life’s busy, and backing up digital memories is always on the to-do list. Check it off — with One Touch Hub. Password-protected storage with a front-facing USB-C and USB 3.0 port to backup AND charge multiple devices, Windows®/Mac -compatibility, and capacities that store countless photos.

Advance Data Encryption with One Touch Hub

Need a hard drive that goes above and beyond the call of duty? Opt for One Touch Hub with data security. Thanks to its password protection and AES-256 hardware encryption — the same standard used by the U.S. government and global intelligence agencies — you can rest easy knowing your digital life is secure.

Convenient Backup

With One Touch SSD you can sync folders for seamless file management, and get the effortless file protection of Sync Plus software.
With One Touch HDD, schedule automatic hourly, daily, weekly, or monthly backups to keep all your files consolidated into one place.
Whatever your backup style, One Touch offers an easy-to-use solution for you.

Make Amazing Photos from Anywhere

Easily edit, organise, store, and share photos with a four-month complimentary membership to Adobe Creative Cloud Photography plan. Edit with the powerful and easy-to-use interface of Adobe Photoshop Lightroom and combine images into rich, multilayered artwork with Adobe Photoshop. (Must redeem within 1 yr of drive registration.

Not available in all countries.)

Manage Your Memories with Mylio Create

Enjoy a one-year complimentary subscription to Mylio Create — an intuitive and powerful app that helps organise photos into a life calendar and offers easy protection, editing, sharing, and syncing across multiple devices. (Not available in all countries.)

We’ve Got Your Back

When the unexpected happens — like water damage or natural disaster —Rescue Services help you defend against data loss and retrieval costs, so you can rest easier.

Specifications

Performance
USB version	3.2 Gen 1 (3.1 Gen 1)
Wi-Fi	No
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Hard drive
HDD capacity	4 TB
File format system	exFAT
Ports & interfaces
USB connector	Micro-USB B
Thunderbolt technology	No
USB version	3.2 Gen 1 (3.1 Gen 1)
Ethernet LAN	No
Wi-Fi	No
Maximum data transfer rate	5000 Mbit/s
Features
Product colour	Grey
Password protection	Yes
Housing material	Aluminium
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Security
Password protection	Yes
Design
Product colour	Grey
Housing material	Aluminium
Power
Bus powered	USB
Weight & dimensions
Width	80 mm
Depth	20.9 mm
Height	115.3 mm
Weight	268 g
Package width	106 mm
Package depth	45 mm
Package height	146 mm
Package weight	356 g
Packaging data
Cables included	USB
Package width	106 mm
Package depth	45 mm
Package height	146 mm
Package weight	356 g
Packaging content
Cables included	USB
Technical details
Pallet net width	101.6 cm
Pallet net weight	409.6 kg
Pallet net height	121.9 cm
Pallet net length	116.5 cm
Logistics data
Master (outer) case width	155 mm
Master (outer) case length	109 mm
Master (outer) case height	183 mm
Master (outer) case net weight	1.55 kg
Products per master (outer) case	4 pc(s)
Pallet net width	101.6 cm
Pallet net weight	409.6 kg
Pallet net height	121.9 cm
Pallet net length	116.5 cm
Other features
Ethernet LAN	No
Maximum data transfer rate	5000 Mbit/s
