Collection: RAID Controllers

MR216i-o Gen11 x16 Lanes without Cache OCP SPDM Storage Controller

Key Features

• Standard PCI HH/HL and OCP NIC 3.0 form factors
• DMTF Security Protection Data Model (SPDM) supports certificate-based authentication with HPE iLO6
• Hardware Root of Trust (HWRoT) protects against malicious firmware
• MRSA, StorCLI, UEFI, and Redfish Management

Reasons To Buy

Enhanced Security

HPE Compute MR Controllers are built with the silicon root of trust from HPE for firmware authentication and support for self-encrypting drives to help protect data at rest and prevent malware.
HPE Compute MR Controllers now offer DMTF SPDM that supports certificate-based authentication with HPE iLO 6.

Software Supported

HPE Compute MR Controllers support full tool suite including command line interface, web-based management, and out-of-band management support.
Supported operating systems include, but are not limited to Windows, Linux, and VMware.

Powerful Performance

HPE Compute MR Gen11 Controllers offer up to 13.7 GBs of bandwidth, and eight PCIe Gen4.0 host lanes.
HPE Compute MR Controllers offer 3M Random Read IOPS and 240K RAID5 Random Write IOPS.
MR932i-p now offers sixteen PCIe Gen5 host lanes with 32G NVMe and 24G SAS speeds.

Description

Do you need a versatile, simplified, and flexible choice for your data centers? HPE Compute MR Controllers are expansive and agile PCIe Gen4.0 (PCIe Gen5 for MR932i-p) storage controllers based on Broadcom MegaRAID technology that deliver quality, performance, and security for mission-critical applications. The HPE MR416i-o / HPE MR416i-p controllers are ideal for most data center environments where RAID is applicable offering reduced rebuild times, high bandwidth, and 240K RAID5 Random Write IOPS. The HPE MR416i-o / HPE MR416i-p controllers are ideal for many virtualized environments where HBA / pass-through mode is applicable offering high bandwidth and three million random write IOPS. HPE Compute MR Controllers offer solutions for multiple workflows across multiple applications to deliver customer satisfaction.

What is new supporting point:
Standard PCI HH/HL and OCP NIC 3.0 form factors.
DMTF Security Protection Data Model (SPDM) supports certificate-based authentication with HPE iLO 6.
Hardware Root of Trust (HWRoT) protects against malicious firmware.
MegaRAID Storage Administrator (MRSA), Storage Command Line Interface (StorCLI), Unified Extensible Firmware Interface (UEFI), and Redfish management.
MR932i-p with PCIe Gen5 speeds (32 G NVMe and 24 G SAS) and does not support SATA SSDs nor SATA/SAS HDDs

Specifications

Ports & interfaces
Supported storage drive interfaces	SAS, Serial ATA III
Host interface	PCI
PCI Express slots version	4.0
Performance
RAID levels	0, 1, 10
Internal memory	8192 MB
Certification	Refer to HPE Compute MR Controllers QuickSpecs
Other features
Chassis type	OCP NIC 3.0 form-factor
I/O ports	2x8 LP SlimSAS

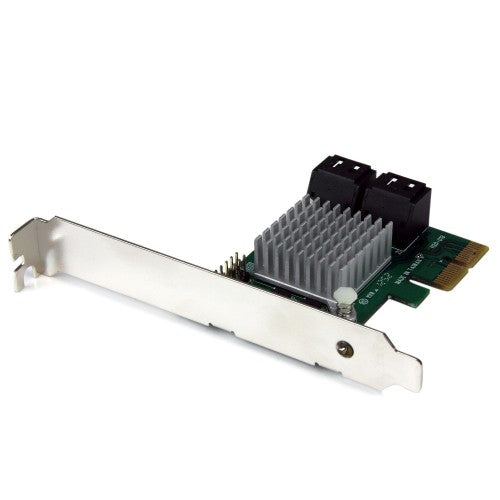

StarTech 4 Port PCI Express 2.0 SATA III 6Gbps RAID Controller Card with HyperDuo SSD Tiering - PCIe SATA 3 Controller Adapter , TAA (PEXSAT34RH)

Key Features

• HIGH-PERFORMANCE: Add four SATA III 6Gbps ports to your desktop computer or server using a PCIe x1 slot to connect SATA drives (HDD/SSD); 4-Port SATA PCIe card features 4x SATA connections for connecting drives using SATA cables (sold separately)
• MARVELL RAID CONTROLLER: JBOD or Hardware RAID 0, 1, and 1+0 modes can be configured through BIOS - HyperDuo feature allocates frequently accessed files to faster SSD drive - Supports Port Multiplier, Native Command Queuing (NCQ) and ATA/ATAPI commands
• COMPATIBILITY: Supports PCIe 2.0, SATA III & AHCI specs and backwards compatible w/ earlier versions - Supports Windows, Mac, and Linux and is also compatible with Optical/Blu-Ray drives - NOTE: HyperDuo configuration supported in Windows only
• EASY INSTALL: Expansion card includes full and low-profile brackets for PCIe slot compatibility - Marvell Storage Utility software included for card configuration and drive management
• THE IT PRO'S CHOICE: IT professionals choice for over 30 years; This SATA PCIe adapter controller card converter is backed for 2 years, including free 24/5 North America based multi-lingual assistance

Description

Add 4 Internal SATA III (6Gbps) ports to a computer through a PCI Express x2 slot

The PEXSAT34RH 4-Port PCI Express 2.0 SATA Controller Card with HyperDuo adds 4 AHCI SATA III ports to a computer through a PCIe slot (x2), delivering multiple internal 6Gbps connections for high-performance hard drives and Solid State Drives (SSDs).

Featuring HyperDuo technology, the SATA card offers SSD auto-tiering which lets you balance the performance advantages of SSD storage with the cost-effectiveness and large capacity of standard hard drives. By combining SSD and HDD drives into a single volume (up to 3 SSD + 1 HDD), HyperDuo discreetly works in the background to identify and move frequently accessed files to the faster SSD drive(s) for improved data throughput - up to 80% of SSD performance! (Note: The HyperDuo automatic storage tiering feature is compatible with computers that use a BIOS.)

The PCIe SATA controller card supports Port Multiplier (PM), enabling multiple SATA drives to be connected to one port over a single cable, for a total of 7 drives (Up to 4 drives through PM on one port, and a single drive to the remaining 3 ports). Plus, the SATA controller card offers an effective hardware RAID solution, with native RAID (0, 1, 1+0) support.

Drives Used:

SSD: OCZ Vertex 3 Series 2.5” 120 GB (VTX3-25SAT3-120G)

HDD: Western Digital Caviar Green 3.5” 2 TB (WD20EARS)

Software Used:

IO Meter, 256KB Sequential Read, queue depth = 10

This PCIe SATA 6gbps card is backed by a 2-year StarTech.com warranty and free lifetime technical support.

Specifications

Ports & interfaces
Supported storage drive interfaces	Serial ATA, Serial ATA III
Host interface	PCI Express
PCI Card form factor	Full-height (low-profile)
PCI Express slots version	2.0
Internal SATA ports quantity	4
Performance
RAID levels	0, 1, 10, JBOD
SSD support	Yes
Chipset	Marvell - 88SE9230
Logical block addressing (LBA) support	48 bit
Data transfer rate	6 Gbit/s
Harmonized System (HS) code	84733080
Technical details
Harmonized System (HS) code	84733080
Sustainability compliance	Yes
Compliance certificates	CE, RoHS
System requirements
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Mac compatibility	Yes
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	5 - 50 °C
Storage temperature (T-T)	-25 - 70 °C
Operating relative humidity (H-H)	20 - 80%
Weight & dimensions
Package width	144 mm
Package depth	174 mm
Package height	30 mm
Width	120 mm
Depth	70 mm
Height	20 mm
Weight	49 g
Package weight	141 g
Packaging content
Manual	Yes
Drivers included	Yes
Logistics data
Master (outer) case width	382 mm
Master (outer) case length	498 mm
Master (outer) case height	322 mm
Products per master (outer) case	60 pc(s)
Harmonized System (HS) code	84733080
Other features
Manual	Yes
Drivers included	Yes
PCI Card form factor	Full-height (low-profile)
