Collection: Rack Cabinets

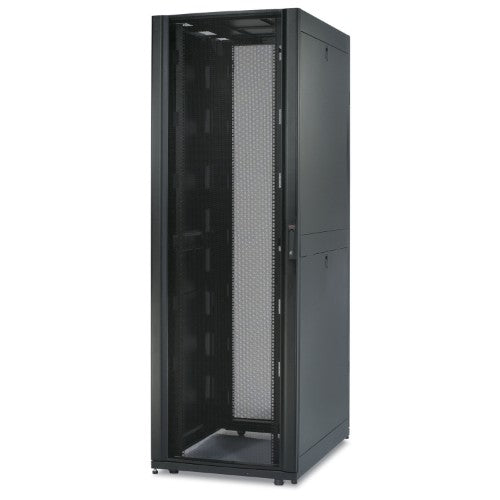

NetShelter SX, Server Rack Enclosure, 42U, Black, 1991.4H x 750W x 1070D mm

Description

An industry standard server rack ready for medium to high density environments with height designed to easily fit through standard doorways. Wide rack design allows for additional space beside the vertical mounting rails for passing cabling from front-to-back in the enclosure. It provides plenty of clearance at the back for Rack PDUs and cable managers not to interfere with IT device hot swappable components. The width is ideal for converged and hyperconverged IT which include a mix of server, storage, and network switches all in one rack.

Specifications

Features
Size (imperial)	48.3 cm (19")
Key lock	Yes
Rack capacity	42U
Castor wheels	Yes
Maximum weight capacity (rolling)	1020.58 kg
Cable management	Yes
Adjustable feet	Yes
Back door key lock	Yes
Front door key lock	Yes
Side panel key lock	Yes
Type	Freestanding rack
Side panels included	Yes
Maximum weight capacity	1701 kg
Product colour	Black
Weight & dimensions
Package width	851 mm
Package depth	1156 mm
Package height	2117 mm
Package weight	168.2 kg
Mounting depth (max)	91.5 cm
Mounting depth (min)	26.2 cm
Width	750 mm
Depth	1070 mm
Height	1991 mm
Weight	156 kg
Size (imperial)	48.3 cm (19")
Packaging data
Package width	851 mm
Package depth	1156 mm
Package height	2117 mm
Package weight	168.2 kg
Technical details
Harmonized System (HS) code	85381000
Total carbon footprint (kg of CO2e)	510.31
Rack capacity	42U
Logistics data
Harmonized System (HS) code	85381000
Other features
Package dimensions (WxDxH)	895 x 1219 x 2216 mm
Dimensions (WxDxH)	750 x 1070 x 1991 mm
Static load	1363.64 kg
Dynamic load	1022.73 kg

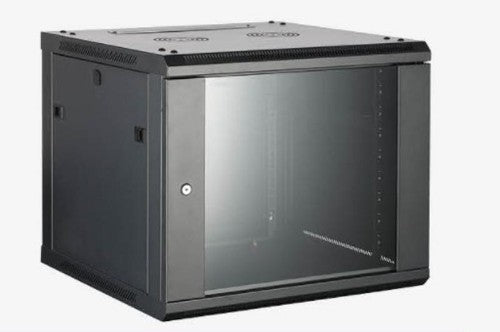

9U, 40 kg, Wall Mounter, Black

Description

The enclosures conform to 19-inch mounting standards, are compatible with ETSI standard equipment installations, and are designed for rack-mounted equipment in cabling, telecom, IT, industrial, and home.

Specifications

Features
Rack capacity	9U
Front door construction	Glass
Type	Wall mounted rack
Maximum weight capacity	40 kg
Material	SPCC
Product colour	Black
Weight & dimensions
Width	600 mm
Depth	450 mm
Height	500 mm
Weight	18.7 kg
Technical details
Rack capacity	9U

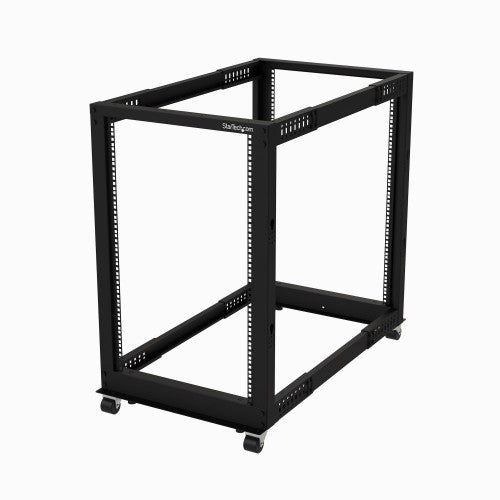

StarTech 18U 4-Post Server Rack, 19in Open Frame Rack with 40in (101cm) Mounting Depth and 1200lb (544kg) Weight Capacity, Mobile or Floor Mount IT Rack

Key Features

• ADJUSTABLE DEPTH: 4-Post 18U open frame server rack with 4 vertical rails and adjustable mounting depth 22" to 40" (56,0cm to 101,7cm); Compatible with various servers / switches / data / AV and other IT equipment; EIA/ECA-310-E Compliant
• EASY ASSEMBLY: Mobile network rack with easy-to-follow assembly instructions and online video; Compact flat-pack shipping to avoid damage and facilitate installation; Only 35in (90cm) high, ideal for utility/server closets or narrow home/office spaces
• COLD ROLLED STEEL: Durable 4 Post 19" open frame rack designed for ventilation with 18U mounting height and 1200lb (544kg) weight capacity (stationary); 3 install options included: casters, levelling feet, or base-plate to secure rack to the floor
• HARDWARE INCLUDED: Rolling computer/data rack includes cage nuts and screws to mount equipment, easy to read Units (U) and depth adjustment markings, cable management hooks for organization, and required assembly tools
• THE IT PRO'S CHOICE: Designed and built for IT Professionals, this 18U rack is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance

Description

Computer Equipment Rack | 22" to 40" Adjustable Mounting Depth | Casters | Leveling Feet | Cable Management Hooks

The 18U open frame rack lets you store your servers, network and telecommunications equipment in a sturdy, adjustable depth open-frame rack.

Easy to Assemble

Designed with ease of use in mind, this 18U 4 post rack offers easy-to-read markings for both rack units (U) and depth, with a wide range of mounting depth adjustments (22 - 40 in.) that make it easy to adapt the adjustable server rack to fit your equipment.

Durable Design

This durable free standing server rack supports a static loading capacity of up to 1200 lb. (544 kg) and portable rolling weight capacity of 660 lb. (300 kg). The rack also features offers compliance with the EIA/ECA-310 standard for a universal design that's compatible with most network equipment rack equipment.

For a complete server storage solution that saves you time and hassle, the mobile server rack includes optional accessories such as casters, leveling feet and cable management hooks. The base is also pre-drilled for securely fastening the rack to the floor if needed, providing you with additional stability while free standing.

The Choice of IT Pros Since 1985

StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Specifications

Weight & dimensions
Package width	1408 mm
Package depth	260 mm
Package height	139 mm
Package weight	29.8 kg
Mounting depth (max)	100 cm
Mounting depth (min)	56.6 cm
Width	600 mm
Depth	1100 mm
Height	904 mm
Weight	26.5 kg
Packaging content
Manual	Yes
Nuts included	Yes
Number of nuts	42
Screws included	Yes
Number of screws	104
Number of washers included	96
Number of wrenches included	2
Number of screwdrivers	1
Number of grounding wires included	4
Number of leveling feets included	4 pc(s)
Number of cable management hooks included	8 pc(s)
Features
Frame type	Open
Product design	4-post
Rack capacity	18U
Castor wheels	Yes
Adjustable mounting rails	Yes
Cable management	Yes
Mounting hole shape	Square
Type	Freestanding rack
Maximum weight capacity	544 kg
Material	Steel
Product colour	Black
Packaging data
Manual	Yes
Nuts included	Yes
Number of nuts	42
Package width	1408 mm
Package depth	260 mm
Package height	139 mm
Package weight	29.8 kg
Screws included	Yes
Number of screws	104
Number of washers included	96
Number of wrenches included	2
Number of screwdrivers	1
Number of grounding wires included	4
Number of leveling feets included	4 pc(s)
Number of cable management hooks included	8 pc(s)
Technical details
Harmonized System (HS) code	85381000
Compliance certificates	RoHS
Rack capacity	18U
Logistics data
Master (outer) case width	810 mm
Master (outer) case length	1445 mm
Master (outer) case height	520 mm
Products per master (outer) case	9 pc(s)
Harmonized System (HS) code	85381000
Other features
Compliance industry standards	EIA/ECA-310-E

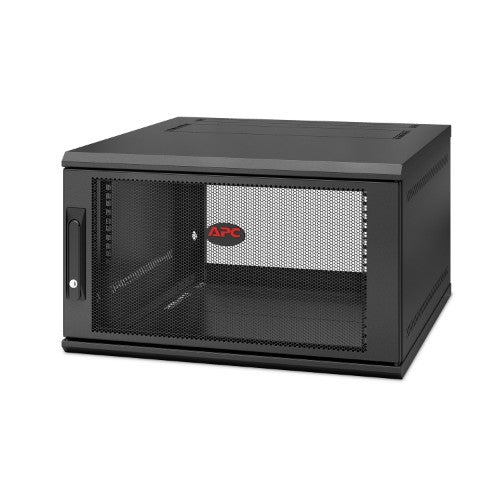

APC NetShelter WX AR106SH6, 6U, 19inch patch cabinet, Wall mounting, Pre-assembled, 600mm deep

Key Features

• Wall mounting
• 6U/HE, 600 mm deep, Max. load 90.7 KG
• Reversible door with a single hinge
• Locking crank handle
• Can also be installed upright
• Pre-assembled

Description

Product description
This compact lockable rack is suitable for all kinds of 19 inch IT/network equipment. With 6U/HE internal height and two adjustable rack mount styles, you can easily mount rack-mountable devices (max 528mm deep). Due to its limited dimensions and weight (14.38KG), it is easy to mount on the wall. Because the door can be mounted both right and left opening, it fits in almost any environment.

Easy installation
This APC patch cabinet is delivered pre-assembled, making this rack easy and quick to install.

Placement
This rack can be mounted on the wall as a patch, edge or network cabinet using 4 recesses at the rear (suitable for up to max m6 bolts). However, because its door is free from the ground, this server rack can also be placed upright. This makes it suitable for many environments. Installation materials for wall mounting are not included.

Cable and accessory integration
The bottom and roof of this patch cabinet are pre-treated, see photo top, so that they can be easily adjusted and thus made suitable as a cable outlet or for installing a patch panel (AR8452).

Easy assembly
This wall-mounted server rack is designed for quick and easy assembly and all necessary materials and tools for assembly except a spirit level are included, see manual. A template for wall mounting is also included.

Multiple sizes
The assembled black NetShelter WX wall enclosures are available in three heights and two depths, 6U (AR106xxx), 9U (AR109xxx) and 12U (AR112xxx). All six can handle a maximum static load of 90.7KG.

Rackmount styles
The two rackmount styles can be mounted in six positions in the rack and at each position it is possible to fine-tune the exact position up to 23 mm, see documentation.

Safety
Mounted network equipment in the rack is safe, because the door at the front is equipped with a lock. Two keys are included.

Warranty
The standard factory warranty is five years.


Ideal for retail, healthcare, and educational facilities, this wall mount rack offers an efficient solution for deploying server and networking equipment for edge computing applications. This rack enclosure is wall mountable, ideal for areas with limited floor space, and is designed specifically for servers and network switches and patch panels. The cabinet's door is reversible and is compatible with APC's Netbotx security upgrade to provide remote access, video surveillance, and environmental monitoring (sold separately). Optional 120V fan tray can be top or bottom mounted (sold separately) Both the top and bottom feature knockouts of 1/2U mounting space for accessories. And several APC Smart-UPS models low-profile provide easy UPS integration and mounting 6U Wall mount cabinet, mounting depth range of 2.87 to 20.8 inches, 200lb weight capacity, 19 rack width, ships fully assembled, ventilated with accessory integration options, 5 year APC warranty

Specifications

Features
Size (imperial)	48.3 cm (19")
Rack capacity	6U
Front door construction	Perforated
Type	Wall mounted rack
Maximum weight capacity	90 kg
Material	Steel
Product colour	Black
Preassembled	Yes
Weight & dimensions
Mounting depth (max)	52.8 cm
Width	600 mm
Depth	600 mm
Height	355 mm
Size (imperial)	48.3 cm (19")
Technical details
Harmonized System (HS) code	85381000
Total carbon footprint (kg of CO2e)	53.13
Rack capacity	6U
Logistics data
Harmonized System (HS) code	85381000

Carbon Wall Mount Enclosure, 19", 6U, 60kg, IP20

Description

The CR6U61001 is designed for use in network closets, classrooms and other locations. This wall mount rack houses network switches and patch panels up to 22" deep. It includes convenient top panel cable access openings, perforated front door and side panels for efficient airflow, adjustable rack angles, and square and threaded mounting holes. The CR6U61001 ships fully assembled for quick deployment, and can be customized with compatible accessories. It is covered by a 5-year limited warranty.

Perforated Front Door and Side Panels
Provides ventilation for small servers and networking equipment.

Reversible Door
Front door has spring loaded hinges and can be easily moved to the opposite side.

Quick Release Side Panels
Lockable side panels can be removed easily for quick access to equipment and cabling.

Cable Access Openings
Slots in the bottom and top provide convenient cable routing to and from the enclosure.

Rack Mounting Compatibility
The CR6U61001 is compatible with all EIA-310 compliant 19" equipment.

Adjustable Rack Angles
Vertical rack angles can be adjusted in 3/4" increments for mounting depth requirements up to 22". Depth index numbering ensures quick and consistent rail placement. U rack units are numbered front and back for easy equipment installation.

Square and Threaded Mounting Holes
Vertical rack angles have both square and threaded mounting holes, and can be turned easily to change mounting type.

Designed for Stability
A high-precision frame design and heavy gauge mounting rails provide a load rating of 132 lbs.

Integrated Electrical Grounding
Grounding connections are located on the frame for facility ground.

Specifications

Features
Size (imperial)	48.3 cm (19")
Key lock	Yes
Frame type	Closed
Rack capacity	6U
International Protection (IP) code	IP20
Type	Wall mounted rack
Maximum weight capacity	60 kg
Product colour	Black
Certification	CE, DIN41491, DIN41494, EIA/ECA-310-E, IEC 60297-3-100, RoHS
Weight & dimensions
Package width	665 mm
Package depth	665 mm
Package height	435 mm
Package weight	18.6 kg
Mounting depth (max)	56.7 cm
Width	600 mm
Depth	600 mm
Height	372 mm
Weight	16.9 kg
Size (imperial)	48.3 cm (19")
Packaging content
Manual	Yes
Mounting kit	Yes
Packaging data
Manual	Yes
Mounting kit	Yes
Package width	665 mm
Package depth	665 mm
Package height	435 mm
Package weight	18.6 kg
Technical details
Rack capacity	6U
International Protection (IP) code	IP20

12U, 40kg, Wall Mounter, Black

Description

The enclosures conform to 19-inch mounting standards, are compatible with ETSI standard equipment installations, and are designed for rack-mounted equipment in cabling, telecom, IT, industrial, and home.

Specifications

Features
Rack capacity	12U
Front door construction	Glass
Type	Wall mounted rack
Maximum weight capacity	40 kg
Material	SPCC
Product colour	Black
Weight & dimensions
Width	600 mm
Depth	450 mm
Height	635 mm
Weight	21 kg
Technical details
Rack capacity	12U

4U, 40 kg, Wall Mounted

Description

The enclosures conform to 19-inch mounting standards, are compatible with ETSI standard equipment installations, and are designed for rack-mounted equipment in cabling, telecom, IT, industrial, and home.

Specifications

Features
Rack capacity	4U
Front door construction	Glass
Type	Wall mounted rack
Maximum weight capacity	40 kg
Material	SPCC
Product colour	Black
Weight & dimensions
Width	600 mm
Depth	450 mm
Height	281 mm
Weight	14.5 kg
Technical details
Rack capacity	4U

Carbon Open Frame Rack, 42U, 19", 800kg capacity, 4-post

Description

The CR45U40001 4-post rack can be customized with compatible accessories to meet specific requirements. The rack ships knock-down; assembly is required. It is covered by a 5-year limited warranty.

Rack Mounting Compatibility
The CR45U40001 is compatible with all EIA-310 compliant 19" equipment.

Adjustable Rack Angles
Vertical rack angles can be adjusted in 1" increments for mounting depth requirements from 22 to 40 inches. Depth index numbering ensures quick and consistent rail placement. U rack units are numbered front and back for easy equipment installation.

Designed for Full Loading Stability
High-precision frame design and heavy gauge mounting rails provide a static load rating of 1,763 lbs.

Integrated Electrical Grounding
Connections are located on the frame for facility grounding.

Specifications

Features
Size (imperial)	48.3 cm (19")
Frame type	Open
Product design	4-post
Rack capacity	45U
Type	Freestanding rack
Maximum weight capacity	800 kg
Product colour	Black
Certification	DIN41491, DIN41494, EIA/ECA-310-E, IEC-60297-3-100, RoHS
Weight & dimensions
Package width	25.5 mm
Package depth	219 mm
Package height	15 mm
Package weight	39.4 kg
Mounting depth (max)	101.6 cm
Width	600 mm
Depth	1049 mm
Height	2104 mm
Weight	36.1 kg
Size (imperial)	48.3 cm (19")
Packaging content
Manual	Yes
Packaging data
Manual	Yes
Package width	25.5 mm
Package depth	219 mm
Package height	15 mm
Package weight	39.4 kg
Technical details
Rack capacity	45U
