LGA1700, Intel H610, 2 x SO-DIMM DDR5-5600 max. 96GB, PCI-Express Gen. 3.0 X4, Serial-ATA III, 1G LAN + 2.5G LAN, 120W
Description

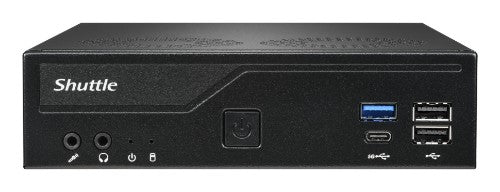

The Shuttle XPC slim Barebone DH610V2 with H610 chipset houses the performance of Intel's 12th/13th/14th generation Core desktop processors (codenamed Alder Lake-S and Raptor Lake-S [Refresh]) for socket LGA1700 in a compact 1.3-litre format. The DH610V2 allows for three Ultra HD displays to be operated at the same time via 1x HDMI and 2x DisplayPort. It also offers Dual Intel LAN (one supports 2.5G speed), eight USB ports and two COM ports. The slim metal chassis comes with a VESA mount included, provides versatile connectivity and reliable operation in environments with ambient temperatures of up to 50 °C. This platform is targeted at professional applications such as Digital Signage, POS, POI, gambling machines, office, healthcare and industry.
Specifications
| Motherboard |
|---|
| Processor socket |
LGA 1700 |
| Number of processors supported |
1 |
| Motherboard chipset |
Intel H610 |
| Processor |
|---|
| Built-in processor |
No |
| Processor socket |
LGA 1700 |
| Number of processors supported |
1 |
| Motherboard chipset |
Intel H610 |
| Memory |
|---|
| Memory voltage |
1.1 V |
| Memory slots type |
SO-DIMM |
| Number of memory slots |
2 |
| Supported memory types |
DDR5-SDRAM |
| Supported memory clock speeds |
5600 MHz |
| Memory channels |
Dual-channel |
| Maximum internal memory |
96 GB |
| ECC |
No |
| Non-ECC |
Yes |
| Internal memory installed |
No |
| Video |
|---|
| On-board graphics card |
Yes |
| Storage |
|---|
| Supported storage drive types |
HDD & SSD |
| Storage drive sizes supported |
2.5,M.2 |
| NVMe |
Yes |
| Storage drives installed |
No |
| Graphics |
|---|
| On-board graphics card |
Yes |
| Audio |
|---|
| Built-in speaker(s) |
No |
| Audio chip |
Realtek ALC888S |
| Network |
|---|
| Ethernet LAN |
Yes |
| Wi-Fi |
No |
| LAN controller |
Intel I226, Intel I219V |
| Ports & interfaces |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| DisplayPort version |
1.4 |
| USB 2.0 ports quantity |
4 |
| Serial ports quantity |
2 |
| Microphone in |
Yes |
| Headphone outputs |
1 |
| HDMI version |
2.0b |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
2 |
| DisplayPorts quantity |
2 |
| DC-in jack |
Yes |
| Design |
|---|
| VESA mounting |
Yes |
| Product type |
Mini PC barebone |
| Housing material |
Metal |
| Panel mounting interface |
75 x 75,100 x 100 mm |
| On/off switch |
Yes |
| LED indicators |
Power, HDD |
| Cooling type |
Active |
| Product colour |
Black |
| Chassis type |
1.35L sized PC |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Performance |
|---|
| Windows operating systems supported |
Windows 10, Windows 11 |
| Linux operating systems supported |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Trusted Platform Module (TPM) |
Yes |
| Processor socket |
LGA 1700 |
| Number of processors supported |
1 |
| Motherboard chipset |
Intel H610 |
| BIOS type |
AMI |
| Audio chip |
Realtek ALC888S |
| Colour |
|---|
| Product colour |
Black |
| Technical details |
|---|
| Panel mounting interface |
75 x 75,100 x 100 mm |
| Trusted Platform Module (TPM) version |
2.0 |
| Trusted Platform Module (TPM) |
Yes |
| Quick start guide |
Yes |
| Cooling type |
Active |
| Chassis type |
1.35L sized PC |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| BIOS type |
AMI |
| Sustainability certificates |
ENERGY STAR, ErP |
| Compliance certificates |
BSMI, CE, Federal Communications Commission (FCC), RCM, VCCI, ETL, CB, RoHS |
| Packaging data |
|---|
| Power cord included |
Yes |
| Drivers included |
Yes |
| AC adapter included |
Yes |
| Package weight |
2.1 kg |
| Indication |
|---|
| LED indicators |
Power, HDD |
| Software |
|---|
| Windows operating systems supported |
Windows 10, Windows 11 |
| Linux operating systems supported |
Yes |
| Management features |
|---|
| On/off switch |
Yes |
| Sustainability |
|---|
| Sustainability certificates |
ENERGY STAR, ErP |
| Power |
|---|
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| AC adapter output voltage |
19 V |
| AC adapter output current |
6.32 A |
| Power supply type |
External AC adapter |
| Power supply |
120 W |
| Number of power supply units |
1 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 50 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Width |
165 mm |
| Depth |
190 mm |
| Height |
43 mm |
| Weight |
1.3 kg |
| Package weight |
2.1 kg |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Power cord included |
Yes |
| Drivers included |
Yes |
| AC adapter included |
Yes |
| Other features |
|---|
| Chassis type |
1.35L sized PC |
