Collection: Lenovo

68.6cm (27") Full HD 1920 x 1080 W-LED IPS, 16:9, 300cd/m², 16.7M, 6ms, 178°/178°, 1500:1

Key Features

• 68.6cm (27") Full HD 1920 x 1080 W-LED IPS
• 6ms, 16:9, 300cd/m², 1500:1
• USB, VGA, HDMI, DisplayPort

Description

ThinkVision T27-40 Monitor's a 27-inch FHD IPS screen with wide color gamut of 99% sRGB and 99% BT.709 which deliver vivid image at any viewing angle. Match your screen to your workflow with 48-120 Hz dynamic refresh rate. It dynamically adjusts to match on-screen content, resulting in smoother motion for fast moving pictures or reduced rates for power saving when viewing still images. It’s built with a 4-sided ultra thin bezel display, fewer distractions when you are viewing, more of what needs to be seen. Integrated Natural Low Blue Light technology protecting your eyes from fatigue even during long hours at work. In addition, TÜV Rheinland Eye Comfort 5 stars certification ensure the toxic blue light is significantly reduced ever than before.
Endless list of devices compatible with the connectivity hub, including VGA, DP 1.2, HDMI 1.4, three USB-A 3.2 plus one USB-C (15W) downstream ports, one USB-B 3.2 upstream port support peripherials control and data transimission. You can adjust the monitor for a more convenient and enjoyable viewing experience with the ergonomic stand’s tilt, lift, swivel, and pivot functions.
This monitor packs a world of features without impacting the environment by following the latest TCO 10.0, EU Energy Level, Energystar 8.0 regulations.

Specifications

Display
Display brightness (typical)	300 cd/m²
Screen shape	Flat
Display number of colours	16.7 million colours
Native aspect ratio	16:9
Maximum refresh rate	120 Hz
sRGB coverage (typical)	99%
Display diagonal	68.6 cm (27")
Response time	6 ms
Display resolution	1920 x 1080 pixels
Display technology	LED
Contrast ratio (typical)	1500:1
Contrast ratio (dynamic)	3000000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.3114 x 0.3114 mm
Viewable size, horizontal	59.8 cm
Viewable size, vertical	33.6 cm
HD type	Full HD
Pixel density	82 ppi
Backlight type	W-LED
Touchscreen	No
Panel type	IPS
Colour depth	8 bit
Response time (extreme)	4 ms
LED backlight	Yes
Video colour modes	BT.709
Anti-glare screen	Yes
Performance
AMD FreeSync	No
NVIDIA G-SYNC	No
Windows operating systems supported	Windows 10, Windows 11
Multimedia
Built-in speaker(s)	No
Built-in camera	No
Built-in microphone	Yes
Design
Market positioning	Office
Product colour	Black
Feet colour	Black
Front bezel colour	Black
Colour name	Eclipse Black
Ports & interfaces
Built-in USB hub	Yes
USB hub version	3.2 Gen 1 (3.1 Gen 1)
USB Type-A downstream ports quantity	3
USB Type-C downstream ports quantity	1
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1
DisplayPorts quantity	1
Headphone out	No
HDMI	Yes
HDMI version	1.4
DisplayPort version	1.2
Number of USB Type-B upstream ports quantity	1
Ergonomics
VESA mounting	Yes
Cable lock slot	Yes
Panel mounting interface	100 x 100 mm
Swivelling	Yes
Swivel angle range	-45 - 45°
Tilt angle range	-5 - 23.5°
Height adjustment	Yes
Pivot angle	-90 - 90°
Pivot	Yes
Cable lock slot type	Kensington
Cable management	Yes
Tilt adjustment	Yes
Adjustable height (max)	15.5 cm
Power
Power supply type	Internal
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	75 W
Power consumption (standby)	0.5 W
Power consumption (typical)	15 W
Power consumption (off)	0.5 W
Energy efficiency scale	A to G
Energy efficiency class (SDR)	D
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	15 kWh
Weight & dimensions
Width (with stand)	611.9 mm
Depth (with stand)	195 mm
Height (with stand)	537.8 mm
Bezel width (side)	2 mm
Bezel width (top)	2 mm
Bezel width (bottom)	1.04 cm
Width (without stand)	611.9 mm
Height (without stand)	355.2 mm
Depth (without stand)	46 mm
Weight (with stand)	6.5 kg
Weight (without stand)	4.4 kg
Package width	693 mm
Package depth	150 mm
Package height	420 mm
Package weight	9.1 kg
Packaging data
Package width	693 mm
Package depth	150 mm
Package height	420 mm
Package weight	9.1 kg
Stand included	Yes
Cables included	DisplayPort, USB Type-A to USB Type-B
Packaging content
Stand included	Yes
Cables included	DisplayPort, USB Type-A to USB Type-B
Sustainability
Sustainability certificates	ENERGY STAR, EPEAT Gold, TCO
Technical details
Sustainability certificates	ENERGY STAR, EPEAT Gold, TCO
Compliance certificates	RoHS
Power supply type	Internal
Weight (with stand)	6.5 kg
Touchscreen	No
Other features
Video colour modes	BT.709
Compliance certificates	RoHS
Power consumption (max)	75 W
Width (without stand)	611.9 mm
Height (without stand)	355.2 mm
HDMI	Yes
Depth (without stand)	46 mm
Energy efficiency scale	A to G
Power supply type	Internal
Touchscreen	No
Front bezel colour	Black

60.5cm (23.8") Full HD 1920 x 1080 W-LED IPS, 16:9, 250cd/m², 16.7M, 6ms, 178°/178°, 1500:1

Key Features

• 60.5cm (23.8") Full HD 1920 x 1080 W-LED IPS
• 6ms, 16:9, 250cd/m², 1500:1
• USB, VGA, HDMI, DisplayPort

Description

ThinkVision T24-40 Monitor's a 23.8" FHD IPS screen with wide colour gamut of 99% sRGB and 99% BT.709 which deliver vivid image at any viewing angle. Match your screen to your workflow with 48-120 Hz dynamic refresh rate. It dynamically adjusts to match on-screen content, resulting in smoother motion for fast-moving pictures or reduced rates for power saving when viewing still images.

It’s built with a four-sided ultra thin bezel display, fewer distractions when you are viewing, more of what needs to be seen. Integrated Natural Low Blue Light technology protecting your eyes from fatigue even during long hours at work. In addition, TÜV Rheinland Eye Comfort 5-star certification ensures that the toxic blue light is more significantly reduced ever than before.

Endless list of devices compatible with the connectivity hub, including VGA, DP 1.2, HDMI 1.4, three USB-A 3.2 plus one USB-C (15W) downstream ports, one USB-B 3.2 upstream port support peripherals control and data transmission. You can adjust the monitor for a more convenient and enjoyable viewing experience with the ergonomic stand’s tilt, lift, swivel and pivot functions. This monitor packs a world of features without affecting the environment by following the latest TCO 10.0, EU Energy Level, Energystar 8.0 regulations.

Specifications

Display
Display brightness (typical)	250 cd/m²
Screen shape	Flat
Display number of colours	16.7 million colours
Native aspect ratio	16:9
Maximum refresh rate	120 Hz
sRGB coverage (typical)	99%
Display diagonal	60.5 cm (23.8")
Response time	6 ms
Display resolution	1920 x 1080 pixels
Display technology	LCD
Contrast ratio (typical)	1500:1
Contrast ratio (dynamic)	3000000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.2745 x 0.2745 mm
Viewable size, horizontal	52.7 cm
Viewable size, vertical	29.6 cm
HD type	Full HD
Pixel density	95 ppi
Colour gamut	99%
Backlight type	W-LED
Response time (fast)	4 ms
Touchscreen	No
Panel type	IPS
Colour depth	8 bit
LED backlight	Yes
Colour gamut standard	Rec. 709
Anti-glare screen	Yes
Performance
AMD FreeSync	No
NVIDIA G-SYNC	No
Windows operating systems supported	Windows 10, Windows 11
Low Blue Light technology	Yes
Flicker-free technology	Yes
Multimedia
Built-in speaker(s)	No
Built-in camera	No
Power
Power cable length	1.8 m
Power supply type	Internal
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	66 W
Power consumption (standby)	0.5 W
Power consumption (typical)	12 W
Power consumption (off)	0.3 W
Energy efficiency scale	A to G
Energy efficiency class (SDR)	C
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	12 kWh
Design
Product colour	Black
Feet colour	Black
Certification	ENERGY STAR Certified, TCO 10.0, TCO Edge 2.1, EPEAT Gold, RoHS, EU Energy Efficiency Level (Level-C) Eyesafe Display 2.0, TÜV Low Blue Light (Hardware solution), TÜV Rheinland Flicker Free, TÜV Low Blue Light, TÜV Rheinland Eye Comfort (5 Stars)
Colour name	Raven Black
Ports & interfaces
Built-in USB hub	Yes
USB hub version	3.2 Gen 1 (3.1 Gen 1)
USB upstream port type	USB Type-B
Number of upstream ports	1
USB Type-A downstream ports quantity	3
USB Type-C downstream ports quantity	1
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1
DisplayPorts quantity	1
Headphone out	No
HDMI	Yes
HDMI version	1.4
DisplayPort version	1.2
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	15 W
Number of USB Type-B upstream ports quantity	1
Ergonomics
VESA mounting	Yes
Cable lock slot	Yes
Panel mounting interface	100 x 100 mm
Swivelling	Yes
Swivel angle range	-45 - 45°
Tilt angle range	-5 - 23°
Height adjustment	Yes
Pivot angle	-90 - 90°
Pivot	Yes
Cable lock slot type	Kensington
Tilt adjustment	Yes
Adjustable height (max)	15.5 cm
Weight & dimensions
Width (with stand)	539.8 mm
Depth (with stand)	190 mm
Bezel width (side)	2 mm
Bezel width (top)	2 mm
Bezel width (bottom)	1.05 cm
Width (without stand)	539.8 mm
Height (without stand)	314.8 mm
Depth (without stand)	45.3 mm
Weight (with stand)	5.1 kg
Weight (without stand)	3 kg
Package width	734 mm
Package depth	112 mm
Package height	422 mm
Package weight	7.3 kg
Packaging data
Package width	734 mm
Package depth	112 mm
Package height	422 mm
Package weight	7.3 kg
Stand included	Yes
Power cable length	1.8 m
Quick start guide	Yes
Cables included	AC, DisplayPort, USB Type-A to USB Type-B
DisplayPort cable length	1.8 m
Packaging content
Stand included	Yes
Power cable length	1.8 m
Quick start guide	Yes
Cables included	AC, DisplayPort, USB Type-A to USB Type-B
DisplayPort cable length	1.8 m
Other features
Certification	ENERGY STAR Certified, TCO 10.0, TCO Edge 2.1, EPEAT Gold, RoHS, EU Energy Efficiency Level (Level-C) Eyesafe Display 2.0, TÜV Low Blue Light (Hardware solution), TÜV Rheinland Flicker Free, TÜV Low Blue Light, TÜV Rheinland Eye Comfort (5 Stars)
Power consumption (max)	66 W
Width (without stand)	539.8 mm
Quick start guide	Yes
Height (without stand)	314.8 mm
HDMI	Yes
Depth (without stand)	45.3 mm
USB Power Delivery up to	15 W
Energy efficiency scale	A to G
Power supply type	Internal
Power cable length	1.8 m
Touchscreen	No
USB Power Delivery (USB PD)	Yes
Certificates
Certification	ENERGY STAR Certified, TCO 10.0, TCO Edge 2.1, EPEAT Gold, RoHS, EU Energy Efficiency Level (Level-C) Eyesafe Display 2.0, TÜV Low Blue Light (Hardware solution), TÜV Rheinland Flicker Free, TÜV Low Blue Light, TÜV Rheinland Eye Comfort (5 Stars)
Technical details
Power supply type	Internal
Weight (with stand)	5.1 kg
Touchscreen	No

ThinkSystem 2.5" VA 3.84TB Read Intensive SATA 6Gb HS SSD v2

Description

The ThinkSystem Vendor Agnostic Read Intensive SATA SSDs are general-purpose SSDs with an average endurance of 1 drive write per day. Vendor Agnostic SSDs are non-vendor-specific drives which can streamline and simplify the ordering and delivery of SATA SSDs. The drives offered in the Vendor Agnostic SSD program consists of SSDs that are readily available, ensuring the shortest supply lead time.

Specifications

Features
Interface	Serial ATA III
Component for	Server
SSD capacity	3.84 TB
NVMe	No
Memory type	V-NAND TLC
Random read (4KB)	83000 IOPS
Random write (4KB)	27000 IOPS
S.M.A.R.T. support	Yes
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
Mean time between failures (MTBF)	2000000 h
Certification	UL TUV FCC CE Mark C-Tick Mark BSMI (Taiwan) KCC (Korea EMI)
SSD form factor	2.5"
H/W PLP function	Yes
Drive writes per day (DWPD)	1
Performance
Interface	Serial ATA III
Component for	Server
SSD capacity	3.84 TB
NVMe	No
Memory type	V-NAND TLC
Random read (4KB)	83000 IOPS
Random write (4KB)	27000 IOPS
S.M.A.R.T. support	Yes
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
Mean time between failures (MTBF)	2000000 h
Design
Certification	UL TUV FCC CE Mark C-Tick Mark BSMI (Taiwan) KCC (Korea EMI)
SSD form factor	2.5"
Weight & dimensions
Width	70 mm
Depth	100 mm
Height	7 mm
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Non-operating shock	1500 G
Non-operating vibration	20 G
Maximum operating altitude	3050 m
Technical details
Interface	Serial ATA III
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Non-operating shock	1500 G
Non-operating vibration	20 G
Maximum operating altitude	3050 m
SSD form factor	2.5"
Other features
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read

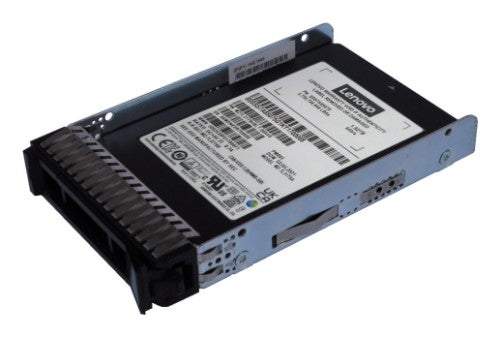

ThinkSystem 2.5" VA 1.92TB Read Intensive SATA 6Gb HS SSD v2

Description

The ThinkSystem Vendor Agnostic Read Intensive SATA SSDs are general-purpose SSDs with an average endurance of 1 drive write per day. Vendor Agnostic SSDs are non-vendor-specific drives which can streamline and simplify the ordering and delivery of SATA SSDs. The drives offered in the Vendor Agnostic SSD program consists of SSDs that are readily available, ensuring the shortest supply lead time.

Specifications

Features
Interface	Serial ATA III
Component for	Server
SSD capacity	1.92 TB
Read speed	480 MB/s
Write speed	460 MB/s
NVMe	No
Memory type	V-NAND TLC
Random read (4KB)	82000 IOPS
Random write (4KB)	28000 IOPS
S.M.A.R.T. support	Yes
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
Mean time between failures (MTBF)	2000000 h
Certification	UL TUV FCC CE Mark C-Tick Mark BSMI (Taiwan) KCC (Korea EMI)
SSD form factor	2.5"
H/W PLP function	Yes
Drive writes per day (DWPD)	1
Performance
Interface	Serial ATA III
Component for	Server
SSD capacity	1.92 TB
Read speed	480 MB/s
Write speed	460 MB/s
NVMe	No
Memory type	V-NAND TLC
Random read (4KB)	82000 IOPS
Random write (4KB)	28000 IOPS
S.M.A.R.T. support	Yes
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
Mean time between failures (MTBF)	2000000 h
Design
Certification	UL TUV FCC CE Mark C-Tick Mark BSMI (Taiwan) KCC (Korea EMI)
SSD form factor	2.5"
Weight & dimensions
Width	70 mm
Depth	100 mm
Height	7 mm
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Non-operating shock	1500 G
Non-operating vibration	20 G
Maximum operating altitude	3050 m
Technical details
Interface	Serial ATA III
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Non-operating shock	1500 G
Non-operating vibration	20 G
Maximum operating altitude	3050 m
SSD form factor	2.5"
Other features
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read

Essential Wireless Combo Keyboard & Mouse Gen2 Black-US_English

Key Features

• Reliable 2.4 GHz wireless connection
• Be eco-friendly with 65% post-consumer recycled plastic for both keyboard and mouse
• Low-profile 2.5-zone keyboard layout for effortless typing
• LED Indicator for keyboard: Low-battery, FnLock, NumLock
• Adjustable tilt leg and spill-resistant keyboard design
• One-touch dedicated media controls from F1-F12 for productivity
• Download the driver to support the hotkey functions from F1-F12
• AES-128 encryption for the keyboard
• Full-size ambidextrous mouse for left or right-hand comfort
• Optical sensor and 1600 DPI resolution for precision
• Up to 15 months battery life for keyboard (may vary based on usage)
• Up to 18 months battery life for mouse (may vary based on usage)
• Enjoy total peace of mind thanks to the 3-year warranty
• The Keyboard with Copilot Key, the Copilot in Windows is an AI-powered intelligent assistant. When Copilot is not available or enabled on the device, pressing the Copilot key will launch Windows Search

Description

Designed for the modern professional, the Lenovo Essential Wireless Combo Keyboard & Mouse Gen 2 delivers functionality, comfort, and style. The slim 2.5-zone keyboard, with its responsive keys, promotes a premium silent typing experience and improves your working efficiency with specialized Microsoft Copilot Key, while the standard-size mouse perfectly complements its keyboard counterpart in design and utility. The 2.4MHz receiver provides a stable keyboard and mouse connection for maximum reliability. Plus, with 65% post-consumer recycled plastic in its construction, this combo is as sustainable as it is productive. Includes 3-year limited hardware warranty, and global product support. Download driver first to enable hotkey functions.

Specifications

Keyboard
Device interface	RF Wireless
Key pitch	1.91 cm
Security algorithms	128-bit AES
Recommended usage	Office
Keyboard form factor	Full-size (100%)
Keyboard language	US English
Windows keys	Yes
Pointing device	No
Numeric keypad	Yes
Frequency band	2.4 GHz
Connectivity technology	Wireless
Certification	CB TUV Mark CE cTUVus FCC IC IMDA WPC BIS SIRIM NBTC-SDOC SDPPI NTC AITI TRC NCC BSMI MSIP VCCI JRF KVALITET ICASA TRA NTRA MOC PTA ICT EQM BOCRA ARCT ETA NCA POTRAZ
Keyboard keys operating life	10 million characters
Copilot key	Yes
Design
Product colour	Black
Protection features	Spill resistant
Backlight	No
LED indicators	Yes
Certification	CB TUV Mark CE cTUVus FCC IC IMDA WPC BIS SIRIM NBTC-SDOC SDPPI NTC AITI TRC NCC BSMI MSIP VCCI JRF KVALITET ICASA TRA NTRA MOC PTA ICT EQM BOCRA ARCT ETA NCA POTRAZ
Ergonomics
Plug and Play	Yes
LED indicators	Yes
Features
Plug and Play	Yes
Receiver
Wireless receiver interface	USB Type-A
Power
Service life of battery	15 month(s)
Power source type	Battery
Mouse battery type	AA
Keyboard battery type	AAA
USB Type-C charging port	No
Mouse
Form factor	Ambidextrous
Mouse included	Yes
Movement resolution	1600 DPI
Movement detection technology	Optical
Buttons quantity	3
Scroll	Yes
Scroll type	Wheel
Mouse battery type	AA
Scrolling directions	Vertical
Mouse battery life	18 month(s)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 95%
Technical details
Form factor	Ambidextrous
Weight & dimensions
Mouse weight	65.5 g
Mouse dimensions (WxDxH)	110.1 x 61.5 x 36.1 mm
Keyboard weight	406.5 g
Keyboard dimensions (WxDxH)	422.3 x 134.5 x 21.9 mm
Packaging data
Wireless receiver interface	USB Type-A
Receiver included	Yes
Batteries included	Yes
Number of products included	2 pc(s)
Package width	520 mm
Package depth	142 mm
Package height	42 mm
Package weight	998 g
Package type	Box
Packaging content
Wireless receiver interface	USB Type-A
Receiver included	Yes
Batteries included	Yes
Number of products included	2 pc(s)
AC adapter included	No
Other features
Pointing device	No
Connectivity technology	Wireless
AC adapter included	No

Essential Wired Combo Black US English

Description

The Lenovo Essential Wired Combo Keyboard & Mouse keeps things simple. This durable keyboard and mouse plugs into any USB port with wired reliability you can count on. The tough waterproof membrane can handle accidental spills without risking performance. Enjoy feel-good typing with quiet keys and number pad in a modern space saving layout. Improve your working efficiency with specialized Microsoft Copilot Key. An ergonomic full size mouse offers comfort and support for all day use. Increase your productivity as you smoothly complete tasks with the 1600DPI high resolution optical sensor.

Specifications

Keyboard
Key travel distance	1.91 cm
Device interface	USB
Recommended usage	Universal
Keyboard form factor	Full-size (100%)
Keyboard language	US English
Windows keys	Yes
Pointing device	No
Numeric keypad	Yes
Connectivity technology	Wired
Certification	AAA, BSMI, CB, CE, C-tick, EAC, FCC, IC, KCC, TUV, UL, VCCI
Keyboard keys operating life	10 million characters
Copilot key	Yes
Design
Product colour	Black
Backlight	No
Certification	AAA, BSMI, CB, CE, C-tick, EAC, FCC, IC, KCC, TUV, UL, VCCI
Ergonomics
Cable length	1.8 m
Features
Cable length	1.8 m
USB connector type	USB Type-A
Power
Power source type	USB
Mouse
Form factor	Ambidextrous
Mouse cable length	1.8 m
Mouse included	Yes
Movement resolution	1600 DPI
Movement detection technology	Optical
Buttons quantity	3
Scroll	Yes
Scroll type	Wheel
Buttons type	Pressed buttons
Buttons durability (million clicks)	1
System requirements
Windows operating systems supported	Windows 10, Windows 11
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	15 - 60%
Technical details
Form factor	Ambidextrous
Weight & dimensions
Mouse weight	69 g
Mouse dimensions (WxDxH)	111 x 62 x 34 mm
Keyboard weight	570 g
Keyboard dimensions (WxDxH)	424 x 146 x 20 mm
Packaging data
Number of products included	2 pc(s)
Package width	508 mm
Package depth	179 mm
Package height	45 mm
Package weight	910 g
Package type	Box
Packaging content
Number of products included	2 pc(s)
Other features
Pointing device	No
Connectivity technology	Wired

Intel Core Ultra 5 225H, 14C (4P + 8E + 2LPE)/14T, Max Turbo up to 4.9GHz, 18MB, 2x 8GB SODIMM DDR5-5600, 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0, 16" WUXGA (1920x1200) IPS 400nits 45% NTSC, Intel Arc 130T GPU, Intel Wi-Fi 7 BE201 802.11be 2x2 + BT5.4, 5.0MP + IR Discrete with Privacy Shutter, Windows 11 Pro

Key Features

• Intel Core Ultra 5 225H, 14C (4P + 8E + 2LPE)/14T, Max Turbo up to 4.9GHz, 18MB
• 16" WUXGA (1920x1200) IPS 400nits 45% NTSC
• 2x 8GB SODIMM DDR5-5600
• 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
• Intel Arc 130T GPU
• Windows 11 Pro

Description

LENOVO ThinkPad T16 G4 16' WUXGA Intel U5-225H 16GB DDR5 512GB SSD WIN 11 PRO Intel Arc 130T GPU AI PC NPU 12 TOPS Thunderbolt 3yr PREM 1.7kg

PERFORMANCE
Processor Intel Core™ Ultra 5 225H, 14C (4P + 8E + 2LPE) / 14T, Max Turbo up to 4.9GHz, 18MB Intel® Smart Cache
AI PC Category AI PC
NPU Integrated Intel® AI Boost, up to 13 TOPS
Graphics Integrated Intel® Arc™ 130T GPU
Chipset Intel® SoC Platform
Memory 2x 8GB SODIMM DDR5-5600
Memory Slots Arrow Lake: two DDR5 SODIMM / CSODIMM slots, dual-channel capable
Max Memory Arrow Lake: up to 64GB DDR5-5600
Storage 512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0
Storage Slot Models with V or H series processor: one M.2 2280 PCIe® 5.0 x4 slot
Max Storage Support One drive, up to 2TB M.2 2280 SSD
Optical None
Card Reader No Card Reader
Audio Chip High Definition (HD) Audio, Realtek® ALC3287 codec
Speakers Stereo speakers, 2W x2, Dolby Audio™
Microphone 2x, 360°
Camera 5.0MP + IR Discrete with Privacy Shutter
Battery 52.5Wh
Power Adapter 65W USB-C® (3-pin)
DESIGN
Display 16' WUXGA (1920x1200) IPS 400nits Anti-glare, 45% NTSC
Touchscreen None
Screen-to-Body Ratio 87.22%
Pen Pen Not Supported
Keyboard Backlit, English
Dimensions (WxDxH) 359.7 x 250.8 x 11.8/18.14 (front/rear), 23.5 (maximum) mm; 14.16 x 9.87 x 0.46/0.71 (front/rear), 0.93 (maximum) inches
Weight Starting at 1.76 kg (3.89 lbs)
Case Color Black
Case Material PC + 20% CF (Top), PC + 20% CF (Bottom)
SOFTWARE
Operating System Windows® 11 Pro, English (US) / English (UK)
Bundled Software None
CONNECTIVITY
WLAN + Bluetooth Intel® Wi-Fi® 7 BE201, 802.11be 2x2 + BT5.4
WWAN WWAN Not Supported
SIM Card No physical SIM card inbox
Ethernet 100/1000M (RJ-45)
NFC No NFC
Standard Ports 1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On
2x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with USB PD 3.0 and DisplayPort™ 2.1
1x HDMI® 2.1, up to 4K/60Hz
1x Headphone / microphone combo jack (3.5mm)
1x Ethernet (RJ-45)
Optional Ports (configured) None
Docking Various docking solutions supported via Thunderbolt™ / USB-C®. For more compatible docking solutions, please visit Docking for ThinkPad® T16 Gen 4 (Intel®)
SECURITY & PRIVACY
ThinkShield ThinkShield is a comprehensive security solution that encompasses hardware, software, and supply chain components. For more detials, visit here
Security Chip Discrete TPM 2.0 Enabled
Physical Locks Kensington Nano Security Slot™, 2.5 x 6 mm
Smart Card Reader No Smart Card Reader
Fingerprint Reader Touch Style, Match-on-Chip, Integrated in Power Button
Other Security Camera privacy shutter (camera models)
Ultrasonic Human Presence Detection
IR camera for Windows® Hello (facial recognition)
MANAGEABILITY
System Management Non-vPro®
Included Upgrade 3Y Premier Support

Specifications

Design
Product type	Laptop
Product colour	Black
Form factor	Clamshell
Display
HD type	WUXGA
Display diagonal	40.6 cm (16")
Display resolution	1920 x 1200 pixels
Touchscreen	No
LED backlight	Yes
Display brightness	400 cd/m²
Panel type	IPS
Anti-glare screen	Yes
RGB colour space	NTSC
Colour gamut	45%
Native aspect ratio	16:10
Processor
Processor family	Intel Core Ultra 5
Processor model	225H
Processor cores	14
Motherboard chipset	Intel SoC
Processor manufacturer	Intel
Memory
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	5600 MHz
Memory layout (slots x size)	2 x 8 GB
Memory slots	2x SO-DIMM
Maximum internal memory	64 GB
Memory form factor	SO-DIMM
Storage
SSD form factor	M.2
Optical drive type	No
Total storage capacity	512 GB
Storage media	SSD
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
Card reader integrated	No
Total SSDs capacity	512 GB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card model	Intel Arc 130T
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board GPU manufacturer	Intel
Audio
Audio chip	Realtek ALC3287
Number of microphones	2
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Camera
Front camera resolution (numeric)	5 MP
Privacy camera	Yes
Privacy type	Privacy shutter
Infrared (IR) camera	Yes
Windows Hello	Yes
Optical drive
Optical drive type	No
Network
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Bluetooth	Yes
Wi-Fi standards	Wi-Fi 7 (802.11be)
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Bluetooth version	5.4
WWAN	Not installed
Near Field Communication (NFC)	No
Antenna type	2x2
WLAN controller manufacturer	Intel
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 2.0 ports quantity	0
HDMI ports quantity	1
HDMI version	2.1
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
USB Sleep-and-Charge	Yes
USB Power Delivery (USB PD)	Yes
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Performance
Motherboard chipset	Intel SoC
Keyboard
Pointing device	ThinkPad UltraNav
Numeric keypad	Yes
Keyboard backlit	Yes
Software
Operating system installed	Windows 11 Pro
Battery
Battery capacity	52.5 Wh
Power
AC adapter power	65 W
USB Power Delivery (USB PD)	Yes
USB Type-C charging port	Yes
Security
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
Windows Hello	Yes
Smart card reader	No
Trusted Platform Module (TPM) version	2.0
Certificates
Certification	ENERGY STAR,TCO,EPEAT Gold,RoHS
Weight & dimensions
Weight	1.76 kg
Width	359.7 mm
Depth	250.8 mm
Height (front)	1.18 cm
Height (rear)	1.81 cm
Packaging data
AC adapter included	Yes
Packaging content
AC adapter included	Yes
Other features
On-board graphics card	Yes
AC adapter included	Yes
Anti-glare screen	Yes

Intel Core Ultra 5 225U, 12C (2P + 8E + 2LPE)/14T, Max Turbo up to 4.8GHz, 12MB Intel Smart Cache, 2x 8GB SODIMM DDR5-5600, 512GB SSD M.2 2242 PCIe 4.0x4 NVMe, 16" WUXGA (1920x1200) IPS 300nits 45% NTSC 60Hz, Intel Graphics, Wi-Fi 6E 802.11ax 2x2 + BT5.3, FHD 1080p + IR Hybrid with Privacy Shutter, Windows 11 Pro

Key Features

• Intel Core Ultra 5 225U, 12C (2P + 8E + 2LPE)/14T, Max Turbo up to 4.8GHz, 12MB Intel Smart Cache
• 16" WUXGA (1920x1200) IPS 300nits 45% NTSC 60Hz
• 2x 8GB SODIMM DDR5-5600
• 512GB SSD M.2 2242 PCIe 4.0x4 NVMe
• Intel Graphics
• Windows 11 Pro

Description

LENOVO ThinkBook 16 G8 16' WUXGA Intel U5-225U 16GB DDR5 512GB SSD WIN 11 PRO Intel Graphics AI PC NPU 12 TOPS 1yr OS 1.7kg

PERFORMANCE
Processor Intel® Core Ultra 5 225U, 12C (2P + 8E + 2LPE) / 14T, Max Turbo up to 4.8GHz, 12MB
AI PC Category AI PC
NPU Integrated Intel® AI Boost, up to 12 TOPS
Graphics Integrated Intel® Graphics
Chipset Intel® SoC Platform
Memory 2x 8GB SO-DIMM DDR5-5600
Memory Slots Two DDR5 SO-DIMM slots, dual-channel capable
Max Memory Up to 64GB DDR5-5600
Storage 512GB SSD M.2 2242 PCIe® 4.0x4 NVMe®
Max Storage Support Up to two drives, 2x M.2 SSD • M.2 2280 SSD up to 2TB each
Storage Slot Two M.2 2280 PCIe® 4.0 x4 slots
Card Reader SD Card Reader
Audio Chip High Definition (HD) Audio, Realtek® ALC3287 codec
Speakers Stereo speakers, 2W x2, Dolby Audio™
Camera FHD 1080p + IR Hybrid with Privacy Shutter
Microphone 2x, Array
Battery 45Wh
Power Adapter 65W USB-C® (3-pin)
Special Features Modern Standby
DESIGN
Display 16' WUXGA (1920x1200) IPS 300nits Anti-glare, 45% NTSC, 60Hz
Touchscreen None
Color Calibration None
Keyboard Backlit, English
Touchpad Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches)
Case Color Arctic Grey
Surface Treatment Anodizing Sandblasting (Top), Texture (Bottom)
Case Material Aluminium (Top), PC-ABS (Bottom)
Pen Pen Not Supported
Dimensions (WxDxH) 356 x 253.5 x 17.5 mm (14.01 x 9.98 x 0.69 inches)
Weight Starting at 1.7 kg (3.75 lbs)
SOFTWARE
Operating System Windows® 11 Pro, English (US) / English (UK)
Bundled Software Office Trial
CONNECTIVITY
WLAN + Bluetooth Wi-Fi® 6E, 802.11ax 2x2 + BT5.3
WWAN Non-WWAN
Ethernet 100/1000M (RJ-45)
Standard Ports 1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On
1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with USB PD 3.0 and DisplayPort™ 1.4
1x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with USB PD 3.0 and DisplayPort™ 2.1
1x HDMI® 2.1, up to 4K/60Hz
1x Headphone / microphone combo jack (3.5mm)
1x Ethernet (RJ-45)
1x SD card reader
Docking Various docking solutions supported via Thunderbolt™ or USB-C®. For more compatible docking solutions, please visit Docking for ThinkBook® 16 G8 IAL
SECURITY & PRIVACY
Security Chip Firmware TPM 2.0 Enabled
Fingerprint Reader Touch Style, Match-on-Chip, Integrated in Power Button
Physical Locks Kensington® Nano Security Slot, 2.5 x 6 mm
Other Security Camera privacy shutter
IR camera for Windows® Hello (facial recognition)
MANAGEABILITY
System Management Non-vPro®
SERVICE
Base Warranty 1-year, Courier or Carry-in
Included Upgrade 1Y Onsite upgrade from 1Y Courier/Carry-in
ACCESSORIES
Bundled Accessories None
CERTIFICATIONS
Green Certifications ENERGY STAR® 9.0
EPEAT™ Gold Registered
ErP Lot 6/26
RoHS compliant
TCO Certified 10.0
Other Certifications TÜV Rheinland® Low Blue Light (Software Solution)
Mil-Spec Test MIL-STD-810H military test passed

Specifications

Design
Colour name	Arctic grey
Product type	Laptop
Product colour	Grey
Form factor	Clamshell
Housing material	Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC)
Display
HD type	WUXGA
Display diagonal	40.6 cm (16")
Display resolution	1920 x 1200 pixels
Touchscreen	No
LED backlight	Yes
Display brightness	300 cd/m²
Panel type	IPS
Contrast ratio (typical)	1000:1
Anti-glare screen	Yes
Maximum refresh rate	60 Hz
RGB colour space	NTSC
Colour gamut	45%
Native aspect ratio	16:10
Processor
Processor generation	Intel Core Ultra (Series 2)
Processor family	Intel Core Ultra 5
Processor model	225U
Processor boost frequency	4.8 GHz
Processor cores	12
Processor threads	14
Processor cache	12 MB
Motherboard chipset	Intel SoC
Processor manufacturer	Intel
Processor base power	15 W
Maximum turbo power	57 W
Efficient-core base frequency	1.3 GHz
Performance-core base frequency	1.5 GHz
Efficient-core Max Turbo Frequency	3.8 GHz
Performance-core Max Turbo Frequency	4.8 GHz
Performance cores	2
Efficient cores	8
Low Power Efficient-core Base Frequency	700 MHz
Low Power Efficient-core Max Turbo Frequency	2.4 GHz
Low Power Efficient-cores	2
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Memory
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	5600 MHz
Memory layout (slots x size)	2 x 8 GB
Memory slots	2x SO-DIMM
Maximum internal memory	64 GB
Memory form factor	SO-DIMM
Memory channels	Dual-channel
Storage
SSD form factor	M.2
Optical drive type	No
Total storage capacity	512 GB
Storage media	SSD
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
Card reader integrated	Yes
Compatible memory cards	SD
Total SSDs capacity	512 GB
NVMe	Yes
M.2 SSD size	2242 (22 x 42 mm)
Graphics
Discrete graphics card	No
On-board graphics card family	Intel® Graphics
On-board graphics card model	Intel® Graphics
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board GPU manufacturer	Intel
Audio
Audio chip	Realtek ALC3287
Number of microphones	2
Audio system	Dolby Audio
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Camera
Front camera	Yes
Front camera resolution	1920 x 1080 pixels
Privacy camera	Yes
Privacy type	Privacy shutter
Front camera HD type	Full HD
Infrared (IR) camera	Yes
Windows Hello	Yes
Optical drive
Optical drive type	No
Network
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Bluetooth	Yes
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Ethernet LAN	Yes
Ethernet LAN data rates	1000,100 Mbit/s
Bluetooth version	5.3
WWAN	Not installed
Antenna type	2x2
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB Type-C DisplayPort Alternate Mode	Yes
USB 2.0 ports quantity	0
HDMI ports quantity	1
HDMI version	2.1
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
USB Sleep-and-Charge ports	1
USB Sleep-and-Charge	Yes
USB Power Delivery (USB PD)	Yes
Thunderbolt 4 ports quantity	1
Intel® Thunderbolt 4	Yes
Performance
Motherboard chipset	Intel SoC
Keyboard
Pointing device	Touchpad
Numeric keypad	Yes
Spill-resistant keyboard	Yes
Keyboard backlit	Yes
Keyboard language	English
Software
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Operating system language	English, US English
Bundled software	Office Trial
Trial software	Office
Battery
Battery technology	Lithium Polymer (LiPo)
Battery life (max)	7.7 h
Battery capacity	45 Wh
Continuous video playback time	13.1 h
Fast charging	Yes
Fast charging time (50%)	30 min
Power
AC adapter power	65 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
USB Power Delivery (USB PD)	Yes
USB Type-C charging port	Yes
Security
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
Password protection	Yes
Password protection type	HDD, Power on, Supervisor, User
Windows Hello	Yes
Trusted Platform Module (TPM) version	2.0
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95%
Storage relative humidity (H-H)	5 - 95%
Maximum shipping altitude	3048 m
Certificates
Certification	TÜV Rheinland Low Blue Light (Software Solution) MIL-STD-810H military test passed
Compliance certificates	RoHS
Sustainability
Sustainability certificates	ENERGY STAR, EPEAT Gold, ErP, TCO
Weight & dimensions
Weight	1.7 kg
Width	356 mm
Depth	253.5 mm
Height	17.5 mm
Packaging data
Stylus pen	No
AC adapter included	Yes
Packaging content
Stylus pen	No
AC adapter included	Yes
Technical details
Sustainability certificates	ENERGY STAR, EPEAT Gold, ErP, TCO
Compliance certificates	RoHS
Other features
Audio system	Dolby Audio
On-board graphics card	Yes
Maximum shipping altitude	3048 m
AC adapter included	Yes
Anti-glare screen	Yes
Continuous video playback time	13.1 h
