Collection: Lenovo

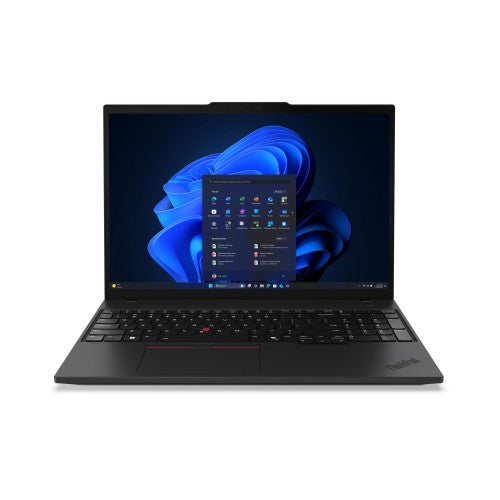

Intel Core Ultra 7 258V (12MB Cache), 32GB LPDDR5x-SDRAM, 512GB SSD, 16" WUXGA 1920 x 1200 IPS, Intel Arc Graphics 140V, LAN, WLAN, Webcam, Windows 11 Pro 64-bit

Key Features

• Windows 11 Pro 64-bit
• Intel Core Ultra 7 258V (12MB Cache)
• 16" WUXGA 1920 x 1200 IPS
• 32GB (8533MHz) LPDDR5x-SDRAM & 512GB SSD

Description

AUTOMATE SIMPLE TASKS
Elevate Your Workday With an AI PC
The ThinkPad T16 Gen 4 laptop is an AI PC that enables a range of productivity-rich tasks to keep you moving through your workday. Enjoy enhanced video conferencing and collaboration tools, robust security, document automation including scanning, summarizing, email management and scheduling. Plus, with rapid response times, it’s ideal for multitasking.

ADVANCED-LEVEL PROTECTION
Security Your Business Can Count On
When you need multilevel protection, ThinkShield security solutions have got you covered. Discrete Trusted Platform Module encrypts critical data. Biometrics provide secure login with a fingerprint reader and facial recognition with the optional infrared (IR) camera. There’s even human presence detection that works with the PrivacyGuard display to ensure your big ideas remain yours!

THINKPAD TOUGH
Durability Your Business Can Rely On
We use MIL-STD-810H for a balance of reliability and durability in ThinkPad laptops. Meeting or exceeding 12 standards, 26 procedures, and 200+ quality checks ensure these devices run in extreme conditions, including harsh variables like Arctic wilderness, desert dust storms, extreme temps, pressure, vibration, and more.

YOUR COLLABORATION COMPANION
Look Good, Sound Great
Make your presence known in every meeting with the remarkable 5MP camera — either sRBG or infrared. Enjoy Lenovo View AI-based camera enhancements to keep you focused when speaking, blur backgrounds, set an avatar, and more. Audio includes noise-cancelling mics with sound further enhanced by Dolby Atmos®.

PIXEL PERFECT CLARITY
To Touch, or Not To Touch
Choose from several display options, two of which include on-cell touch for touchscreen capability. All provide wide-angle viewing, which is especially impressive on a huge 16″ display. There’s even a PrivacyGuard option to ensure data security when working in public.

CREDIBILITY & COLLABORATION
Sustainability
Our goal is to provide smarter technology that builds a brighter, more sustainable future for our customers, communities, and the planet. That's why we pursue industry-leading labels and certifications that demonstrate our commitment to sustainability in product design. Together, we can build a smarter future for all.

Specifications

Design
Product type	Laptop
Product colour	Black
Form factor	Clamshell
Housing material	Polycarbonate (PC), Carbon fibre
Display
HD type	WUXGA
Display diagonal	40.6 cm (16")
Display resolution	1920 x 1200 pixels
Touchscreen	No
LED backlight	Yes
Display brightness	400 cd/m²
Panel type	IPS
Contrast ratio (typical)	1000:1
Anti-glare screen	Yes
Maximum refresh rate	60 Hz
RGB colour space	NTSC
Colour gamut	45%
Native aspect ratio	16:10
Processor
Processor generation	Intel Core Ultra (Series 2)
Processor cache type	Smart Cache
Processor family	Intel Core Ultra 7
Processor model	258V
Processor boost frequency	4.8 GHz
Processor cores	8
Processor threads	8
Processor cache	12 MB
Processor socket	BGA 2833
Motherboard chipset	Intel SoC
Processor manufacturer	Intel
Processor base power	17 W
Maximum turbo power	37 W
Performance-core base frequency	2.2 GHz
Performance-core Max Turbo Frequency	4.8 GHz
Performance cores	4
Low Power Efficient-core Base Frequency	2200 MHz
Low Power Efficient-core Max Turbo Frequency	3.7 GHz
Low Power Efficient-cores	4
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to	115 TOPs
NPU performance up to	47 TOPs
GPU performance up to	64 TOPs
Copilot+ PC	Yes
Memory
Internal memory	32 GB
Internal memory type	LPDDR5x-SDRAM
Memory clock speed	8533 MHz
Maximum internal memory	32 GB
Memory form factor	On-board
Memory channels	Dual-channel
Storage
SSD form factor	M.2
Optical drive type	No
Total storage capacity	512 GB
Storage media	SSD
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
Card reader integrated	No
Total SSDs capacity	512 GB
NVMe	Yes
M.2 SSD size	2280 (22 x 80 mm)
Graphics
Discrete graphics card	No
On-board graphics card family	Intel Arc Graphics
On-board graphics card model	Intel Arc Graphics 140V
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board GPU manufacturer	Intel
Audio
Audio chip	Realtek ALC3287
Number of microphones	2
Audio system	Dolby Audio
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Camera
Front camera	Yes
Front camera resolution (numeric)	5 MP
Privacy camera	Yes
Privacy type	Privacy shutter
Infrared (IR) camera	Yes
Windows Hello	Yes
Optical drive
Optical drive type	No
Network
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
WLAN controller model	Intel Wi-Fi 7 BE201
Bluetooth	Yes
Wi-Fi standards	Wi-Fi 7 (802.11be)
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Bluetooth version	5.4
WWAN	Not installed
Near Field Communication (NFC)	No
Antenna type	2x2
WLAN controller manufacturer	Intel
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB Type-C DisplayPort Alternate Mode	Yes
USB 2.0 ports quantity	0
HDMI ports quantity	1
HDMI version	2.1
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
USB Sleep-and-Charge ports	1
USB Sleep-and-Charge	Yes
USB Power Delivery (USB PD)	Yes
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Performance
Motherboard chipset	Intel SoC
Keyboard
Pointing device	ThinkPad UltraNav
Numeric keypad	Yes
Spill-resistant keyboard	Yes
Keyboard backlit	Yes
Keyboard language	English
Copilot key	Yes
Software
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Operating system language	US English, ENG-UK
Bundled software	Lenovo AI Now
Copilot+ PC	Yes
Battery
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity	52.5 Wh
Fast charging	Yes
Power
AC adapter power	65 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
USB Power Delivery (USB PD)	Yes
USB Type-C charging port	Yes
USB Type-C required charging power (min)	15 W
USB Type-C required charging power (max)	100 W
Security
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
Password protection	Yes
Password protection type	Power on, Supervisor, BIOS
Windows Hello	Yes
Smart card reader	No
Trusted Platform Module (TPM) version	2.0
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95%
Storage relative humidity (H-H)	5 - 95%
Maximum shipping altitude	3048 m
Certificates
Certification	ErP Lot 6/26 TCO Certified, generation 10 MIL-STD-810H
Compliance certificates	RoHS
Sustainability
Sustainability certificates	ENERGY STAR, EPEAT Gold
Weight & dimensions
Weight	1.76 kg
Width	359.7 mm
Depth	250.8 mm
Height (front)	1.18 cm
Height (rear)	1.81 cm
Packaging data
AC adapter included	Yes
Packaging content
AC adapter included	Yes
Technical details
Sustainability certificates	ENERGY STAR, EPEAT Gold
Compliance certificates	RoHS
Other features
WLAN controller model	Intel Wi-Fi 7 BE201
Audio system	Dolby Audio
On-board graphics card	Yes
Maximum shipping altitude	3048 m
AC adapter included	Yes
Anti-glare screen	Yes

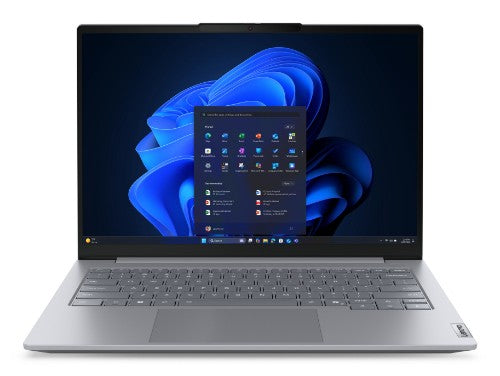

AMD Ryzen 5 220 (3.2GHz), 16GB DDR5-SDRAM, 512GB SSD, 14" WUXGA 1920 x 1200 IPS, AMD Radeon 740M, LAN, WLAN, Webcam, Windows 11 Pro

Key Features

• Windows 11 Pro
• AMD Ryzen 5 220 (3.2GHz)
• 14" WUXGA 1920 x 1200 IPS
• 16GB (5600MHz) DDR5-SDRAM (1 x 16) & 512GB SSD

Description

Engineered for Modern Workplaces
Powered by an AI-driven processor and NPU, the ThinkBook 14 Gen 9 laptop simplifies routine tasks in an energy-efficient design. Advanced AI capabilities offer enhanced video conferencing, document automation with summarization, and faster data analysis for greater productivity. Ideal for modern professionals on the move; it meets everyday demands with no compromises.

Secure, Smart & Always Productive
Featuring Lenovo AI Now, this laptop redefines productivity with AI-driven features that work on-device, ensuring data security. Designed for remote work and business on the go, you can streamline workflows with document scanning, knowledge base management, smart PC settings, and instant support — even offline. Stay focused, organized, and always ahead.

Secure Your Work, Protect Your World
Enjoy peace of mind with the advanced security features of this AMD-powered laptop. Safeguard your data with Discrete Trusted Platform Module (dTPM) encryption. Match-on-chip (MOC) fingerprint reader, integrated into the power button, gets you swift and secure login access, while a webcam privacy shutter provides an extra layer of protection.

CREDIBILITY & COLLABORATION
Sustainability
Our goal is to provide smarter technology that builds a brighter, more sustainable future for our customers, communities, and the planet. That's why we pursue industry leading labels and certifications that demonstrate our commitment to sustainability in product design. Together, we can build a smarter future for all.

Specifications

Design
Colour name	Arctic Grey
Product type	Laptop
Product colour	Grey
Form factor	Clamshell
Housing material	Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC)
Certified refurbished	No
Display back cover material	Aluminium
Display
HD type	WUXGA
Display diagonal	35.6 cm (14")
Display resolution	1920 x 1200 pixels
Touchscreen	No
LED backlight	Yes
Display brightness	400 cd/m²
Panel type	IPS
Contrast ratio (typical)	1000:1
Anti-glare screen	Yes
Maximum refresh rate	60 Hz
RGB colour space	NTSC
Colour gamut	45%
Native aspect ratio	16:10
Processor
Processor generation	AMD Ryzen 200 Series
Processor cache type	L2 & L3
Processor frequency	3.2 GHz
Processor family	AMD Ryzen™ 5
Processor model	220
Processor boost frequency	4.9 GHz
Processor cores	6
Processor threads	12
L3 cache	16 MB
L2 cache	6 MB
Motherboard chipset	AMD SoC
Processor manufacturer	AMD
Processor base power	28 W
Memory
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	5600 MHz
Memory layout (slots x size)	1 x 16 GB
Memory slots	2x SO-DIMM
Maximum internal memory	64 GB
Memory form factor	SO-DIMM
Memory channels	Dual-channel
Storage
SSD form factor	M.2
Optical drive type	No
Total storage capacity	512 GB
Storage media	SSD
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
Card reader integrated	Yes
Compatible memory cards	SD
Total SSDs capacity	512 GB
NVMe	Yes
M.2 SSD size	2242 (22 x 42 mm)
Graphics
Discrete graphics card	No
On-board graphics card family	AMD Radeon
On-board graphics card model	AMD Radeon 740M
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board GPU manufacturer	AMD
Audio
Audio chip	Realtek ALC3287
Number of microphones	2
Audio system	Dolby Audio
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Camera
Front camera	Yes
Front camera resolution	1920 x 1080 pixels
Privacy camera	Yes
Privacy type	Privacy shutter
Front camera HD type	Full HD
Infrared (IR) camera	Yes
Windows Hello	Yes
Optical drive
Optical drive type	No
Network
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Bluetooth	Yes
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Bluetooth version	5.2
WWAN	Not installed
Antenna type	2x2
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB Type-C DisplayPort Alternate Mode	Yes
USB 2.0 ports quantity	0
HDMI ports quantity	1
HDMI version	2.1
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
USB Sleep-and-Charge ports	1
USB Sleep-and-Charge	Yes
USB Power Delivery (USB PD)	Yes
USB4 Gen 3x2 ports quantity	2
Performance
Motherboard chipset	AMD SoC
Keyboard
Pointing device	Touchpad
Numeric keypad	No
Spill-resistant keyboard	Yes
Keyboard backlit	Yes
Keyboard language	English
Copilot key	Yes
Software
Operating system installed	Windows 11 Pro
Operating system language	ENG-UK, US English
Bundled software	Office Trial
Trial software	Office
Battery
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity	48 Wh
Fast charging	Yes
Fast charging time (50%)	30 min
Power
AC adapter power	65 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
USB Power Delivery (USB PD)	Yes
USB Type-C charging port	Yes
USB Type-C required charging power (min)	45 W
USB Type-C required charging power (max)	65 W
Security
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
Password protection	Yes
Password protection type	BIOS, Power on, Supervisor
Windows Hello	Yes
Trusted Platform Module (TPM) version	2.0
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95%
Storage relative humidity (H-H)	5 - 95%
Maximum shipping altitude	3048 m
Certificates
Certification	ErP Lot 6/26 MIL-STD-810H
Compliance certificates	RoHS
Sustainability
Sustainability certificates	ENERGY STAR, EPEAT Gold, TCO
Weight & dimensions
Weight	1.36 kg
Width	313.5 mm
Depth	224 mm
Height	17.5 mm
Packaging data
AC adapter included	Yes
Packaging content
AC adapter included	Yes
Technical details
Sustainability certificates	ENERGY STAR, EPEAT Gold, TCO
Compliance certificates	RoHS
Other features
Audio system	Dolby Audio
On-board graphics card	Yes
Maximum shipping altitude	3048 m
AC adapter included	Yes
Anti-glare screen	Yes

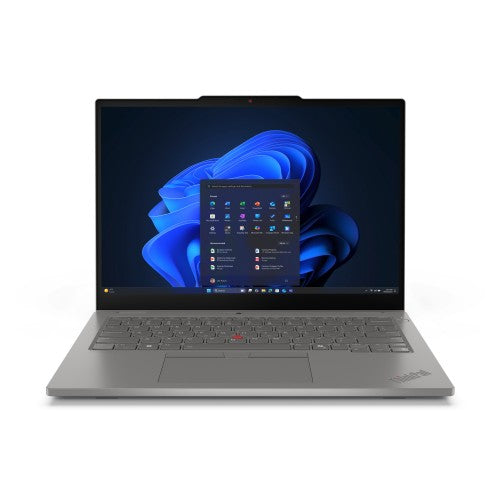

Intel Core Ultra 5 225U (12MB Cache), 16GB LPDDR5x-SDRAM, 512GB SSD, 33.8 cm (13.3") WUXGA 1920 x 1200 IPS Touch, Intel Graphics, WLAN, Webcam, Windows 11 Pro

Key Features

• Windows 11 Pro
• Intel Core Ultra 5 225U (12MB Cache)
• 33.8 cm (13.3") WUXGA 1920 x 1200 IPS Touch
• 16GB (7467MHz) LPDDR5x-SDRAM & 512GB SSD

Description

Flexible to Meet Every Need, Powerful to Meet Every Challenge
AI-powered business laptop. - 13.3" compact, AI-enabled 2-in-1 convertible business laptop
- Versatile laptop with flexible modes of use for on-the-go performance
- Amplified productivity with Intel® Core™ Ultra processors on Intel vPro®

Specifications

Design
Product type	Hybrid (2-in-1)
Product colour	Grey
Form factor	Convertible (Folder)
Housing material	Aluminium, Glass fibre, Polycarbonate (PC)
Display
HD type	WUXGA
Display diagonal	33.8 cm (13.3")
Display resolution	1920 x 1200 pixels
Touchscreen	Yes
LED backlight	Yes
Display brightness	400 cd/m²
Panel type	IPS
Contrast ratio (typical)	1500:1
Maximum refresh rate	60 Hz
RGB colour space	sRGB
Colour gamut	100%
Native aspect ratio	16:10
Anti-reflective coating	Yes
Anti-smudge coating	Yes
Processor
Processor generation	Intel Core Ultra (Series 2)
Processor family	Intel Core Ultra 5
Processor model	225U
Processor boost frequency	4.8 GHz
Processor cores	12
Processor threads	14
Processor cache	12 MB
Motherboard chipset	Intel SoC
Processor manufacturer	Intel
Processor base power	15 W
Maximum turbo power	57 W
Efficient-core base frequency	1.3 GHz
Performance-core base frequency	1.5 GHz
Efficient-core Max Turbo Frequency	3.8 GHz
Performance-core Max Turbo Frequency	4.8 GHz
Performance cores	2
Efficient cores	8
Low Power Efficient-core Base Frequency	700 MHz
Low Power Efficient-core Max Turbo Frequency	2.4 GHz
Low Power Efficient-cores	2
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, ONNX RT, OpenVINO, Windows ML
Memory
Internal memory	16 GB
Internal memory type	LPDDR5x-SDRAM
Memory clock speed	7467 MHz
Maximum internal memory	16 GB
Memory form factor	On-board
Memory channels	Dual-channel
Storage
SSD form factor	M.2
Optical drive type	No
Total storage capacity	512 GB
Storage media	SSD
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
Card reader integrated	No
Total SSDs capacity	512 GB
NVMe	Yes
M.2 SSD size	2242 (22 x 42 mm)
Graphics
Discrete graphics card	No
On-board graphics card family	Intel Graphics
On-board graphics card model	Intel Graphics
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board GPU manufacturer	Intel
Audio
Number of microphones	2
Audio system	Dolby Atmos
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Camera
Front camera	Yes
Front camera resolution (numeric)	5 MP
Rear camera	Yes
Rear camera resolution (numeric)	5 MP
Privacy camera	Yes
Privacy type	Privacy shutter
Infrared (IR) camera	Yes
Windows Hello	Yes
Optical drive
Optical drive type	No
Network
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211
Bluetooth	Yes
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Ethernet LAN	No
Bluetooth version	5.3
WWAN	Not installed
Near Field Communication (NFC)	No
Antenna type	2x2
WLAN controller manufacturer	Intel
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB Type-C DisplayPort Alternate Mode	Yes
USB 2.0 ports quantity	0
HDMI ports quantity	1
HDMI version	2.1
Combo headphone/mic port	Yes
USB Sleep-and-Charge	Yes
USB Power Delivery (USB PD)	Yes
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Performance
Motherboard chipset	Intel SoC
Keyboard
Pointing device	ThinkPad UltraNav
Numeric keypad	No
Spill-resistant keyboard	Yes
Keyboard backlit	Yes
Keyboard language	English
Copilot key	Yes
Software
Operating system installed	Windows 11 Pro
Operating system language	English
Battery
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity	54.7 Wh
Fast charging	Yes
Power
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
USB Power Delivery (USB PD)	Yes
USB Type-C charging port	Yes
Security
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
Password protection	Yes
Password protection type	BIOS, Power on, SSD, Supervisor
Windows Hello	Yes
Smart card reader	No
Trusted Platform Module (TPM) version	2.0
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95%
Storage relative humidity (H-H)	5 - 95%
Maximum shipping altitude	3048 m
Certificates
Certification	ENERGY STAR 9.0 EPEAT Gold Registered ErP Lot 6/26 RoHS compliant TCO Certified 10.0
Compliance certificates	RoHS
Sustainability
Sustainability certificates	ENERGY STAR, EPEAT Gold, ErP, TCO
Weight & dimensions
Weight	1.3 kg
Width	299 mm
Depth	215 mm
Height (front)	1.2 cm
Height (rear)	1.57 cm
Packaging data
Stylus pen	Yes
AC adapter included	Yes
Packaging content
Stylus pen	Yes
AC adapter included	Yes
Technical details
Sustainability certificates	ENERGY STAR, EPEAT Gold, ErP, TCO
Compliance certificates	RoHS
Other features
WLAN controller model	Intel Wi-Fi 6E AX211
Audio system	Dolby Atmos
On-board graphics card	Yes
Maximum shipping altitude	3048 m
AC adapter included	Yes

61.0cm (24") Full HD 1920 x 1200 W-LED IPS, 16:10, 300cd/m², 16.7M, 6ms, 178°/178°, 1500:1

Key Features

• 61.0cm (24") Full HD 1920 x 1200 W-LED IPS
• 6ms, 16:10, 300cd/m², 1500:1
• USB, VGA, HDMI, DisplayPort

Description

1. Crafted for modern workplaces
Relish the monitor’s modern aesthetic with its 4-sided, ultra-thin bezel design.
2. Crafted for higher productivity
See more of your content on the screen with its 16:10 aspect ratio and smooth 100 Hz refresh rate. Extensive connectivity with DisplayPort, HDMI, VGA, USB-A (1xBC 1.2) and USB-B ports. 3. Crafted for supreme comfort Work in absolute comfort by adjusting the monitor to your preferred ergonomic position using its LTPS stand.

Specifications

Display
Display brightness (typical)	300 cd/m²
Screen shape	Flat
Display number of colours	16.7 million colours
Native aspect ratio	16:10
Maximum refresh rate	100 Hz
sRGB coverage (typical)	99%
Display diagonal	61 cm (24")
Response time	6 ms
Display resolution	1920 x 1200 pixels
Display technology	LED
Contrast ratio (typical)	1500:1
Contrast ratio (dynamic)	3000000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.27 x 0.27 mm
Viewable size, horizontal	51.8 cm
Viewable size, vertical	32.4 cm
HD type	Full HD
Pixel density	94 ppi
Colour gamut	99%
Backlight type	W-LED
Response time (fast)	4 ms
Touchscreen	No
Panel type	IPS
Colour depth	8 bit
LED backlight	Yes
Colour gamut standard	sRGB
Anti-glare screen	Yes
Performance
Low Blue Light technology	Yes
Multimedia
Number of speakers	2
Built-in speaker(s)	Yes
Built-in camera	No
RMS rated power	4 W
Power
Power cable length	1.8 m
Power supply type	Internal
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	59.4 W
Power consumption (typical)	15 W
Power consumption (off)	0.5 W
Energy efficiency scale	A to G
Energy efficiency class (SDR)	D
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	15 kWh
Design
Market positioning	Office
Product colour	Black
Feet colour	Black
Certification	ENERGY STAR® Certified EPEAT™ Gold Registered RoHS compliant TCO Certified 9.0 TCO edge 2.0 Eyesafe® Certified 2.0 TÜV Rheinland® Flicker Free TÜV Rheinland® Low Blue Light TÜV Rheinland® Low Blue Light (Hardware Solution)
Detachable stand	Yes
Colour name	Raven Black
Ports & interfaces
Built-in USB hub	Yes
USB hub version	3.2 Gen 1 (3.1 Gen 1)
USB upstream port type	USB Type-B
Number of upstream ports	1
USB Type-A downstream ports quantity	4
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1
DisplayPorts quantity	1
Audio output	Yes
HDMI	Yes
HDMI version	1.4
DisplayPort version	1.2
Number of USB Type-B upstream ports quantity	1
Ergonomics
VESA mounting	Yes
Cable lock slot	Yes
Panel mounting interface	100 x 100 mm
Swivelling	Yes
Swivel angle range	-45 - 45°
Tilt angle range	-5 - 23.5°
Height adjustment	Yes
Pivot angle	-90 - 90°
Pivot	Yes
Cable lock slot type	Kensington
Cable management	Yes
Tilt adjustment	Yes
Adjustable height (max)	15.5 cm
Weight & dimensions
Width (with stand)	533 mm
Depth (with stand)	199.7 mm
Height (with stand)	535.7 mm
Bezel width (side)	2 mm
Bezel width (top)	2 mm
Bezel width (bottom)	1.15 cm
Width (without stand)	533 mm
Height (without stand)	344.3 mm
Depth (without stand)	47.8 mm
Weight (with stand)	5.14 kg
Weight (without stand)	3.16 kg
Package width	615 mm
Package depth	161 mm
Package height	417 mm
Package weight	7.84 kg
Packaging data
Package width	615 mm
Package depth	161 mm
Package height	417 mm
Package weight	7.84 kg
Stand included	Yes
Power cable length	1.8 m
Quick start guide	Yes
Cables included	AC
Packaging content
Stand included	Yes
Power cable length	1.8 m
Quick start guide	Yes
Cables included	AC
Other features
Certification	ENERGY STAR® Certified EPEAT™ Gold Registered RoHS compliant TCO Certified 9.0 TCO edge 2.0 Eyesafe® Certified 2.0 TÜV Rheinland® Flicker Free TÜV Rheinland® Low Blue Light TÜV Rheinland® Low Blue Light (Hardware Solution)
Power consumption (max)	59.4 W
Width (without stand)	533 mm
Quick start guide	Yes
Height (without stand)	344.3 mm
HDMI	Yes
Depth (without stand)	47.8 mm
Energy efficiency scale	A to G
Power supply type	Internal
Power cable length	1.8 m
Touchscreen	No
Certificates
Certification	ENERGY STAR® Certified EPEAT™ Gold Registered RoHS compliant TCO Certified 9.0 TCO edge 2.0 Eyesafe® Certified 2.0 TÜV Rheinland® Flicker Free TÜV Rheinland® Low Blue Light TÜV Rheinland® Low Blue Light (Hardware Solution)
Technical details
Power supply type	Internal
Weight (with stand)	5.14 kg
Touchscreen	No

Intel Core Ultra 5 225U, 12C (2P + 8E + 2LPE)/14T, Max Turbo up to 4.8GHz, 12MB Intel Smart Cache, 16GB LPDDR5X-7467, 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0, 14" WUXGA (1920x1200) IPS 400nits Anti-reflection / Anti-smudge 45% NTSC DBEF5 Touch, Intel Graphics, Intel Wi-Fi 6E AX211 802.11ax 2x2 + BT5.3, Windows 11 Pro

Key Features

• Intel Core Ultra 5 225U, 12C (2P + 8E + 2LPE)/14T, Max Turbo up to 4.8GHz, 12MB Intel Smart Cache
• 14" WUXGA (1920x1200) IPS 400nits Anti-reflection / Anti-smudge 45% NTSC DBEF5 Touch
• 16GB LPDDR5X-7467
• 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
• Intel Graphics
• Windows 11 Pro

Description

LENOVO ThinkPad T14s Yoga G1 14' WUXGA TOUCH IR Intel U5-225U 16GB DDR5 512GB SSD WIN 11 PRO Intel Graphics AI PC NPU 13 TOPS 3yr PREM 1.4kg

PERFORMANCE
Processor Intel® Core™ Ultra 5 225U, 12C (2P + 8E + 2LPE) / 14T, Max Turbo up to 4.8GHz, 12MB
AI PC Category AI PC
NPU Integrated Intel® AI Boost, up to 12 TOPS
Graphics Integrated Intel® Graphics
Chipset Intel® SoC Platform
Memory 16GB Soldered LPDDR5x-7467
Memory Slots Memory soldered to systemboard, no slots, dual-channel
Max Memory 16GB soldered memory, not upgradable
Storage 512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0
Max Storage Support One drive, up to 2TB M.2 2280 SSD
Storage Slot Models with U series processor: one M.2 2280 PCIe® 4.0 x4 slot
Card Reader None
Audio Chip High Definition (HD) Audio, Realtek® ALC3287 codec
Speakers Stereo speakers, 2W x2, Dolby Audio™
Camera 5.0MP + IR Discrete with Privacy Shutter, Computer Vision on ISP
Microphone 2x, 360°
Battery 58Wh
Power Adapter 65W USB-C® (3-pin)
DESIGN
Display 14' WUXGA (1920x1200) IPS 400nits Anti-reflection / Anti-smudge, 45% NTSC, DBEF5, Touch
Touchscreen OGS, 10-point Multi-touch
Keyboard Backlit, English
Case Color Black
Case Material Magnesium (Top), Aluminium + PC (Bottom)
Pen Lenovo® Yoga® Pen
Dimensions (WxDxH) 313.6 x 222.8 x 12.86/19.21 (front/rear), 21.6 (maximum) mm; 12.35 x 8.77 x 0.51/0.76 (front/rear), 0.85 (maximum) inches
Weight Starting at 1.40 kg (3.08 lbs)
SOFTWARE
Operating System Windows® 11 Pro, English (US) / English (UK)
Bundled Software None
CONNECTIVITY
WLAN + Bluetooth Intel® Wi-Fi® 6E AX211, 802.11ax 2x2 + BT5.3
WWAN Non-WWAN
SIM Card None
Ethernet No Onboard Ethernet
NFC None
Standard Ports 1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On
2x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with USB PD 3.0 and DisplayPort™ 2.1
1x HDMI® 2.1, up to 4K/60Hz
1x Headphone / microphone combo jack (3.5mm)
Optional Ports (configured) None
Docking Various docking solutions supported via Thunderbolt™ / USB-C®. For more compatible docking solutions, please visit Docking for ThinkPad T14s 2-in-1 Gen 1
SECURITY & PRIVACY
Smart Card Reader None
Security Chip Discrete TPM 2.0 Enabled
Fingerprint Reader Touch Style, Match-on-Chip, Integrated in Power Button
Physical Locks Kensington® Nano Security Slot™, 2.5 x 6 mm
Other Security Camera privacy shutter
Computer Vision-based User Presence Sensing on Image Signal Processor (ISP)
IR camera for Windows® Hello (facial recognition)
MANAGEABILITY
System Management Non-vPro®
SERVICE
Base Warranty 1-year, Courier or Carry-in
Included Upgrade 3Y Premier Support Upgrade from 1Y Courier/Carry-in, CO2 Offset 0.5 ton (2nd Generation Carbon Offset Projects)
ACCESSORIES
Bundled Accessories None
CERTIFICATIONS
Green Certifications ENERGY STAR® 9.0
EPEAT™ Gold Registered
ErP Lot 6/26
RoHS compliant
TCO Certified 10.0
Other Certifications UL Low Blue Light (Hardware Solution)
Mil-Spec Test MIL-STD-810H military test passed

Specifications

Design
Product type	Hybrid (2-in-1)
Product colour	Black
Form factor	Convertible (Folder)
Display
HD type	WUXGA
Display diagonal	35.6 cm (14")
Display resolution	1920 x 1200 pixels
Touchscreen	Yes
LED backlight	Yes
Display brightness	400 cd/m²
Panel type	IPS
RGB colour space	NTSC
Colour gamut	45%
Native aspect ratio	16:10
Processor
Processor family	Intel Core Ultra 5
Processor model	225U
Processor cores	12
Processor threads	14
Motherboard chipset	Intel SoC
Processor manufacturer	Intel
Memory
Internal memory	16 GB
Internal memory type	LPDDR5x-SDRAM
Memory clock speed	7467 MHz
Maximum internal memory	16 GB
Memory form factor	On-board
Storage
SSD form factor	M.2
Optical drive type	No
Total storage capacity	512 GB
Storage media	SSD
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
Total SSDs capacity	512 GB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card family	Intel® Graphics
On-board graphics card model	Intel® Graphics
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board GPU manufacturer	Intel
Audio
Audio chip	Realtek ALC3287
Number of microphones	2
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Camera
Front camera	Yes
Front camera resolution (numeric)	5 MP
Privacy camera	Yes
Privacy type	Privacy shutter
Infrared (IR) camera	Yes
Windows Hello	Yes
Optical drive
Optical drive type	No
Network
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211
Bluetooth	Yes
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Ethernet LAN	No
Bluetooth version	5.3
WWAN	Not installed
Near Field Communication (NFC)	No
Antenna type	2x2
WLAN controller manufacturer	Intel
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 2.0 ports quantity	0
HDMI ports quantity	1
HDMI version	2.1
Combo headphone/mic port	Yes
USB Sleep-and-Charge	Yes
USB Power Delivery (USB PD)	Yes
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Performance
Motherboard chipset	Intel SoC
Keyboard
Pointing device	ThinkPad UltraNav
Numeric keypad	No
Keyboard backlit	Yes
Software
Operating system installed	Windows 11 Pro
Battery
Battery capacity	58 Wh
Power
AC adapter power	65 W
USB Power Delivery (USB PD)	Yes
USB Type-C charging port	Yes
Security
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
Windows Hello	Yes
Smart card reader	No
Trusted Platform Module (TPM) version	2.0
Certificates
Certification	ENERGY STAR,TCO,EPEAT Gold,RoHS
Weight & dimensions
Weight	1.4 kg
Width	313.6 mm
Depth	222.8 mm
Height (front)	1.29 cm
Height (rear)	1.92 cm
Packaging data
AC adapter included	Yes
Packaging content
AC adapter included	Yes
Other features
WLAN controller model	Intel Wi-Fi 6E AX211
On-board graphics card	Yes
AC adapter included	Yes

AMD Ryzen 5 7535HS (6C/12T, 3.3/4.55GHz, 3MB L2/16MB L3), 1x 16GB SODIMM DDR5-4800, 512GB SSD M.2 2242 PCIe 4.0x4 NVMe, 16" WUXGA (1920x1200) IPS 300nits 45% NTSC, AMD Radeon 660M Graphics, Wi-Fi 6E 802.11ax 2x2 + BT5.3, Windows 11 Pro

Key Features

• AMD Ryzen 5 7535HS (6C/12T, 3.3/4.55GHz, 3MB L2/16MB L3)
• 16" WUXGA (1920x1200) IPS 300nits 45% NTSC
• 1x 16GB SODIMM DDR5-4800
• 512GB SSD M.2 2242 PCIe 4.0x4 NVMe
• AMD Radeon 660M Graphics
• Windows 11 Pro

Description

Enhance Your Productivity
Portable and energy efficient, the Lenovo ThinkBook 16 Gen 7 (16″ AMD) laptop boasts the potential to significantly boost your productivity. With AMD Ryzen™ 7000 Series processors, you’ll enjoy speedy performance, improved efficiency, and enhanced features that cater to demanding workloads and modern workstyles. Stay unplugged longer with the huge battery that keeps you up and running when you’re on the go. Ideal for handling demanding tasks like data analysis, light video editing, and multitasking with ease.

Security You Can Count On
Equipped with advanced security features, the ThinkBook 16 Gen 7 laptop offers comprehensive data-device protection. Its optional match-on-chip fingerprint reader integrated with the power button allows secure login and instantaneous bootup, while its Trusted Platform Module (TPM) encrypts crucial data. Plus, it comes with a Kensington Nano Security Slot™ that provides defense against physical theft. And, for extra privacy, there’s a webcam privacy shutter that can be toggled off for convenience.

Modern Design & Ergonomic Feel
Exuding elegance and professionalism, the ThinkBook 16 Gen 7 laptop features a silky aluminum chassis in a modern Artic Grey color. We’ve designed the keyboard for comfort and accuracy with curved keycaps that align perfectly with the shape of your fingers for a more natural, ergonomic typing experience. LED-status lights on the speaker and microphone keys make it easy to control your audio settings. But the best part, perhaps? We’ve included a numeric pad for added convenience when working with finances, spreadsheets, or any kind of number-crunching.

Work From Anywhere
Whether you’re in the office, on the go, or working from home, the ThinkBook 16 Gen 7 laptop keeps you connected. WiFi options keep you online without lag time, even on crowded public platforms when you’re out and about. The wide array of ports — including USB-C 4 — offers the best in high-speed file transfer and connection to all your peripherals. An HDMI port lets you hook up a monitor with ease, while the SD card reader provides multiple ways to access files. No matter where your work takes you, you can trust business to continue as usual.

Boost Your Online Meeting Presence
With its smart time-saving technology, the ThinkBook 16 Gen 7 laptop helps keep you focused and more productive. Dual-array mics and speakers with Dolby Audio™ along with Lenovo Smart Meeting mean you’ll enjoy noise-canceling audio that enables crystal-clear calls without background distractions. Additionally, eye-contact correction, auto-framing, and background blurring, as well as a choice of cameras keep you looking your best on video conference calls. It’s never been so easy to collaborate virtually!

Big on Durability
We use the US Department of Defense's MIL-STD 810H to create a balance of reliability and durability for ThinkBook laptops. Meeting or exceeding 12 standards, 26 procedures, and 200+ quality checks ensure that these devices run in extreme conditions, including harsh variables like Arctic wilderness, desert dust storms, extreme temps, pressure, humidity, vibration, and more. What’s more, we’ve re-engineered the keyboard to ensure spill resistance up to 60ccs, while also improving thermal performance, so your laptop stays cooler to the touch.

Specifications may vary depending upon region / model.

Specifications

Design
Colour name	Arctic Grey
Product type	Laptop
Product colour	Grey
Form factor	Clamshell
Housing material	Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC)
Display back cover material	Aluminium
Display
HD type	WUXGA
Display diagonal	40.6 cm (16")
Display resolution	1920 x 1200 pixels
Touchscreen	No
LED backlight	Yes
Display brightness	300 cd/m²
Panel type	IPS
Contrast ratio (typical)	1000:1
Anti-glare screen	Yes
Maximum refresh rate	60 Hz
RGB colour space	NTSC
Colour gamut	45%
Native aspect ratio	16:10
Low Blue Light technology	Yes
Processor
Processor generation	AMD Ryzen 7000 Series
Processor cache type	L3
Processor frequency	3.3 GHz
Processor family	AMD Ryzen™ 5
Processor model	7535HS
Processor boost frequency	4.55 GHz
Processor cores	6
Processor threads	12
Processor cache	16 MB
Motherboard chipset	AMD SoC
Processor manufacturer	AMD
Memory
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	4800 MHz
Memory layout (slots x size)	1 x 16 GB
Memory slots	2x SO-DIMM
Maximum internal memory	64 GB
Memory form factor	SO-DIMM
Memory channels	Dual-channel
Storage
SSD form factor	M.2
Optical drive type	No
Total storage capacity	512 GB
Storage media	SSD
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
Card reader integrated	Yes
Compatible memory cards	SD
Total SSDs capacity	512 GB
NVMe	Yes
M.2 SSD size	2280 (22 x 80 mm)
Graphics
Discrete graphics card	No
On-board graphics card family	AMD Radeon
On-board graphics card model	AMD Radeon 660M
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board GPU manufacturer	AMD
Audio
Audio chip	Realtek ALC3287
Number of microphones	2
Audio system	Dolby Audio
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Camera
Front camera	Yes
Front camera resolution	1920 x 1080 pixels
Privacy camera	Yes
Privacy type	Privacy shutter
Front camera HD type	Full HD
Infrared (IR) camera	Yes
Windows Hello	Yes
Optical drive
Optical drive type	No
Network
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Bluetooth	Yes
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Ethernet LAN	Yes
Ethernet LAN data rates	1000,100 Mbit/s
Bluetooth version	5.3
WWAN	Not installed
Antenna type	2x2
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB Type-C DisplayPort Alternate Mode	Yes
USB 2.0 ports quantity	0
HDMI ports quantity	1
HDMI version	2.1
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
USB Sleep-and-Charge ports	1
USB Sleep-and-Charge	Yes
USB Power Delivery (USB PD)	Yes
USB4 Gen 3x2 ports quantity	1
Performance
Motherboard chipset	AMD SoC
Keyboard
Pointing device	Touchpad
Numeric keypad	Yes
Spill-resistant keyboard	Yes
Keyboard backlit	Yes
Keyboard language	English
Copilot key	Yes
Software
Operating system installed	Windows 11 Pro
Operating system language	English
Trial software	Office
Battery
Battery technology	Lithium-Ion (Li-Ion)
Battery life (max)	7.23 h
Battery capacity	45 Wh
Fast charging	Yes
Fast charging time (50%)	30 min
Power
AC adapter power	65 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
USB Power Delivery (USB PD)	Yes
USB Type-C charging port	Yes
Security
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
Password protection	Yes
Password protection type	BIOS, HDD, Power on, Supervisor
Windows Hello	Yes
Trusted Platform Module (TPM) version	2.0
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95%
Storage relative humidity (H-H)	5 - 95%
Maximum shipping altitude	3048 m
Certificates
Certification	MIL-STD-810H military test passed RoHS compliant
Sustainability
Sustainability certificates	ENERGY STAR, EPEAT Gold, ErP, TCO
Weight & dimensions
Weight	1.7 kg
Width	356 mm
Depth	253.5 mm
Height	17.5 mm
Packaging data
AC adapter included	Yes
Packaging content
AC adapter included	Yes
Technical details
Sustainability certificates	ENERGY STAR, EPEAT Gold, ErP, TCO
Other features
Audio system	Dolby Audio
On-board graphics card	Yes
Maximum shipping altitude	3048 m
AC adapter included	Yes
Anti-glare screen	Yes

Intel Core i7-14700T, 20C (8P + 12E)/28T, Max Turbo up to 5.2GHz, P-core 1.3/5.0GHz, E-core 0.9/3.7GHz, 33MB, 2x 16GB SO-DIMM DDR5-5600, 1TB SSD M.2 2280 PCIe 4.0x4 NVMe Opal, Intel UHD Graphics 770, Intel Wi-Fi 6 AX201 802.11ax 2x2 + BT5.2, Windows 11 Pro

Key Features

• Intel Core i7-14700T, 20C (8P + 12E)/28T, Max Turbo up to 5.2GHz, P-core 1.3/5.0GHz, E-core 0.9/3.7GHz, 33MB
• 2x 16GB SO-DIMM DDR5-5600
• 1TB SSD M.2 2280 PCIe 4.0x4 NVMe Opal
• Intel UHD Graphics 770
• Windows 11 Pro

Description

ThinkCentre M70q Gen 5

Equipped with up to 14th Gen Intel® Core™ i7 processors and 64GB DDR5 memory, this desktop offers lightning-fast speeds for demanding industry tasks. Up to 4TB SSD storage ensures ample room for large files and datasets. Ideal for data analysis, software development, or system implementation, its advanced hardware enables professionals to work efficiently on the go. The robust performance and vast storage allow users to concentrate on innovation without delays from their tools.

Intel® UHD graphics and its support for up to four independent displays enhances multitasking capabilities for professionals engaged in data analysis, drafting, content development, and project management, thereby boosting productivity through seamless, versatile workflows.

Stay connected anywhere with Wi-Fi 6E, ensuring fast, reliable wireless connectivity. Versatile ports including DisplayPort, USB-C, USB-A, and HDMI enhance productivity for stationary professionals using this desktop.

Its compact 1L form factor maximizes space efficiency, fitting seamlessly into any workspace while delivering robust performance, making it an ideal choice for those seeking functionality without sacrificing valuable desk space.

Specifications

Processor
Processor generation	Intel® Core™ i7 (14th gen)
Processor cache type	Smart Cache
Processor family	Intel® Core™ i7
Processor manufacturer	Intel
Processor model	i7-14700T
Processor cores	20
Processor boost frequency	5.2 GHz
Processor cache	33 MB
Processor threads	28
Number of processors installed	1
Performance cores	8
Efficient cores	12
Performance-core base frequency	1.3 GHz
Efficient-core base frequency	0.9 GHz
Processor base power	35 W
Maximum turbo power	106 W
Efficient-core Max Turbo Frequency	3.7 GHz
Performance-core Max Turbo Frequency	5 GHz
Memory
Internal memory	32 GB
Internal memory type	DDR5-SDRAM
Maximum internal memory	64 GB
Memory layout (slots x size)	2 x 16 GB
Memory slots	2x DIMM
Memory clock speed	5600 MHz
Non-ECC	Yes
ECC	No
Memory channels	Dual-channel
Storage
Total storage capacity	1 TB
Optical drive type	No
Card reader integrated	No
Storage media	SSD
Number of storage drives installed	1
Number of SSDs installed	1
SSD capacity	1 TB
SSD interface	PCI Express 4.0
SSD form factor	M.2
Total SSDs capacity	1 TB
NVMe	Yes
M.2 SSD size	2280 (22 x 80 mm)
Graphics
Discrete graphics card	No
On-board graphics card family	Intel® UHD Graphics
Discrete graphics card model	Not available
On-board graphics card model	Intel UHD Graphics 770
On-board graphics card	Yes
On-board GPU manufacturer	Intel
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth	Yes
Bluetooth version	5.2
WLAN controller model	Intel Wi-Fi 6 AX201
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Intel
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
USB 2.0 ports quantity	1
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	2
Ethernet LAN (RJ-45) ports	1
M.2 card slot (wireless)	1
M.2 card slot (storage)	2
DisplayPort version	1.4a
Number of rear USB ports	4
Number of front USB ports	3
Number of front audio ports	1
Design
VESA mounting	Yes
Product colour	Black
Volume	1 L
Chassis type	Mini PC
Cable lock slot	Yes
Cable lock slot type	Kensington
Colour name	Black
Performance
Audio chip	Realtek ALC233VB
Number of speakers	1
Product type	Mini PC
Motherboard chipset	Intel Q670
Audio system	High Definition Audio
Password protection	Yes
Password protection type	BIOS, HDD, Power on, Supervisor
Trusted Platform Module (TPM)	Yes
Built-in speaker(s)	Yes
Trusted Platform Module (TPM) version	2.0
Software
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Operating system language	English
Power
Power supply	135 W
Power supply input frequency	50/60 Hz
Power supply input voltage	100 - 240 V
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80%
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12192 m
Storage temperature (T-T)	-40 - 60 °C
Storage relative humidity (H-H)	10 - 90%
Certificates
Certification	ENERGY STAR,TCO,EPEAT Silver,RoHS
Compliance certificates	RoHS
Sustainability
Sustainability certificates	ENERGY STAR, EPEAT Silver, ErP, GREENGUARD, TCO
Ergonomics
VESA mounting	Yes
Weight & dimensions
Volume	1 L
Width	179 mm
Depth	182.9 mm
Height	36.5 mm
Weight	1.25 kg
Package width	490 mm
Package depth	128 mm
Package height	250 mm
Package weight	3.2 kg
Packaging data
Package width	490 mm
Package depth	128 mm
Package height	250 mm
Package weight	3.2 kg
Packaging content
Display included	No
Mouse included	Yes
Keyboard included	Yes
Mouse connectivity	Wired
Keyboard connectivity	Wired
Display
Display included	No
Technical details
Sustainability certificates	ENERGY STAR, EPEAT Silver, ErP, GREENGUARD, TCO
Compliance certificates	RoHS
Other features
VESA mounting	Yes
Number of speakers	1
Processor manufacturer	Intel
Trusted Platform Module (TPM)	Yes
On-board graphics card	Yes
Built-in speaker(s)	Yes

Intel Core i7-14700, 20C (8P + 12E)/28T, Max Turbo up to 5.4GHz, P-core 2.1/5.3GHz, E-core 1.5/4.2GHz, 33MB, 2x 8GB UDIMM DDR5-5600, 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0, Intel UHD Graphics 770, Intel Wi-Fi 6 AX201 802.11ax 2x2 + BT5.2, Windows 11 Pro

Key Features

• Intel Core i7-14700, 20C (8P + 12E)/28T, Max Turbo up to 5.4GHz, P-core 2.1/5.3GHz, E-core 1.5/4.2GHz, 33MB
• 2x 8GB UDIMM DDR5-5600
• 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
• Intel UHD Graphics 770
• Windows 11 Pro

Description

Intelligent Performance With AI Enhancements
The Lenovo ThinkCentre M70s Gen 5 desktop constantly adapts and learns from your usage patterns to optimize power usage and dynamically allocate resources. No more overheating woes as the AI-driven fan control keeps your device cool, reducing temperature and noise. Plus, the power optimization feature enhances energy efficiency.

Enhanced Productivity
The ThinkCentre M70s Gen 5 desktop is a powerhouse of productivity powered by up to 14th Gen Intel® Core™ processor with Intel vPro® Enterprise to accomplish more with less effort. Unlock boundless creativity with integrated Intel® graphics. Plus, this small form factor handles complex data operations with ease thanks to ample memory and storage.

Unmatched Security
Protect your data and business with ThinkShield, our comprehensive suite of security solutions, featuring the discrete Trusted Platform Module (dTPM) to safeguard critical data with encryption. Physical security is reinforced with Kensington Security Slot™, chassis e-locks, and more, offering unparalelled security.

Multitasking Flexibility
The ThinkCentre M70s Gen 5 makes multitasking a breeze with multiple ports and expansion slots. Connect your tablets and laptops through Smart Cable. This intelligent feature offers cutting-edge device collaboration through convenient USB-A and USB-C connections, accommodating all your peripherals, including laptops and tablets. Seamlessly share device control, data, and screen projection between devices.

Flexibilitet för multitasking
The ThinkCentre M70s desktop PC uses 90% post-industry content (PIC) recycled materials expanded polyethylene (EPE) cushion, 60% post-consumer content (PCC) recylced plastic, 30% ocean-bound plastic (OBP) thermal shell and 30% OBP bag and Forest Stewardship Council® (FSC) certified carton in packaging. The chasis uses 85% PCC acrylonitrile butadine styrene (ABS)

Specifications

Processor
Processor generation	Intel® Core™ i7 (14th gen)
Processor cache type	Smart Cache
Processor family	Intel® Core™ i7
Processor manufacturer	Intel
Processor model	i7-14700
Processor cores	20
Processor boost frequency	5.4 GHz
Processor cache	33 MB
Processor threads	28
Performance cores	8
Efficient cores	12
Performance-core base frequency	2.1 GHz
Efficient-core base frequency	1.5 GHz
Processor base power	65 W
Maximum turbo power	219 W
Efficient-core Max Turbo Frequency	4.2 GHz
Performance-core Max Turbo Frequency	5.3 GHz
Memory
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Maximum internal memory	64 GB
Memory layout (slots x size)	2 x 8 GB
Memory slots	2x DIMM
Memory clock speed	5600 MHz
Memory channels	Dual-channel
Storage
Total storage capacity	512 GB
Optical drive type	No
Card reader integrated	No
Storage media	SSD
Number of storage drives installed	1
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
SSD form factor	M.2
Total SSDs capacity	512 GB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card family	Intel® UHD Graphics
Discrete graphics card model	Not available
On-board graphics card model	Intel UHD Graphics 770
On-board graphics card	Yes
On-board GPU manufacturer	Intel
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Bluetooth	Yes
Bluetooth version	5.2
WLAN controller model	Intel Wi-Fi 6 AX201
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Intel
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
USB 2.0 ports quantity	4
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	1
Ethernet LAN (RJ-45) ports	1
Microphone in	Yes
DisplayPort version	1.4a
Design
Product colour	Black
Volume	8.2 L
Chassis type	SFF
Cable lock slot	Yes
Cable lock slot type	Kensington
Colour name	Black
Performance
Audio chip	Realtek ALC623-CG
Number of speakers	1
Product type	PC
Motherboard chipset	Intel Q670
Audio system	High Definition Audio
Password protection	Yes
Password protection type	BIOS, HDD, Power on, Supervisor
Trusted Platform Module (TPM)	Yes
Built-in speaker(s)	Yes
Software
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Operating system language	English
Power
Power supply	260 W
Power supply input frequency	50/60 Hz
Power supply input voltage	100 - 240 V
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80%
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12192 m
Storage temperature (T-T)	-40 - 60 °C
Storage relative humidity (H-H)	10 - 90%
Certificates
Certification	ErP Lot 3 GREENGUARD RoHS compliant TCO Certified 9.0 MIL-STD-810H military test passed
Compliance certificates	RoHS
Sustainability
Sustainability compliance	Yes
Sustainability certificates	ErP, TCO
Weight & dimensions
Volume	8.2 L
Width	92.5 mm
Depth	297.7 mm
Height	339.5 mm
Weight	5.3 kg
Package width	195 mm
Package depth	395 mm
Package height	530 mm
Package weight	7.6 kg
Packaging data
Package width	195 mm
Package depth	395 mm
Package height	530 mm
Package weight	7.6 kg
Packaging content
Display included	No
Mouse included	Yes
Keyboard included	Yes
Mouse connectivity	Wired
Keyboard connectivity	Wired
Display
Display included	No
Technical details
Sustainability compliance	Yes
Sustainability certificates	ErP, TCO
Compliance certificates	RoHS
Other features
Number of speakers	1
Processor manufacturer	Intel
Trusted Platform Module (TPM)	Yes
On-board graphics card	Yes
Built-in speaker(s)	Yes
