Collection: Internal Solid State Drives

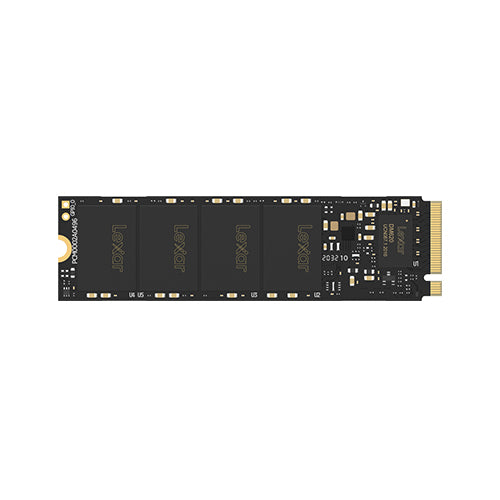

512GB, M.2 2280, NVMe 1.3, PCIe Gen3x4, 3300MB/s read, 2400MB/s write, 3D TLC NAND, MTBF 1500000h, 0°C to 70°C, Shock Resistant 1500 G, Vibration Resistant 20 G, DWPD 0.46

Key Features

• Up to 3300MB/s read, 2400MB/s write
• NVMe 1.4 Standard
• PCle Gen 3x4 Interface
• Energy Efficient

Description

Next-Level Performance For Intensive Workloads
Designed for intensive workloads, the Lexar NM620 M.2 2280 PCIe Gen3x4 NVMe SSD offers next-level performance that puts you in the computing fast lane with speeds up 3300MB/s read and 3000MB/s write. It’s supported by the PCIe Gen3x4 NVMe 1.4 technology standard and built with the latest 3D NAND flash.

Ideal For Demanding Creative And Gaming
With speeds of up to 3300MB/s read, enjoy 6x the speed of SATA SSDs. The NM620 puts you in the computing fast lane and offers impressive performance for demanding creative workstations and gaming experiences.

Features LDPC For Added Reliability
Low-Density Parity Check (LDPC) technology makes data transfers more reliable than ever by fixing data errors before they have a chance to slow you down.

Built To Last
Unlike traditional hard disk drives, the NM620 SSD has no moving parts, so it’s built to last. On top of that, it’s also shock and vibration resistant, making it one robust and reliable SSD.

Efficient
Reduced power consumption and cooler operation makes the battery life last longer than a traditional hard drive.

Rigorously Tested
All Lexar product designs undergo extensive testing in the Lexar Quality Labs,facilities with more than 1,100 digital devices, to ensure performance, quality, compatibility, and reliability.

Specifications

Features
Interface	PCI Express 4.0
Component for	PC
SSD capacity	512 GB
Read speed	3300 MB/s
Write speed	2400 MB/s
NVMe	Yes
NVMe version	1.4
Sequential write speed (CDM)	3300 MB/s
Sequential read speed (AS SSD)	1300 MB/s
Memory type	3D TLC NAND
Protection features	Shock resistant, Vibration proof
Mean time between failures (MTBF)	1500000 h
TBW rating	500
SSD form factor	M.2
PCI Express CEM revision	3.0
Target workload	Mixed Use (MU)
Use conditions	Workstation
Harmonized System (HS) code	84717070
Performance
Interface	PCI Express 4.0
Component for	PC
SSD capacity	512 GB
Read speed	3300 MB/s
Write speed	2400 MB/s
NVMe	Yes
NVMe version	1.4
Sequential write speed (CDM)	3300 MB/s
Sequential read speed (AS SSD)	1300 MB/s
Memory type	3D TLC NAND
Mean time between failures (MTBF)	1500000 h
TBW rating	500
Design
Protection features	Shock resistant, Vibration proof
SSD form factor	M.2
Weight & dimensions
Width	22 mm
Depth	80 mm
Height	2.25 mm
Weight	9 g
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating shock	1500 G
Vibration resistance	20 G
Technical details
Interface	PCI Express 4.0
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating shock	1500 G
SSD form factor	M.2
Harmonized System (HS) code	84717070
Logistics data
Harmonized System (HS) code	84717070

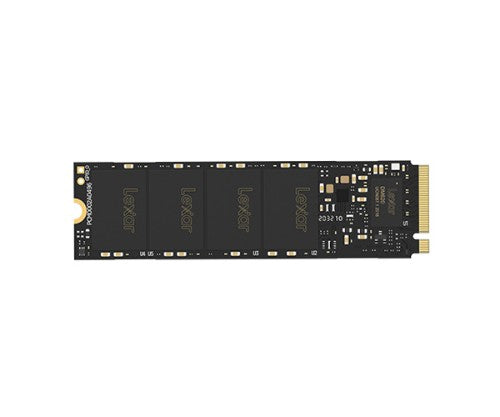

1 TB, M.2, 3D TLC NAND, PCIe Gen3x4, 3300 MB/s read, 3000 MB/s write

Key Features

• High-speed PCIe Gen3x4 interface: 3300MB/s read and 3000MB/s write – NVMe 1.4 supported
• M.2 2280 form factor
• Get 6x the speed of a SATA-based SSD
• Ideal for PC enthusiasts and gamers
• 3D NAND
• Features LDPC (Low-Density Parity Check)
• Shock and vibration resistant with no moving parts

Description

Next-Level performance for intensive workloads
Designed for intensive workloads, the Lexar NM620 M.2 2280 PCIe Gen3x4 NVMe SSD offers next-level performance that puts you in the computing fast lane with speeds up 3300MB/s read and 3000MB/s write. It’s supported by the PCIe Gen3x4 NVMe 1.4 technology standard and built with the latest 3D NAND flash.

Ideal for demanding creative and gaming
With speeds of up to 3300MB/s read, enjoy 6x the speed of SATA SSDs. The NM620 puts you in the computing fast lane and offers impressive performance for demanding creative workstations and gaming experiences.

Features LDPC for added reliability
Low-Density Parity Check (LDPC) technology makes data transfers more reliable than ever by fixing data errors before they have a chance to slow you down.

Built to last
Unlike traditional hard disk drives, the NM620 SSD has no moving parts, so it’s built to last. On top of that, it’s also shock and vibration resistant, making it one robust and reliable SSD.

Efficient
Reduced power consumption and cooler operation makes the battery life last longer than a traditional hard drive.

Rigorously tested
All Lexar product designs undergo extensive testing in the Lexar Quality Labs, facilities with more than 1,100 digital devices, to ensure performance, quality, compatibility, and reliability.

Specifications

Features
Interface	PCI Express 3.0
Component for	PC
SSD capacity	1 TB
Read speed	3300 MB/s
Write speed	3000 MB/s
NVMe	Yes
NVMe version	1.4
Memory type	3D TLC NAND
PCI Express interface data lanes	x4
Random read (4KB)	300000 IOPS
Random write (4KB)	256000 IOPS
Protection features	Shock resistant, Vibration proof
Hardware encryption	No
Mean time between failures (MTBF)	1500000 h
TBW rating	500
SSD form factor	M.2
Market segment	Mobile
Harmonized System (HS) code	84717070
Performance
Interface	PCI Express 3.0
Component for	PC
SSD capacity	1 TB
Read speed	3300 MB/s
Write speed	3000 MB/s
NVMe	Yes
NVMe version	1.4
Memory type	3D TLC NAND
PCI Express interface data lanes	x4
Random read (4KB)	300000 IOPS
Random write (4KB)	256000 IOPS
Hardware encryption	No
Mean time between failures (MTBF)	1500000 h
TBW rating	500
Design
Protection features	Shock resistant, Vibration proof
SSD form factor	M.2
Market segment	Mobile
Weight & dimensions
Width	22 mm
Depth	80 mm
Height	2.25 mm
Weight	9 g
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating shock	1500 G
Vibration resistance	20 G
Minimum operating temperature	0 °C
Maximum operating temperature	70 °C
Technical details
Interface	PCI Express 3.0
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating shock	1500 G
SSD form factor	M.2
Market segment	Mobile
Harmonized System (HS) code	84717070
Logistics data
Harmonized System (HS) code	84717070

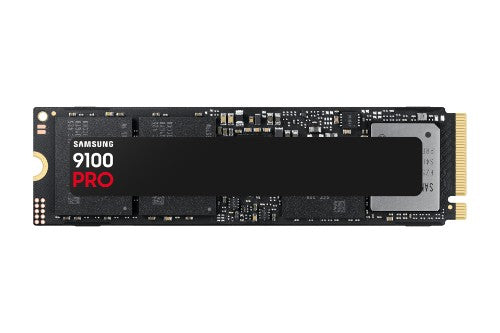

MZ-VAP8T0BW

Key Features

• Experience PCIe Gen 5.0 x4 performance twice as fast as the Gen 4 990 PRO
• Sequential read speeds up to 14,800MB/s ideal for tech enthusiasts, gamers and AI applications
• Smart thermal solution provides consistent and reliable performance
• Available in different capacities up to 8TB
• Five year limited warranty

Reasons To Buy

Breakthrough PCIe® 5.0 performance

Push PCIe® 5.0 performance to the max. 9100 PRO achieves lightning-fast sequential read/write speeds up to 14,800/13,400 MB/s, two times faster than 990 PRO. Leave Gen4 limits behind with random read/write speeds up to 2,200K/2,600K IOPS, only possible by Gen5.

Impressive processing power

Speed past productivity limits. Exhilarating random read/write speeds enable ultra-fast parallel processing for countless fragmented data, at up to 2,200K/2,600K IOPS. Experience superior output and instant loads for huge games, high-performance tasks, and even AI applications.

Rapid AI creation

Intelligence redefines performance. Defy your limits in work and play with an on-board AI PC and AI content generation, fuelled by 9100 PROs exhilarating random read/write speeds up to 2,200K/2,600K IOPS. Swift loads, smooth gameplay, seamless performance.

Exceptional performance at your fingertips

Elevate your competitive edge. Breeze through video editing, 3D art, and even long streaming sessions with the latest PCIe® 5.0 interfaces. Experience cutting-edge performance anytime, anywhere, on any device, and choose the storage you need with expansive capacity up to 8TB.

Extraordinary thermal efficiency

Peak performance, uninterrupted. The advanced 5nm controller power architecture enhances power efficiency up to 49% over 990 PRO. Exceptional thermal control ensures nothing disrupts your flow, so you can keep the most demanding programs running with the max possible power of PCIe® 5.0.

Samsung Magician software

Make your SSD work like magic. Samsung Magician software's optimisation tools ensure the best SSD performance. It's a safe and easy way to migrate all your data for a Samsung SSD upgrade. Protect valuable data, monitor drive health, and get the latest firmware updates.

Bringing innovations to life

For decades, Samsungs NAND flash memory has powered groundbreaking technologies that have changed every part of our daily lives. This NAND flash technology also powers our consumer SSDs, making room for the next big push of innovation.

PCIe® 5.0 Performance

Max 14,800/13,400 MB/s sequential speeds,two times faster than 990 PRO.

Advance your gameplay

Mega capacity with exceptional compatibility.

Innovative Power & Thermal Control

Up to 49% enhanced power efficiency with advanced thermal control.

Description

Breakthrough PCIe® 5.0 performance
Push PCIe® 5.0 performance to the max. 9100 PRO achieves lightning-fast sequential read/write speeds up to 14,800/13,400 MB/s, two times faster than 990 PRO. Leave Gen4 limits behind with random read/write speeds up to 2,200K/2,600K IOPS, only possible by Gen5.

Impressive processing power
Speed past productivity limits. Exhilarating random read/write speeds enable ultra-fast parallel processing for countless fragmented data, at up to 2,200K/2,600K IOPS. Experience superior output and instant loads for huge games, high-performance tasks, and even AI applications.

Rapid AI creation
Intelligence redefines performance. Defy your limits in work and play with an on-board AI PC and AI content generation, fuelled by 9100 PROs exhilarating random read/write speeds up to 2,200K/2,600K IOPS. Swift loads, smooth gameplay, seamless performance.

Exceptional performance at your fingertips
Elevate your competitive edge. Breeze through video editing, 3D art, and even long streaming sessions with the latest PCIe® 5.0 interfaces. Experience cutting-edge performance anytime, anywhere, on any device, and choose the storage you need with expansive capacity up to 8TB.

Extraordinary thermal efficiency
Peak performance, uninterrupted. The advanced 5nm controller power architecture enhances power efficiency up to 49% over 990 PRO. Exceptional thermal control ensures nothing disrupts your flow, so you can keep the most demanding programs running with the max possible power of PCIe® 5.0.

Samsung Magician software
Make your SSD work like magic. Samsung Magician software's optimisation tools ensure the best SSD performance. It's a safe and easy way to migrate all your data for a Samsung SSD upgrade. Protect valuable data, monitor drive health, and get the latest firmware updates.

Bringing innovations to life
For decades, Samsungs NAND flash memory has powered groundbreaking technologies that have changed every part of our daily lives. This NAND flash technology also powers our consumer SSDs, making room for the next big push of innovation.

PCIe® 5.0 Performance
Max 14,800/13,400 MB/s sequential speeds,two times faster than 990 PRO.

Advance your gameplay
Mega capacity with exceptional compatibility.

Innovative Power & Thermal Control
Up to 49% enhanced power efficiency with advanced thermal control.

Specifications

Features
Interface	PCI Express 5.0
Component for	PC/Game console
SSD capacity	8 TB
Read speed	14800 MB/s
Write speed	13400 MB/s
NVMe	Yes
NVMe version	2.0
DevSlp (device sleep) support	Yes
Memory type	V-NAND TLC
PCI Express interface data lanes	x4
Random read (4KB)	2200000 IOPS
Random write (4KB)	2600000 IOPS
Security algorithms	256-bit AES
S.M.A.R.T. support	Yes
TRIM support	Yes
Hardware encryption	Yes
Mean time between failures (MTBF)	1500000 h
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Power
Power consumption DevSlp (device sleep)	8.6 mW
Power consumption (write)	8.8 W
Power consumption (read)	10.5 W
Power consumption (idle)	0.009 W
Operating voltage	3.3 V
Performance
Interface	PCI Express 5.0
Component for	PC/Game console
SSD capacity	8 TB
Read speed	14800 MB/s
Write speed	13400 MB/s
NVMe	Yes
NVMe version	2.0
DevSlp (device sleep) support	Yes
Memory type	V-NAND TLC
PCI Express interface data lanes	x4
Random read (4KB)	2200000 IOPS
Random write (4KB)	2600000 IOPS
Security algorithms	256-bit AES
S.M.A.R.T. support	Yes
TRIM support	Yes
Hardware encryption	Yes
Mean time between failures (MTBF)	1500000 h
Design
SSD form factor	M.2
Weight & dimensions
Width	80.2 mm
Depth	3.88 mm
Height	80.2 mm
Package type	Box
Packaging data
Package type	Box
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Operating shock	1500 G
Technical details
Interface	PCI Express 5.0
Operating temperature (T-T)	0 - 70 °C
Operating shock	1500 G
SSD form factor	M.2
Warranty period	5 year(s)
Other features
Warranty period	5 year(s)

9100 PRO, PCIe 5.0, NVMe M.2 SSD

Key Features

• Samsung NVMe SSD powered by V-NAND technology
• Up to 14,800 MB/s sequential read and 13,400 MB/s write speed
• Upto 2,200K IOPS random read and 2,600K IOPS random write speed

Reasons To Buy

Breakthrough PCIe® 5.0 performance

Push PCIe® 5.0 performance to the max. 9100 PRO achieves lightning-fast sequential read/write speeds up to 14,800/13,400 MB/s, two times faster than 990 PRO. Leave Gen4 limits behind with random read/write speeds up to 2,200K/2,600K IOPS, only possible by Gen5.

Impressive processing power

Speed past productivity limits. Exhilarating random read/write speeds enable ultra-fast parallel processing for countless fragmented data, at up to 2,200K/2,600K IOPS. Experience superior output and instant loads for huge games, high-performance tasks, and even AI applications.

Rapid AI creation

Intelligence redefines performance. Defy your limits in work and play with an on-board AI PC and AI content generation, fuelled by 9100 PROs exhilarating random read/write speeds up to 2,200K/2,600K IOPS. Swift loads, smooth gameplay, seamless performance.

Exceptional performance at your fingertips

Elevate your competitive edge. Breeze through video editing, 3D art, and even long streaming sessions with the latest PCIe® 5.0 interfaces. Experience cutting-edge performance anytime, anywhere, on any device, and choose the storage you need with expansive capacity up to 8TB.

Extraordinary thermal efficiency

Peak performance, uninterrupted. The advanced 5nm controller power architecture enhances power efficiency up to 49% over 990 PRO. Exceptional thermal control ensures nothing disrupts your flow, so you can keep the most demanding programs running with the max possible power of PCIe® 5.0.

Samsung Magician software

Make your SSD work like magic. Samsung Magician software's optimisation tools ensure the best SSD performance. It's a safe and easy way to migrate all your data for a Samsung SSD upgrade. Protect valuable data, monitor drive health, and get the latest firmware updates.

Bringing innovations to life

For decades, Samsungs NAND flash memory has powered groundbreaking technologies that have changed every part of our daily lives. This NAND flash technology also powers our consumer SSDs, making room for the next big push of innovation.

PCIe® 5.0 Performance

Max 14,800/13,400 MB/s sequential speeds,two times faster than 990 PRO.

Advance your gameplay

Mega capacity with exceptional compatibility.

Innovative Power & Thermal Control

Up to 49% enhanced power efficiency with advanced thermal control.

Description

Breakthrough PCIe® 5.0 performance
Push PCIe® 5.0 performance to the max. 9100 PRO achieves lightning-fast sequential read/write speeds up to 14,800/13,400 MB/s, two times faster than 990 PRO. Leave Gen4 limits behind with random read/write speeds up to 2,200K/2,600K IOPS, only possible by Gen5.

Impressive processing power
Speed past productivity limits. Exhilarating random read/write speeds enable ultra-fast parallel processing for countless fragmented data, at up to 2,200K/2,600K IOPS. Experience superior output and instant loads for huge games, high-performance tasks, and even AI applications.

Rapid AI creation
Intelligence redefines performance. Defy your limits in work and play with an on-board AI PC and AI content generation, fuelled by 9100 PROs exhilarating random read/write speeds up to 2,200K/2,600K IOPS. Swift loads, smooth gameplay, seamless performance.

Exceptional performance at your fingertips
Elevate your competitive edge. Breeze through video editing, 3D art, and even long streaming sessions with the latest PCIe® 5.0 interfaces. Experience cutting-edge performance anytime, anywhere, on any device, and choose the storage you need with expansive capacity up to 8TB.

Extraordinary thermal efficiency
Peak performance, uninterrupted. The advanced 5nm controller power architecture enhances power efficiency up to 49% over 990 PRO. Exceptional thermal control ensures nothing disrupts your flow, so you can keep the most demanding programs running with the max possible power of PCIe® 5.0.

Samsung Magician software
Make your SSD work like magic. Samsung Magician software's optimisation tools ensure the best SSD performance. It's a safe and easy way to migrate all your data for a Samsung SSD upgrade. Protect valuable data, monitor drive health, and get the latest firmware updates.

Bringing innovations to life
For decades, Samsungs NAND flash memory has powered groundbreaking technologies that have changed every part of our daily lives. This NAND flash technology also powers our consumer SSDs, making room for the next big push of innovation.

PCIe® 5.0 Performance
Max 14,800/13,400 MB/s sequential speeds,two times faster than 990 PRO.

Advance your gameplay
Mega capacity with exceptional compatibility.

Innovative Power & Thermal Control
Up to 49% enhanced power efficiency with advanced thermal control.

Specifications

Features
Interface	PCI Express 5.0
Component for	PC/Game console
SSD capacity	2 TB
Read speed	14700 MB/s
Write speed	13400 MB/s
NVMe	Yes
NVMe version	2.0
DevSlp (device sleep) support	Yes
Memory type	V-NAND TLC
PCI Express interface data lanes	x4
Random read (4KB)	1850000 IOPS
Random write (4KB)	2600000 IOPS
Security algorithms	256-bit AES
S.M.A.R.T. support	Yes
TRIM support	Yes
Hardware encryption	Yes
Mean time between failures (MTBF)	1500000 h
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Power
Power consumption DevSlp (device sleep)	4 mW
Power consumption (write)	7.9 W
Power consumption (read)	8.1 W
Power consumption (idle)	0.005 W
Operating voltage	3.3 V
Average power consumption (write)	7.9 W
Average power consumption (read)	8.1 W
Performance
Interface	PCI Express 5.0
Component for	PC/Game console
SSD capacity	2 TB
Read speed	14700 MB/s
Write speed	13400 MB/s
NVMe	Yes
NVMe version	2.0
DevSlp (device sleep) support	Yes
Memory type	V-NAND TLC
PCI Express interface data lanes	x4
Random read (4KB)	1850000 IOPS
Random write (4KB)	2600000 IOPS
Security algorithms	256-bit AES
S.M.A.R.T. support	Yes
TRIM support	Yes
Hardware encryption	Yes
Mean time between failures (MTBF)	1500000 h
Design
SSD form factor	M.2
Weight & dimensions
Width	80.2 mm
Depth	2.38 mm
Height	80.2 mm
Weight	9 g
Package width	149 mm
Package depth	100 mm
Package height	24 mm
Package weight	70 g
Package type	Box
Packaging data
Package width	149 mm
Package depth	100 mm
Package height	24 mm
Package weight	70 g
Package type	Box
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Operating shock	1500 G
Technical details
Interface	PCI Express 5.0
Operating temperature (T-T)	0 - 70 °C
Operating shock	1500 G
SSD form factor	M.2
Warranty period	5 year(s)
Other features
Warranty period	5 year(s)

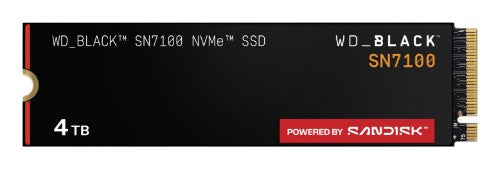

Western Digital Black WD_BLACK™ SN7100 NVMe™ SSD POWERED BY SANDISK 4 TB, 4 TB, M.2, 7000 MB/s

Description

Western Digital Black WD_BLACK™ SN7100 NVMe™ SSD POWERED BY SANDISK 4 TB. SSD capacity: 4 TB, SSD form factor: M.2, Read speed: 7000 MB/s, Write speed: 6700 MB/s, Component for: PC

Specifications

Features
Interface	PCI Express 4.0
Component for	PC
SSD capacity	4 TB
Read speed	7000 MB/s
Write speed	6700 MB/s
NVMe	Yes
Memory type	3D TLC NAND
Random read (4KB)	900000 IOPS
Random write (4KB)	1350000 IOPS
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Performance
Interface	PCI Express 4.0
Component for	PC
SSD capacity	4 TB
Read speed	7000 MB/s
Write speed	6700 MB/s
NVMe	Yes
Memory type	3D TLC NAND
Random read (4KB)	900000 IOPS
Random write (4KB)	1350000 IOPS
Design
SSD form factor	M.2
Weight & dimensions
Width	22 mm
Depth	80 mm
Height	1 mm
Weight	5.8 g
Operational conditions
Operating temperature (T-T)	0 - 85 °C
Storage temperature (T-T)	-40 - 85 °C
Technical details
Interface	PCI Express 4.0
Operating temperature (T-T)	0 - 85 °C
Storage temperature (T-T)	-40 - 85 °C
SSD form factor	M.2

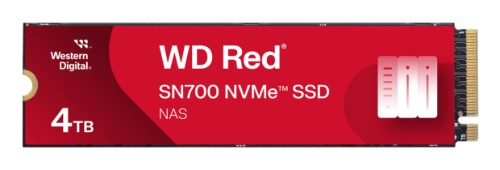

WD Red SN700 NVMe POWERED BY SANDISK 4 TB

Description

Accelerate Your NAS
Tackle extreme workloads in high-intensity NAS environments with the fast-caching WD Red SN700 NVMe™ SSD. The drive’s robust system responsiveness and exceptional I/O performance are perfect for multi-user, multitasking applications, letting you tame your SMB’s toughest projects from virtualization to collaborative editing to intensive database storage with efficient caching —all while helping to lower your TCO.

Accelerate Your NAS
The fast-caching power of the WD Red SN700 NVMe™ SSD delivers robust system responsiveness and exceptional I/O performance compared to our SATA SSDs.

Built to Last
Tackle 24/7 NAS workload environments with reliability and endurance of up to 5100 TBW (4TB model), backed by a 5-year limited warranty.

Step Up to NVMe™
Tame your SMB’s toughest projects—from virtualization to collaborative editing to intensive database storage with efficient caching —with storage designed to outperform while helping to lower your TCO.

Perfect for SMBs
Even in smaller operations, multiple people working at the same time can tax a NAS device. NVMe caching easily handles random workloads in multi-user, multitasking applications to let small-to-medium businesses do more.

Scale Up to Keep Up
Keep ahead of the data explosion with huge capacities up to 4TB.

Optimize Your Workflow
Purpose-built and tested to be compatible with many of today’s most popular NAS systems for maximum flexibility to optimize your workflow.

Specifications

Features
Interface	PCI Express 3.0
Component for	NAS
SSD capacity	4 TB
Read speed	3400 MB/s
Write speed	3100 MB/s
NVMe	Yes
PCI Express interface data lanes	x4
Data transfer rate	8 Gbit/s
Random read (4KB)	550000 IOPS
Random write (4KB)	520000 IOPS
Hardware encryption	No
Mean time between failures (MTBF)	1750000 h
TBW rating	5100
SSD form factor	M.2
Harmonized System (HS) code	84717070
Power
Current	2.8 A
Power consumption (sleep)	0.005 W
Performance
Interface	PCI Express 3.0
Component for	NAS
SSD capacity	4 TB
Read speed	3400 MB/s
Write speed	3100 MB/s
NVMe	Yes
PCI Express interface data lanes	x4
Data transfer rate	8 Gbit/s
Random read (4KB)	550000 IOPS
Random write (4KB)	520000 IOPS
Hardware encryption	No
Mean time between failures (MTBF)	1750000 h
TBW rating	5100
Design
SSD form factor	M.2
Weight & dimensions
Width	22 mm
Depth	80 mm
Height	2.38 mm
Weight	9.57 g
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-55 - 85 °C
Minimum operating temperature	0 °C
Maximum operating temperature	70 °C
Technical details
Interface	PCI Express 3.0
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-55 - 85 °C
SSD form factor	M.2
Harmonized System (HS) code	84717070
Logistics data
Harmonized System (HS) code	84717070

ThinkSystem M.2 5400 PRO 480GB Read Intensive SATA 6Gb NHS

Description

The ThinkSystem 5400 PRO Read Intensive SATA 6Gb SSDs are general-purpose self-encrypting SSDs (SEDs) based on the Micron 5400 PRO platform and are available in capacities ranging from 240GB to 7.86TB. They are engineered for greater performance and endurance in a cost-effective design, and to support a broader set of workloads. This product guide provides essential presales information to understand the 5400 PRO SSDs, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the 5400 PRO SSDs and consider their use in IT solutions.

Specifications

Performance
Interface	Serial ATA III
Component for	Server/workstation
SSD capacity	480 GB
Memory type	3D TLC NAND
Random read (4KB)	95000 IOPS
Random write (4KB)	37000 IOPS
Read latency	170 µs
Write latency	42 µs
S.M.A.R.T. support	Yes
Hot-swap	Yes
Mean time between failures (MTBF)	3000000 h
Compatible products	ThinkSystem
Design
Certification	Micron Green Standard Built with sulfur resistant resistors CE (Europe): EN 55032 Class B, RoHS UKCA (UK): SI 2016/1091 Class B and SI 2012/3032 RoHS FCC: CFR Title 47, Part 15 Class B UL/cUL: approval to UL-60950-1, 2nd Edition, IEC 60950-1:2005 (2nd Edition); EN 60950-1 (2006) + A11:2009+ A1:2010 + A12:2011 + A2:2013 BSMI (Taiwan): approval to CNS 13438 Class B and CNS 15663 RCM (Australia, New Zealand): AS/NZS CISPR32 Class B KC RRA (Korea): approval to KN32 Class B, KN 35 Class B W.E.E.E.: compliance with EU WEEE directive 2012/19/EC TUV (Germany): approval to IEC60950/EN60950 VCCI (Japan): 2015-04 Class B IC (Canada): ICES-003 Class B Morocco: approval to EN55032/EN55024 Class B UkrSEPRO (Ukraine): EN55032 Class B, IEC60950/EN60950, RoHS (Resolution 2017 No. 139)
SSD form factor	M.2
Features
Interface	Serial ATA III
Component for	Server/workstation
SSD capacity	480 GB
Memory type	3D TLC NAND
Random read (4KB)	95000 IOPS
Random write (4KB)	37000 IOPS
Read latency	170 µs
Write latency	42 µs
S.M.A.R.T. support	Yes
Hot-swap	Yes
Mean time between failures (MTBF)	3000000 h
Certification	Micron Green Standard Built with sulfur resistant resistors CE (Europe): EN 55032 Class B, RoHS UKCA (UK): SI 2016/1091 Class B and SI 2012/3032 RoHS FCC: CFR Title 47, Part 15 Class B UL/cUL: approval to UL-60950-1, 2nd Edition, IEC 60950-1:2005 (2nd Edition); EN 60950-1 (2006) + A11:2009+ A1:2010 + A12:2011 + A2:2013 BSMI (Taiwan): approval to CNS 13438 Class B and CNS 15663 RCM (Australia, New Zealand): AS/NZS CISPR32 Class B KC RRA (Korea): approval to KN32 Class B, KN 35 Class B W.E.E.E.: compliance with EU WEEE directive 2012/19/EC TUV (Germany): approval to IEC60950/EN60950 VCCI (Japan): 2015-04 Class B IC (Canada): ICES-003 Class B Morocco: approval to EN55032/EN55024 Class B UkrSEPRO (Ukraine): EN55032 Class B, IEC60950/EN60950, RoHS (Resolution 2017 No. 139)
SSD form factor	M.2
Compatible products	ThinkSystem
Power
Power consumption (write)	3.1 W
Power consumption (read)	2.5 W
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Non-operating shock	1500 G
Technical details
Interface	Serial ATA III
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Non-operating shock	1500 G
SSD form factor	M.2
Weight & dimensions
Width	22 mm
Depth	80 mm
Height	3.9 mm

9100 PRO with Heatsink, PCIe 5.0, NVMe M.2 SSD

Key Features

• Experience PCIe Gen 5.0 x4 performance twice as fast as the Gen 4 990 PRO
• Sequential read speeds up to 14,800MB/s ideal for tech enthusiasts, gamers and AI applications
• PlayStation5 console compatibility. The integrated heatsink disperses heat improving power effeciency and thermal control whilst maintaining speed
• Smart thermal solution provides consistent and reliable performance
• Available in different capacities up to 8TB
• Five year limited warranty

Reasons To Buy

Breakthrough PCIe® 5.0 performance

Push PCIe® 5.0 performance to the max. 9100 PRO with Heatsink achieves lightning-fast sequential read/write speeds up to 14,800/13,400 MB/s, two times faster than 990 PRO. Leave Gen4 limits behind with random read/write speeds up to 2,200K/2,600K IOPS, only possible by Gen5.

Impressive processing power

Speed past productivity limits. Exhilarating random read/write speeds enable ultra-fast parallel processing for countless fragmented data, at up to 2,200K/2,600K IOPS. Experience superior output and instant loads for huge games, high-performance tasks, and even AI applications.

Rapid AI creation

Intelligence redefines performance. Defy your limits in work and play with an on-board AI PC and AI content generation, fuelled by 9100 PRO with Heatsinks exhilarating random read/write speeds up to 2,200K/2,600K IOPS. Swift loads, smooth gameplay, seamless performance.

Advance your gameplay

Boundless gaming freedom. Join forces with the 9100 PRO with Heatsink on PC, laptop, or PlayStation® 5, and experience surreal performance with the latest PCIe® 5.0 interfaces. Equip yourself with the ultimate advantage to help overwhelm opponents and emerge victorious.

Extraordinary thermal efficiency

Peak performance, uninterrupted. The advanced 5nm controller power architecture enhances power efficiency up to 49% over 990 PRO. Exceptional thermal control ensures nothing disrupts your flow, so you can keep the most demanding programs running with the max possible power of PCIe® 5.0.

Boost your gaming experience

Secure victory with the immense 8TB capacity. 9100 PRO with Heatsink delivers huge space to expand your ever-growing game library. Break free from storage constraints and keep all your favourite game titles.

Slim build. Seamless fit.

Super slim fit. 9100 PRO with Heatsink boasts an incredibly thin 8.8mmT body, compatible with PlayStation® 5, PC, and on laptops, meeting PCI-SIG® D8 specs. Overcome space limits and get ultimate design flexibility to build your most efficient, high-performance system, with the compact M.2 form factor.

Samsung Magician software

Make your SSD work like magic. Samsung Magician software's optimisation tools ensure the best SSD performance. It's a safe and easy way to migrate all your data for a Samsung SSD upgrade. Protect valuable data, monitor drive health, and get the latest firmware updates.

Bringing innovations to life

For decades, Samsungs NAND flash memory has powered groundbreaking technologies that have changed every part of our daily lives. This NAND flash technology also powers our consumer SSDs, making room for the next big push of innovation.

PCIe® 5.0 Performance

Max 14,800/13,400 MB/s sequential speeds,two times faster than 990 PRO.

Advance your gameplay

Mega capacity with exceptional compatibility.

Innovative Power & Thermal Control

Up to 49% enhanced power efficiency with advanced thermal control.

Description

Breakthrough PCIe® 5.0 performance
Push PCIe® 5.0 performance to the max. 9100 PRO with Heatsink achieves lightning-fast sequential read/write speeds up to 14,800/13,400 MB/s, two times faster than 990 PRO. Leave Gen4 limits behind with random read/write speeds up to 2,200K/2,600K IOPS, only possible by Gen5.

Impressive processing power
Speed past productivity limits. Exhilarating random read/write speeds enable ultra-fast parallel processing for countless fragmented data, at up to 2,200K/2,600K IOPS. Experience superior output and instant loads for huge games, high-performance tasks, and even AI applications.

Rapid AI creation
Intelligence redefines performance. Defy your limits in work and play with an on-board AI PC and AI content generation, fuelled by 9100 PRO with Heatsinks exhilarating random read/write speeds up to 2,200K/2,600K IOPS. Swift loads, smooth gameplay, seamless performance.

Advance your gameplay
Boundless gaming freedom. Join forces with the 9100 PRO with Heatsink on PC, laptop, or PlayStation® 5, and experience surreal performance with the latest PCIe® 5.0 interfaces. Equip yourself with the ultimate advantage to help overwhelm opponents and emerge victorious.

Extraordinary thermal efficiency
Peak performance, uninterrupted. The advanced 5nm controller power architecture enhances power efficiency up to 49% over 990 PRO. Exceptional thermal control ensures nothing disrupts your flow, so you can keep the most demanding programs running with the max possible power of PCIe® 5.0.

Boost your gaming experience
Secure victory with the immense 8TB capacity. 9100 PRO with Heatsink delivers huge space to expand your ever-growing game library. Break free from storage constraints and keep all your favourite game titles.

Slim build. Seamless fit.
Super slim fit. 9100 PRO with Heatsink boasts an incredibly thin 8.8mmT body, compatible with PlayStation® 5, PC, and on laptops, meeting PCI-SIG® D8 specs. Overcome space limits and get ultimate design flexibility to build your most efficient, high-performance system, with the compact M.2 form factor.

Samsung Magician software
Make your SSD work like magic. Samsung Magician software's optimisation tools ensure the best SSD performance. It's a safe and easy way to migrate all your data for a Samsung SSD upgrade. Protect valuable data, monitor drive health, and get the latest firmware updates.

Bringing innovations to life
For decades, Samsungs NAND flash memory has powered groundbreaking technologies that have changed every part of our daily lives. This NAND flash technology also powers our consumer SSDs, making room for the next big push of innovation.

PCIe® 5.0 Performance
Max 14,800/13,400 MB/s sequential speeds,two times faster than 990 PRO.

Advance your gameplay
Mega capacity with exceptional compatibility.

Innovative Power & Thermal Control
Up to 49% enhanced power efficiency with advanced thermal control.

Specifications

Features
Interface	PCI Express 5.0
Component for	PC/Game console
SSD capacity	8 TB
Read speed	14800 MB/s
Write speed	13400 MB/s
NVMe	Yes
NVMe version	2.0
DevSlp (device sleep) support	Yes
Memory type	V-NAND TLC
PCI Express interface data lanes	x4
Random read (4KB)	2200000 IOPS
Random write (4KB)	2600000 IOPS
Security algorithms	256-bit AES
S.M.A.R.T. support	Yes
TRIM support	Yes
Hardware encryption	Yes
Mean time between failures (MTBF)	1500000 h
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Power
Power consumption DevSlp (device sleep)	8.6 mW
Power consumption (write)	8.8 W
Power consumption (read)	10.5 W
Power consumption (idle)	0.009 W
Operating voltage	3.3 V
Performance
Interface	PCI Express 5.0
Component for	PC/Game console
SSD capacity	8 TB
Read speed	14800 MB/s
Write speed	13400 MB/s
NVMe	Yes
NVMe version	2.0
DevSlp (device sleep) support	Yes
Memory type	V-NAND TLC
PCI Express interface data lanes	x4
Random read (4KB)	2200000 IOPS
Random write (4KB)	2600000 IOPS
Security algorithms	256-bit AES
S.M.A.R.T. support	Yes
TRIM support	Yes
Hardware encryption	Yes
Mean time between failures (MTBF)	1500000 h
Design
SSD form factor	M.2
Weight & dimensions
Width	80.2 mm
Depth	3.88 mm
Height	80.2 mm
Weight	9.5 g
Package width	96 mm
Package depth	166 mm
Package height	22 mm
Package weight	80 g
Package type	Box
Packaging data
Package width	96 mm
Package depth	166 mm
Package height	22 mm
Package weight	80 g
Package type	Box
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Operating shock	1500 G
Technical details
Interface	PCI Express 5.0
Operating temperature (T-T)	0 - 70 °C
Operating shock	1500 G
SSD form factor	M.2
Warranty period	5 year(s)
Other features
Warranty period	5 year(s)
