Collection: Computer Cases

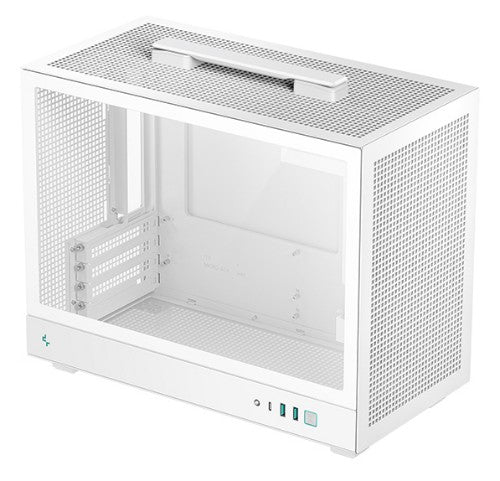

DeepCool CH160 PLUS WH, Small Form Factor (SFF), PC, White, micro ATX, Mini-ITX, Acrylonitrile butadiene styrene (ABS), SPCC, Tempered glass, 16.4 cm

Description

DeepCool CH160 PLUS WH. Form factor: Small Form Factor (SFF), Type: PC, Product colour: White. Power supply location: Top, Supported power supply form factors: ATX, PS2, SFX, SFX-L. Front fans diameters supported: 120,140 mm, Rear fans diameters supported: 120 mm, Top fans diameters supported: 120 mm. Supported HDD sizes: 2.5,3.5". Width: 195 mm, Depth: 375 mm, Height: 323.5 mm

Specifications

Ergonomics
On/off button	Yes
Design
Anti-dust filter	Yes
Form factor	Small Form Factor (SFF)
Type	PC
Material	Acrylonitrile butadiene styrene (ABS), SPCC, Tempered glass
Number of 5.25" bays	0
Number of 3.5" bays	1
Supported motherboard form factors	micro ATX, Mini-ITX
Product colour	White
Number of 2.5" bays	1
Side window	Yes
Number of expansion slots	4
Maximum CPU cooler height	16.4 cm
Maximum graphics card length	34.2 cm
Maximum PSU length	14 cm
On/off button	Yes
Tempered glass panel(s)	Yes
Power supply
Supported power supply form factors	ATX, PS2, SFX, SFX-L
Power supply included	No
Power supply location	Top
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 2.0 ports quantity	0
Combo headphone/mic port	Yes
Cooling
Rear radiator sizes supported	120 mm
Top radiator sizes supported	120,240 mm
Number of front fans supported (max)	1
Front fans diameters supported	120,140 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	120 mm
Number of top fans supported (max)	2
Top fans diameters supported	120 mm
Liquid cooling capability	Yes
Storage
Supported HDD sizes	2.5,3.5"
Weight & dimensions
Width	195 mm
Depth	375 mm
Height	323.5 mm
Weight	4.2 kg

Mini-ITX / Micro-ATX Micro-ATX(Rear Connector), USB3.0×2, Gen2 Type-C x1, Audio/Mic×1, 438 x 225 x 312.5 mm, Black

Description

The CH260 is an expanded version of the classic DeepCool ITX case CH160, it is capable of containing up to M-ATX motherboard and inherited with the high airflow legacy thanks to the full steel mesh panel.

GO MICRO
The Micro Form Factor CH260 comes with a tempered glass side panel to give your modern internal gears a show as the perforated top and front panels can be decked out with PIXEL rubber bits. The case also meets the rising demands for rear connector motherboards with a wider clearance of 29.6mm in the backplane.

SMALL SIZE OUTSIDE, FULL SIZE INSIDE
The CH260 provides multiple options in key components compatibility which can support full-size GPU up to 388mm in length or goes even longer to 413mm without front fan placement. ATX PS2 power supply can also fit into the case with a removable mounting bracket to free up space for easy cable management.

UNCOMPROMISED VENTILATION
The wraparound mesh panels and up to six 120mm fan placements effectively ensure cool air flows through the compact system and takes heat away. The maximum thermal hardware can go up to a 360mm AIO liquid cooler on top or a 174mm high tower heat sink on the CPU.

Specifications

Design
Form factor	Micro Tower
Type	PC
Material	Acrylonitrile butadiene styrene (ABS), SPCC, Tempered glass
Number of 3.5" bays	1
Supported motherboard form factors	micro ATX, Mini-ATX, Mini-ITX
Product colour	Black
Number of 2.5" bays	1
Number of internal 3.5" bays	1
Suitable for	Gaming
Side window	Yes
Number of expansion slots	4
Maximum CPU cooler height	17.4 cm
Maximum graphics card length	41.3 cm
Power supply
Supported power supply form factors	PS2
Power supply included	No
Ports & interfaces
USB 3.2 Gen 2x2 Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 2.0 ports quantity	0
Combo headphone/mic port	Yes
Cooling
Rear radiator sizes supported	120 mm
Top radiator sizes supported	120,240,360 mm
Number of front fans supported (max)	2
Front fans diameters supported	120 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	120 mm
Number of top fans supported (max)	3
Top fans diameters supported	120,140 mm
Storage
Supported HDD sizes	2.5,3.5"
Weight & dimensions
Width	225 mm
Depth	438 mm
Height	312.5 mm
Weight	5.3 kg

Mid-Tower, ITX/Micro-ATX/ATX, 2x 3.5", 3x 2.5", 7x expansion slots, 2x USB3.0, 1x Gen2 Type-C, 1x Audio/Mic, 440 × 285 × 399 mm, black

Key Features

• A dual-chamber configuration
• Panoramic Design
• ATX mid-tower size
• Support for up to 360 mm radiator
• Supports rear connector motherboards
• USB3.0×2, Gen2 Type-C x1, Audio/Mic×1
• Cable management: 45mm
• Pre-installed with three PWM ARGB reverse flowfans ontheside and one PWM ARGB standard fan on the rear

Description

The CG530 4F is a panoramic ATX case featuring fully glass-covered front and side panels. It comespre-installed with 4 PWM ARGB fans, delivering a captivating gaming ambiance, and transforming your buildinto the ultimate "SHOW CASE". With room to support 160mm air coolers or 360mm radiators, coolingwill not be an issue.
The CG530 4F features a wide case structure with a dual-chamber layout, PSU and harddisks benefit from separate air channels, while support for rear connector motherboards keeps the internal layout impeccably neat and organized.

The CG530 4F targets users who are looking for a panoramic ATX case that can support the most commonly used components. With a dual-chamber layout and supporting rear connector motherboards, TheCG530 4F is a great starting point for price-conscious users who want to display their hardware proudly.It is an excellent option for seasoned enthusiasts and basic users alike.

THE ULTIMATE'SHOW"CASE
Experience the ultimate showcase buildwithitspillerless design. Featuring a seamless, nonA-pillarconstruction, the CG530 4F boastsbothatempered glass side panel and a glassfrontpanel,providing a crystal-clear viewof componentsintofull display, turning it into a true workof art.

Advanced Dual-Chamber Design
Featuring a wide case structure with a sophisticated dual-chamber layout, this case ensures excellent compatibility and optimal airflow. The PSU and hard disks benefit from separate air channels, while support for rear connector motherboards keeps the
internal layout impeccably neat and organized.

High-Performance Aesthetics
Engineered for both superior aesthetics and thermal efficiency, the CG530 4F comes pre-installed with three PWM ARGB reverse flow fans on the side and one PWM ARGB standard fan on the rear. This advanced fan configuration not only optimizes heat dissipation but also enhances system performance, while the four PWM ARGB fans deliver a captivating gaming ambiance, transforming your build into the
ultimate "SHOW CASE".

Versatility andCompatibility
The CG530 4F accommodatescomponentranging from a 210mmPSU, to a 410mmGPU, ensuring installation of the most powerful components without compromise. SupportsATXmotherboards and offers 7 expansionslots, providing ample roomfor multiple GPUs, high-endsound cards, and other peripherals. Additionally, theCG530 4F (features versatile storageoptionswith 2 x 3.5" drive bays and 2+1 x 2.5" drivebays,allowing a mixture of storage solutionsforoptimalperformance and capacity.

Maximum Cooling Capabilities
Never fear the heat with CG530 4F 's exceptional cooling support. Designed to house a variety of cooling components, it offers wide compatibility for radiators and fans to keep your system running cool under any load.

This versatile setup ensures optimal airflow and efficient heat dissipation, making it perfect for high-performance builds and overclocking enthusiasts. Whether using air or liquid cooling, the CG530 4F is engineered to deliver peak thermal performance and keep components performing at their best.

Easy MaintenanceandCableManagement
Keep your build pristine and your componentsdust-free.The top and bottom panels are equippedwithmagneticair filters, making cleaning a breeze and providingrobustdust prevention. Additionally, the backplaneoffersanimpressive 45mm of wiring space, ensuringthat cablemanagement is straightforward and hassle-free. Enjoyaclean, organized interior that enhances airflowandsimplifies maintenance.

WELL CONNECTED
Additional I/O ports, featuring dual USB 3.0, USB TYPE C, and 2-in-1 audio port, offers seamless connectivity for multiple devices, enhancing user versatility and system integration.

Specifications

Design
Tempered glass panel thickness	4 mm
Anti-dust filter	Yes
Form factor	Midi Tower
Type	PC
Material	Acrylonitrile butadiene styrene (ABS), SPCC, Tempered glass
Number of 5.25" bays	0
Number of 3.5" bays	2
Supported motherboard form factors	ATX, ITX, micro ATX
Product colour	Black
Number of 2.5" bays	3
Suitable for	Gaming
Side window	Yes
Reset button	Yes
Illumination location	Case fans
Illumination colour	Multi
Illumination	Yes
Cable management	Yes
Number of expansion slots	7
Maximum CPU cooler height	16 cm
Maximum graphics card length	41 cm
Maximum PSU length	21 cm
On/off button	Yes
Tempered glass panel(s)	Yes
Ergonomics
Reset button	Yes
Cable management	Yes
On/off button	Yes
Power supply
Supported power supply form factors	ATX, PS2
Power supply included	No
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 2.0 ports quantity	0
Audio output	Yes
Cooling
Top radiator sizes supported	120,140,240,280,360 mm
Side fans installed	3x 120 mm
Number of side fans supported (max)	3
Side fans diameters supported	120,140 mm
Rear fans installed	1x 120 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	120 mm
Number of top fans supported (max)	3
Top fans diameters supported	120,140 mm
Number of bottom fans supported (max)	3
Bottom fans diameters supported	120 mm
Liquid cooling capability	Yes
Bottom radiator sizes supported	120,240,360 mm
Side radiator sizes supported	120,140,240,280 mm
Storage
Supported HDD sizes	2.5,3.5"
Weight & dimensions
Width	285 mm
Depth	440 mm
Height	399 mm
Weight	7 kg
Tempered glass panel thickness	4 mm
Other features
Tempered glass panel thickness	4 mm

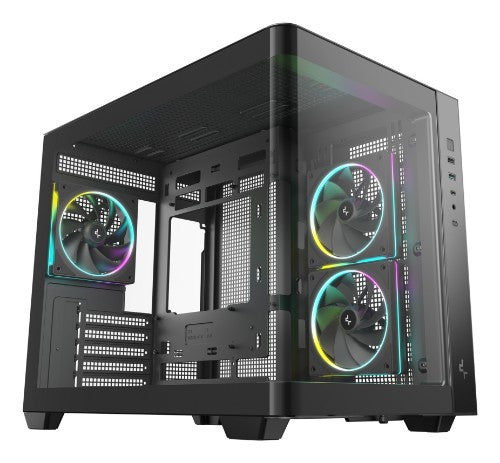

DeepCool CG330U 3F, PC, Black, micro ATX, ITX, Acrylonitrile butadiene styrene (ABS), SPCC, Tempered glass, Multi, Case fans

Description

DeepCool CG330U 3F. Type: PC, Product colour: Black, Supported motherboard form factors: micro ATX, ITX. Power supply location: Bottom, Supported power supply form factors: ATX, PS2, SFX, SFX-L. Side fans installed: 2x 120 mm, Side fans diameters supported: 120,140 mm, Rear fans installed: 1x 120 mm. Supported HDD sizes: 2.5,3.5". Width: 285 mm, Depth: 450 mm, Height: 370 mm

Specifications

Ergonomics
On/off button	Yes
Design
Type	PC
Material	Acrylonitrile butadiene styrene (ABS), SPCC, Tempered glass
Number of 5.25" bays	0
Number of 3.5" bays	1
Supported motherboard form factors	micro ATX, ITX
Product colour	Black
Number of 2.5" bays	2
Side window	Yes
Illumination location	Case fans
Illumination colour	Multi
Illumination	Yes
Number of expansion slots	5
Maximum CPU cooler height	16.4 cm
Maximum graphics card length	41 cm
Maximum PSU length	20 cm
On/off button	Yes
Power supply
Supported power supply form factors	ATX, PS2, SFX, SFX-L
Power supply included	No
Power supply location	Bottom
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 2.0 ports quantity	1
Audio output	Yes
USB Type-C ports quantity	1
Cooling
Rear radiator sizes supported	120 mm
Top radiator sizes supported	120,140,240,280,360 mm
Side fans installed	2x 120 mm
Number of side fans supported (max)	2
Side fans diameters supported	120,140 mm
Rear fans installed	1x 120 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	120 mm
Number of top fans supported (max)	3
Top fans diameters supported	120,140 mm
Number of bottom fans supported (max)	3
Bottom fans diameters supported	120 mm
Bottom radiator sizes supported	120,240,360 mm
Side radiator sizes supported	120,140,240,280 mm
Storage
Supported HDD sizes	2.5,3.5"
Weight & dimensions
Width	285 mm
Depth	450 mm
Height	370 mm
Weight	6.5 kg

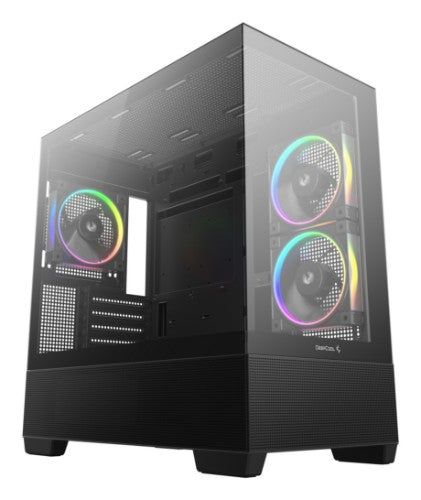

DeepCool CG380 3F, Midi Tower, PC, Black, ITX, micro ATX, Acrylonitrile butadiene styrene (ABS), SPCC, Tempered glass, Multi

Description

DeepCool CG380 3F. Form factor: Midi Tower, Type: PC, Product colour: Black. Power supply location: Bottom. Side fans installed: 2x 120 mm, Side fans diameters supported: 120 mm, Rear fans installed: 1x 120 mm. Supported HDD sizes: 2.5,3.5". Width: 235 mm, Depth: 437 mm, Height: 451 mm

Specifications

Ergonomics
LED indicators	Yes
On/off button	Yes
Design
Anti-dust filter	Yes
Form factor	Midi Tower
Type	PC
Material	Acrylonitrile butadiene styrene (ABS), SPCC, Tempered glass
Number of 3.5" bays	2
Supported motherboard form factors	ITX, micro ATX
Product colour	Black
Number of 2.5" bays	3
Side window	Yes
LED indicators	Yes
Illumination location	Back, Side
Illumination colour	Multi
Illumination	Yes
Number of expansion slots	5
Maximum CPU cooler height	17.6 cm
Maximum graphics card length	41 cm
Maximum PSU length	25 cm
On/off button	Yes
RGB control button	Yes
Power supply
Power supply included	No
Power supply location	Bottom
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Combo headphone/mic port	Yes
Cooling
Rear radiator sizes supported	120,140 mm
Top radiator sizes supported	120,140,240,280,360 mm
Side fans installed	2x 120 mm
Number of side fans supported (max)	2
Side fans diameters supported	120 mm
Rear fans installed	1x 120 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	120,140 mm
Number of top fans supported (max)	3
Top fans diameters supported	120,140 mm
Liquid cooling capability	Yes
Side radiator sizes supported	120,240 mm
Pulse-width modulation (PWM) support	Yes
Storage
Supported HDD sizes	2.5,3.5"
Packaging content
Screws included	Yes
Weight & dimensions
Width	235 mm
Depth	437 mm
Height	451 mm
Weight	6.83 kg
Other features
Screws included	Yes

Mini-ITX / Micro-ATX, ATX PS2, 418 x 215 x 431 mm, 4.9 kg

Description

CC360 ARGB
The DeepCool CC360 ARGB Micro-ATX case offers outstanding value with spacious component compatibility, a crystal-clear tempered glass window, and a total of three pre-installed ARGB fans that get any build started right.

CC360 ARGB
Micro-ATX Case

ABUNDANT AIRFLOW PERFORMANCE
Well ventilated throughout the entire chassis, the CC360 ARGB comes equipped with an airflow front panel and a large mesh top panel to ensure fresh air is circulating.

PRIMED AND READY
A total of 3 pre-installed ARGB fans delivers big airflow performance ensuring any system build is receiving top-notch cooling capacity.

WIDE COOLING SUPPORT
Enough space to support high-performance AIO liquid coolers with room for a 360mm radiator in front or a 240mm radiator on top. Cooling fan support for up to 6x 120mm or 4x 140mm.

COMPATIBILITY
- CPU Cooler Height (max): 165mm
- GPU Length (max): 320mm
- PSU Length (max): 160mm

STORAGE SOLUTIONS
Install up to 2x 2.5” SSDs directly on the backplate and 2x 3.5” HDDs underneath the shroud in a removeable drive cage for adjustability.

CRYSTAL CLEAR TEMPERED GLASS WINDOW
Showcase your system build with a clean and clear full-sized window.

TOP PANEL MAGNETIC DUST FILTER
Keeps the dust out but ensures exhaust air flows out seamlessly

FRONT I/O PANEL
Features USB 3.0, USB 2.0, and a combo audio jack.

Specifications

Ergonomics
Cable management	Yes
On/off button	Yes
Design
Anti-dust filter	Yes
Form factor	Mini Tower
Type	PC
Material	ABS, Steel, Tempered glass
Number of 5.25" bays	0
Number of 3.5" bays	2
Supported motherboard form factors	micro ATX, Mini-ITX
Product colour	Black
Number of 2.5" bays	3
Side window	Yes
Illumination location	Case fans
Illumination colour	Multi
Illumination	Yes
Cable management	Yes
Number of expansion slots	4
Maximum CPU cooler height	16.5 cm
Maximum graphics card length	32 cm
Maximum PSU length	16 cm
On/off button	Yes
Tempered glass panel(s)	Yes
Power supply
Supported power supply form factors	ATX, PS2
Power supply included	No
Power supply location	Bottom
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 2.0 ports quantity	1
Combo headphone/mic port	Yes
Cooling
Front radiator sizes supported	120,140,240,280,360 mm
Rear radiator sizes supported	120 mm
Top radiator sizes supported	120,140,240 mm
Front fans installed	2x 120 mm
Number of front fans supported (max)	3
Front fans diameters supported	120,140 mm
Rear fans installed	1x 120 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	120 mm
Number of top fans supported (max)	2
Top fans diameters supported	120,140 mm
Storage
HDD/SSD combo cage	Yes
Supported HDD sizes	2.5,3.5"
Packaging content
Manual	Yes
Weight & dimensions
Width	215 mm
Depth	418 mm
Height	431 mm
Weight	4.9 kg
Packaging data
Manual	Yes
Other features
Manual	Yes

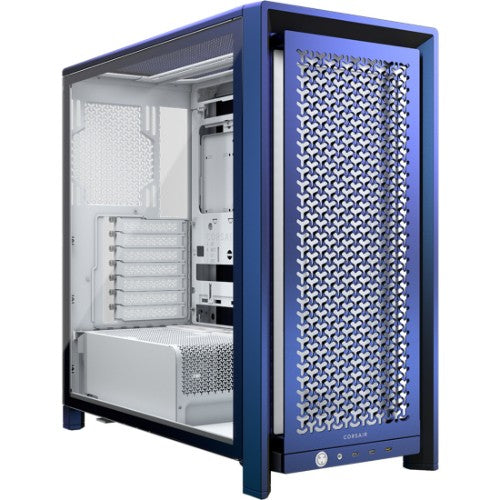

Vault Series Modular Mid-Tower PC Case – Nova, Tempered Glass, No Fans Included9

Key Features

• Chromatic paint that shifts color with viewing angle and lighting
• Aluminum badge with limited edition etching, only 1337 of each color made
• Full-Tempered Glass Side Panel and Compact PSU Shroud
• Modern Front I/O panel with 3x USB Type-C ports
• InfiniRail Fan Mounting System for easier building
• Dual 360mm radiator support
• GPU Anti-sag Stabilization Arm
• Compatible with reverse connector motherboards including ASUS BTF, MSI PROJECT ZERO, and GIGABYTE PROJECT STEALTH

Description

FAN FOCUSED

CORSAIR INFINIRAIL™ FAN MOUNTING SYSTEM
The steel multi-point mounting system provides unmatched flexibility for front and roof fan configurations. Easily slide the rail between 120mm and 140mm fan sizes and adjust the fan locations to ensure targeted airflow without limitations of fixed mounting points.

FIND YOUR PERFECT FRAME 4000D

WIDE COOLING FLEXIBILITY
Customize your cooling setup with room for up to 13x 120mm fans, plus versatile radiator mounting options including up to dual 360mm radiators. Install a GPU up to 405mm, even with fans installed in the front.

DIMENSIONS
The FRAME 4000D Vault Series has more than enough space to accommodate and cool your most ambitious build.

FAN CAPACITY
This spacious chassis supports up to 13x 120mm fans or 7x 140mm fans for exceptional internal airflow and super-low temperatures.

RADIATOR CAPACITY
Achieve the pinnacle of performance with liquid cooling and mount dual 360mm radiators with three locations to choose from: front, side, or roof.

Specifications

Ergonomics
On/off button	Yes
Design
Anti-dust filter	Yes
Form factor	Midi Tower
Type	PC
Material	Steel, Tempered glass, Plastic
Number of 5.25" bays	0
Number of 3.5" bays	1
Supported motherboard form factors	ATX
Product colour	Blue
Number of 2.5" bays	2
Number of internal 3.5" bays	1
Side window	Yes
Illumination location	Case fans
Illumination colour	Multi
Illumination	Yes
Number of expansion slots	7
Maximum CPU cooler height	17 cm
Maximum graphics card length	43 cm
Maximum PSU length	22 cm
On/off button	Yes
Power supply
Supported power supply form factors	ATX
Power supply included	No
Ports & interfaces
USB 3.2 Gen 2x2 Type-C ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	3
Audio input	Yes
Audio output	Yes
Combo headphone/mic port	Yes
USB Type-C ports quantity	1
Cooling
Front radiator sizes supported	360,280,240 mm
Rear radiator sizes supported	140,120 mm
Top radiator sizes supported	360,280,240 mm
Front fans installed	3x 120 mm
Number of front fans supported (max)	3
Front fans diameters supported	120,140,200 mm
Number of rear fans supported (max)	2
Rear fans diameters supported	120,140 mm
Number of top fans supported (max)	3
Top fans diameters supported	120,140 mm
Number of bottom fans supported (max)	3
Bottom fans diameters supported	120 mm
Liquid cooling capability	Yes
Side radiator sizes supported	360,280,240 mm
Storage
Supported HDD sizes	2.5,3.5"
Number of HDDs supported	3
Weight & dimensions
Width	239 mm
Depth	490 mm
Height	486 mm
Weight	12.5 kg

Midi Tower, Mini-ITX/Micro-ATX/ATX/E-ATX, Steel/Tempered Glass/Plastic, 14.5" LCD Display

Key Features

• XENEON EDGE 14.5" LCD Touchscreen pre-installed
• 4x RS120 PWM ARGB Fans for powerful cooling
• Modern Front I/O panel with 3x USB Type-C ports
• InfiniRail™ Fan Mounting System for superior cooling
• Compatibility with reverse connector motherboards

Description

A TOUCH ABOVE
LEVEL UP YOUR BATTLESTATION
Take your build to the next level with this standout 14.5" display. Showcase system metrics, calendars, weather apps, or in-game chats.

PREMIUM POWER
BUILD YOUR DREAM MACHINE
This leveled-up version of the FRAME 4000D includes a host of upgrades for peak performance with a pre-installed XENEON EDGE 14.5" LCD Touchscreen, more cooling power, updated front panel I/O, and increased rigidity for the ultimate mid-tower chassis.

EVEN COOLER
FOUR POWERFUL RS120 ARGB FANS INCLUDED
The FRAME 4000D LCD provides full system cooling right out of the box with three RS120 ARGB intake fans and one RS120 ARGB exhaust fan for powerful cooling with very low-noise and customizable lighting. A new 120mm/140mm fan mount has been added to the bottom of the chassis as well, giving builders even more options for fan placement.

FAN FOCUSED
CORSAIR INFINIRAIL™ FAN MOUNTING SYSTEM
The steel multi-point mounting system provides unmatched flexibility for front and roof fan configurations. Easily slide the rail between 120mm and 140mm fan sizes and adjust the fan locations to ensure targeted airflow without limitations of fixed mounting points.

MODERN FRONT PANEL I/O
Puts your connections within easy reach, including a USB 3.2 Gen 2x2 Type-C port with 20Gb/s of bandwidth, 2x USB 3.2 Gen 1 Type-C ports with 5Gb/s of bandwidth, and a combination audio/microphone jack.

BUILD AND CHILL
DUAL 360mm RADIATOR SUPPORT
Boost your cooling with three dedicated mounting locations for 360mm radiators—front, roof, and side. You can mount up to 13x 120mm fans simultaneously, ensuring continuous cool air intake and efficient hot air exhaust.

HIDDEN FROM VIEW
LOOK, NO CABLES
The case is fully compatible with motherboards with backside connections and works with ASUS BTF, MSI Project Zero, and GIGABYTE Project Stealth motherboards. It features ample connector and cable cutouts along with plenty of tie-downs to keep your build neat and organized.

A BREEZE TO BUILD IN
With a modern design approach to a mainstream PC format, the FRAME 4000D LCD RS ARGB has the convenient features to take the hassle out of your build.

EXTRA AIRFLOW
A new 120mm bottom fan mount gives PC builders even more options for fan placement.

SAG-FREE GRAPHICS CARDS
Every CORSAIR FRAME 4000D LCD includes a GPU Anti-sag Stabilization Arm to keep your GPU steady, so you never have to worry about damaging your PCIe slot.

CABLE SHROUD
Keep unused and overly long cables out of sight with the cable shroud for a clean and organized interior.

WIDE COOLING FLEXIBILITY
Customize your cooling setup with room for up to 13x 120mm fans, plus versatile radiator mounting options including up to dual 360mm radiators. Install a GPU up to 405mm, even with fans installed in the front.

Specifications

Ergonomics
Cable management	Yes
On/off button	Yes
Design
Anti-dust filter	Yes
Form factor	Midi Tower
Type	PC
Material	Plastic, Steel, Tempered glass
Number of 5.25" bays	0
Number of 3.5" bays	2
Supported motherboard form factors	ATX, EATX, micro ATX, Mini-ITX
Product colour	Black
Number of 2.5" bays	4
Suitable for	Gaming
Side window	Yes
Illumination location	Case fans
Illumination colour	Multi
Illumination	Yes
Cable management	Yes
Number of expansion slots	7
Maximum CPU cooler height	17 cm
Maximum graphics card length	43 cm
Maximum PSU length	22 cm
On/off button	Yes
Tempered glass panel(s)	Yes
Power supply
Supported power supply form factors	ATX
Power supply included	No
Display
Built-in display	Yes
Display type	LCD
Display diagonal	36.8 cm (14.5")
Touchscreen	Yes
Ports & interfaces
USB 3.2 Gen 2x2 Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 2.0 ports quantity	0
Combo headphone/mic port	Yes
Cooling
Front radiator sizes supported	360,280,240 mm
Rear radiator sizes supported	140,120 mm
Top radiator sizes supported	360,280,240 mm
Front fans installed	3x 120 mm
Number of front fans supported (max)	3
Front fans diameters supported	120,140,200 mm
Number of side fans supported (max)	3
Side fans diameters supported	120,140 mm
Rear fans installed	1x 120 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	120,140 mm
Number of top fans supported (max)	3
Top fans diameters supported	120,140 mm
Number of bottom fans supported (max)	2
Bottom fans diameters supported	120 mm
Liquid cooling capability	Yes
Side radiator sizes supported	360,280,240 mm
Pulse-width modulation (PWM) support	Yes
Storage
Supported HDD sizes	3.5"
SSD form factor	2.5"
Packaging content
Manual	Yes
Weight & dimensions
Width	239 mm
Depth	490 mm
Height	486 mm
Weight	12.4 kg
Packaging data
Manual	Yes
Other features
Manual	Yes
